Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
MDPS 17.5AMDPS Unit
MODULE 3 10ABCM, Sport Mode Switch, Stop Lamp Switch
STOP LAMP20AStop Signal Electronic Module
MODULE 1 MODULE17.5AKey Solenoid, Driver/Passenger Door Module
SUN ROOF 1 120APanorama Sunroof Motor
A/CON 7.5AA/C Control Module, E/R Junction Block (RLY. 3 - Blower Relay)
2MODULE 10AAMP, Power Outside Mirror Switch, Digital Clock, Audio, A/V & Navigation Head Unit, Smart Key Control Module, Overhead Console Lamp, BCM, E/R Junction Block (RLY. 5 - Power Outlet Relay)
A/BAG IND 7.5AInstrument Cluster
6MODULE 10A
Multipurpose Check Connector, A/C Control Module, A/V & Navigation Head Unit, Electro Chromic Mirror, Front Air Ventilation Seat Module, Front Seat Warmer Module, Rear Seat Warmer Module, Driver IMS Module, A/T Shift Lever IND, Auto Head Lamp Leveling Device Module, Head Lamp Leveling Device Actuator LH/RH
AMP25AAMP (JBL/MOBIS)
HTD STRG 15ABCM

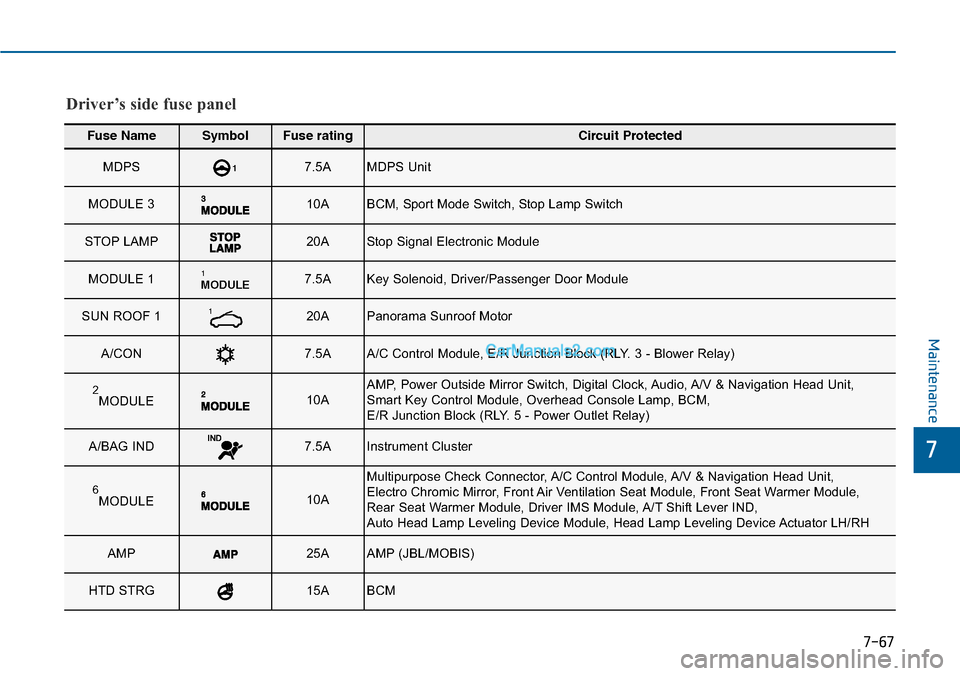

Driver’s side fuse panel
7-67
