7-79
7
Maintenance

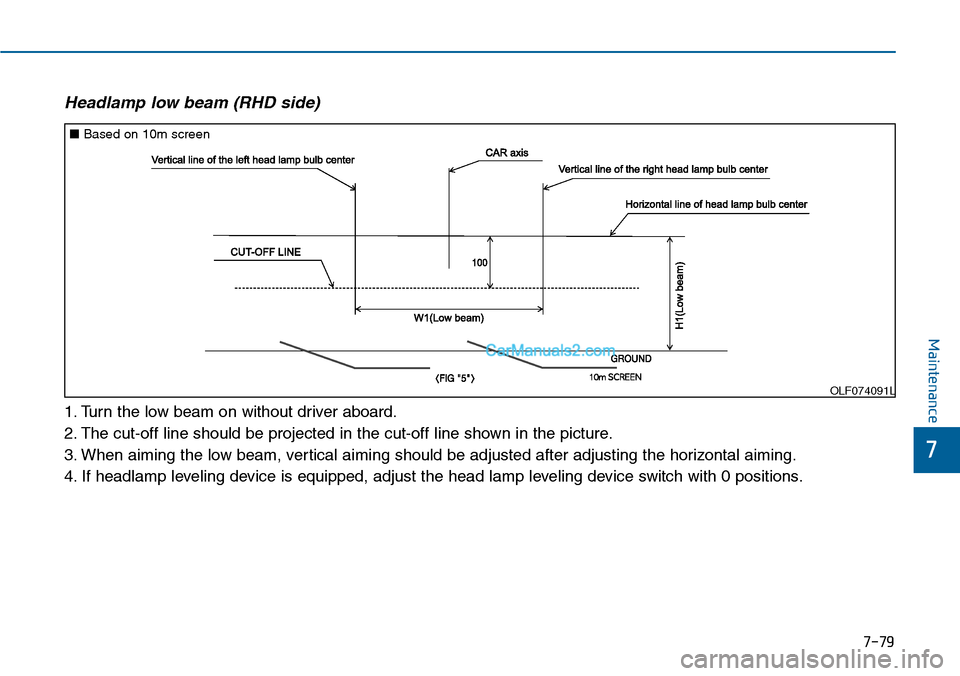

Headlamp low beam (RHD side)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If headlamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
OLF074091L
■Based on 10m screen
8-3
8
Specifications & Consumer information
BULB WATTAGE
Light Bulb Bulb type Wattage
Front
Headlamps
Low H7LL 55
Low/High D3S 35
High 9005HL+ 60
Turn signal lamps PY21W 21
Position lampsType ALED LEDType B
Daytime running light LED LED
Fog lamps H8 35
Static bending lamps H7LL 55
Rear
Rear combination lamp
Stop lamps P21/5W 21
Stop/
Tail lamps
Type A P21/5W 21
Type B LED LED
Tail lamps
Type A 5W 5
Type B P21/5W 5
Type C LED LED
Turn signal lamps PY21W 21
Back up lamps W16 16
High mounted stop lamp LED LED
Interior
Luggage lamp FESTOON 10
Map lampwith sunroof LED LED
without sunroof W10W 10
Room lamp FESTOON 10
