8

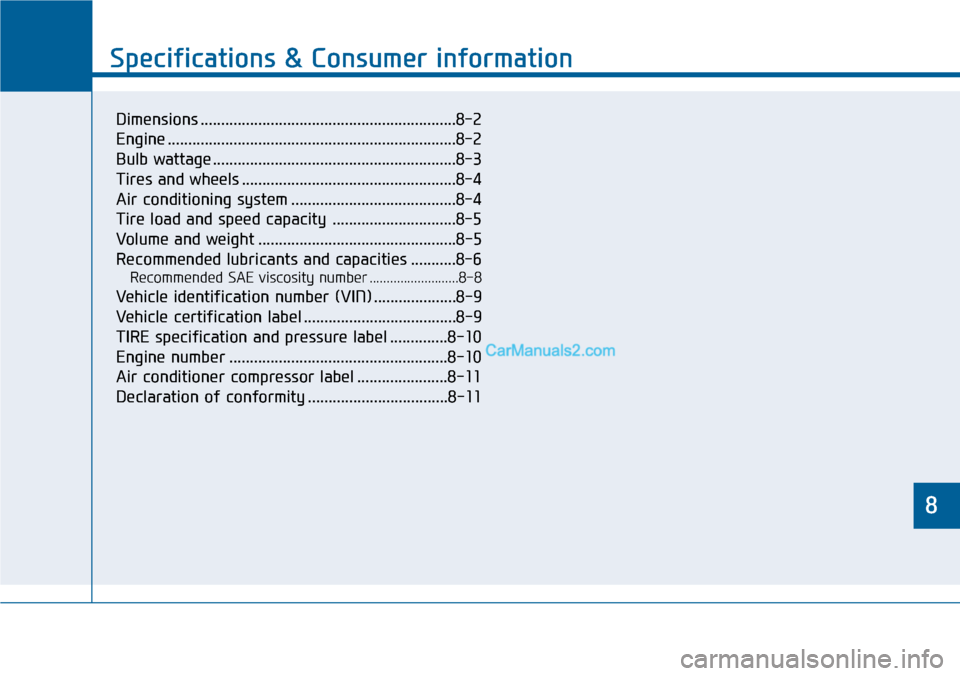

Specifications & Consumer information
8
Specifications & Consumer information
8
Dimensions ..............................................................8-2
Engine ......................................................................8-2
Bulb wattage ...........................................................8-3
Tires and wheels ....................................................8-4
Air conditioning system ........................................8-4
Tire load and speed capacity ..............................8-5
Volume and weight ................................................8-5
Recommended lubricants and capacities ...........8-6
Recommended SAE viscosity number ..........................8-8
Vehicle identification number (VIN) ....................8-9
Vehicle certification label .....................................8-9
TIRE specification and pressure label ..............8-10
Engine number .....................................................8-10
Air conditioner compressor label ......................8-11
Declaration of conformity ..................................8-11
8-4
Specifications & Consumer information
TIRES AND WHEELS
Item Tire sizeWheel
size
Inflation pressure, bar (kPa, psi)Wheel lug nut
torque
kg•m (lb•ft, N•m)
Normal load *1Maximum load
Front Rear Front Rear
Full size tire
205/65R16 6.5JX16 2.35 (235, 34) 2.35 (235, 34) 2.35 (235, 34) 2.35 (235, 34)
9~11
(65~79, 88~107)
215/55R17 7.0JX17 2.35 (235, 34) 2.35 (235, 34) 2.35 (235, 34) 2.35 (235, 34)
235/45R18 7.5JX18 2.35 (235, 34) 2.35 (235, 34) 2.35 (235, 34) 2.35 (235, 34)
Compact spare tire
(if equipped)
T125/80D164.0TX164.2 (420, 60)4.2 (420, 60)4.2 (420, 60)4.2 (420, 60)
T135/80D174.0TX174.2 (420, 60)4.2 (420, 60)4.2 (420, 60)4.2 (420, 60)
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
*1 :Normal load :Up to 3 persons
AIR CONDITIONING SYSTEM
ItemsWeight of Volume Classification
Refrigerant
g (oz.)
Theta 2.0T-GDI550 ± 25g (19.5 ± 0.8)
R-134aTheta 2.4MPI
650 ± 25g (22.9 ± 0.8)GDI
Nu 2.0MPI
Compressor lubricant
g (oz.) 100 ± 10 (3.52 ± 3.5)PA G ( F D 4 6 X G )
Contact an authorized HYUNDAI dealer for more details.
