2014 HYUNDAI I10 headrest

Safety features of your vehicle
2 3
Front seats
(1) Forward and rearward
(2) Seatback angle
(3) Seat cushion height (driver’s seat)*
(4) Headrest
Rear seats
(5) Seat folding*
(6) Headrest (outboard and/or center*)
* : if equipped
SEAT
OBA033001 ■
Left-hand drive

33
Safety features of your vehicle
Front seats
(1) Forward and rearward
(2) Seatback angle
(3) Seat cushion height (driver’s seat)*
(4) Headrest
Rear seats
(5) Seat folding*
(6) Headrest (outboard and/or center*)
* : if equipped
OBA033001R/Q ■
Right-hand drive

Safety features of your vehicle
6 3
Headrest
The driver's and front passenger's seats
are equipped with a headrest for the
occupant's safety and comfort.
The headrest not only provides comfort
for the driver and front passenger, but
also helps protect the head and neck in
the event of a collision.Adjusting the height up and down
(if equipped)
To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower the
headrest to the desired position (3).
OPA039052
WARNING
To reduce the risk of serious injury
or death in an accident, take the fol-
lowing precautions when adjusting
your headrests:
• Always properly adjust the head-
rests for all passengers BEFORE
starting the vehicle.
• NEVER let anyone ride in a seat
with the headrest removed.
• Adjust the headrests so the mid-
dle of the headrests is at the
same height as the height of the
top of the eyes (see diagram).
• NEVER adjust the headrest posi-
tion of the driver's seat when the
vehicle is in motion.
• Adjust the headrest as close to
the passenger's head as possi-
ble. Do not use a seat cushion
that holds the body away from
the seatback.
OBA033005

37
Safety features of your vehicle
Removal/Reinstall (if equipped)
To remove the headrest, raise it as far as
it can go then press the release button (1)
while pulling the headrest up (2).
To reinstall the headrest, put the head-
rest poles (3) into the holes while press-
ing the release button (1). Then adjust it
to the appropriate height.Seatback pocket (if equipped)
The seatback pocket is provided on the
back of the driver’s and/or front passen-
ger’s seatback.
Passenger seat under tray
(if equipped)
To open the tray, pull up the tray and then
pull it out forward.
OBA033006
WARNING
Always make sure the headrest
locks into position after reinstalling
and adjusting it properly.
WARNING- Seatback
pocket
Do not put heavy or sharp objects
in the seatback pocket. In an acci-
dent they could come loose from
the pocket and injure vehicle occu-
pants.
WARNING- Flammable
materials
Do not store cigarette lighters,
propane cylinders, or other flamma-
ble/explosive materials in the tray.
These items may catch fire and/or
explode if the vehicle is exposed to
hot temperatures for extended peri-
ods.
OBA033031LOPA037007

Safety features of your vehicle
8 3
Rear seat adjustment
Headrest
The rear seat(s) is equipped with head-
rests in the outboard seating positions
(and/or center seating position) for the
occupant's safety and comfort.
The headrest not only provides comfort
for passengers, but also helps protect
the head and neck in the event of a colli-
sion.Adjusting the height up and down
(if equipped)
To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower the
headrest to the desired position (3).
WARNING
To reduce the risk of serious injury
or death in an accident, take the fol-
lowing precautions when adjusting
your headrests:
• Always properly adjust the head-
rests for all passengers BEFORE
starting the vehicle.
• NEVER let anyone ride in a seat
with the headrest removed.
• Adjust the headrests so the mid-
dle of the headrests is at the
same height as the height of the
top of the eyes (see diagram).
• Adjust the headrest as close to
the passenger's head as possi-
ble. Do not use a seat cushion
that holds the body away from
the seatback.
OBA033025OPA039053

39
Safety features of your vehicle

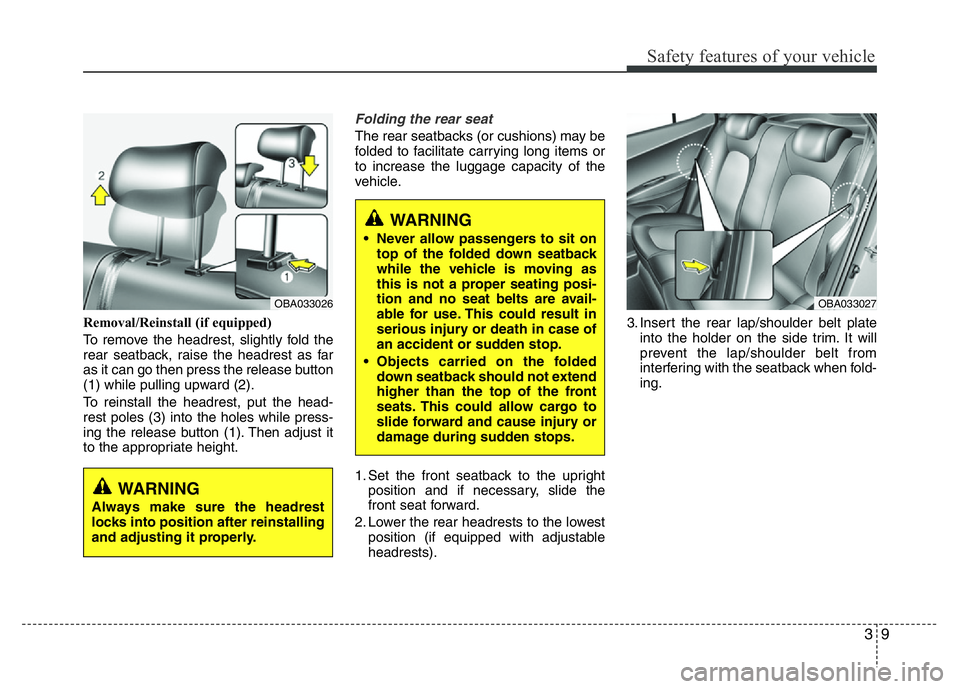

Removal/Reinstall (if equipped)
To remove the headrest, slightly fold the
rear seatback, raise the headrest as far
as it can go then press the release button
(1) while pulling upward (2).
To reinstall the headrest, put the head-
rest poles (3) into the holes while press-
ing the release button (1). Then adjust it
to the appropriate height.
Folding the rear seat
The rear seatbacks (or cushions) may be
folded to facilitate carrying long items or
to increase the luggage capacity of the
vehicle.
1. Set the front seatback to the upright
position and if necessary, slide the
front seat forward.
2. Lower the rear headrests to the lowest
position (if equipped with adjustable
headrests).3. Insert the rear lap/shoulder belt plate
into the holder on the side trim. It will
prevent the lap/shoulder belt from
interfering with the seatback when fold-
ing.
WARNING
• Never allow passengers to sit on
top of the folded down seatback
while the vehicle is moving as
this is not a proper seating posi-
tion and no seat belts are avail-
able for use. This could result in
serious injury or death in case of
an accident or sudden stop.
• Objects carried on the folded
down seatback should not extend
higher than the top of the front
seats. This could allow cargo to
slide forward and cause injury or
damage during sudden stops.
OBA033026OBA033027
WARNING
Always make sure the headrest
locks into position after reinstalling
and adjusting it properly.

437
Features of your vehicle

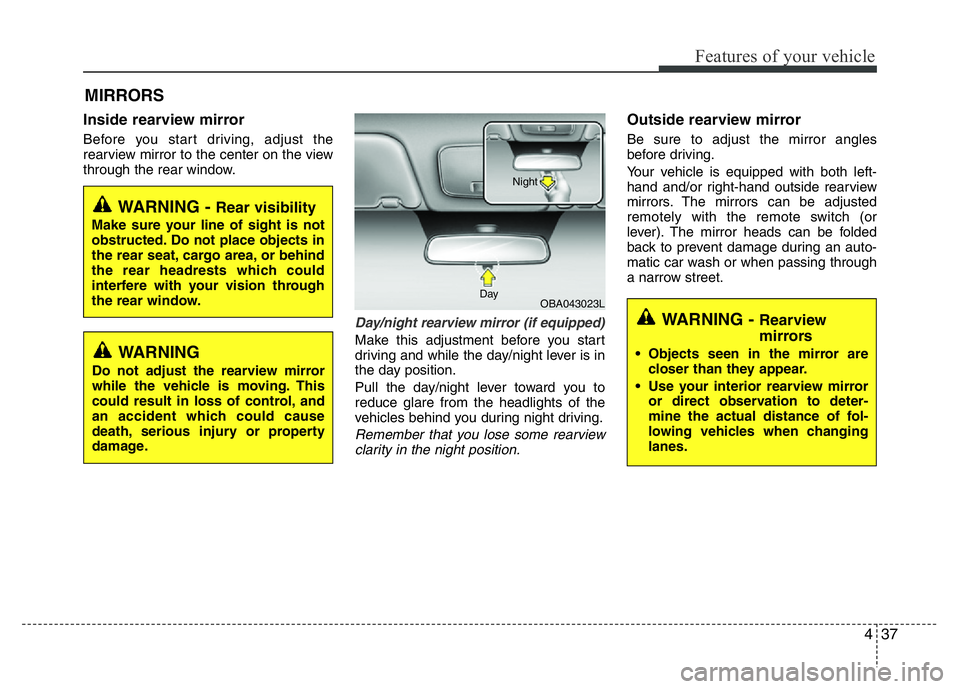

Inside rearview mirror
Before you start driving, adjust the
rearview mirror to the center on the view
through the rear window.
Day/night rearview mirror (if equipped)
Make this adjustment before you start
driving and while the day/night lever is in
the day position.
Pull the day/night lever toward you to
reduce glare from the headlights of the
vehicles behind you during night driving.
Remember that you lose some rearview
clarity in the night position.
Outside rearview mirror
Be sure to adjust the mirror angles
before driving.
Your vehicle is equipped with both left-
hand and/or right-hand outside rearview
mirrors. The mirrors can be adjusted
remotely with the remote switch (or
lever). The mirror heads can be folded
back to prevent damage during an auto-
matic car wash or when passing through
a narrow street.
MIRRORS
OBA043023L DayNight
WARNING
Do not adjust the rearview mirror
while the vehicle is moving. This
could result in loss of control, and
an accident which could cause
death, serious injury or property
damage.
WARNING - Rearview
mirrors
• Objects seen in the mirror are
closer than they appear.
• Use your interior rearview mirror
or direct observation to deter-
mine the actual distance of fol-
lowing vehicles when changing
lanes.
WARNING - Rear visibility
Make sure your line of sight is not
obstructed. Do not place objects in
the rear seat, cargo area, or behind
the rear headrests which could
interfere with your vision through
the rear window.

Driving your vehicle
16 5
N (Neutral)
The wheels and transaxle are not
engaged.
Use N (Neutral) if you need to restart a
stalled engine, or if it is necessary to stop
with the engine ON. Shift into P (Park) if
you need to leave your vehicle for any
reason.
Always depress the brake pedal when
you are shifting from N (Neutral) to
another gear.
D (Drive)
This is the normal driving position. The
transaxle will automatically shift through
a 4-gear sequence, providing the best
fuel economy and power.
For extra power when passing another
vehicle or driving uphill, depress the
accelerator fully. The transaxle will auto-
matically downshift to the next lower gear
(or gears, as appropriate).
Sports mode
Whether the vehicle is stationary or in
motion, sports mode is selected by push-
ing the shift lever from the D (Drive) posi-
tion into the manual gate. To return to D
(Drive) range operation, push the shift
lever back into the main gate.
WARNING
Do not shift into gear unless your
foot is firmly on the brake pedal.
Shifting into gear when the engine
is running at high speed can cause
the vehicle to move very rapidly.
You could lose control and hit peo-
ple or objects.
WARNING
NEVER allow anyone to ride in a
seat with the headrest removed.
OBA053005
OIA053004R
■Left-hand drive
■Right-hand drive
