Your vehicle at a glance
4 2
INTERIOR OVERVIEW
1. Inside door handle ................................4-22
2. Power window switch ............................4-27
3. Power window lock switch......................4-31
4. Central door lock switch ........................4-22
5. Outside rearview mirror control..............4-54
6. Hood release lever ................................4-32
7. Instrument panel illumination control
system....................................................4-57
8. Active ECO button ................................5-46
9. Steering wheel ......................................4-43
10. Tilt and telescopic steering
control lever..........................................4-44
11. Fuse box ..............................................7-58
12. Manual transaxle shift lever/
Automatic transaxle shift lever ....5-14, 5-17
OGD012003N❈ The actual shape may differ from the illustration.

Your vehicle at a glance
6 2
ENGINE COMPARTMENT
OGDE072001L
❈The actual engine room in the vehicle may differ from the illustration.1. Engine oil filler cap ............................7-27
2. Brake/clutch fluid reservoir ................7-32
3. Positive battery terminal ....................7-41
4. Negative battery terminal ..................7-41
5. Fuse box ............................................7-58
6. Air cleaner ........................................7-34
7. Radiator cap ......................................7-31
8. Engine coolant reservoir....................7-30
9. Engine oil dipstick..............................7-27
10. Windshield washer fluid reservoir ....7-33

73
Maintenance
ENGINE COMPARTMENT
OGDE072001L
* The actual engine room in the vehicle may differ from the illustration.1. Engine oil filler cap
2. Brake/clutch fluid reservoir
3. Positive battery terminal
4. Negative battery terminal
5. Fuse box
6. Air cleaner
7. Radiator cap
8. Engine coolant reservoir
9. Engine oil dipstick
10. Windshield washer fluid reservoir
* : if equipped

763
Maintenance
Instrument panel (Driver’s side fuse panel)
DescriptionFuse ratingProtected component
C/LIGHTER20AConsole Cigar Light, Rear Power Outlet
MODULE 17.5ASport Mode Switch, Power Outside Mirror Switch
MODULE 47.5AATM Shift Lever IND., Multipurpose Check Connector, Electro Chromic Mirror,
A/C Control Module, Head Lamp Leveling Device Actuator LH/RH,
Fuel Filter Warning Sensor(D4FD)
MODULE 37.5AInstrument Cluster, BCM, Tire Pressure Monitoring Module, Audio,
Driver/Passenger Seat Warmer Module
POWER
OUTLET FRT15AFront Power Outlet
HTD MIRR10ADriver/Passenger Power Outside Mirror, A/C Control Module, ECU
WIPER FRT25AICM Relay Box (Rain Sensor Relay), Multifunction Switch,
E/R Fuse & Relay Box (RLY. 7) Front Wiper Motor
A/CON7.5AA/C Control Module, E/R Fuse & Relay Box (RLY. 4)
P/WDW LH25A
T/GATE OPEN10ATail Gate, Rear Camera Open Actuator
P/SEAT DRV30ADriver Manual Switch
MODULE27.5AICM Relay Box, Electric Parking Brake Module, Rear Camera Module

Maintenance
64 7
DescriptionFuse ratingProtected component
WIPER RR15ARear Wiper Relay, Rear Wiper Motor, Multifunction Switch
STOP LAMP15AStop Lamp Switch, ICM Relay Box (HAC Relay)
P/WDW RH25A
PDM 27.5ASmart Key Control Module, Start/Stop Button Switch
MODULE 57.5AEMS BOX (Head Lamp Washer Relay), Ionizer Unit, Panorama Sunroof,
DC-DC Converter, DSL BOX (PTC Relay), E/R Fuse & Relay BOX(RLY. ),
Driver/Passenger Seat Warmer Module
IG120AE/R Fuse & Relay Box (Fuse – F)
MODULE 610AOutside Mirror Switch, Audio, Navigation Head Unit, Digital Clock, DC-DC Converter
MDPS7.5AEPS Control Module
DR LOCK20ADoor Lock/Unlock Relay, ICM Relay BOX (Dead Lock Relay),
Driver/Passenger Door Lock Actuator, Fuel filler actuator, Door Lock Actuator LH/RH
INTERIOR LAMP10AGlove Box Lamp, Vanity Lamp LH/RH, Overhead Console Lamp, Room Lamp,
Luggage Lamp, DR Warning Switch
MULTI MEDIA15AAudio, Navigation Head Unit, DC-DC Converter (Audio)
A/BAG15ASRS Control Module

765
Maintenance

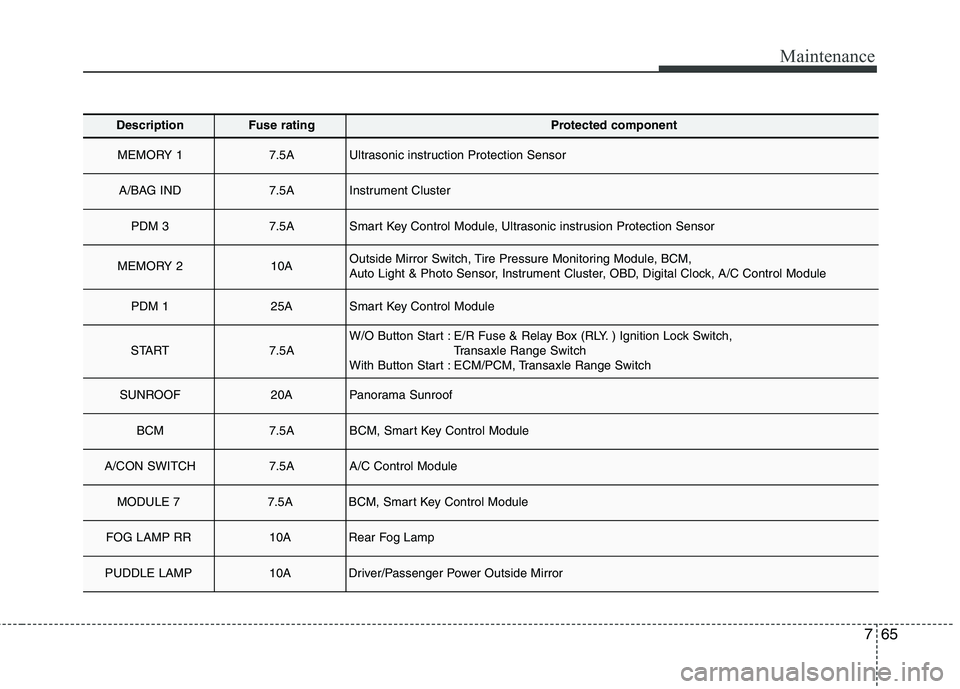

DescriptionFuse ratingProtected component
MEMORY 17.5AUltrasonic instruction Protection Sensor
A/BAG IND7.5AInstrument Cluster
PDM 37.5ASmart Key Control Module, Ultrasonic instrusion Protection Sensor
MEMORY 210AOutside Mirror Switch, Tire Pressure Monitoring Module, BCM,
Auto Light & Photo Sensor, Instrument Cluster, OBD, Digital Clock, A/C Control Module
PDM 125ASmart Key Control Module
START7.5AW/O Button Start : E/R Fuse & Relay Box (RLY. ) Ignition Lock Switch,
Transaxle Range Switch
With Button Start : ECM/PCM, Transaxle Range Switch
SUNROOF20APanorama Sunroof
BCM7.5ABCM, Smart Key Control Module
A/CON SWITCH7.5AA/C Control Module
MODULE 77.5ABCM, Smart Key Control Module
FOG LAMP RR10ARear Fog Lamp
PUDDLE LAMP10ADriver/Passenger Power Outside Mirror

767
Maintenance
DescriptionFuse ratingProtected component
MULTI
FUSE
MDPS80AEPS Control Module
B+160AI/P Junction Box (IPS 0 (4CH), IPS 1 (4CH), IPS 2 (2CH),
Fuse - F13/F14/F19/F20/F21/F26/ F36)
ABS 160AESC Control Module, Multipurpose Check Connector
BLOWER40ARLY. 4 (Blower Relay)
B+260AI/P Junction Box (IPS 3 (4CH), IPS 4 (4CH), Fuse - F2/F7/F9/F15)
GSL
PTC60ARLY. 12 (GASOLINE PTC Relay)
FUSE
C/FAN40ARLY. 1 (C/FAN LO Relay), RLY. 2 (C/FAN HI Relay)
ABS 220AESC Control Module, Multipurpose Check Connector
IG240ARLY. 9 (Start Relay), Ignition Switch (W/O Button Start),
RLY. 6 (PDM 4 (IG2) Relay, With Button Start)
IG140AW/O Button Start : Ignition Switch,
With Button Start : RLY. 8 (PDM 2 (ACC) Relay)/RLY. 10 (PDM 3 (IG1) Relay
DEICER15AICM Relay Box (Front Deicer Relay)
B+350AI/P Junction Box (Leak Current Autocut Device, Fuse - F18/F25/F30/F34/F38)
BRAKE SWITCH10ASmart Key Control Module, Stop Signal Relay

Maintenance
68 7
DescriptionFuse ratingProtected component
FUSE
EPB 130AElectric Parking Brake Module
EPB 230AElectric Parking Brake Module
TCU 220AD4FD & A/T : TCM
S/HEATER
FRT20ADriver/Passenger Seat Warmer Module
WIPER10APCM/ECM
HORN15ARLY. 5 (Horn Relay), ICM Relay Box (B/A Horn Relay)
TCU 115AA/T - TCM (D4FD), Transaxle Range Switch
ECU 615ARLY. 9 (D4FD, Start Relay), ECM/PCM
ABS 310AESC Control Module, Multipurpose Check Connector
ECU 310AECM/PCM, Air Flow Sensor, Stop Lamp Switch
B/UP
LAMP10AM/T - Back-Up Lamp Switch, A/T - Rear Combination Lamp (IN) LH/RH,
Rear Curtain Module, Navigation Head Unit, Electro Chromic Mirror, IPS Control Module
