2014 HYUNDAI ELANTRA GT fog light

765
Maintenance
DescriptionFuse ratingProtected component
MEMORY 17.5AUltrasonic instruction Protection Sensor
A/BAG IND7.5AInstrument Cluster
PDM 37.5ASmart Key Control Module, Ultrasonic instrusion Protection Sensor
MEMORY 210AOutside Mirror Switch, Tire Pressure Monitoring Module, BCM,
Auto Light & Photo Sensor, Instrument Cluster, OBD, Digital Clock, A/C Control Module
PDM 125ASmart Key Control Module
START7.5AW/O Button Start : E/R Fuse & Relay Box (RLY. ) Ignition Lock Switch,
Transaxle Range Switch
With Button Start : ECM/PCM, Transaxle Range Switch
SUNROOF20APanorama Sunroof
BCM7.5ABCM, Smart Key Control Module
A/CON SWITCH7.5AA/C Control Module
MODULE 77.5ABCM, Smart Key Control Module
FOG LAMP RR10ARear Fog Lamp
PUDDLE LAMP10ADriver/Passenger Power Outside Mirror

Maintenance
72 7

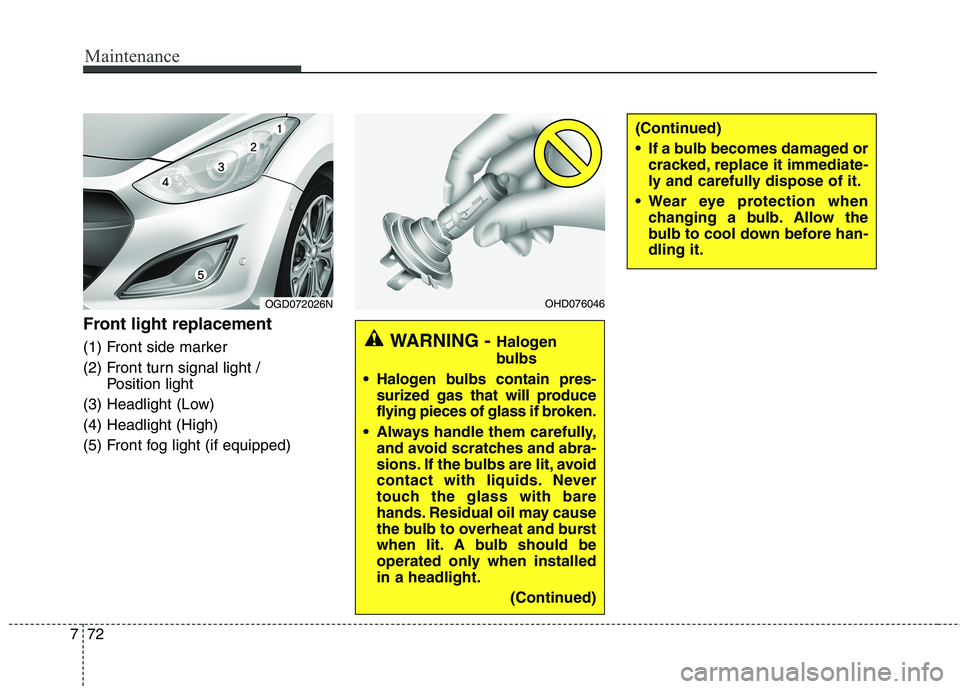

Front light replacement
(1) Front side marker
(2) Front turn signal light /
Position light
(3) Headlight (Low)
(4) Headlight (High)
(5) Front fog light (if equipped)
(Continued)
If a bulb becomes damaged or
cracked, replace it immediate-
ly and carefully dispose of it.
Wear eye protection when
changing a bulb. Allow the
bulb to cool down before han-
dling it.
WARNING - Halogen
bulbs
Halogen bulbs contain pres-
surized gas that will produce
flying pieces of glass if broken.
Always handle them carefully,
and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never
touch the glass with bare
hands. Residual oil may cause
the bulb to overheat and burst
when lit. A bulb should be
operated only when installed
in a headlight.
(Continued)
OHD076046OGD072026N

Maintenance
76 7

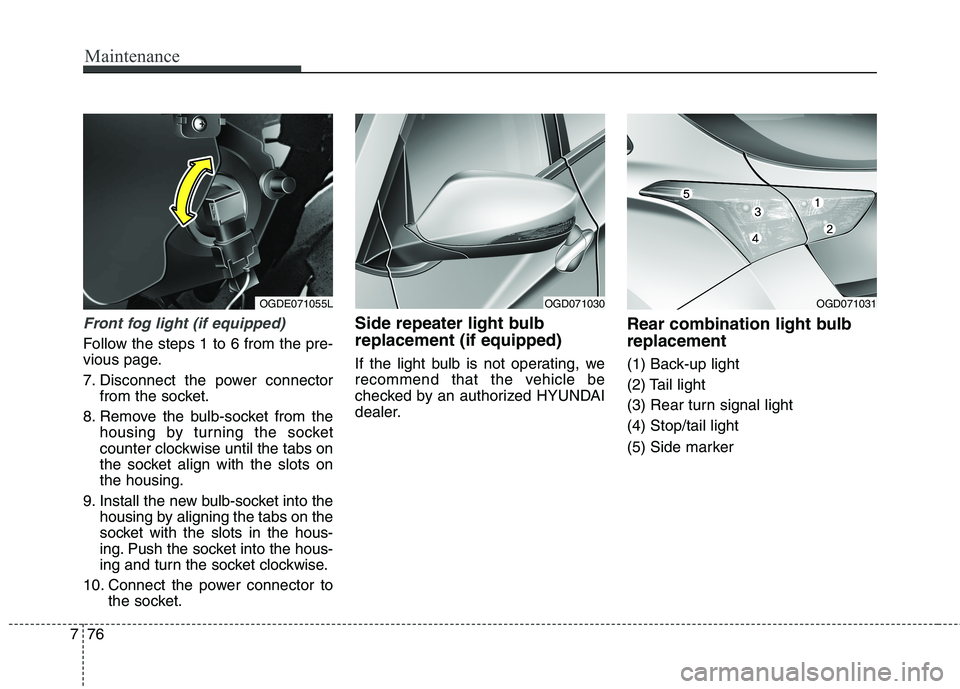

Front fog light (if equipped)
Follow the steps 1 to 6 from the pre-
vious page.
7. Disconnect the power connector
from the socket.
8. Remove the bulb-socket from the
housing by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the housing.
9. Install the new bulb-socket into the
housing by aligning the tabs on the
socket with the slots in the hous-
ing. Push the socket into the hous-
ing and turn the socket clockwise.
10. Connect the power connector to
the socket.
Side repeater light bulb
replacement (if equipped)
If the light bulb is not operating, we
recommend that the vehicle be
checked by an authorized HYUNDAI
dealer.
Rear combination light bulb
replacement
(1) Back-up light
(2) Tail light
(3) Rear turn signal light
(4) Stop/tail light
(5) Side marker
OGDE071055LOGD071031OGD071030

83
Specifications, Consumer information, Reporting safety defects
BULB WATTAGE
Light BulbWattageBulb type
Front
HeadlightsLow55H11
High55H7L
Front turn signal lights / Position ligth28/8PY28/8W
Front fog lights27881
Front side marker5W5WLL
Rear
Stop and tail lights28/8PY28/8W
Rear turn signal lights 27PY27W
Tail light 28/8PY28/8W
Rear side marker5W5WLL
Back-up lights 1616W
High mounted stop lightLEDLED
License plate lights5W5W
Interior
Map lamps8FESTOON
Room lamps8FESTOON
Luggage lamp8FESTOON
Vanity mirror lamps5FESTOON
