Page 107 of 488
106
uu Locking and Unlocking the Doors u Customizing the Auto Door Locking/Unlocking Setting *
Controls
Customizing the Auto Door Locking/Unlocking Setting *
You can customize the auto door locking/unlocking setting to your liking using the master door lock switch.
■Auto door locking
■Auto door unlocking
*1: Default setting
■List of the Auto Door Locking/Unlocking Customizable Options
ModeDescription
Drive Lock Mode*1All doors and the tailgate lock when the ve hicle’s speed reaches about 10 mph (15 km/h).
Park Lock ModeAll doors and the tailgate lock when the shift lever is moved out of (
P
with the brake pedal depressed.
OffThe auto door locking is deactivated all the time.
ModeDescription
Park Unlock ModeDriver’s door unlocks.*1All doors and the tailgate unlock.
When the shift leve r is moved into (P
with the brake pedal depressed.
Ignition Switch Unlock
ModeDriver’s door unlocks.All doors and the tailgate unlock.
When the ignition switch is moved out of ON (w
.
OffThe auto door unlocking is deactivated all the time.
* Not available on all models
Page 108 of 488
107
uu Locking and Unlocking the Doors u Customizing the Auto Door Locking/Unlocking Setting *
Continued
Controls
*1: Default setting

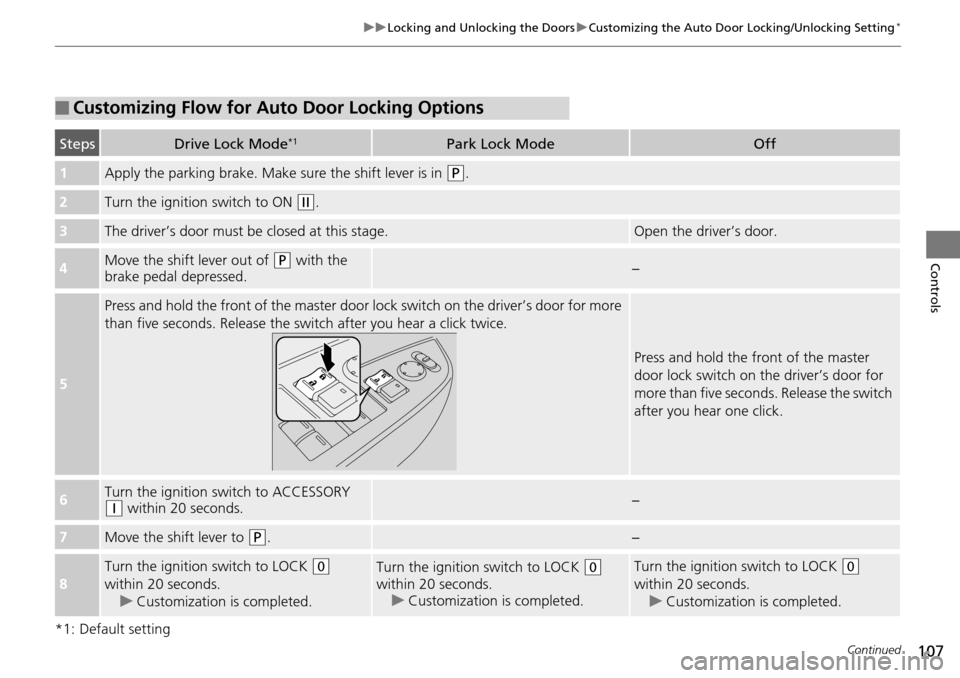

■Customizing Flow for Auto Door Locking Options
StepsDrive Lock Mode*1Park Lock ModeOff
1Apply the parking brake. Make sure the shift lever is in (P
.
2Turn the ignition switch to ON (w
.
3The driver’s door must be closed at this stage.Open the driver’s door.
4Move the shift lever out of (P
with the
brake pedal depressed.−
5
Press and hold the front of the master door lo ck switch on the driver’s door for more
than five seconds. Release the switch after you hear a click twice.
Press and hold the front of the master
door lock switch on the driver’s door for
more than five seconds. Release the switch
after you hear one click.
6Turn the ignition sw itch to ACCESSORY
(q
within 20 seconds.−
7Move the shift lever to (P
.−
8
Turn the ignition switch to LOCK (0
within 20 seconds.
u Customization is completed.
Turn the ignition switch to LOCK (0
within 20 seconds.
u Customization is completed.
Turn the ignition switch to LOCK (0
within 20 seconds. u Cus
tomization is completed.
Page 109 of 488
108
uu Locking and Unlocking the Doors u Customizing the Auto Door Locking/Unlocking Setting *
Controls
*1: Default setting

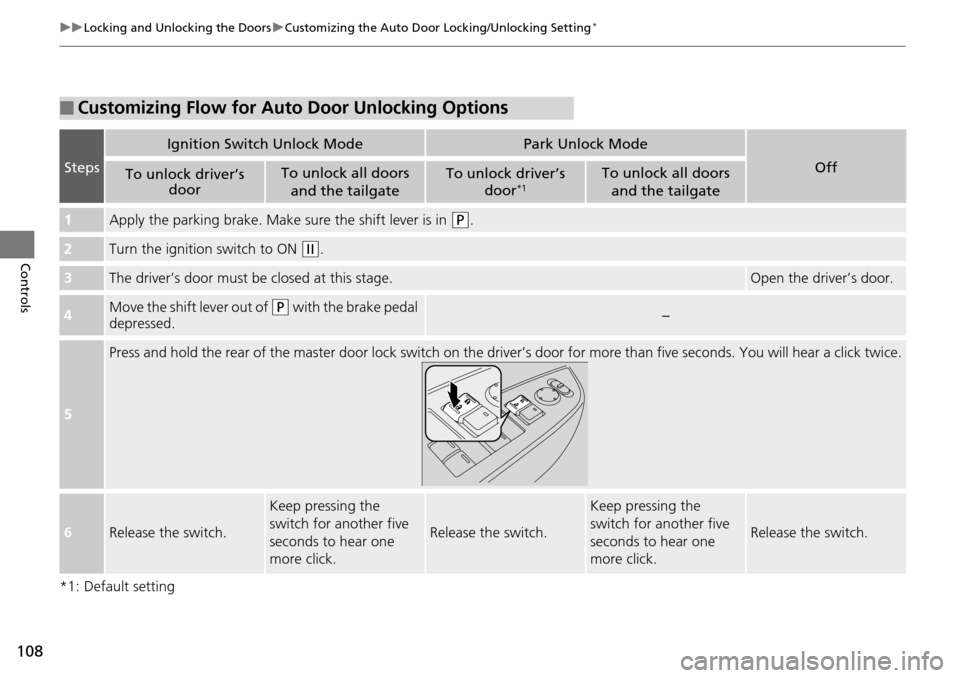

■Customizing Flow for Auto Door Unlocking Options
Steps
Ignition Switch Unlock ModePark Unlock Mode
OffTo unlock driver’s
doorTo unlock all doors
and the tailgateTo unlock driver’s door*1To unlock all doors
and the tailgate
1Apply the parking brake. Make sure the shift lever is in (P
.
2Turn the ignition switch to ON (w
.
3The driver’s door must be closed at this stage.Open the driver’s door.
4Move the shift lever out of (P
with the brake pedal
depressed.−
5
Press and hold the rear of the master door lock switch on the driv er’s door for more than five seconds. You will hear a click twice.
6Release the switch.
Keep pressing the
switch for another five
seconds to hear one
more click.
Release the switch.
Keep pressing the
switch for another five
seconds to hear one
more click.
Release the switch.
Page 110 of 488
109
uu Locking and Unlocking the Doors u Customizing the Auto Door Locking/Unlocking Setting *
Controls
*1: Default setting

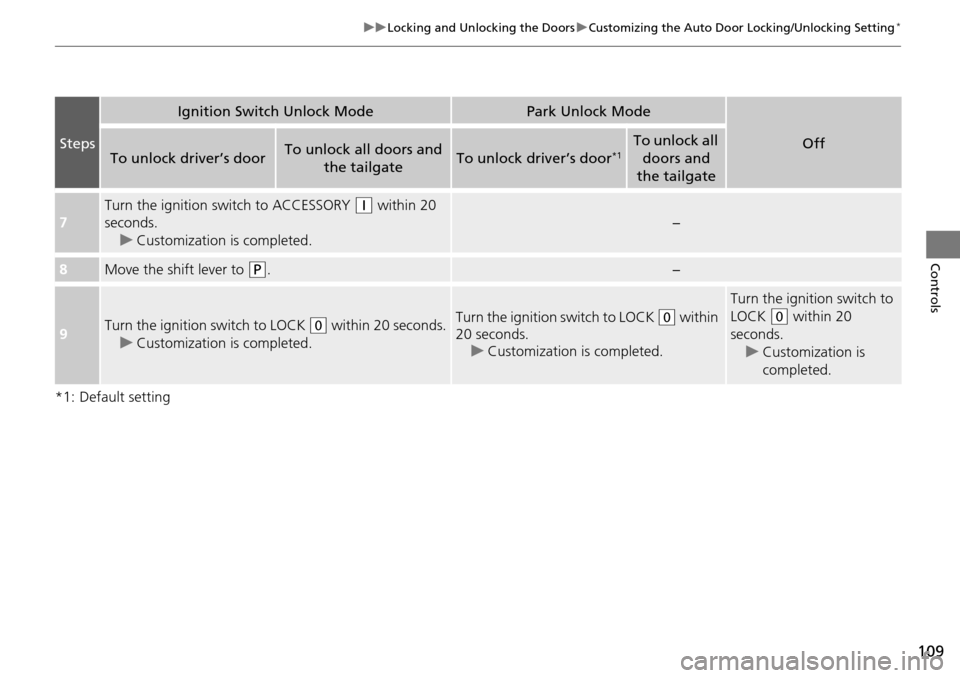

Steps
Ignition Switch Unlock ModePark Unlock Mode
OffTo unlock driver’s doorTo unlock all doors and
the tailgateTo unlock driver’s door*1To unlock all doors and
the tailgate
7
Turn the ignition sw itch to ACCESSORY (q
within 20
seconds.
u Customization is completed.
−
8Move the shift lever to (P
.−
9Turn the ignition switch to LOCK (0
within 20 seconds.
u Customization is completed.
Turn the ignition switch to LOCK (0
within
20 seconds.
u Customization is completed.
Turn the ignition switch to
LOCK
(0
within 20
seconds. u Cus
tomization is
completed.
Page 111 of 488
110
Controls
Opening and Closing the Tailgate
Precautions for Opening/Closing the Tailgate
Always make sure individuals and objects are clear of the tailgate before opening or
closing it.
■Opening the tailgate
• Open
the tailgate all the way.
u If i
t is not fully opened, the tailgate may come down accidentally by its own
weight.
• Be
careful when it is windy. The wind may cause the tailgate to close.
■Closing the tailgate
Keep the tailgate closed while driving to: u Avoi
d possible damage.
uPr
event exhaust gas from leaking into the vehicle.
2 Carbon Monoxide Gas P. 65
1Precautions for Opening/Closing the Tailgate
Be careful not to hit your head on the tailgate or to
put your hands between th e tailgate and the cargo
area when closing the tailgate.
When operating the power tailgate, make sure there
is enough space around your ve hicle. People near the
tailgate may be se riously hurt if the tailgate hits or
closes on their heads. Be especially cautious if
children are around.
When you are storing or pi cking up luggage from the
cargo area while the engine is idling, do not stand in
front of the exhaust pipe. You may get burned.
Do not allow any passenger in the cargo space. They
may get hurt during hard braking, a sudden
acceleration, or a crash.
3 WARNING
Closing a power tailgate while anyone is in
the path of the tailgate can cause serious
injury.
Make sure everyone is clear before closing
the tailgate.
Models with power tailgate
Page 112 of 488
111
uu Opening and Closing the Tailgate u Opening/Closing the Tailgate Using the Tailgate Release Button
Controls

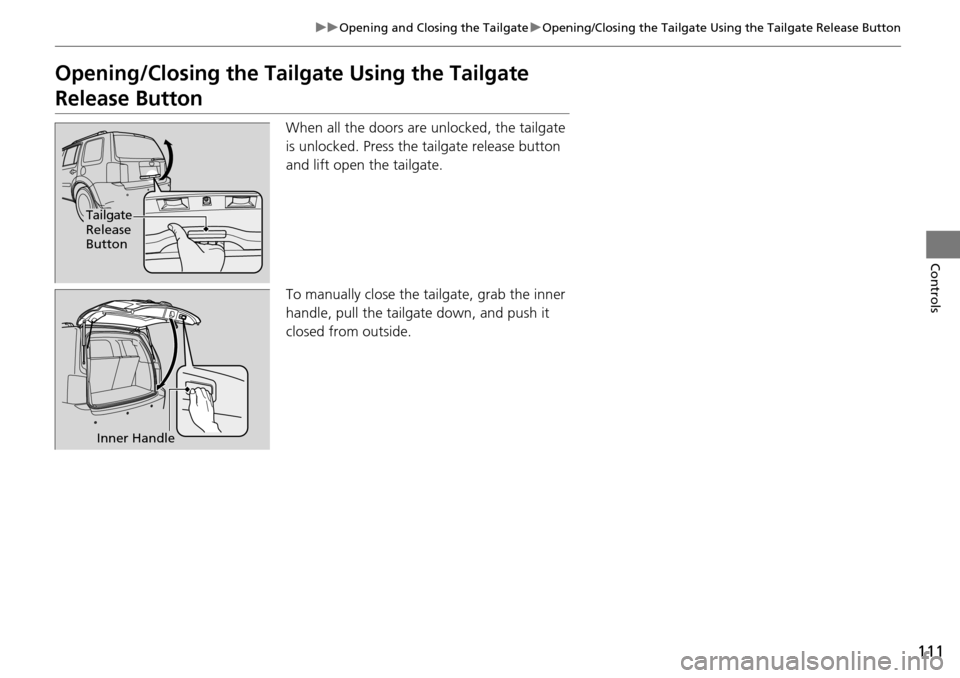

Opening/Closing the Tailgate Using the Tailgate
Release Button
When all the doors are unlocked, the tailgate
is unlocked. Press the tailgate release button
and lift open the tailgate.
To manually close the tailgate, grab the inner
handl
e, pull the tailgate down, and push it
closed from outside.
Tailgate
Release
Button
Inner Handle
Page 113 of 488
112
uu Opening and Closing the Tailgate u Opening/Closing the Power Tailgate *
Controls
Opening/Closing the Power Tailgate *
The power tailgate can be operated by pressing the power tailgate button on the
remote transmitter, pressing the power tailgate button on the driver's door, or
pressing the button on the tailgate.
■The power tailgate can be opened when:
• The tailgat
e and glass hatch are fully closed.
• The
shift lever is in (P
.
• The
key is not in the ignition switch when using the remote transmitter.
• You
have changed the PTG KEYLESS OPEN MODE setting to WHEN
UNLOCKED, you need to unlock the tailgate before you press the tailgate button
to open it.
2 Customized Features P. 90
■The power tailgate can be closed when:
• The tailgat
e is fully open.
• The
key is not in the ignition switch when using the remote transmitter.
1Opening/Closing the Power Tailgate *
The power tailgate may not open or close under the
following conditions:
•The vehicle is park ed on a steep hill.
•The vehicle is swayed in a strong wind.•The tailgate or the roof is covered with snow or ice.
If you close the power tail gate when all the doors are
locked, the power tailgate locks automatically.
If you replace the battery or the power tailgate fuse
while the tailgate is open, the power tailgate may be
disabled. The power tail gate resumes once you
manually close the tailgate.
Installing aftermarket components other than
genuine Honda a ccessories on the power tailgate
may prevent it from fully opening or closing.
Make sure the power tailgate is fully open before you
get your luggage in and out.
Make sure the power tailgate is fully closed before
you start the vehicle.
* Not available on all models
Page 114 of 488
Continued113
uu Opening and Closing the Tailgate u Opening/Closing the Power Tailgate *
Controls
Press the power tailgate button for more than
one second to operate.
To reverse direction while the power tailgate is
in operation, press the button again. The
beeper sounds three times and the tailgate
reverses direction.
■Customizing when to open the tailgate
ANYTIME :
The power tailgate unlocks and opens at the same
time. This is the default setting.
WHEN UNLOCKED:
The tailgate opens when all doors
are unlocked.
2Customized Features P. 90
To change the setting , do the following:
1. Apply the parking brake.
2. Turn the ignition
switch to ON (w
.
3. Press and hold the power
tailgate button in the driver' s door until you hear a
beep.
4. Turn the ignition
switch to OFF (0
.
u When ANYTIME is
set, you hear one long beep.
u When WHEN UNLOCKED
is set, you hear three short beeps.
■Remote Transmitter1Opening/Closing the Power Tailgate *
If the power tailgate meet s resistance while opening
or closing, the auto reverse feature reverses the
direction. Three beeps sound.
The auto reverse function stops sensing when the
tailgate is almost closed to make sure that it fully
closes.
Do not touch the sensors lo cated on both sides of the
tailgate. The power tailga te does not close if you
touch either sensor when you are trying to close the
tailgate.
Be careful not to scratch the sensors with a sharp
object. If scratched, they can be damaged, and the
power tailgate closing feature malfunctions.
Power
Tailgate
Button
Models with multi- information display
Models without multi-information display
* Not available on all models
