137Continued
Controls
Adjusting the Seats
Adjusting the Seat Positions
Adjust the driver's seat as far back as possible
while allowing you to ma intain full control of
the vehicle. You should be able to sit upright,
well back in the seat and be able to
adequately press the pedals without leaning
forward, and grip the steering wheel
comfortably. The passenger's seat should be
adjusted in a similar manner, so that it is as far
back from the front airbag in the dashboard
as possible.
■Adjusting th e front power seat(s) *
1Adjusting the Seats
The National Highway Traffic Safety Administration
and Transport Cana da recommend that drivers allow
at least 10 inches (25 cm) between the center of the
steering wheel and the chest.
Always make seat adjustments before driving.
3 WARNING
Sitting too close to a front airbag can result
in serious injury or death if the front
airbags inflate.
Always sit as far back from the front
airbags as possible while maintaining
control of the vehicle.
Move back.
Allow sufficient
space.
Horizontal Position
Adjustment
Height Adjustment
(Driver's seat only) Seat-back Angle
Adjustment Lumbar Support
Adjustment
(Driver's seat
only)
Driver’s seat is
shown.
* Not available on all models

165Continued
Controls
Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of he ated or cooled air that will raise or lower
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Press the AUTO b
utton.
2. Adjust the int
erior temperature using the dr iver's side or passenger's side control
dial.
3. Press the button to cancel.
■Switching between the recirc ulation and fresh air modes
Press the button and switch the mode depending on environmental conditions.
Recirculation Mode (indicator on): Recirculat es air
from the vehicle’s interior through
the system.
Fresh Air Mode (indicator off): Maintains outs
ide ventilation. Keep the system in
fresh air mode in normal situations.
1 Using Automatic Climate Control
If any buttons are presse d while using the climate
control system in AUTO, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button th at was pressed will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on AUTO, and setting the
temperature to low. Change the fresh mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switches the climate
control system between on and off. When turned on,
the system returns to your last selection.
Floor and
defroster vents
Floor vents
Dashboard and
floor vents
Dashboard vents
AUTO Button
Driver's Side
Temperature
Control Dial Passenger's Side
Temperature
Control Dial
/ (Fan Control) Bar
(Recirculation) Button
A/C (Air Conditioning) Button

uu Refueling u How to Refuel
372
Driving
■Gasoline containing ethanol
Some gasoline today is blended with oxygenates such as ethanol. Your vehicle is
desi
gned to operate on oxygenated gasoline containing up to 15% ethanol by
volume. Do not use gasoline containing methanol. If you notice any undesirable
operating symptoms, try another service st ation or switch to another brand of
gasoline.
■Fuel tank capacity: 21.0 US gal (79.5 liters)
How to Refuel
1. Stop your vehicle with the service station
pump on the left side of the vehicle in the
rear.
2. Turn
off the engine.
3.Pull on the
fuel fill door release handle
under the lower left corner of the
dashboard.
u Th
e fuel fill door opens.
1How to Refuel
3 WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Pull

390

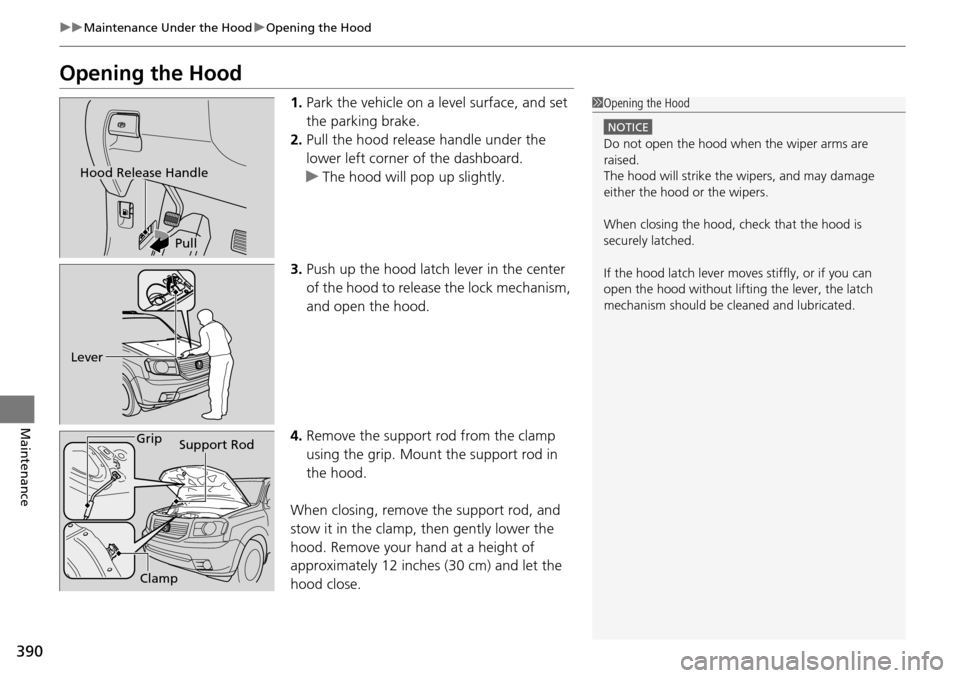

uu Maintenance Under the Hood u Opening the Hood
Maintenance
Opening the Hood
1. Park the vehicle on a level surface, and set
the parking brake.
2. Pul
l the hood release handle under the
lower left corner of the dashboard.
u Th
e hood will pop up slightly.
3. Pus
h up the hood latch lever in the center
of the hood to release the lock mechanism,
and open the hood.
4. R
emove the support rod from the clamp
using the grip. Mount the support rod in
the hood.
When closing, remove the support rod,
and
stow it in the clamp, then gently lower the
hood. Remove your hand at a height of
approximately 12 inches (30 cm) and let the
hood close.
1 Opening the Hood
NOTICE
Do not open the hood when the wiper arms are
raised.
The hood will strike the wipers, and may damage
either the hood or the wipers.
When closing the hood, check that the hood is
securely latched.
If the hood latch lever moves stiffly, or if you can
open the hood without lifti ng the lever, the latch
mechanism should be cl eaned and lubricated.
Hood Release Handle
Pull
Lever
Support Rod
Grip
Clamp

456
uu Fuses u Fuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
nu

mber and label number.
■Circuit protected and fuse rating
■Interior Fuse Box
Fuse Box
Circuit ProtectedAmps
1VTM-4 *(7.5 A)
2Fuel Pump20 A
3ACG10 A
4VSA7.5 A
5−−
6−−
7Auto Light10 A
8Auto Light7.5 A
9ODS7.5 A
10Meter7.5 A
11 SRS 10
A
12Right Daytime Running
Light10 A
13 Left Daytime Running Light 10
A
14Small Lights (Interior)7.5 A
15 Small Lights (Exterior) 10
A
16Right Head Light Low15 A
17 Left Head Light Low 15
A
18Daytime Running Light
Main20 A
19 Small Lights Main 15
A
20−−
TPMS7.5 A
21 Head Light Low Main 20
A
22VBSOL27.5 A
23 STRLD 7.5
A
24−−
25 −
−
26Driver’s Power Window20 A
27 HAC OP 20
A
28Moonroof(20 A)
29 Door Lock 20
A
30Front Passenger’s Power
Window20 A
31 Audio Amp (30
A)
Circuit ProtectedAmps
32Passenger’s Side Rear
Power Window20 A
33 Driver’s Side Rear Power
Win
dow 20 A
34−−
35 ACC 10
A
36HAC10 A
37 Day Light 7.5
A
38Wiper30 A
Circuit ProtectedAmps
