2014 HONDA CIVIC HYBRID steering

INSTRUMENT PANEL INDICATORSBriefly appear with each engine start. Red and amber indicators are most critical.
Blue and green indicators are used for general information. See your Owner’s
Manual for more information.
45
Malfunction IndicatorsIf an indicator remains on, there may be a problem; see your dealer
On/Off Indicators
Condition IndicatorsAction is needed by driver
PASSENGERAIRBAG
OFF%''#&
&
OFF(next to i\bMID)
VSA OFF
FCW off
CRUISE CONTROL on
Exterior lights on
Turn signals/hazards on
ECON on
High beams on
Charging system
Low brake fluid, Brake system
Low oil pressureAnti\bLock Brake System (ABS)
Vehicle Stability Assist®(VSA)
Supplemental Restraint System
(SRS)
Electric Power Steering (EPS)
Low temperature
Transmission (blinking)
Parking brake on:
Release
Low fuel:
Refill
Low tire pressure:
Add air
Immobilizer (blinks):
Use other vehicle key
and see dealer
Malfunction indicator lamp
(check engine light)
Seat belt reminder:
Fasten seat belt(s)
D
Message indicator:
See iMID
Door/Trunk open:
Close door(s) / trunkHigh temperature:
Drive slowly or pull over
Tire Pressure Monitoring System
(TPMS) (blinks and stays on)
CRUISE MAIN on
Smart Entry System
Brake system
Forward Collision
Warning (FCW)
IMA (hybrid) system Lane Departure Warning (LDW)
Auto idle stop (blinks)
14 Civic Hybrid TRG_Base_\AATG_NEW STYLE 1/\b/\A2014 1\f17 PM Page 4\A

67
I N T E L L I G E N T M U L T I I N F O R M A T I O N D I S P L A Y ( i M I D )Consists of several displays that provide you with useful information.
Main Displays
Subdisplays
Press the SEL/RESET button
to change sub\bdisplays.
Outside
temperature
Odometer Trip A Trip B
Clock
Accessing the iMID
Press the Display/Info button to
change main displays.
Steering Wheel Controls
( + ) Button:
Press to scroll
upward in the
Vehicle Menu.
(
t) Button:
Press to go back to
the previous Vehicle
Menu screen.
() Button:
Press to scroll
downward in the
Vehicle Menu. Display/Information
Button:
Change i\bMID displays.
SOURCE Button:
Press to enter a
selection.
(
u) Button:
Press to go to the next
Vehicle Menu screen.
MENU Button:
Press to go to Vehicle
Menu for customization
and other settings.
Use these buttons to operate the i\bMID and \2the Vehicle Menu.
*Press and hold the Display/Info
button to enter the trip
computer menu. Press
Display/Info to scroll through
range, elapsed time, and
average speed.
Audio display (or Phone
display during call) Trip
computer*
Ecological Drive
Display
A warning or indicator message
may appear as necessary. Press
the Display/Info button to clear it.
Main display Power flow monitor
Clock
(or wallpaper)
14 Civic Hybrid TRG_Base_\AATG_NEW STYLE 1/\b/\A2014 1\f17 PM Page 5\A

1213

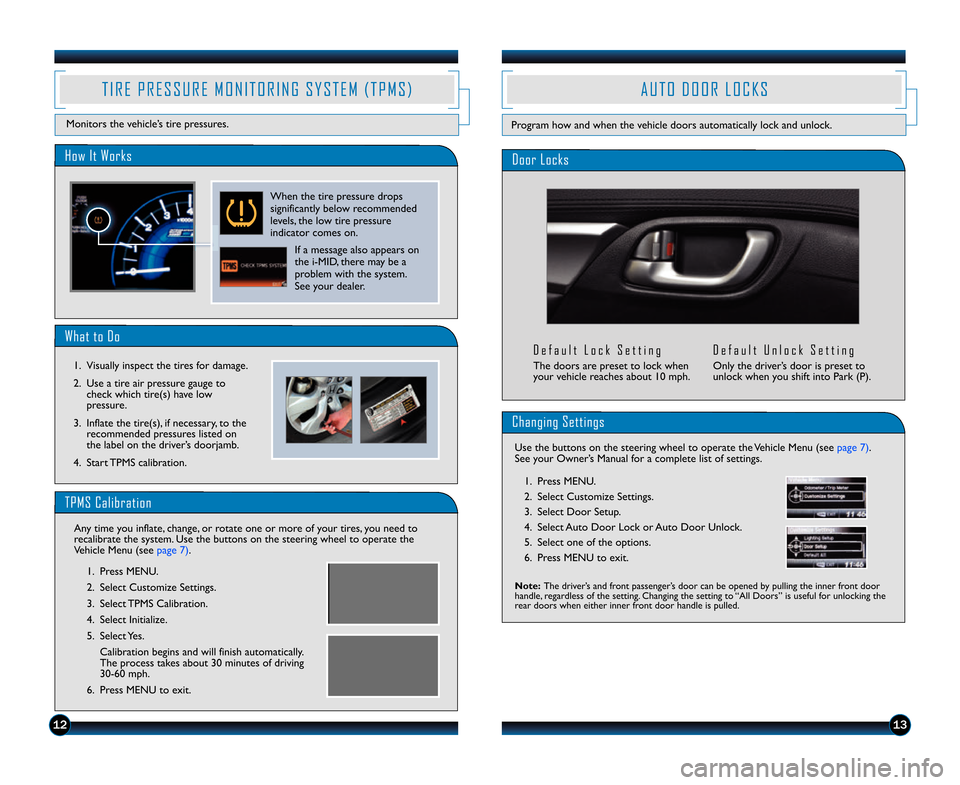

T I R E P R E S S U R E M O N I T O R I N G S Y S T E M ( T P M S )
Monitors the vehicle’s tire pressures.
What to Do
\f. Visually inspect the tires for damage.
2. Use a tire air pressure gauge tocheck which tire(s) have low
pressure.
3. Inflate the tire(s), if necessary, to the recommended pressures listed on
the label on the driver’s doorjamb.
4. Start TPMS calibration.
How It Works
When the tire pressure drops
significantly below recommended
levels, the low tire pressure
indicator comes on. If a message also appears on
the i\bMID, there may be a
problem with the system.
See your dealer.
\f. Press MENU.
2. Select Customize Settings.
3. Select TPMS Calibration.
4. Select Initialize.
5. Select Yes.Calibration begins and will finish automatically.
The process takes about 30 minutes of driving
30\b60 mph.
6. Press MENU to exit.
Any time you inflate, change, or rotate one or more of your tires, you need to
recalibrate the system. Use the buttons on the steering wheel to op\2erate the
Vehicle Menu (see page 7).
A U T O D O O R L O C K S
Changing Settings
Use the buttons on the steering wheel to operat\2e the Vehicle Menu (see page 7).
See your Owner’s Manual for a complete list of settings.
Note:
The driver’s and front passenger’s door can be opened by pulling the inner front door
handle, regardless of the setting. Changing the setting to “All Doors” is useful for unlocking the
rear doors when either inner front door handle is pulled.
\f. Press MENU.
2. Select Customize Settings.
3. Select Door Setup.
4 . Select Auto Door Lock or Auto Door Unlock.
5. Select one of the options.
6. Press MENU to exit.
Door Locks
D e f a u l t L o c k S e t t i n g
The doors are preset to lock when
your vehicle reaches about \f0 mph.
D e f a u l t U n l o c k S e t t i n g
Only the driver’s door is preset to
unlock when you shift into Park (P).
Program how and when the vehicle doors automatically lock and unlock.
14 Civic Hybrid TRG_Base_\AATG_NEW STYLE 1/\b/\A2014 1\f17 PM Page 8\A
TPMS Calibration

1415
How It Works
A U T O H E A D L I G H T S W I T H W I P E R I N T E G R A T I O N
For your convenience, your vehicle’s headlights automatically turn on when the
windshield wipers operate.
Make sure your headlights are in
the AUTO position.Turn on your windshield wipers.
The headlights also turn on.
When you turn off the windshield
wipers, the headlights turn off
shortly after.
How It Works
O N E T O U C H T U R N S I G N A L
Use this quick and convenient method to signal a lane change.
• Lightly push the turn signal lever up or down for a
three\bblink sequence.
• For a continuous signal, push the lever up or down until it locks into place.
R E A R V I E W C A M E R A
For added convenience, the area behind your vehicle is displayed to help you navigate
while backing up.
How It Works
• When you shift into Reverse (R), a real\btime image of the area behind your vehicleis shown in the screen, along with parking guidelines.
• The rearview display turns off when you shift out of Reverse.
Changing Settings
Turn the guidelines on or off.
Touch items on the screen to make selections.
\f. From the HOME screen, select SETTINGS.
2. Select Camera.
3. Select Rear Camera.
4. Select one of the options. Fixed Guidelines: Guidelines appear when
you shift into Reverse. Select On or Off.
Dynamic Guidelines: Guidelines move as you
turn the steering wheel. Select On or Off.
5. Press BACK to exit the menu.
14 Civic Hybrid TRG_Base_\AATG_NEW STYLE 1/\b/\A2014 1\f17 PM Page 9\A

2\b29
B A S I C A U D I O O P E R A T I O N
Steering Wheel Controls
+ button: Increase
volume, or scroll up
in a menu.
button: Decrease
volume, or scroll
down in a menu.
SOURCE button:
Select an audio source,
or make a selection in
a menu.
tbutton:Go to
previous stations
or tracks.ubutton: Go to next
stations or tracks.
Touchscreen Controls
From the Home screen, select Audio to view or control audio being played.
FM screen shown
USB/HDMI Connection
MENU button: From
the audio screen, press
and hold to display
audio options.
Connect an iPhone or iPod cable or a
USB flash drive to the USB port in the
front console. There is an additional
USB port in the center console.
Connect an HDMI cable to the HDMI\2
port.
USB
port
HDMI
port
Connect your device only when your
vehicle is stopped.
SOURCE: Select
an audio source.
Volume
MENU: Choose
menu options for
the selected source. Open/close tab:
View and select
presets or tracks.
Audio control:
Tune to a station,
change tracks, or
other options.
Operate basic controls of your audio system using several convenient methods.
H O N D A L I N K A S S I S T
Automatically connect and talk to an operator who can loc\2ate your vehicle and
request emergency help in the event of a collision. Visit www.hondalink.com
for more
information.
Touch items on the screen to make selections.
How It Works
\f. Select Call Now, or the system automatically connects after \f0 seconds.
The vehicle information and its location
is sent to the operator.
2. Select Talk Now to immediately talk to the operator.
3. When the call is complete, select Hang Up or press the Hang\bUp/Back
button.
Make sure your phone is on and paired to Bluetooth®HandsFreeLink®(see page 23).
14 Civic Hybrid TRG_Base_\AATG_NEW STYLE 1/\b/\A2014 1\f17 PM Page 1\A\b

3031
B L U E T O O T H® A U D I O
Play stored or streaming audio from your compatible phone through your vehicle’s audio
system. Visit handsfreelink.honda.com to check if this feature is compatible with your phone.
Playing BluetoothAudio
\f. Make sure your phone is on and paired to Bluetooth® HandsFreeLink®(see
page 23).
2. From the Home screen, select Audio. Select Source and select the Bluetooth icon.
3. From your phone, open the desired audio player or app and begin playing. Sound is redirected to the audio system. Make sure the volume on your
phone is properly adjusted.
4. Use the touchscreen or steering wheel controls to change tracks.
Notes:
• You may need to enable additional settings on your phone for playback.
• The play/pause function and remote audio controls are not supported on all phones.
• Operate your phone only when your vehicle is stopped.
Select the
Bluetooth icon
from Source.
Playing Audio Files
i P o d®O R U S B F L A S H D R I V E
Play audio files from your compatible iPod or USB flash drive through your vehicle’s
audio system. See your Owner’s Manual for a list of compatible devices.
\f. Connect the iPod cable or USB flash drive to the USB port in the front or center console (see page 29).
2. From the Home screen, select Audio. Select Source and select the iPod or USB icon.
3. Use the touchscreen or steering wheel controls to change tracks.
Searching for Music
iPod is a trademark of Apple, Inc .
Touch items on the screen to make selections.
\f. From the Audio screen, select the open/close tab.
2. Select the left tab to view categories or folders.
3. Select a category or folder.
4. Select a track to begin playing.
Select the iPod
or USB icon
from Source.
14 Civic Hybrid TRG_Base_\AATG_NEW STYLE 1/\b/\A2014 1\f17 PM Page 1\A7

3233
Play video from a compatible device through your vehicle when it is stopped.
H D M I V I D E O
Playing HDMI Video
\f. Connect a compatible device to an HDMI cable. Connect the HDMI cable tothe HDMI port in the front console (see page 29).
2. From the Home screen, select Audio. Select Source and select the HDMI icon.
3. From the connected device, launch the video to view on the display in the vehicle.
Notes:
• Video will not display while the vehicle is moving.
• The device or video resolution must be 720p or lower to view in the vehicle.
Select the
HDMI icon
from Source.
Play and operate Pandora from your compatible phone through your vehicle’s audio
system. Visit handsfreelink.honda.com to check if this feature is compatible with your
phone. Standard data rates apply.
P A N D O R A®
Playing Pandora
\f. For Bluetooth connection: Make sure your phone is paired to Bluetooth®
HandsFreeLink®(see page 23) and the screen is on and unlocked.
For USB connection: Connect the dock connector to the USB po\2rt in the front
or center console (see page 29).
2. From the Home screen, select Audio. Select Source and select the Pandora icon. Streaming begins.
3. Use the touchscreen to like/dislike songs, and the touchscreen or steering wheel controls to change tracks.
iPhone is a trademark of Apple, Inc .
Notes:
• iPhone can connect via Bluetooth or USB; Android and BlackBerry can connect via Bluetooth only.
• If you cannot operate Pandora through the audio system, it may be streaming through Bluetooth
®Audio. Make sure the Pandora source on your audio system is selected.
• A pop\bup may appear on your phone requesting you to allow access for the app to be launched.
• Operate your phone only when your vehicle is stopped.
Select the
Pandora icon
from Source.
