uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage
System
Message
Indicator
●Comes on for a few seconds when you
turn the ignition switch to ON
(w*1, then
goes off.
●Comes on along with a beep when a
problem is detected. A system message on
the i-MID appears at the same time.
●While the indicator is on, press the
(display/information) button to
see the message again.
●Refer to the Indicators information in
this chapter when a system message
appears on the i-MID. Take the
appropriate action for the message.
●The i-MID does not return to the normal
screen unless the wa rning is canceled,
or the button is pressed.
—
Turn Signal
and Hazard
Warning
Indicators●Blink when you operate the turn signal
lever.
●Blink along with all turn signals when you
press the hazard warning button.
●Does not blink or blinks rapidly - A
turn signal light bulb has blown.
Change the bulb immediately.
2 Replacing Light Bulbs
P. 365, 367
—
High Beam
Indicator●Comes on when the high beam headlights
are on.——
Lights On
Indicator
●Comes on whenever the light switch is on,
or in AUTO* when the exterior lights are
on.
●If you remove the key from the ignition
switch*1 while the exteri or lights are on,
a chime sounds when the driver's door
is opened.—
Fog Light
Indicator*
●Comes on when the fog lights are on.——
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 73 ページ ２０１４年１月２９日　水曜日　午後８時９分

360
Maintenance
Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.1.Push the tab to remove the coupler.
2. Rotate the old bulb to the left to remove.
3. Insert a new bulb into the headlight
assembly and turn it to the right.
4. Insert the coupler into the connector of the
bulb.
High beam headlight: 60 W (HB3 for halogen bulb type)
Low beam headlight: 55 W (H11 for halogen bulb type)
■High Beam Headlight
1Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overhe at and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
When replacing a halogen bu lb, handle it by its base,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Tab
Coupler
Bulb
14 CIVIC 2D_SI-31TS86210.book 360 ページ ２０１４年１月２９日　水曜日　午後８時９分

Continued361
uuReplacing Light Bulbs uHeadlight Bulbs
Maintenance
1. Remove the holding clips (A). Push up the
tab, and remove the cover of the air intake
duct and its upper part.
■Low Beam Headlights1Low Beam Headlights
Pull the clip straight up to remove it.
Keep the head of the clip raised when you insert it,
push until it clicks.
Holding clip (A-type)
Cover
Tab Clip (A)
Air
Intake
Duct
Driver side
1.8 ℓ engine models
14 CIVIC 2D_SI-31TS86210.book 361 ページ ２０１４年１月２９日　水曜日　午後８時９分

uuReplacing Light Bulbs uHeadlight Bulbs
362
Maintenance
1. Unlock the holding c lips (B), then remove
the cover of the air intake duct.
Fold in the upper part of the air intake duct to
get enough working space.
1 Low Beam Headlights
Press down the center pin until it clicks to unlock it.
Push the center pin back to lock the clip. Then, insert
the clip into the hole and press on the center pin until
it is flat.
Holding clip (B-type)
Center pin
Push until
the pin is
flat.
Cover Clip (B)
Driver side
2.4 ℓ engine models
Air Intake Duct
14 CIVIC 2D_SI-31TS86210.book 362 ページ ２０１４年１月２９日　水曜日　午後８時９分

363
uuReplacing Light Bulbs uHeadlight Bulbs
Maintenance

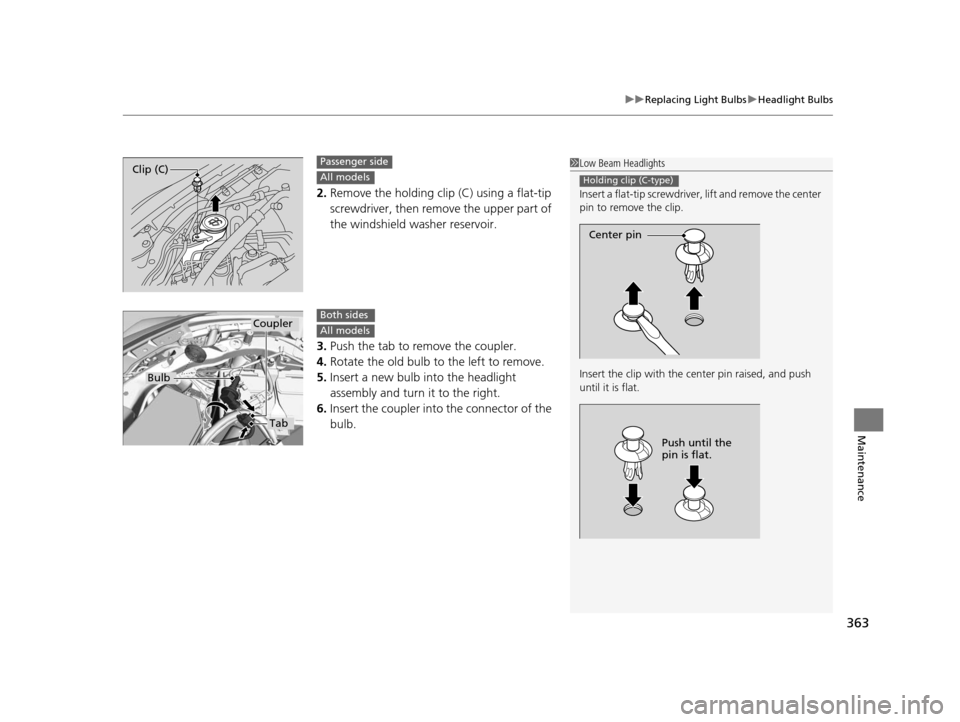

2. Remove the holding clip (C) using a flat-tip
