uuRemote Transmitter Care uReplacing the Button Battery
Maintenance
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Remove carefully to avoid losing the
buttons.
u Wrap a coin with a cloth to prevent
scratching the smart entry remote.
3. Make sure to replace the battery with the
correct polarity.
■
Smart Entry Remote
*
Battery type: CR2032
Battery
* Not available on all models

557
Handling the Unexpected
Shift Lever Does Not MoveFollow the procedure below if you cannot move the shift lever out of the
(P

position.
1.Set the parking brake.
2. Remove the key from the ignition switch.
2. Remove the built-in key from the smart
entry remote.
3. Wrap a cloth around the tip of a small flat-
tip screwdriver. Put it into the shift lock
release slot as shown in the image, and
remove the cover.
4. Insert the key into the shift lock release slot.
5. While pushing the key down, press the shift
lever release button and place the shift lever
into
(N
.
u The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.
■
Releasing the Lock
Automatic transmission/CVT models
Slot
Cover
Models without smart entry systemModels with smart entry systemAll models
Release Button
Shift Lock
Release Slot

565
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.■
Circuit protected and fuse rating
■
Interior Fuse Box
Fuse Label
Circuit Protected
Amps
1
A/C
7.5 A
2
DRL
7.5 A
3
−
−
4
−
−
5
Meter
7.5 A
6
SRS
7.5 A
7
Option
*
(7.5 A)
8
MISS SOL
10 A
9
Fuel Pump
20 A
10
ABS/VSA
7.5 A
11
−
−
12
Front Wiper
7.5 A
13
ACG
15 A
14
Rear Accessory Power Socket
(Console Compartment)
(20 A)
15
Driver’s Power Seat Reclining
*
(20 A)
16
Moonroof
*
(20 A)
17
Front Seat Heaters
*
(20 A)
18
−
−
19
Passenger Side Door Unlock
10 A
20
Driver Side Rear Door
Unlock
10 A
21
Driver’s Door Lock
10 A
22
Passenger Side Door Lock
10 A
23
Driver’s Door Unlock
10 A
24
SRS
10 A
25
Illumination
10 A
26
Key Lock
7.5 A
27
Parking Lights
10 A
28
Lumbar Support
*
(10 A)
29
Right Headlight High Beam
10 A
30
Washer
15 A
31
SMART
*
(10 A)
32
Driver’s Power Window
20 A
Circuit Protected
Amps
33
Front Passenger’s Power Window
20 A
34
Rear Driver Side Power Window
20 A
35
Rear Passenger Side Power Window
20 A
36
Driver’s Power Seat Sliding
*
(20 A)
37
ACCESSORY
7.5 A
38
−
−
39
Left Headlight High Beam
10 A
40
Accessory Power Socket
(Console Panel)
20 A
41
Driver Side Rear Door Lock
10 A
42
Door Lock
20 A
a
Audio
*
(7.5 A)
b
ACM
*
(20 A)
c
Rear Seat Heaters
*
(15 A)
d
Premium Amp
*
(20 A)
e
−
−
f
−
−
g
Passenger’s Power Seat Reclining
*
(20 A)
h
Passenger’s Power Seat Sliding
*
(20 A)
Circuit Protected
Amps
* Not available on all models

575
Information
Devices that Emit Radio WavesThe following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.Audio SystemBluetooth ® AudioBluetooth® HandsFreeLink ®HomeLink® Universal TransceiverImmobilizer SystemKeyless Access SystemRemote Transmitter

588Index
Customer Service Information................. 582
Customized Features .......................... 97, 299DDaytime Running Lights ........................... 139
Dead Battery ............................................. 554
Defrosting the Windshield and Windows .......................................... 168, 170
Devices that Emit Radio Waves ................ 575
Dimming Headlights ............................................... 136
Rearview Mirror ....................................... 146
Dipstick (Engine Oil) ................................. 502
Directional Signals (Turn Signal) .............. 136
Display Button .......................... 181, 207, 239
Door Mirrors ............................................. 147
Doors ......................................................... 108
Auto Door Locking .................................. 119
Auto Door Unlocking ............................... 119
Door and Trunk Open Indicator ........... 31, 74
Keys ........................................................ 108
Locking/Unlocking the Doors from the Inside ............................................... 116
Locking/Unlocking the Doors from the Outside ............................................ 111
Lockout Prevention System ...................... 115
DOT Tire Quality Grading ........................ 528
Driving ....................................................... 417
ACC (Adaptive Cruise Control) ................ 450
Automatic Transmission/CVT ................... 434 Braking ................................................... 474
Cruise Control ......................................... 447
Shifting Gear ................................... 441, 443
Shifting Position .............................. 435, 437
Starting the Engine.......................... 427, 429
Driving Position Memory System ............ 143
Dust and Pollen Filter ............................... 537
EEco Assist System.......................................... 7
ECON Button ............................................ 446
Elapsed Time ............................................... 95
Electric Power Steering (EPS) System Indicator............................................ 74, 562
Electronic Stability Control (ESC) ............. 466
Emergency ................................................ 567
Emergency Engine Stop ........................... 553
Emergency Trunk Opener ........................ 123
Emissions Testing (Readiness Codes) ....... 577
Engine ....................................................... 574
Coolant ................................................... 507
Jump Starting .......................................... 554
Oil ........................................................... 501
Starting ........................................... 427, 429
Switch Buzzer.......................................... 131
Engine Coolant ......................................... 507
Adding to the Radiator ............................ 508
Adding to the Reserve Tank..................... 507
Overheating ............................................ 558
Temperature Gauge .................................. 89 Engine Oil
................................................. 501
Adding ................................................... 504
Checking ................................................ 502
Displaying Oil Life ........................... 489, 493
Low Oil Pressure Indicator ................. 69, 560
Recommended Engine Oil ....................... 501
ENGINE START/STOP Button .................... 132
EPS (Electric Power Steering)
System ............................................... 74, 562
Exhaust Gas Hazard (Carbon Monoxide) .................................. 64
Expanded View Driver’s Mirror ............... 147
Exterior Care (Cleaning) .......................... 540
Exterior Mirrors ........................................ 147
FFeatures.................................................... 173
Filters Dust and Pollen....................................... 537
Oil .......................................................... 505
Flat Tire ..................................................... 545
Floor Mats ................................................ 539
Fluids
Automatic Transmission .......................... 510
Brake/Clutch ........................................... 511
Continuously Variable Transmission (CVT) .................................................... 509
Engine Coolant ....................................... 507
Manual Transmission .............................. 509
Windshield Washer ................................. 512

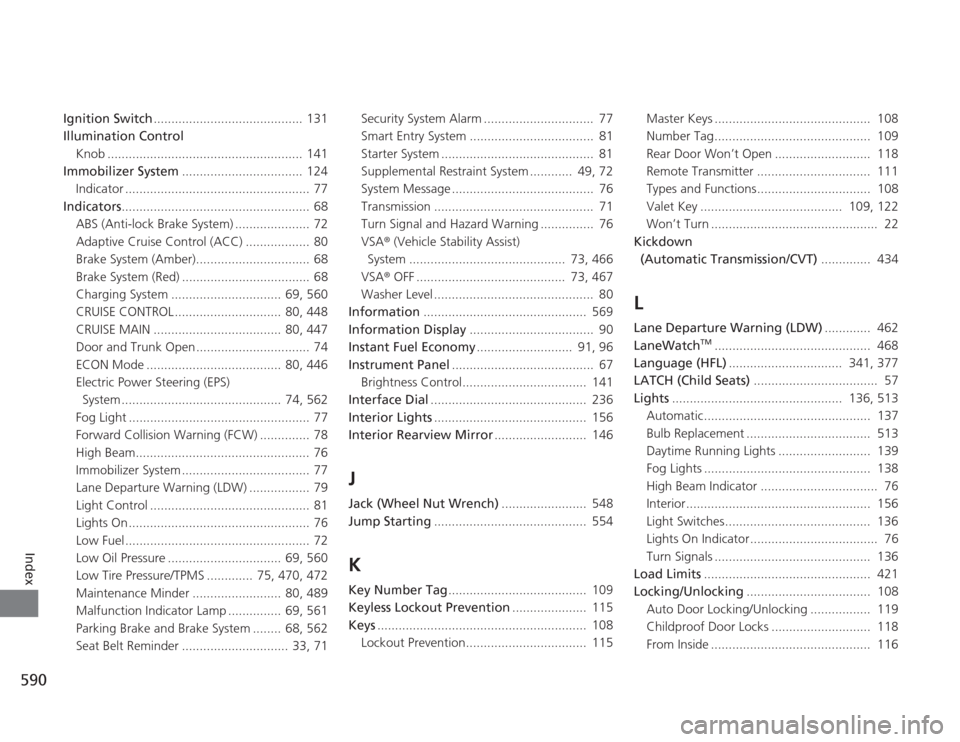

590Index
Ignition Switch.......................................... 131
Illumination Control
Knob ....................................................... 141
Immobilizer System .................................. 124
Indicator .................................................... 77
Indicators ..................................................... 68
ABS (Anti-lock Brake System) ..................... 72
Adaptive Cruise Control (ACC) .................. 80
Brake System (Amber)................................ 68
Brake System (Red) .................................... 68
Charging System ............................... 69, 560
CRUISE CONTROL .............................. 80, 448
CRUISE MAIN .................................... 80, 447
Door and Trunk Open ................................ 74
ECON Mode ...................................... 80, 446
Electric Power Steering (EPS) System ............................................. 74, 562
Fog Light ................................................... 77
Forward Collision Warning (FCW) .............. 78
High Beam................................................. 76
Immobilizer System .................................... 77
Lane Departure Warning (LDW) ................. 79
Light Control ............................................. 81
Lights On ................................................... 76
Low Fuel .................................................... 72
Low Oil Pressure ................................ 69, 560
Low Tire Pressure/TPMS ............. 75, 470, 472
Maintenance Minder ......................... 80, 489
Malfunction Indicator Lamp ............... 69, 561
Parking Brake and Brake System ........ 68, 562
Seat Belt Reminder .............................. 33, 71 Security System Alarm ............................... 77
Smart Entry System ................................... 81
Starter System ........................................... 81
Supplemental Restraint System ............ 49, 72
System Message ........................................ 76
Transmission ............................................. 71
Turn Signal and Hazard Warning ............... 76
VSA
® (Vehicle Stability Assist)
System ............................................ 73, 466
VSA ® OFF .......................................... 73, 467
Washer Level ............................................. 80
Information .............................................. 569
Information Display ................................... 90
Instant Fuel Economy ........................... 91, 96
Instrument Panel ........................................ 67
Brightness Control................................... 141
Interface Dial ............................................ 236
Interior Lights ........................................... 156
Interior Rearview Mirror .......................... 146
JJack (Wheel Nut Wrench) ........................ 548
Jump Starting ........................................... 554KKey Number Tag ....................................... 109
Keyless Lockout Prevention ..................... 115
Keys ........................................................... 108
Lockout Prevention.................................. 115 Master Keys ............................................ 108
Number Tag............................................ 109
Rear Door Won’t Open ........................... 118
Remote Transmitter ................................ 111
Types and Functions................................ 108
Valet Key ........................................ 109, 122
Won’t Turn ............................................... 22
Kickdown
(Automatic Transmission/CVT) .............. 434
LLane Departure Warning (LDW) ............. 462
LaneWatch
TM
............................................ 468
Language (HFL) ................................ 341, 377
LATCH (Child Seats) ................................... 57
Lights ................................................ 136, 513
Automatic............................................... 137
Bulb Replacement ................................... 513
Daytime Running Lights .......................... 139
Fog Lights ............................................... 138
High Beam Indicator ................................. 76
Interior.................................................... 156
Light Switches......................................... 136
Lights On Indicator.................................... 76
Turn Signals ............................................ 136
Load Limits ............................................... 421
Locking/Unlocking ................................... 108
Auto Door Locking/Unlocking ................. 119
Childproof Door Locks ............................ 118
From Inside ............................................. 116

591
Index
From Outside .......................................... 111
Keys........................................................ 108
Using a Key............................................. 115
Lockout Prevention System ..................... 115
Low Battery Charge ................................. 560
Low Fuel Indicator ..................................... 72
Low Oil Pressure Indicator ................. 69, 560
Low Smart Entry Remote Signal
Strength .................................................. 110
Lower Anchors ........................................... 57
Lubricant Specifications Chart ........ 570, 572
Luggage (Maximum Load Limit) ............. 421
MMaintenance............................................ 485
Battery .................................................... 534
Brake/Clutch Fluid ................................... 511
Cleaning ................................................. 538
Climate Control System .......................... 537
Coolant .................................................. 507
Heating and Cooling System ................... 537
Maintenance Minder
TM............................ 489
Oil .......................................................... 502
Precautions ............................................. 486
Radiator .................................................. 508
Remote Transmitter ................................ 535
Replacing Light Bulbs .............................. 513
Safety ..................................................... 487
Service Items ................................... 491, 495
Tires........................................................ 525 Transmission Fluid ................................... 509
Under the Hood ...................................... 497
Malfunction Indicator Lamp .............. 69, 561
Manual Transmission ................................ 443
Map Lights ................................................ 157
Maximum Load Limit ............................... 421
Meters, Gauges ........................................... 89
Mirrors ....................................................... 146
Adjusting ................................................. 146
Door........................................................ 147
Exterior .................................................... 147
Interior Rearview ..................................... 146
Modifications (and Accessories) .............. 484
Moonroof .................................................. 130
MP3 ................... 190, 198, 221, 231, 260, 284
Multi-Information Display ......................... 93
Multi-View Rear Camera .......................... 479
NNumbers (Identification).......................... 574OOdometer.............................................. 91, 95
Oil (Engine) ............................................... 501
Adding .................................................... 504
Checking ................................................. 502
Displaying Oil Life ............................ 489, 493
Low Oil Pressure Indicator .................. 69, 560
Recommended Engine Oil ........................ 501 Viscosity .................................................. 501
Opening/Closing
Hood....................................................... 499
Moonroof ............................................... 130
Power Windows ...................................... 127
Trunk ...................................................... 120
Outside Temperature Display .............. 92, 96
Overheating .............................................. 558
PPaddle Shifters (7-Speed Manual Shift
Mode) ...................................................... 439
Pandora ®................................... 197, 229, 282
Panic Mode ............................................... 126
Parking ...................................................... 478
Parking Brake ........................................... 474
Parking Brake and Brake System
Indicator ............................................ 68, 562
Passenger Airbag Off Indicator ................. 50
Passing Indicators ..................................... 136
Power Windows ....................................... 127
Precautions While Driving ....................... 433
Rain ........................................................ 433
Pregnant Women ....................................... 37
Puncture (Tire) .......................................... 545RRadiator.................................................... 508
Radio (AM/FM) ......................... 187, 214, 253

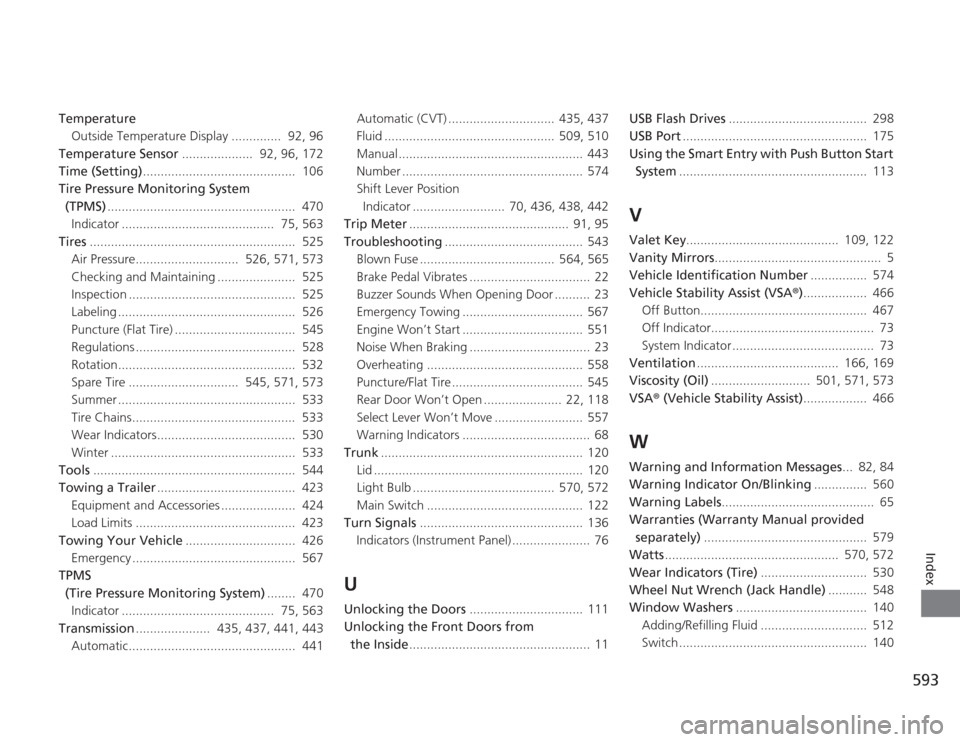

593
Index
TemperatureOutside Temperature Display .............. 92, 96
Temperature Sensor .................... 92, 96, 172
Time (Setting) ........................................... 106
Tire Pressure Monitoring System
(TPMS) ..................................................... 470
Indicator ........................................... 75, 563
Tires .......................................................... 525
Air Pressure............................. 526, 571, 573
Checking and Maintaining ...................... 525
Inspection ............................................... 525
Labeling .................................................. 526
Puncture (Flat Tire) .................................. 545
Regulations ............................................. 528
Rotation.................................................. 532
Spare Tire ............................... 545, 571, 573
Summer .................................................. 533
Tire Chains.............................................. 533
Wear Indicators....................................... 530
Winter .................................................... 533
Tools ......................................................... 544
Towing a Trailer ....................................... 423
Equipment and Accessories ..................... 424
Load Limits ............................................. 423
Towing Your Vehicle ............................... 426
Emergency .............................................. 567
TPMS (Tire Pressure Monitoring System) ........ 470
Indicator ........................................... 75, 563
Transmission ..................... 435, 437, 441, 443
Automatic............................................... 441 Automatic (CVT) .............................. 435, 437
Fluid ................................................ 509, 510
Manual .................................................... 443
Number ................................................... 574
Shift Lever Position
Indicator .......................... 70, 436, 438, 442
Trip Meter ............................................. 91, 95
Troubleshooting ....................................... 543
Blown Fuse ...................................... 564, 565
Brake Pedal Vibrates .................................. 22
Buzzer Sounds When Opening Door .......... 23
Emergency Towing .................................. 567
Engine Won’t Start .................................. 551
Noise When Braking .................................. 23
Overheating ............................................ 558
Puncture/Flat Tire ..................................... 545
Rear Door Won’t Open ...................... 22, 118
Select Lever Won’t Move ......................... 557
Warning Indicators .................................... 68
Trunk ......................................................... 120
Lid ........................................................... 120
Light Bulb ........................................ 570, 572
Main Switch ............................................ 122
Turn Signals .............................................. 136
Indicators (Instrument Panel) ...................... 76
UUnlocking the Doors ................................ 111
Unlocking the Front Doors from
the Inside ................................................... 11 USB Flash Drives
....................................... 298
USB Port .................................................... 175
Using the Smart Entry with Push Button Start System ..................................................... 113
VValet Key ........................................... 109, 122
Vanity Mirrors ............................................... 5
Vehicle Identification Number ................ 574
Vehicle Stability Assist (VSA ®).................. 466
Off Button............................................... 467
Off Indicator.............................................. 73
System Indicator ........................................ 73
Ventilation ........................................ 166, 169
Viscosity (Oil) ............................ 501, 571, 573
VSA ® (Vehicle Stability Assist) .................. 466WWarning and Information Messages ... 82, 84
Warning Indicator On/Blinking ............... 560
Warning Labels ........................................... 65
Warranties (Warranty Manual provided separately) .............................................. 579
Watts ................................................. 570, 572
Wear Indicators (Tire) .............................. 530
Wheel Nut Wrench (Jack Handle) ........... 548
Window Washers ..................................... 140
Adding/Refilling Fluid .............................. 512
Switch ..................................................... 140
