2014 HONDA ACCORD HYBRID turn signal bulb

79
uuIndicatorsu
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
System
Message
Indicator
●Comes on for a few seconds when you set
the power mode to ON, then goes off.
● Comes on along with a beep when a
problem is detected. A system message on
the multi-information display appears at
the same time.●While the indicator is on, press the
(information) button to see the
message again.
● Refer to the Indicators information in
this chapter when a system message
appears on the multi-information
display. Take the appropriate action for the message.
● The multi-information display does not return
to the normal screen unless the warning is
canceled, or the button is pressed.
—
Turn Signal and Hazard
Warning
Indicators●The turn signal indicators blink when you
operate the turn signal lever.
● If you press the hazard warning button,
both indicators and all turn signals blink at
the same time.●Does not blink or blinks rapidly - A
turn signal light bulb has blown.
Change the bulb immediately. 2Replacing Light Bulbs P. 487, 488
—
High Beam
Indicator●
Comes on when the high beam headlights are on.——
Lights On
Indicator
●Comes on whenever the light switch is on,
or in AUTO when the exterior lights are
on.● If you set the power mode to VEHICLE
OFF (LOCK) while the exterior lights are
on, a chime sounds when the driver's
door is opened.
—
Main MenuTable of Contents

487
uuReplacing Light BulbsuFront Turn Signal/Side Marker Light Bulbs
Maintenance
Front Turn Signal/Side Marker Light Bulbs
When replacing, use the following bulbs.
Turn the steering wheel and pull the inner fender back in the same way as when
replacing the halogen low beam headlight bulbs*
.
2 Low Beam Headlights P. 486
1.Turn the socket to the left and remove it.
2. Push in the old bulb, rotate to the left until
it unlocks, and remove.
3. Insert a new bulb.
Side Turn Signal/Emergency Indicator Light Bulbs
Door mirrors have the side turn lights. Have an authorized Honda dealer inspect and
replace the light assembly.
Parking/Daytime Running Light Bulbs
Parking/daytime running light bulbs are LED type. Have an authorized Honda dealer
inspect and replace the light assembly.
Front Turn Signal/Side Marker Light: 24/2.2 CP (Amber)
Bulb Socket
* Not available on all models
Main MenuTable of Contents

488

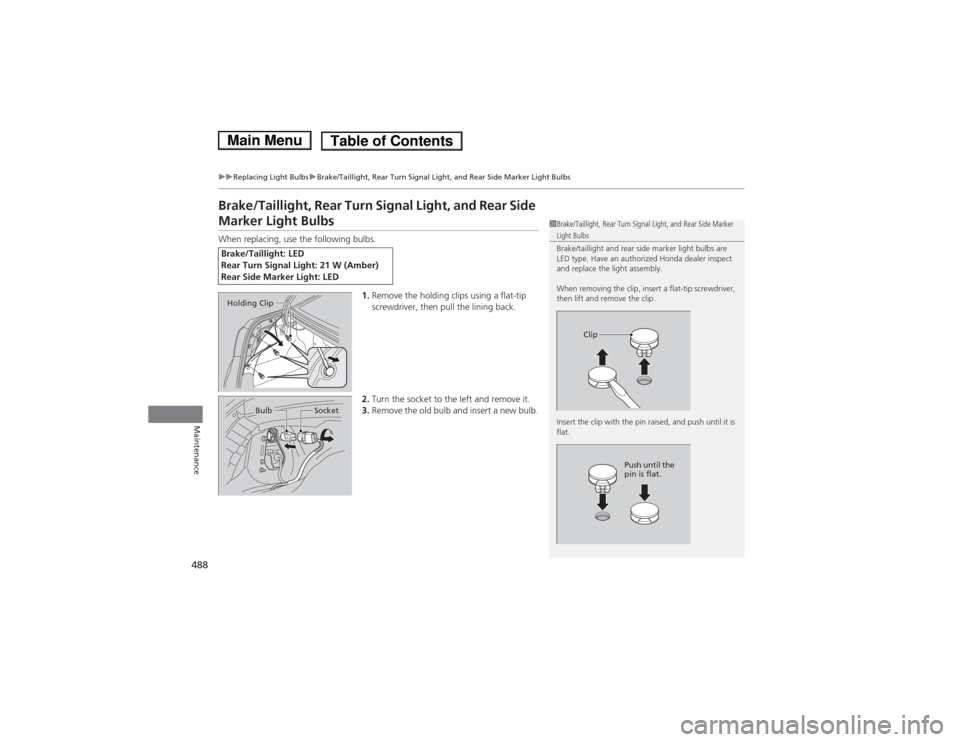

uuReplacing Light BulbsuBrake/Taillight, Rear Turn Signal Light, and Rear Side Marker Light Bulbs
Maintenance
Brake/Taillight, Rear Turn Signal Light, and Rear Side
Marker Light Bulbs
When replacing, use the following bulbs.1.Remove the holding clips using a flat-tip
screwdriver, then pull the lining back.
2. Turn the socket to the left and remove it.
3. Remove the old bulb and insert a new bulb.
Brake/Taillight: LED
Rear Turn Signal Light: 21 W (Amber)
Rear Side Marker Light: LED
1Brake/Taillight, Rear Turn Signal Light, and Rear Side Marker Light Bulbs
Brake/taillight and rear side marker light bulbs are
LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
When removing the clip, insert a flat-tip screwdriver,
then lift and remove the clip.
Insert the clip with the pin raised, and push until it is flat.
Clip
Push until the
pin is flat.
Holding Clip
BulbSocket
Main MenuTable of Contents

489
uuReplacing Light BulbsuTaillight and Back-Up Light Bulbs
Maintenance
Taillight and Back-Up Light Bulbs
When replacing, use the following bulbs.1.Remove the holding clips using a flat-tip
screwdriver, then pull the lining back.
2 Brake/Taillight, Rear Turn Signal Light,
and Rear Side Marker Light Bulbs
P. 488
2. Turn the socket to the left and remove it.
3. Remove the old bulb and insert a new bulb.
Back-Up Light: 16 W
Taillight: LED
1Taillight and Back-Up Light Bulbs
Taillight bulbs are LED type. Have an authorized
Honda dealer inspect and replace the light assembly.
Holding Clip
Bulb
Socket
Main MenuTable of Contents

538
Information
Specifications
■Vehicle SpecificationsModelHonda Accord Hybrid
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,542 lbs (2,060 kg)
Canada: 2,060 kg
Gross Axle Weight
Rating (Front)U.S.: 2,414 lbs (1,095 kg)
Canada: 1,095 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,161 lbs (980 kg)
Canada: 980 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.6 – 15.3 oz (385 – 435 g)
Lubricant Type ND-OIL 11
■Engine Specifications
■Fuel
■Washer Fluid
Displacement126 cu-in (1,993 cm 3
)
Spark Plugs NGK ILZKAR7E11S
Fuel: TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 15.9 US gal (60 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.1 US qt (4.85 ℓ)
■Light Bulbs
*1: Models with halogen low beam headlights
*2: Models with LED low beam headlights
Headlights (Low Beam)55 W (H11) *1
LED *2
Headlights (High Beam) 60W (HB3)
Parking/Daytime Running LightsLED
Front Turn Signal/Side Marker Lights 24/2.2CP (Amber)
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights LED
Rear Side Marker LightsLED
Taillights LED
Back-Up Lights16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake LightLED
Rear License Plate Lights 5W
Trunk Light5WInterior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WCourtesy Lights2CP
Main MenuTable of Contents

553
Index
Beverage Holders..................................... 159
Bluetooth ® Audio ..................... 195, 228, 281
Bluetooth ® HandsFreeLink ®............ 333, 370
Booster Seats (For Children) ...................... 67
Brake System ............................................ 452
Anti-lock Brake System (ABS) .................. 454
Brake Assist System................................. 455
Fluid ....................................................... 482
Foot Brake .............................................. 453
Indicator ........................................... 72, 530
Parking Brake.......................................... 452
Brake System Indicator (Amber) ............... 72
Brake System Indicator (Red) .................... 72
Brightness Control (Instrument Panel) ... 141
Bulb Replacement .................................... 484
Brake/Taillights, Rear Turn Signal Lights, and
Rear Side Marker Lights......................... 488
Front Turn Signal/Side Marker Lights ....... 487
Headlights .............................................. 484
High-Mount Brake Light........ .................. 490
Parking/Daytime Running Lights .... .......... 487
Rear License Plate Lights ......................... 490
Side Turn Signal/Emergency Indicator Lights .................................................... 487
Taillights and Back-Up Lights................... 489
Bulb Specifications ................................... 538
C
Carbon Monoxide Gas ............................... 68
Cargo Area ............................................... 162 Cargo Hook
............................................... 161
Carrying Cargo .................................. 411, 413
CD Player ................................... 184, 215, 254
Center Pocket ........................................... 158
Certification Label .................................... 540
Changing Bulbs ......................................... 484
Child Safety ................................................. 56
Childproof Door Locks ............................. 120
Emergency Trunk Opener ........................ 125
Child Seat .................................................... 56
Booster Seats............................................. 67
Child Seat for Infants ................................. 58
Child Seat for Small Children ..................... 59
Installing a Child Seat with a Lap/Shoulder Seat Belt.......................................................... 63
Larger Children.......................................... 66
Rear-facing Child Seat ............................... 58
Selecting a Child Seat ................................ 60
Using a Tether ........................................... 65
Childproof Door Locks ............................. 120
Cleaning the Exterior ............................... 507
Cleaning the Interior ................................ 505
Climate Control System ............................ 165
Changing the Mode ................................ 165
Defrosting the Windshield and
Windows ............................................... 166
Dust and Pollen Filter ............................... 504
Recirculation and Fresh Air Mode ............ 165
Sensors.................................................... 168
Synchronized Mode ................................. 167
Using Automatic Climate Control ............ 165 Clock
.......................................................... 110
Coat Hook ................................................. 161
Console Compartment ............................. 157
Controls ..................................................... 109
Coolant (Engine) ...................................... 478
Adding to the Engine Coolant Reservoir ............................................... 478
Adding to the Radiator ............................ 479
Overheating ............................................ 525
Coolant (Inverter) ..................................... 480
Coolant System ......................................... 478
Creeping (Transmission) ........................... 419
Cruise Control ........................................... 424
Cup Holders .............................................. 159
Customer Service Information ................. 548
Customized Features ........................ 101, 293
D
Daytime Running Lights .......................... 139
Dead Battery (12-Volt) ............................. 522
Defrosting the Windshield and Windows ................................................. 166
Devices that Emit Radio Waves ............... 541
Dimming Headlights ............................................... 136
Rearview Mirror....................................... 146
Dipstick (Engine Oil) ................................. 474
Directional Signals (Turn Signal) ............. 136
Display Button .......................... 176, 201, 233
Door Mirrors ............................................. 147
Main Menu

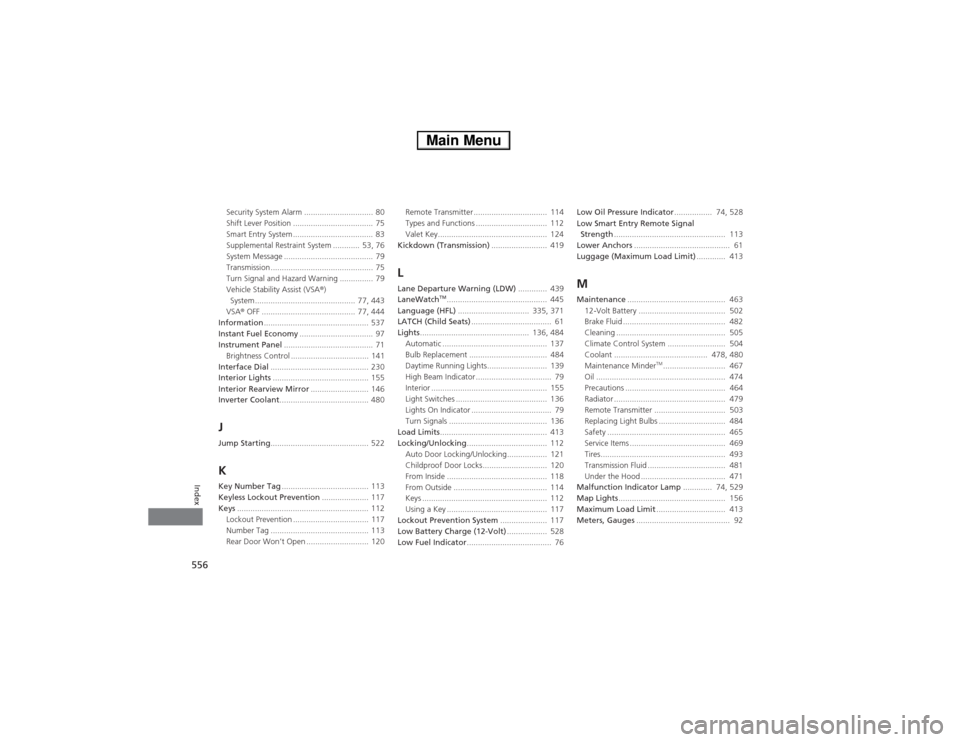

556
Index
Security System Alarm ............................... 80
Shift Lever Position .................................... 75
Smart Entry System .................................... 83
Supplemental Restraint System ............ 53, 76
System Message ........................................ 79
Transmission .............................................. 75
Turn Signal and Hazard Warning ............... 79
Vehicle Stability Assist (VSA®)
System ............................................. 77, 443
VSA ® OFF .......................................... 77, 444
Information ............................................... 537
Instant Fuel Economy ................................. 97
Instrument Panel ........................................ 71
Brightness Control ................................... 141
Interface Dial ............................................ 230
Interior Lights ........................................... 155
Interior Rearview Mirror .......................... 146
Inverter Coolant ........................................ 480
J
Jump Starting ............................................ 522
K
Key Number Tag ....................................... 113
Keyless Lockout Prevention ..................... 117
Keys ........................................................... 112
Lockout Prevention .................................. 117
Number Tag ............................................ 113
Rear Door Won’t Open ............................ 120 Remote Transmitter ................................. 114
Types and Functions ................................ 112
Valet Key................................................. 124
Kickdown (Transmission) ......................... 419
L
Lane Departure Warning (LDW) ............. 439
LaneWatch TM
............................................. 445
Language (HFL) ................................ 335, 371
LATCH (Child Seats) .................................... 61
Lights ................................................. 136, 484
Automatic ............................................... 137
Bulb Replacement ................................... 484
Daytime Running Lights........................... 139
High Beam Indicator .................................. 79
Interior .................................................... 155
Light Switches ......................................... 136
Lights On Indicator .................................... 79
Turn Signals ............................................ 136
Load Limits ................................................ 413
Locking/Unlocking .................................... 112
Auto Door Locking/Unlocking.... .............. 121
Childproof Door Locks............................. 120
From Inside ............................................. 118
From Outside .......................................... 114
Keys ........................................................ 112
Using a Key ............................................. 117
Lockout Prevention System ..................... 117
Low Battery Charge (12-Volt) .................. 528
Low Fuel Indicator ...................................... 76 Low Oil Pressure Indicator
................. 74, 528
Low Smart Entry Remote Signal Strength .................................................. 113
Lower Anchors ........................................... 61
Luggage (Maximum Load Limit) ............. 413
M
Maintenance ............................................ 463
12-Volt Battery ....................................... 502
Brake Fluid .............................................. 482
Cleaning ................................................. 505
Climate Control System .......................... 504
Coolant .......................................... 478, 480
Maintenance Minder TM
............................ 467
Oil .......................................................... 474
Precautions ............................................. 464
Radiator .................................................. 479
Remote Transmitter ................................ 503
Replacing Light Bulbs .............................. 484
Safety ..................................................... 465
Service Items ........................................... 469
Tires........................................................ 493
Transmission Fluid ................................... 481
Under the Hood ...................................... 471
Malfunction Indicator Lamp ............. 74, 529
Map Lights ................................................ 156
Maximum Load Limit ............................... 413
Meters, Gauges .......................................... 92
Main Menu

559
Index

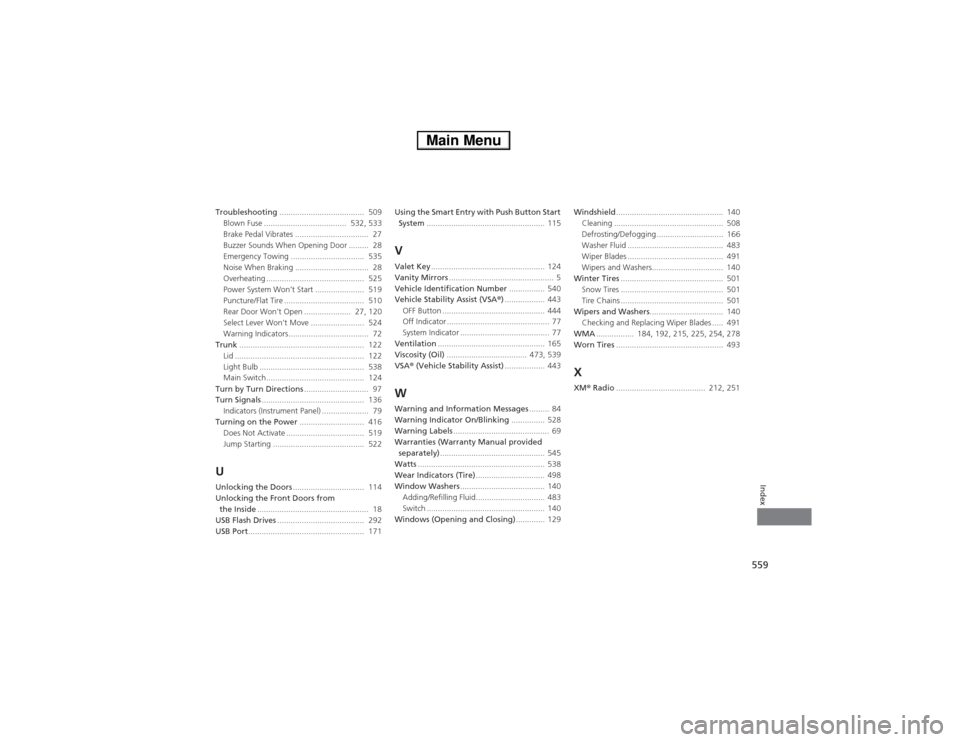

Troubleshooting...................................... 509
Blown Fuse ..................................... 532, 533 Brake Pedal Vibrates ................................. 27
Buzzer Sounds When Opening Door ......... 28
Emergency Towing ................................. 535
Noise When Braking ................................. 28
Overheating ............................................ 525
Power System Won’t Start ...................... 519
Puncture/Flat Tire .................................... 510
Rear Door Won’t Open ..................... 27, 120
Select Lever Won’t Move ........................ 524
Warning Indicators.................................... 72
Trunk ........................................................ 122
Lid .......................................................... 122
Light Bulb ............................................... 538
Main Switch............................................ 124
Turn by Turn Directions ............................. 97
Turn Signals .............................................. 136
Indicators (Instrument Panel) ..................... 79
Turning on the Power ............................. 416
Does Not Activate ................................... 519
Jump Starting ......................................... 522
U
Unlocking the Doors ................................ 114
Unlocking the Front Doors from
the Inside .................................................. 18
USB Flash Drives ....................................... 292
USB Port .................................................... 171 Using the Smart Entry with Push Button Start
System ..................................................... 115
V
Valet Key ................................................... 124
Vanity Mirrors ............................................... 5
Vehicle Identification Number ................ 540
Vehicle Stability Assist (VSA ®).................. 443
OFF Button .............................................. 444
Off Indicator .............................................. 77
System Indicator ........................................ 77
Ventilation ................................................ 165
Viscosity (Oil) .................................... 473, 539
VSA ® (Vehicle Stability Assist) .................. 443
W
Warning and Information Messages ......... 84
Warning Indicator On/Blinking ............... 528
Warning Labels ........................................... 69
Warranties (Warranty Manual provided separately) ............................................... 545
Watts ......................................................... 538
Wear Indicators (Tire) ............................... 498
Window Washers ...................................... 140
Adding/Refilling Fluid............................... 483
Switch ..................................................... 140
Windows (Opening and Closing) ............. 129Windshield
................................................ 140
Cleaning ................................................. 508
Defrosting/Defogging .............................. 166
Washer Fluid ........................................... 483
Wiper Blades ........................................... 491
Wipers and Washers................................ 140
Winter Tires .............................................. 501
Snow Tires .............................................. 501
Tire Chains .............................................. 501
Wipers and Washers ................................. 140
Checking and Replacing Wiper Blades ..... 491
WMA ................. 184, 192, 215, 225, 254, 278
Worn Tires ................................................ 493
X XM ® Radio ........................................ 212, 251
Main Menu
