Continued417

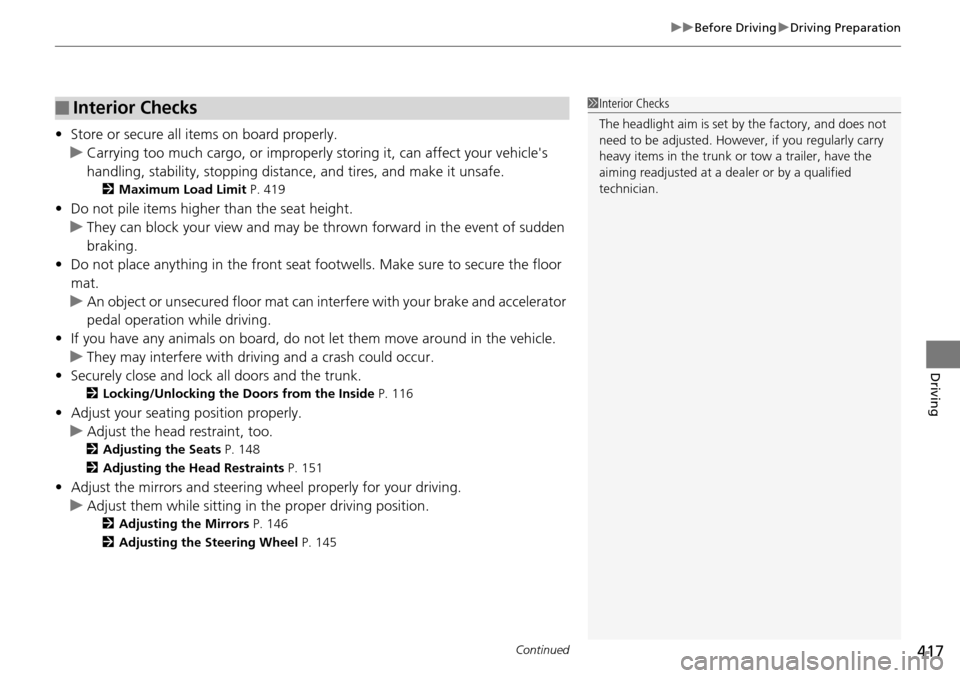

uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle's
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 419
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driving and a crash could occur.
• Securely close and lock all doors and the trunk.
2 Locking/Unlocking the Doors from the Inside P. 116
•Adjust your seating position properly.
u Adjust the head restraint, too.
2Adjusting the Seats P. 148
2 Adjusting the Head Restraints P. 151
•Adjust the mirrors and steering wh eel properly for your driving.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Mirrors P. 146
2 Adjusting the Steering Wheel P. 145
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk or tow a trailer, have the
aiming readjusted at a de aler or by a qualified
technician.

511Continued
Maintenance
Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.1.Unlock the holding clips, then remove the
upper part of the air intake duct and the air
intake tube.
1. Remove the engine coolant reservoir.
High beam headlight: 60 W (HB3 for halogen bulb type)
Low beam headlight: LED type*
Low beam headlight: 55 W (H11 for halogen bulb type)*
■High Beam Headlight
1Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overhe at and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk or tow a trailer, have the
aiming readjusted at a de aler or by a qualified
technician.
When replacing a halogen bu lb, handle it by its base,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
The exterior lights' inside lenses (headlights, brake
lamps, etc.) may fog temporarily after a car wash or
while driving in the rain. This does not impact the
exterior light function.
However, if you see a larg e amount of water or ice
accumulated inside the le nses, have your vehicle
inspected by a dealer.
Tube
Holding Clip
Holding Clips
Driver side
6-cylinder models
Passenger side
All models
* Not available on all models

587
Index
FluidsAutomatic Transmission .......................... 508
Brake/Clutch ........................................... 509
Continuously Variable Transmission (CVT) .................................................... 507
Engine Coolant ....................................... 505
Manual Transmission .............................. 507
Windshield Washer ................................. 510
Fog Light Indicator .................................... 77
Folding Down the Rear Seat ................... 154
Foot Brake ................................................ 473
Forward Collision Warning (FCW) .......... 456
Front Airbags (SRS) .................................... 42
Front Seats ................................................ 148
Adjusting ................................................ 148
Fuel ..................................................... 19, 479
Economy................................................. 481
Gauge ...................................................... 89
Instant Fuel Economy .......................... 91, 96
Low Fuel Indicator..................................... 72
Range ................................................. 92, 95
Recommendation.................................... 479
Refueling ................................................ 479
Fuel Economy ........................................... 481
Fuel Fill Cap ........................................ 19, 480
Message ................................................. 559
Fuel Fill Door ...................................... 19, 480
Fuses ......................................................... 562
Inspecting and Changing ........................ 564
Locations ........................................ 562, 563G
Gasoline (Fuel) Economy ................................................. 481
Gauge ....................................................... 89
Information ............................................. 479
Instant Fuel Economy ........................... 91, 96
Low Fuel Indicator ..................................... 72
Refueling ................................................. 479
Gauges ........................................................ 89
Gear Shift Lever Positions Automatic Transmission ........................... 439
Automatic Transmission (CVT) ......... 433, 435
Manual Transmission ............................... 442
Glass (care) ................................................ 539
Glove Box .................................................. 158
H
Halogen Bulbs ................................... 511, 513
Handling the Unexpected ........................ 541
HandsFreeLink ® (HFL) ....................... 338, 375
Auto Answer ................................... 354, 390
Automatic Import of Cellular Phonebook and
Call History .................................... 356, 392
Automatic Transferring .................... 354, 390
Displaying Messages ........................ 370, 409
Editing User Name ................................... 389
HFL Buttons ..................................... 338, 375
HFL Menus ...................................... 341, 377
HFL Status Display ........................... 340, 376
Limitations for Manual Operation .... 340, 376 Making a Call .................................. 360, 401
Options During a Call ...................... 367, 406
Phone Setup.................................... 346, 381
Phonebook Phonetic Modification ........... 396
Receiving a Call ............................... 366, 405
Receiving a Text Mess
age/E-mail...... 368, 407
Ring Tone........................................ 355, 391
Selecting a Mail Account ................. 369, 408
Speed Dial ....................................... 357, 393
To Create a Securi ty PIN .................. 353, 388
To Set Up a Text Message/E-mail
Options ......................................... 351, 386
Use Contact Photo .......................... 355, 391
Hard Disc Drive (HDD) Audio ................... 262
Hazard Warning Button .............................. 2
Head Restraints ........................................ 151
Headlights ................................................. 136
Aiming .................................................... 511
Automatic Operation............................... 137
Dimming ......................................... 136, 139
Operating................................................ 136
Heaters (Seat) ................................... 164, 165
Heating and Cooling System ................... 166
Cooling ................................................... 168
Defrosting the Windshield and
Windows ............................................... 168
Dust and Pollen Filter............................... 535
Heating ................................................... 167
HFL (HandsFreeLink ®)....................... 338, 375
High Beam Indicator .................................. 76
Hill Start Assist System ..................... 426, 430
