568
Information
Specifications
■Vehicle Specifications
*1: LX models
*2: Except LX models
ModelHonda Accord Sedan
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,200 lbs (1,905 kg)*1
4,321 lbs (1,960 kg)*2
Canada: 1,930 kg*1
1,980 kg*2
Gross Axle Weight
Rating (Front)U.S.: 2,249 lbs (1,020 kg)*1
2,315 lbs (1,050 kg)*2
Canada: 1,030 kg*1
1,065 kg*2
Gross Axle Weight
Rating (Rear)U.S.: 2,006 lbs (910 kg)*1
2,050 lbs (930 kg)*2
Canada: 910 kg*1
930 kg*2
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
4-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)
Spark Plugs NGK DILKAR7G11GS
DENSO DXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.12 US qt (4.85 ℓ)
■ Light Bulbs
Headlights (Low Beam)55W (H11)*
LED*
Headlights (High Beam) 60W (HB3)Fog Lights*35W (H8)
Parking Lights*5WParking/Daytime Running Lights*LED
Front Turn Signal/Side Marker Lights 24/2.2CP (Amber)
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake/Taillights/Rear Side Marker
Lights
*21/5W
Brake/Taillights*LED
Rear Side Marker Lights*LED
Taillights3CP*
LED*
Back-Up Lights 16WRear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Rear License Plate Lights5W
Trunk Light 5W
Interior LightsMap Lights8WCeiling Light8WVanity Mirror Lights*1.4WCourtesy Lights*2CP
* Not available on all models

569
uuSpecifications u
Continued
Information

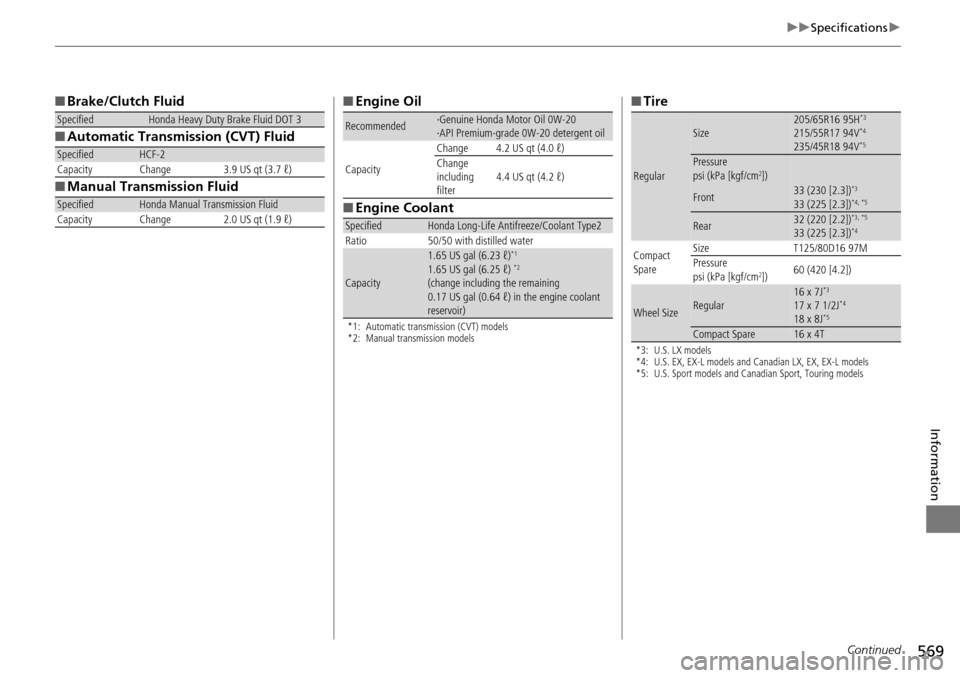

■Brake/Clutch Fluid
■ Automatic Transmission (CVT) Fluid
■ Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHCF-2
Capacity Change 3.9 US qt (3.7 ℓ)
SpecifiedHonda Manual Transmission Fluid
Capacity Change 2.0 US qt (1.9 ℓ)
■ Engine Oil
■ Engine Coolant
*1: Automatic transmission (CVT) models
*2: Manual transmission models
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.4 US qt (4.2 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.65 US gal (6.23 ℓ)*1
1.65 US gal (6.25 ℓ) *2
(change including the remaining
0.17 US gal (0.64 ℓ) in the engine coolant
reservoir)
■ Tire
*3: U.S. LX models
*4: U.S. EX, EX-L models and Canadian LX, EX, EX-L models
*5: U.S. Sport models and Canadian Sport, Touring models
Regular
Size205/65R16 95H*3
215/55R17 94V*4
235/45R18 94V*5
Pressure
psi (kPa [kgf/cm2])
Front33 (230 [2.3])*3
33 (225 [2.3])*4, *5
Rear32 (220 [2.2])*3, *5
33 (225 [2.3])*4
Compact
Spare Size
T125/80D16 97M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular16 x 7J*3
17 x 7 1/2J*4
18 x 8J*5
Compact Spare16 x 4T

570
uuSpecifications u
Information
■Vehicle Specifications
ModelHonda Accord Sedan
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,542 lbs (2,060 kg)
Canada: 2,060 kg
Gross Axle Weight
Rating (Front)U.S.: 2,491 lbs (1,130 kg)
Canada: 1,130 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,072 lbs (940 kg)
Canada: 940 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
6-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK ILZKR7B11
DENSO SXU22HCR11
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.12 US qt (4.85 ℓ)
■ Light Bulbs
Headlights (Low Beam)55W (H11)*
LED*
Headlights (High Beam) 60W (HB3)Fog Lights35W (H8)
Parking Lights*5WParking/Daytime Running Lights*LED
Front Turn Signal/Side Marker Lights 24/2.2CP (Amber)
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights LED
Rear Side Marker LightsLED
Taillights LED
Back-Up Lights16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake LightLED
Rear License Plate Lights 5W
Trunk Light5WInterior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WCourtesy Lights2CP
* Not available on all models

571
uuSpecifications u
Information

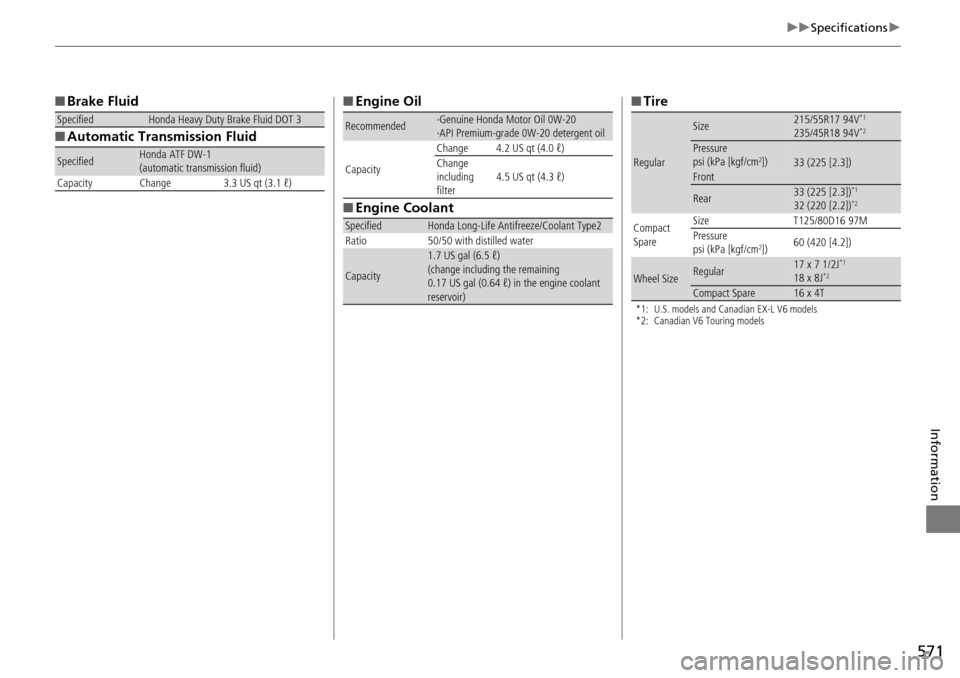

■Brake Fluid
■ Automatic Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
(automatic transmission fluid)
Capacity Change 3.3 US qt (3.1 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.5 US qt (4.3 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.7 US gal (6.5 ℓ)
(change including the remaining
0.17 US gal (0.64 ℓ) in the engine coolant
reservoir)
■ Tire
*1: U.S. models and Canadian EX-L V6 models
*2: Canadian V6 Touring models
Regular
Size215/55R17 94V*1
235/45R18 94V*2
Pressure
psi (kPa [kgf/cm2])33 (225 [2.3])Front
Rear33 (225 [2.3])*1
32 (220 [2.2])*2
Compact
Spare Size
T125/80D16 97M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7 1/2J*1
18 x 8J*2
Compact Spare16 x 4T

572
Information

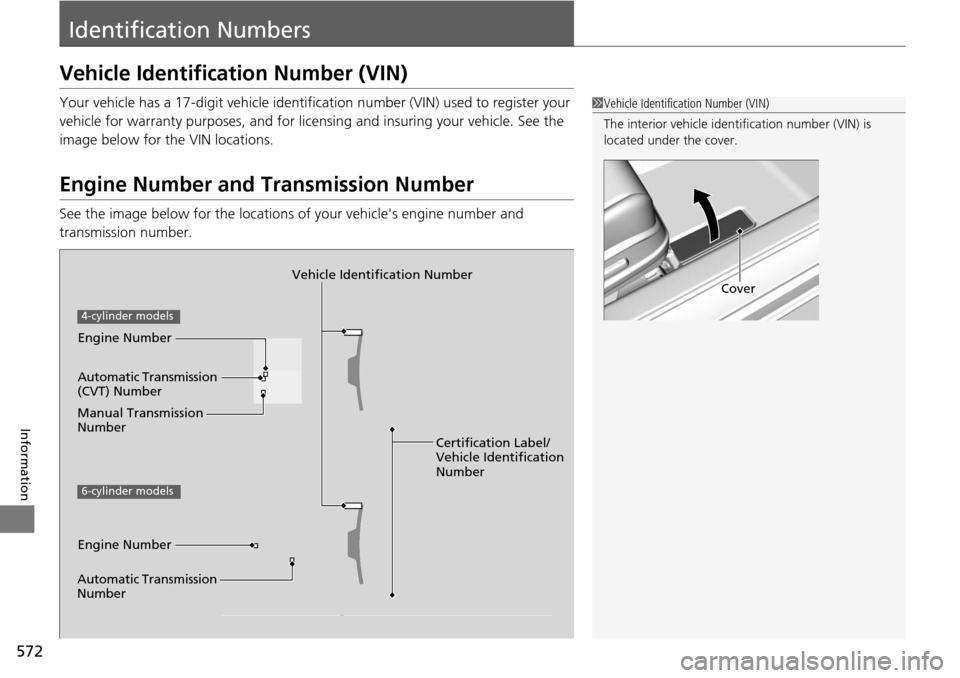

Identification Numbers
Vehicle Identification Number (VIN)
Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licen sing and insuring your vehicle. See the
image below for the VIN locations.
Engine Number and Transmission Number
See the image below for the locations of your vehicle's engine number and
transmission number.
1 Vehicle Identification Number (VIN)
The interior vehicle identification number (VIN) is
located under the cover.
CoverVehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
Manual Transmission
Number
Automatic Transmission
(CVT) Number
6-cylinder models
4-cylinder models
Engine Number
Automatic Transmission
Number

575Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some States use these codes as a test to see if your vehicle's emissions components
are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engi ne off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (automatic transmission/CVT) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.

576
uuEmissions Testing uTesting of Readiness Codes
Information

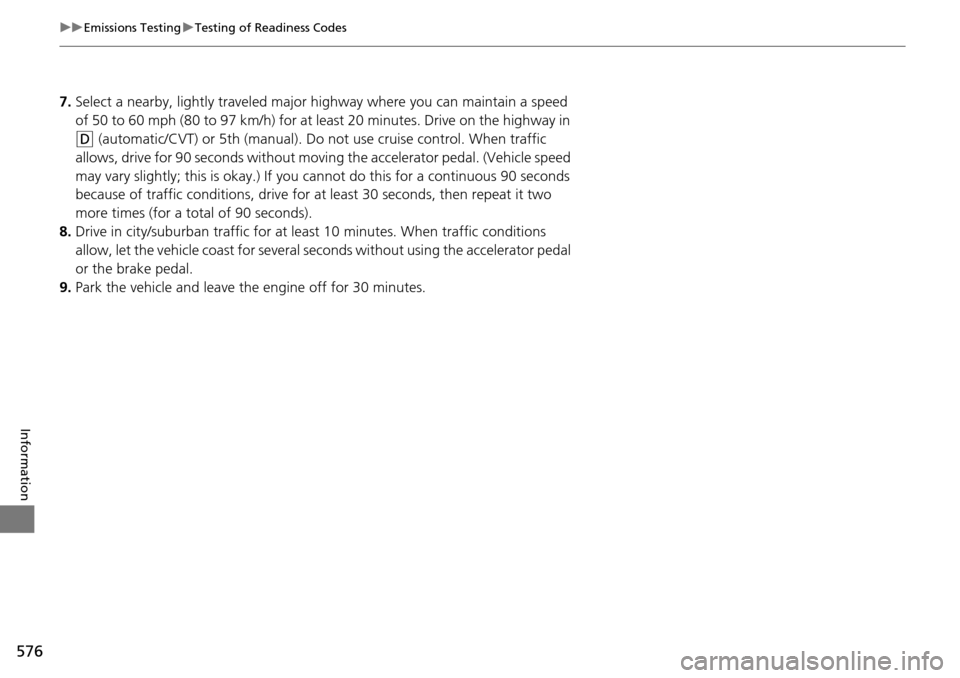

7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D (automatic/CVT) or 5th (manual). Do not use cruise control. When traffic
allows, drive for 90 seconds without moving the accelerator pedal. (Vehicle speed
may vary slightly; this is okay.) If you cannot do this for a continuous 90 seconds
because of traffic conditions, drive for at least 30 seconds, then repeat it two
more times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.

Index
584
Index
Index
Numbers
7-Speed Manual Shift Mode.................... 437
Operation ................................................ 438
A
ABS (Anti-lock Brake System) ................... 474
Accessories and Modifications ................. 482
Accessory Power Sockets .......................... 161
Adaptive Cruise Control (ACC) ................. 448
Additives Coolant ................................................... 505
Engine Oil ................................................ 499
Washer .................................................... 510
Additives, Engine Oil ................................ 499
Adjusting
Armrest ................................................... 155
Clock ....................................................... 106
Front Seats .............................................. 148
Head Restraints........................................ 151
Mirrors .................................................... 146
Rear Seats................................................ 154
Steering Wheel ........................................ 145
Temperature ........................................ 92, 96
Aha
TM Radio ...................................... 229, 282
Air Conditioning System (Climate Control System) .................................................... 169
Changing the Mode ................................ 169
Defrosting the Windshield and Windows ............................................... 170
Dust and Pollen Filter ............................... 535 Recirculation/Fresh Air Mode ................... 169
Sensor ..................................................... 172
Synchronized Mode................................. 171
Using Automatic Climate Control ............ 169
Air Conditioning System (Heating and
Cooling System) ...................................... 166
Cooling ................................................... 168
Defrosting the Windshield and
Windows ............................................... 168
Dust and Pollen Filter............................... 535
Heating ................................................... 167
Air Pressure ............................... 524, 569, 571
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
After a Collision ........................................ 42
Airbag Care............................................... 51
Event Data Recorder .................................. 24
Front Airbags (SRS) .................................... 42
Indicator.............................................. 49, 72
Passenger Airbag Off Indicator .................. 50
Sensors ..................................................... 39
Side Airbags .............................................. 46
Side Curtain Airbags.................................. 48
AM/FM Radio ............................ 187, 213, 252
Anti-lock Brake System (ABS) .................. 474
Indicator.................................................... 72
Armrest ..................................................... 155
Audio Remote Controls ........................... 179
Audio System ............................................ 174
Adjusting the Sound................ 185, 211, 242
Auxiliary Input Jack.................................. 176 Error Messages ....................................... 288
General Information................................ 294
HDD ....................................................... 262
Internet Radio ......................... 195, 227, 280
iPod ........................................ 192, 223, 272
MP3/WMA/AAC ..................... 197, 230, 283
Reactivating ............................................ 177
Recommended CDs ................................ 295
Recommended Devices ........................... 297
Remote Controls ..................................... 179
Security Code ......................................... 177
Theft Protection ...................................... 177
Touch Screen .................................. 203, 236
USB Flash Drives...................................... 297
USB Port ................................................. 175
Authorized Manuals ................................ 579
Auto Door Locking/Unlocking ................ 119
Customize .............................. 102, 309, 327
Automatic Lighting .................................. 137
Automatic Transmission Creeping................................................. 432
Fluid ....................................................... 508
Kickdown ............................................... 432
Operating the Shift Lever .................. 18, 440
Shift Lever Does Not Move ...................... 555
Shifting ................................................... 439
Automatic Transmission (CVT) Creeping................................................. 432
Fluid ....................................................... 507
Kickdown ............................................... 432
Operating the Shift Lever .......... 17, 434, 436
