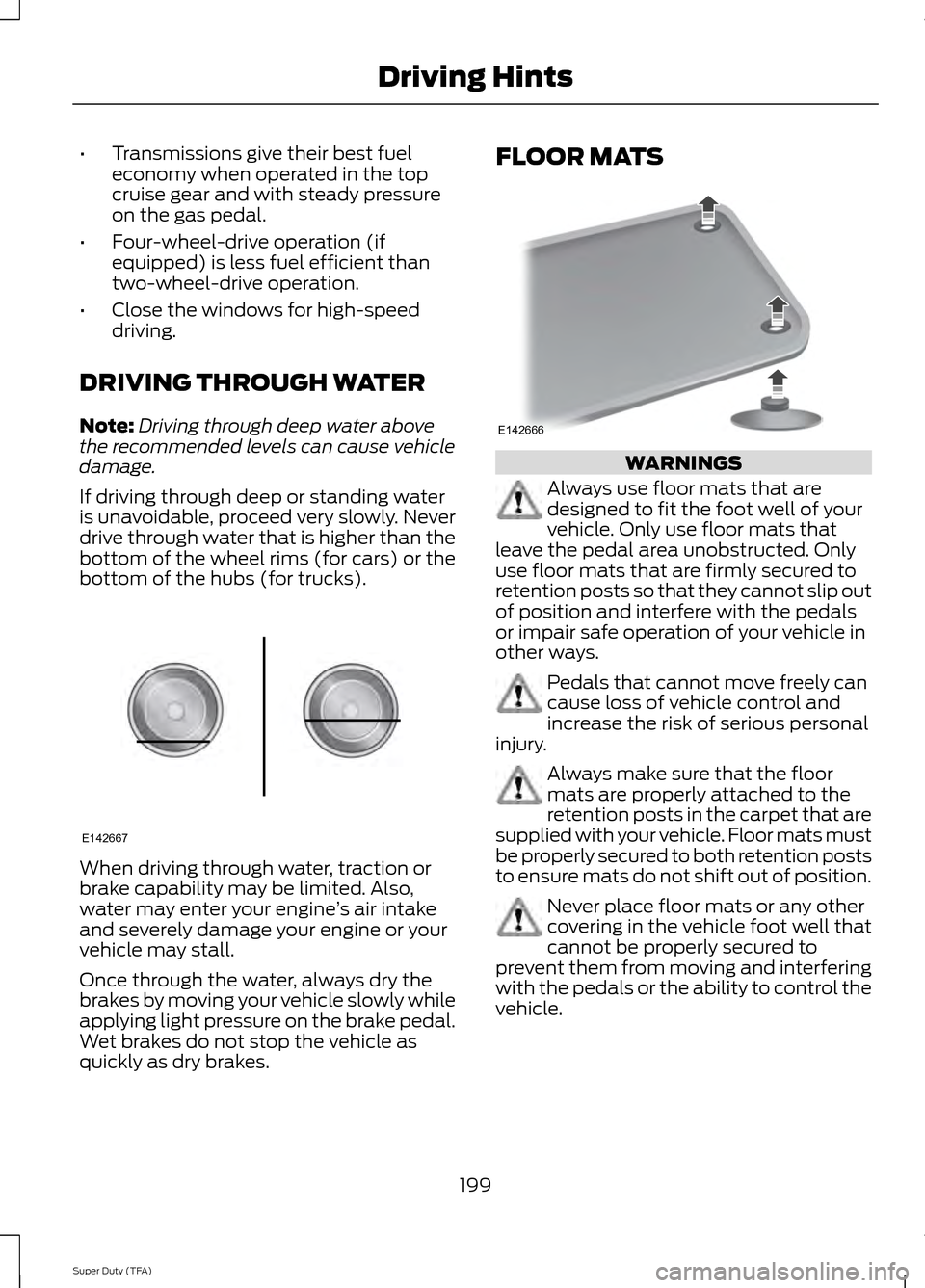

Transmissions give their best fuel
economy when operated in the top
cruise gear and with steady pressure
on the gas pedal.
• Four-wheel-drive operation (if
equipped) is less fuel efficient than
two-wheel-drive operation.
• Close the windows for high-speed
driving.
DRIVING THROUGH WATER
Note: Driving through deep water above
the recommended levels can cause vehicle
damage.
If driving through deep or standing water
is unavoidable, proceed very slowly. Never
drive through water that is higher than the
bottom of the wheel rims (for cars) or the
bottom of the hubs (for trucks). When driving through water, traction or
brake capability may be limited. Also,
water may enter your engine
’s air intake
and severely damage your engine or your
vehicle may stall.
Once through the water, always dry the
brakes by moving your vehicle slowly while
applying light pressure on the brake pedal.
Wet brakes do not stop the vehicle as
quickly as dry brakes. FLOOR MATS
WARNINGS
Always use floor mats that are
designed to fit the foot well of your
vehicle. Only use floor mats that
leave the pedal area unobstructed. Only
use floor mats that are firmly secured to
retention posts so that they cannot slip out
of position and interfere with the pedals
or impair safe operation of your vehicle in
other ways. Pedals that cannot move freely can
cause loss of vehicle control and
increase the risk of serious personal
injury. Always make sure that the floor
mats are properly attached to the
retention posts in the carpet that are
supplied with your vehicle. Floor mats must
be properly secured to both retention posts
to ensure mats do not shift out of position. Never place floor mats or any other
covering in the vehicle foot well that
cannot be properly secured to
prevent them from moving and interfering
with the pedals or the ability to control the
vehicle.
199
Super Duty (TFA) Driving HintsE142667 E142666

For a complete listing of the accessories
that are available for your vehicle, please
contact your authorized dealer or visit our
online store at: Accessories.Ford.com
(United States only).
Ford Custom Accessories are available for
your vehicle through your authorized Ford
or Ford of Canada dealer. Ford Motor
Company will repair or replace any properly
authorized dealer-installed Ford Custom
Accessories found to be defective in
factory-supplied materials or workmanship
during the warranty period, as well as any
component damaged by the defective
accessories. The accessories will be
warranted for whichever provides you the
greatest benefit:
•
12 months or 12000 miles (20000 km)
(whichever occurs first), or
• the remainder of your new vehicle
limited warranty.
Contact your authorized dealer for details
and a copy of the warranty.
Exterior style
• Bug shields
• Exhaust tip
• Deflectors
• Running boards
• Splash guards
• Step bars
• Fog lamps
• Custom graphics*
• Stainless-steel wheel covers*
• Wheel well liners
Interior style
• Floor mats
• Cargo organizers
• Custom seat covers* Lifestyle
•
Ash cup / smoker's package
• Bedliners and bedmats
• Rear-seat entertainment*
• Tonneau covers*
• Trailer hitches, wiring harnesses and
accessories
• Racks and carriers*
• Truck bed camping tent*
• Sportliner cargo liner*
• Bed extender
Peace of mind
• Keyless entry keypad
• Back-up alarm*
• Remote start and alarms
• Wheel locks
• Protective seat covers*
• Bumper and hit-mounted parking
sensors*
• Cable lock*
• Bed hooks*
• Tool/Cargo boxes*
• Speed/Cruise control
*Ford Licensed Accessories are warranted
by the accessory manufacturer's warranty.
Ford Licensed Accessories are fully
designed and developed by the accessory
manufacturer and have not been designed
or tested to Ford Motor Company
engineering requirements. Contact your
authorized Ford dealer for details regarding
the manufacturer's limited warranty and
a copy of the Ford Licensed Accessories
product limited warranty offered by the
accessory manufacturer.
For maximum vehicle performance, keep
the following information in mind when
adding accessories or equipment to your
vehicle:
407
Super Duty (TFA) Accessories

Car Wash
See: Cleaning the Exterior.............................. 246
Center Console..............................................128
Removable Front Cupholders........................ 128
Changing a Bulb
..........................................240
Lamp Assembly Condensation................... 240
Replacing Brake/Tail/Turn/Reverse Lamp Bulbs................................................................... 241
Replacing Cargo Lamp and High-mount Brake Lamp Bulbs......................................... 241
Replacing Fog Lamp Bulbs (If Equipped........................................................... 241
Replacing Front Clearance and Identification Lamp Bulbs (If
Equipped)....................................................... 240
Replacing the License Plate Lamp Bulb.................................................................... 242
Changing a Fuse
............................................213
Fuses........................................................................\
213
Changing a Road Wheel
............................279
Dissimilar Spare Wheel and Tire Assembly
Information...................................................... 279
Location of the Spare Tire and Tools........280
Removing the Spare Tire (With Spare Tire Carrier Only).................................................... 281
Tire Change Procedure.................................... 282
Changing the 12V Battery.........................234 Battery Management System (If
Equipped)........................................................ 235
Changing the Engine Air Filter................244
Changing the Wiper Blades.....................236
Checking MyKey System Status................51
Checking the Wiper Blades
.....................236
Child Restraint and Safety Belt Maintenance.................................................34
Child Safety.......................................................14 General Information............................................. 14
Child Safety Locks.........................................26
Child Seat Positioning..................................25
Cleaning Leather Seats
.............................250
Cleaning Products.......................................246
Cleaning the Alloy Wheels
........................251
Cleaning the Engine....................................247
Cleaning the Exhaust.................................248 Cleaning the Exterior..................................246
Cleaning Plastic Exterior Parts...................... 247
Exterior Chrome................................................. 246
Stripes or Graphics (if equipped)................246
Underbody............................................................ 247
Cleaning the Instrument Panel and Instrument Cluster Lens........................249
Cleaning the Interior...................................249
Cleaning the Windows and Wiper Blades...........................................................248
Clearing All MyKeys
........................................51
Climate............................................................396 Climate Control Voice Commands.............397
Climate Control
.............................................102
Coolant Check See: Engine Coolant Check............................ 226
Crash Sensors and Airbag Indicator........43
Creating a MyKey
...........................................49
Programming/Changing Configurable
Settings............................................................... 50
Cruise Control.................................................60 Principle of Operation........................................ 172
Cruise control See: Using Cruise Control................................. 172
Customer Assistance
.................................207
D
Data Recording
..................................................9
Event Data Recording........................................... 9
Service Data Recording........................................ 9
Daytime Running Lamps.............................65
Digital Audio..................................................305 HD Radio Reception and Station
Troubleshooting........................................... 306
Direction Indicators
.......................................66
Lane Change.......................................................... 66
Driver and Passenger Airbags...................36 Children and Airbags............................................ 41
Passenger Airbag On and Off Switch ..........36
Proper Driver and Front Passenger Seating Adjustment....................................................... 40
Driving Aids
......................................................173
Driving Hints...................................................198
Driving Through Water
...............................199
DRL See: Daytime Running Lamps......................... 65
446
Super Duty (TFA) Index

Speed Control
See: Cruise Control............................................. 172
Stability Control............................................163
Principle of Operation....................................... 163
Starter Switch See: Ignition Switch........................................... 129
Starting a Gasoline Engine.......................130 Cold Weather Starting (Flexible Fuel
Vehicles Only)................................................. 130
Failure to Start..................................................... 130
Guarding Against Exhaust Fumes.................131
Important Ventilating Information................131
Stopping the Engine When Your Vehicle is Moving............................................................... 130
Stopping the Engine When Your Vehicle is Stationary......................................................... 130
Starting and Stopping the Engine..........129 General Information.......................................... 129
Steering.............................................................173
Steering Wheel...............................................59
Storage Compartments.............................128
Sunroof See: Moonroof........................................................ 72
Sun Visors
..........................................................72
Illuminated Vanity Mirror.................................... 72
Slide-on-rod........................................................... 72
Supplementary Restraints System.........35 Principle of Operation......................................... 35
Symbols Glossary
.............................................7
SYNC™ Applications and Services.......327 911 Assist................................................................ 327
SYNC AppLink..................................................... 333
SYNC Services: Traffic, Directions & Information (TDI)......................................... 330
Vehicle Health Report...................................... 329
SYNC™.............................................................312 General Information........................................... 312
SYNC™ Troubleshooting
.........................342
T
Tailgate..............................................................181 Bed Extender........................................................ 183
Tailgate Lock......................................................... 181
Tailgate Removal................................................ 182
Tailgate Step........................................................ 182
Technical Specifications See: Capacities and Specifications............292 Terrain Response
..........................................166
Principle of Operation...................................... 166
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)......................209
Tire Care
..........................................................256
Glossary of Tire Terminology......................... 257
Information About Uniform Tire Quality Grading............................................................. 256
Information Contained on the Tire Sidewall........................................................... 258
Temperature A B C............................................. 257
Traction AA A B C.............................................. 256
Treadwear............................................................ 256
Tire Pressure Monitoring System...........273 Changing Tires With a Tire Pressure
Monitoring System........................................ 274
Understanding Your Tire Pressure Monitoring System ....................................... 275
Tires See: Wheels and Tires..................................... 254
Towing a Trailer
.............................................185
Load Placement................................................. 185
Towing Points................................................194
Towing the Vehicle on Four Wheels..........................................................196
Emergency Towing............................................ 196
Recreational Towing......................................... 196
Towing..............................................................185
Traction Control
.............................................161
Principle of Operation........................................ 161
Trailer Sway Control....................................186
Transfer Case Fluid Check........................233
Transmission Code Designation............295
Transmission..................................................140
Transmission See: Transmission.............................................. 140
Transporting the Vehicle
............................195
U
Under Hood Overview - 6.2L...................223
Under Hood Overview - 6.8L...................224
Universal Garage Door Opener
................118
CAR2U® Home Automation System...........118
HomeLink Wireless Control System.............121
USB Port
............................................................311
452
Super Duty (TFA) Index

Using Cruise Control....................................172
Switching Cruise Control Off.......................... 172
Switching Cruise Control On........................... 172
Using Four-Wheel Drive.............................147 4WD Indicator Lights........................................ 148
Driving Off-Road With Truck and Utility Vehicles.............................................................. 151
Electronic Shift-On-the-Fly (ESOF) 4WD system................................................................ 147
How Your Vehicle Differs From Other Vehicles.............................................................. 151
Manual Shift On Stop (MSOS) 4WD system................................................................ 147
Using a Manual Shift On Stop (MSOS) 4wd system............................................................... 148
Using the Electronic Shift on the Fly 4WD system............................................................... 150
Using Hill Descent Control........................166 Hill descent modes............................................ 166
Using MyKey With Remote Start Systems
...........................................................51
Using Snow Chains......................................273
Using Stability Control...............................163 AdvanceTrac® with Roll Stability Control ™
(RSC®).............................................................. 163
Using SYNC™ With Your Media Player............................................................334
Accessing Your Play Menu............................. 338
Connecting Your Digital Media Player to the USB Port........................................................... 334
Media Menu Features...................................... 336
Media Voice Commands................................. 334
System Settings................................................ 340
What's Playing?................................................. 334
Using SYNC™ With Your Phone.............316 Accessing Features through the Phone
Menu.................................................................. 320
Accessing Your Phone Settings.................... 323
Making Calls......................................................... 319
Pairing a Phone for the First Time................317
Pairing Subsequent Phones............................ 317
Phone Options during an Active Call..........319
Phone Voice Commands................................. 317
Receiving Calls..................................................... 319
System Settings................................................. 324
Text Messaging................................................... 322Using Traction Control.................................161
System Indicator Lights and
Messages.......................................................... 162
Using Voice Recognition
............................314
Initiating a Voice Session................................. 314
System Interaction and Feedback...............315
Utilizing the Mediation/Arbitration Program (Canada Only)
........................209
V
Vehicle Care...................................................246 General Information......................................... 246
Vehicle Certification Label
.......................294
Vehicle Identification Number................294
Vehicle Storage..............................................251
Battery.................................................................... 252
Body........................................................................\
. 251
Brakes..................................................................... 252
Cooling system................................................... 252
Engine..................................................................... 252
Fuel system.......................................................... 252
General................................................................... 251
Miscellaneous..................................................... 252
Removing Vehicle From Storage.................. 252
Tires........................................................................\
. 252
Ventilated Seats.............................................115 Heated and Ventilated Seats Air Filter
Replacement ................................................... 115
Ventilation See: Climate Control......................................... 102
VIN See: Vehicle Identification Number............294
Voice Control
...................................................60
453
Super Duty (TFA) Index

W
Warning Lamps and Indicators.................75
4X2........................................................................\
..... 78
4X4 HIGH................................................................. 78
4X4 LOW................................................................. 78
Anti-Lock Braking System................................. 76
Battery...................................................................... 76
Brake System......................................................... 76
Check Fuel Cap..................................................... 76
Cruise Control........................................................ 76
Diesel Warning Lights......................................... 78
Direction Indicator................................................ 76
Door Ajar.................................................................. 76
Electronic Locking Differential........................ 76
Engine Coolant Temperature........................... 76
Engine Oil................................................................. 77
Fasten Safety Belt................................................ 77
Front Airbag............................................................. 77
High Beam............................................................... 77
Hill Descent............................................................. 77
Low Fuel Level........................................................ 77
Low Tire Pressure Warning................................ 77
Powertrain Malfunction/Reduced Power/Electronic Throttle Control............77
Service Engine Soon............................................ 77
Stability Control.................................................... 78
Stability Control Off............................................ 78
Transmission Tow/Haul..................................... 78
Washer Fluid Check....................................234
Washers See: Cleaning the Exterior.............................. 246
See: Wipers and Washers................................. 63
Waxing..............................................................247
Wheel Nuts See: Changing a Road Wheel........................ 279
Wheels and Tires.........................................254 General Information......................................... 254
Technical Specifications................................ 290
Windows and Mirrors
...................................68
Windshield Washers.....................................63
Windshield Wipers.........................................63 Speed dependent wipers.................................. 63
Wipers and Washers.....................................63
454
Super Duty (TFA) Index
