2014 FORD MUSTANG mirror controls

Locks 65
Locking and unlocking..................................65
Interior luggage compartment release.......................69
Security 70
SecuriLock® passive anti-theft system.......................70
Anti-theft system......................................72
Steering Wheel 75
Adjusting the steering wheel..............................75
Steering wheel controls.................................75
Wipers and Washers 78
Windshield wipers.....................................78
Windshield washers....................................79
Lighting 80
Lighting control.......................................80
Autolamps...........................................81
Instrument lighting dimmer...............................81
Headlamp exit delay....................................82
Daytime running lamps..................................83
Front fog lamps.......................................83
Directionindicators ....................................84
Interior lamps........................................84
Windows and Mirrors 85
Power windows.......................................85
Exteriormirrors.......................................87
Interiormirrors .......................................89
Sunvisors ...........................................90
Sunshade............................................91
2Table of Contents
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

Bounce-Back
The window will stop automatically while closing and reverse some
distance if there is an obstacle in the way.
Overriding the Bounce-Back Feature
WARNING:When you override the bounce-back feature the
window will not reverse if it detects an obstacle. Take care when
closing the windows to avoid personal injury.
Pull up the window switch and hold within two seconds of the window
reaching the bounce-back position. The window will travel up with no
bounce-back protection. The window will stop if you release the switch
before the window is fully closed.
Short Drop Glass (Front Windows)
This feature lowers the glass when either door is opened to improve door
efforts and sealing. The glass returns to its closed position when the
door is closed.
Re-Calibrating a Window
Note:Perform short drop re-calibration with the doors closed.
Re-calibrating with doors open will cause the window to continuously
bounce back.
If a window will not raise again when the door is closed, use the switch
to fully raise the window, then hold the switch up for two seconds.
If a window will not lower when the door is opened:
1. Use the switch to fully lower the window, then hold the switch down
for two seconds.
2. Immediately after releasing the switch, pull the switch up to fully raise
the window and hold the switch up for two seconds.
Rear Power Windows (Convertible Only)
The rear quarter windows are operated by a single switch located at the
driver’s door window controls.
•Press and hold the switch to open the windows.
•Pull up and hold the switch to close the windows.
86Windows and Mirrors
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL SYSTEM
(WITH NAVIGATION SYSTEM)
Note:To use the touchscreen controls, see theTouchscreen climate
controlsin theNavigation Systemchapter.
A.CLIMATE:Control the system through the touchscreen display.
SeeTouchscreen functionslater in this section.
B.Rear defrost:Turns the heated windows and mirrors off and on.
SeeHeated windows and mirrorslater in this chapter for more
information. If your vehicle is equipped with heated mirrors, this button
turns them on also.
C.A/C:Press to turn air conditioning off and on. Air conditioning cools
the vehicle using outside air. To improve air conditioning when starting
your vehicle, drive with the windows slightly open for two to three
minutes.
Use A/C with recirculated air to improve cooling performance and
efficiency.
Note:A/C turns on automatically in MAX A/C, Defrost and Floor/Defrost.
D.Passenger temperature control:Press to increase or decrease the
air temperature on the passenger side of the vehicle.
E.Passenger heated seat control (if equipped):Turn the passenger
heated seat off and on. SeeHeated seatsin theSeatschapter for more
information.
EJ
L
K
B
C
D
A
IGFH
Climate Control133
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

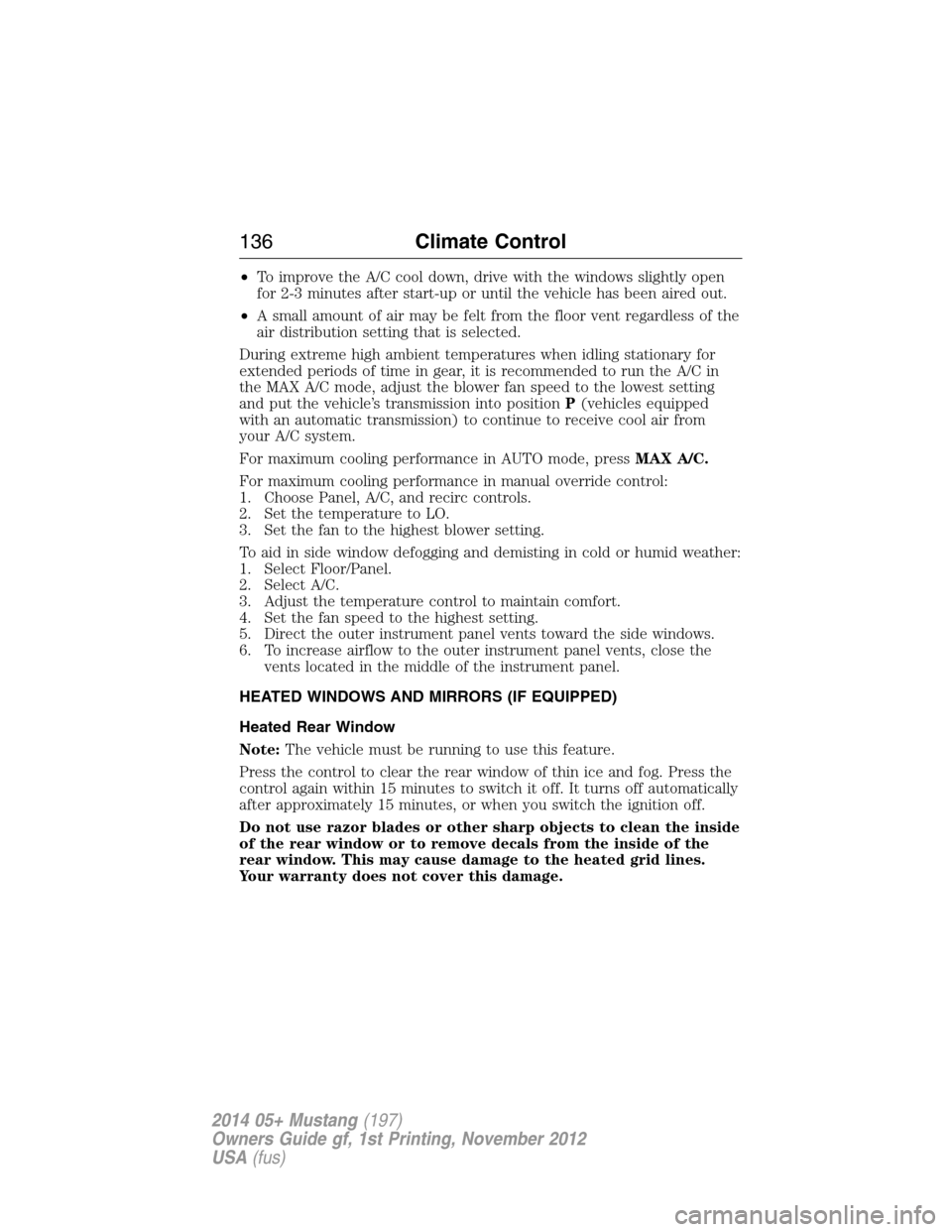

•To improve the A/C cool down, drive with the windows slightly open
for 2-3 minutes after start-up or until the vehicle has been aired out.
•A small amount of air may be felt from the floor vent regardless of the
air distribution setting that is selected.
During extreme high ambient temperatures when idling stationary for
extended periods of time in gear, it is recommended to run the A/C in
the MAX A/C mode, adjust the blower fan speed to the lowest setting
and put the vehicle’s transmission into positionP(vehicles equipped
with an automatic transmission) to continue to receive cool air from
your A/C system.
For maximum cooling performance in AUTO mode, pressMAX A/C.
For maximum cooling performance in manual override control:
1. Choose Panel, A/C, and recirc controls.
2. Set the temperature to LO.
3. Set the fan to the highest blower setting.
To aid in side window defogging and demisting in cold or humid weather:
1. Select Floor/Panel.
2. Select A/C.
3. Adjust the temperature control to maintain comfort.
4. Set the fan speed to the highest setting.
5. Direct the outer instrument panel vents toward the side windows.
6. To increase airflow to the outer instrument panel vents, close the
vents located in the middle of the instrument panel.
HEATED WINDOWS AND MIRRORS (IF EQUIPPED)
Heated Rear Window
Note:The vehicle must be running to use this feature.
Press the control to clear the rear window of thin ice and fog. Press the
control again within 15 minutes to switch it off. It turns off automatically
after approximately 15 minutes, or when you switch the ignition off.
Do not use razor blades or other sharp objects to clean the inside
of the rear window or to remove decals from the inside of the
rear window. This may cause damage to the heated grid lines.
Your warranty does not cover this damage.
136Climate Control
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)
