Page 178 of 492

Using the Front and Rear Sensing System
Rear Sensing System
The rear sensors are only active when the transmission is in R (Reverse).
As the vehicle moves closer to the obstacle, the rate of the audible
warning increases. When the obstacle is fewer than 12 inches
(30 centimeters) away, the warning sounds continuously. If a stationary
or receding object is detected farther than 12 inches (30 centimeters)
from the side of the vehicle, the tone sounds for only three seconds.
Once the system detects an object approaching, the warning sounds
again.
A. Coverage area of up to 6 feet
(2 meters) from the rear bumper
(with a decreased coverage area at
the outer corners of the bumper).
The system detects certain objects while the transmission is in R
(Reverse):
•and moving toward a stationary object at a speed of 3 mph (5 km/h)
or less but not moving,
•and a moving object is approaching the rear of the vehicle at a speed
of 3 mph (5 km/h) or less
The system can be turned off using the information display control.
Refer to theInformation Displaychapter. If a fault is present in the
system, a warning message appears in the information display and does
not allow the driver to switch the faulted system on.
A
Parking Aids177
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)
Page 179 of 492

Front Sensing System
The front sensors are active when the gearshift is in any position other
than P (Park) or N (Neutral) and the vehicle speed is below 7 mph
(12 km/h).
A. Coverage area of up to 27 inches
(70 centimeters) from the front of
the vehicle and about 14 inches
(35 centimeters) to the side of the
front end of the vehicle. Refer to
the reverse sensing section for
details on coverage area.
The system sounds an audible warning when obstacles are near either
bumper in the following manner:
•Objects detected by the front sensors are indicated by a high-pitched
tone from the front radio speakers.
•Objects detected by the rear sensors are indicated by a lower pitched
tone from the rear radio speakers.
•The sensing system reports the obstacle which is closest to the
front or rear of the vehicle. For example, if an obstacle is 24 inches
(60 centimeters) from the front of the vehicle and, at the same time,
an obstacle is only 16 inches (40 centimeters) from the rear of the
vehicle, the lower pitched tone sounds.
•
An alternating warning sounds from the front and rear if there are
objects at both bumpers that are closer than 10 inches (25 centimeters).
For specific information on the reverse sensing portion of the system,
refer to that section.
A
178Parking Aids
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)

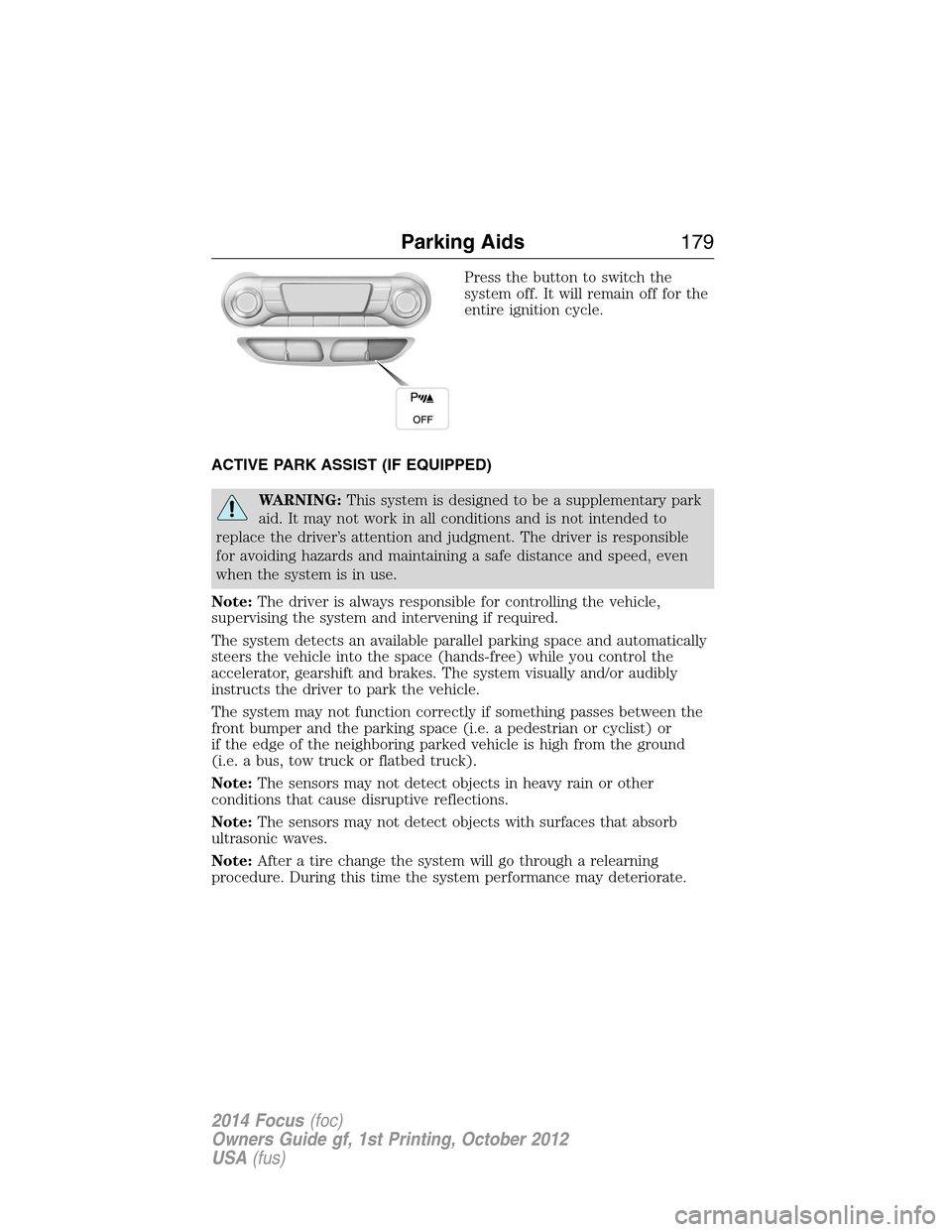

Page 180 of 492

Press the button to switch the
system off. It will remain off for the
entire ignition cycle.
ACTIVE PARK ASSIST (IF EQUIPPED)
WARNING:This system is designed to be a supplementary park
aid. It may not work in all conditions and is not intended to
replace the driver’s attention and judgment. The driver is responsible
for avoiding hazards and maintaining a safe distance and speed, even
when the system is in use.
Note:The driver is always responsible for controlling the vehicle,
supervising the system and intervening if required.
The system detects an available parallel parking space and automatically
steers the vehicle into the space (hands-free) while you control the
accelerator, gearshift and brakes. The system visually and/or audibly
instructs the driver to park the vehicle.
The system may not function correctly if something passes between the
front bumper and the parking space (i.e. a pedestrian or cyclist) or
if the edge of the neighboring parked vehicle is high from the ground
(i.e. a bus, tow truck or flatbed truck).
Note:The sensors may not detect objects in heavy rain or other
conditions that cause disruptive reflections.
Note:The sensors may not detect objects with surfaces that absorb
ultrasonic waves.
Note:After a tire change the system will go through a relearning
procedure. During this time the system performance may deteriorate.
Parking Aids179
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)
Page 181 of 492

The system should not be used if:
•a foreign object (i.e. bike rack or trailer) is attached to the front or
rear of the vehicle or at another location close to the sensors.
•an overhanging object (i.e. surfboard) is attached to the roof.
•the front bumper or side sensors are damaged (i.e. in a collision) or
obstructed by a foreign object (i.e. front bumper cover).
•a mini-spare tire is in use.
Using Active Park Assist
Press the button; the touch screen
displays a message and a
corresponding graphic to indicate
it’s searching for a parking space.
Use the turn signal to indicate
which side of the vehicle you want
the system to search on.
Note:If the turn signal is not on, the system automatically searches on
the vehicle’s passenger side.
When a suitable space is found, the touch screen displays a message and
a chime sounds. Slow down and stop at approximately position (A), then
follow the instructions on the touch screen.
180Parking Aids
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)
Page 184 of 492

Troubleshooting the System
The system does not look for a space
The traction control system may be off
Any door (except the driver’s) may not be completely closed
The system does not offer a particular space
Something may be contacting the front bumper or side sensors
There is not enough room on both sides of the vehicle in order to park
There is not enough space for the parking maneuver on the opposite
side of the parking space
The vehicle is farther than 5 ft (1.5 m) from the parking space
The vehicle is closer than 16 in. (40 cm) from neighboring parked vehicles
The transmission is in R (Reverse); the vehicle must be moving forward
to detect a parking space
The system does not position the vehicle where I want in the space
The vehicle is rolling in the opposite direction of the transmission
(i.e. rolling forward when R [Reverse] is selected)
The transmission is in R (Reverse); the vehicle must be moving
forward to detect a parking space
An irregular curb along the parking space prevents the system from
aligning the vehicle properly
Vehicles or objects bordering the space may not be positioned correctly
The vehicle was pulled too far past the parking space. The system
performs best when you drive the same distance past the parking space
The tires may not be installed or maintained correctly (i.e. not inflated
correctly, improper size, or of different sizes)
A repair or alteration has changed detection capabilities
A parked vehicle has a high attachment (i.e. salt sprayer, snowplow,
moving truck bed, etc.)
The parking space length or position of parked objects changed after
your vehicle passed
The temperature around your vehicle changes quickly (i.e. driving from
a heated garage into the cold, or after leaving a car wash)
Parking Aids183
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)
Page 225 of 492
Fuse or relay
numberFuse amp
ratingProtected components
F30 5A* Electronic control module
keep-alive power
F31 — Not used
F32 10A* Exhaust gas recovery valve,
Swirl control valves,
Heated oxygen sensors
F33 10A* Ignition coils
15A* Ignition coils (Focus ST)
F34 10A* Injectors
F35 5A* Active grill shutter
F36 10A* Engine control module
F37 — Not used
F38 15A* Engine control module/
Transmission control module
15 feed
F39 5A* Headlamp control module
(Focus ST)
F40 5A* Electronic power assist steering
15 feed
F41 20A* Body control module 15 feed
F42 15A* Rear Wiper
F43 15A* High-intensity display headlamp
leveling (Focus ST)
F44 — Not used
F45 — Not used
F46 25A* Power windows front (without
door control unit)
F47 7.5A* Heated mirror (without door
control unit)
224Fuses
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)
Page 227 of 492
Passenger Compartment Fuse Panel
The fuse panel is located on the right side below the glove box.
Fuse or relay
numberFuse amp
ratingProtected components
F56 20A Fuel pump supply, Mass air flow
sensor
F57 — Not used
F58 — Not used
F59 5A Passive anti-theft transceiver
F60 10A Interior light, Driver door switch
pack, Glove box illumination,
Overhead console switch bank
F61 20A Cigar lighter, Power point
F62 — Not used
F63 — Not used
226Fuses
2014 Focus(foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)
Page 228 of 492

Fuse or relay
numberFuse amp
ratingProtected components
F64 — Not used
F65 10A Luggage compartment release
F66 20A Driver door unlock supply
F67 7.5A SYNC, Multifunction display, Global
positioning system module, Compass
F68 — Not used
F69 5A Instrument cluster, Minor cluster
(Focus ST)
F70 20A Central lock and unlock supply
F71 10A Heating control head (manual air
conditioning), Duel electronic
automatic temperature control
F72 7.5A Steering wheel module
F73 7.5A Data link connector
F74 15A Low beam headlamp supply
F75 15A Fog lamp supply
F76 10A Reversing lamp supply
F77 20A Washer pump
F78 5A Ignition switch, Start button
F79 15A Radio, Navigation DVD player,
Hazard light switch, Door lock
switch
F80 20A Moonroof supply
F81 5A Radio frequency receiver
F82 20A Washer pump ground
F83 20A Central locking ground
F84 20A Driver door unlock ground
F85 7.5A Front seat heater switch, Heating
module (manual air conditioning),
Air quality sensor, Radio, In-car
temperature and humidity sensor,
Moonroof
Fuses227
