Windshield Washers.....................................66
Rear Window Wiper and Washers...........67
Lighting
General Information.....................................68
Lighting Control..............................................68
Autolamps........................................................69
Instrument Lighting Dimmer.....................69
Headlamp Exit Delay
....................................70
Daytime Running Lamps
.............................70
Front Fog Lamps
............................................70
Direction Indicators
.......................................70
Interior Lamps...................................................71
Ambient Lighting
.............................................71
Windows and Mirrors
Power Windows
..............................................73
Global Opening and Closing......................74
Exterior Mirrors.................................................75
Interior Mirror
....................................................76
Moonroof............................................................77
Instrument Cluster
Gauges...............................................................78
Warning Lamps and Indicators.................79
Warning Lamps and Indicators - 1.6L EcoBoost™..................................................82
Audible Warnings and Indicators.............85
Information Displays
General Information.....................................86
Clock...................................................................89
Trip Computer
.................................................89
Personalized Settings..................................90
Information Messages
.................................90
Climate Control
Principle of Operation..................................98
Air Vents............................................................98 Manual Climate Control..............................99
Automatic Climate Control......................100
Hints on Controlling the Interior
Climate..........................................................101
Heated Windows and Mirrors..................104
Cabin Air Filter...............................................104
Seats
Sitting in the Correct Position.................106
Head Restraints
............................................106
Manual Seats
................................................108
Rear Seats.......................................................109
Heated Seats..................................................110
Auxiliary Power Points
Auxiliary Power Points.................................112
Cigar Lighter.....................................................112
Storage Compartments
Cup Holders.....................................................113
Starting and Stopping the Engine
General Information
.....................................114
Ignition Switch................................................114
Keyless Starting
.............................................114
Starting a Gasoline Engine........................116
Switching Off the Engine............................117
Engine Block Heater......................................117
Fuel and Refueling
Safety Precautions
.......................................119
Fuel Quality - Gasoline...............................120
Running Out of Fuel....................................120
Refueling...........................................................121
Fuel Consumption
........................................122
Emission Control System...........................123
Transmission
Manual Transmission
..................................126
2
Fiesta (CCT) Table of Contents

Menu
DSP settings
DSP equalizer
Traffic
News
Alt. frequency
RDS Regional
Traction Control
Vehicle settings
ESC
Hill start assist
Alarm system
Powerfold mirrors
Indicator
Ambient light
Chimes
Auto time (GPS)
Clock settings
Set time
Set date
Set time zone
24-hour mode
Measure Unit
Display settings
Language
Dimming
create MyKey
MyKey
Traction control
ESC
Speed limit
Speed warning
88
Fiesta (CCT) Information Displays

Menu
Volume limit
Information
clear all MyKeys
Information
MyKey active
System Check
All active warnings will display first if
applicable. The system check menu may
appear different based upon equipment
options and current vehicle status. Press
the up or down arrow button to scroll
through the list.
CLOCK
Type 1
To adjust the clock, switch the ignition on
and press buttons H or M on the
information and entertainment display as
necessary.
Type 2
Note: Use the information display to adjust
the clock. See General Information (page
86).
TRIP COMPUTER Press the button to scroll through the
displays. You can reset the trip, average
fuel consumption and average
speed. Scroll to the required
display, then press and hold the button,
this will reset the trip computer.
The trip computer includes the following
information displays:
Trip Odometer Registers the distance traveled
of individual journeys.
Distance to Empty Indicates the approximate
distance your vehicle will travel
on the fuel remaining in the tank.
The distance to empty displayed
may vary depending on driving
style and road conditions.
Average Fuel Consumption Indicates the average fuel
consumption since the function
was last reset.
89
Fiesta (CCT) Information DisplaysE102759 E164638E

WARNINGS
Do not attempt to change a tire on
the side of the vehicle close to
moving traffic. Pull far enough off the
road to avoid the danger of being hit when
operating the jack or changing the wheel. Always use the jack provided as
original equipment with your vehicle.
If using a jack other than the one
provided as original equipment with your
vehicle, make sure the jack capacity is
adequate for the vehicle weight, including
any vehicle cargo or modifications. Make sure there is no lubrication
(grease or oil) on the threads or the
surface between the wheel lugs and
nuts. This can cause the lug nuts to loosen
while driving. Note:
Passengers should not remain in the
vehicle when the vehicle is being jacked.
1. Park on a level surface, set the parking
brake and activate the hazard flashers.
2. Place the transmission selector lever in position P (automatic transmission)
or position R (manual transmission)
and turn the engine off.
3. Remove the carpeted wheel cover.
4. Remove the spare tire bolt securing the
spare tire by turning it
counterclockwise.
5. Remove the spare tire from the spare tire compartment. 6. Remove the lug wrench and jack from
the foam holder. 7. Block the diagonally opposite wheel.
8. Loosen each wheel lug nut one-half
turn counterclockwise but do not
remove them until the wheel is raised
off the ground.
Note: Jack at the specified locations to
avoid damage to the vehicle.
9. The vehicle jacking points are shown here, and are depicted on the yellow
warning label on the jack. 230
Fiesta (CCT) Wheels and TiresE142550 E142551 E145908

Eject: Press the button to eject a CD.
A
Cursor arrows:
Press a button to scroll through on-screen choices.
B
CD slot:
Where you insert a CD.
C
OK:
Press the button to confirm on-screen selections.
D
Clock:
Press to set the time. Use the H and M buttons outside the audio display
to adjust the hours and minutes. Press OK to finish. (The clock can also be set
by pressing MENU, then scrolling to the clock settings menu.)
E
Tune:
Press the button to manual tune on AM and FM wavebands.
F
Numeric keypad:
Press the button to recall a previously stored station. To
store a favorite station press and hold until the sound returns.
G
Seek up: Press the button to go to the next station up the radio frequency band
or the next track on a CD.
H
On, Off and Volume:
Press the button to switch the audio system on or off.
Turn the dial to adjust the volume.
I
244
Fiesta (CCT) Audio SystemE156613
ED
OF
G
K
L
M
N
JHI
C
A
B

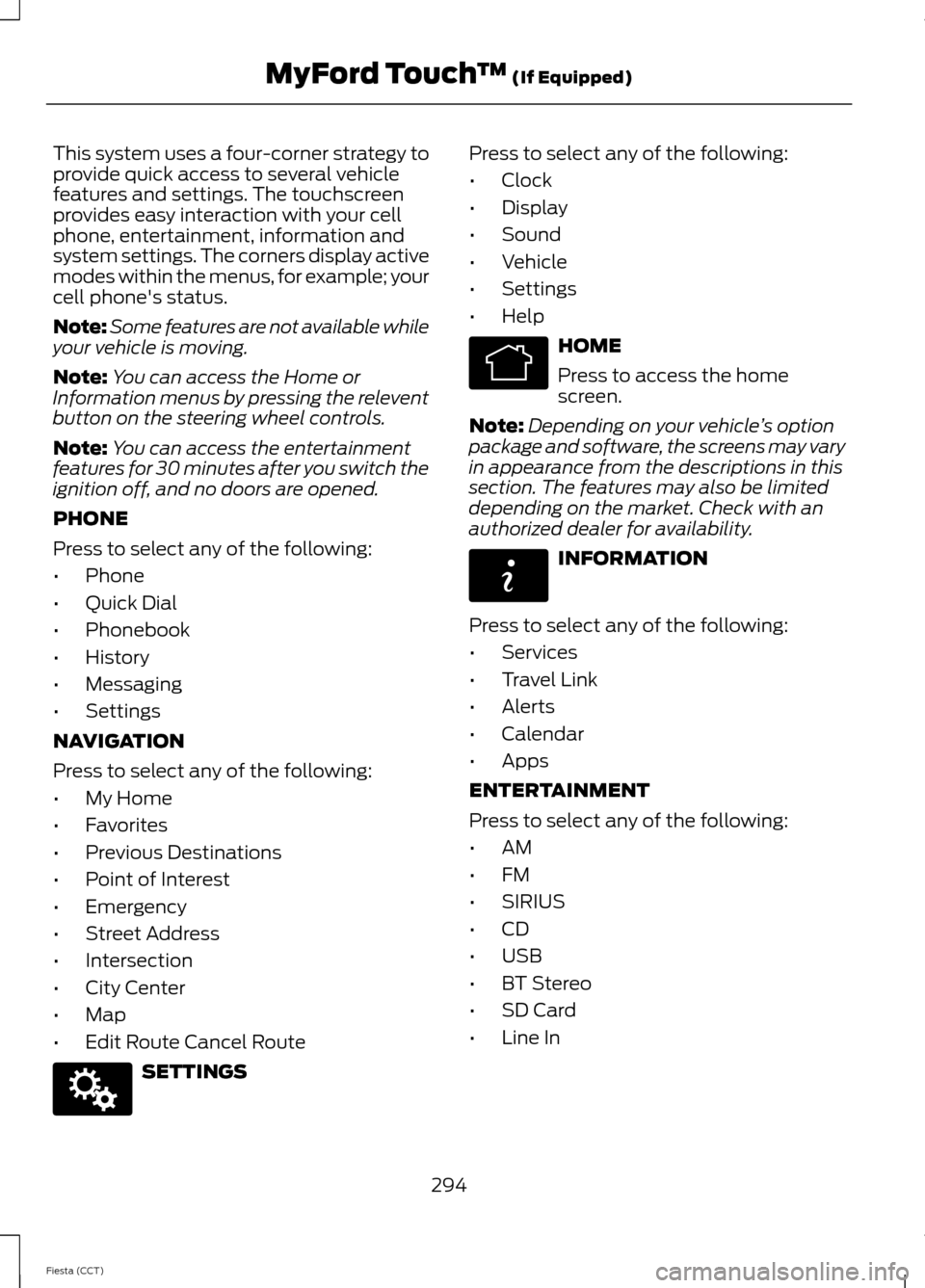

This system uses a four-corner strategy to
provide quick access to several vehicle
features and settings. The touchscreen
provides easy interaction with your cell
phone, entertainment, information and
system settings. The corners display active
modes within the menus, for example; your
cell phone's status.
Note:
Some features are not available while
your vehicle is moving.
Note: You can access the Home or
Information menus by pressing the relevent
button on the steering wheel controls.
Note: You can access the entertainment
features for 30 minutes after you switch the
ignition off, and no doors are opened.
PHONE
Press to select any of the following:
• Phone
• Quick Dial
• Phonebook
• History
• Messaging
• Settings
NAVIGATION
Press to select any of the following:
• My Home
• Favorites
• Previous Destinations
• Point of Interest
• Emergency
• Street Address
• Intersection
• City Center
• Map
• Edit Route Cancel Route SETTINGS Press to select any of the following:
•
Clock
• Display
• Sound
• Vehicle
• Settings
• Help HOME
Press to access the home
screen.
Note: Depending on your vehicle ’s option
package and software, the screens may vary
in appearance from the descriptions in this
section. The features may also be limited
depending on the market. Check with an
authorized dealer for availability. INFORMATION
Press to select any of the following:
• Services
• Travel Link
• Alerts
• Calendar
• Apps
ENTERTAINMENT
Press to select any of the following:
• AM
• FM
• SIRIUS
• CD
• USB
• BT Stereo
• SD Card
• Line In
294
Fiesta (CCT) MyFord Touch
™ (If Equipped)E142607 E142613 E142608

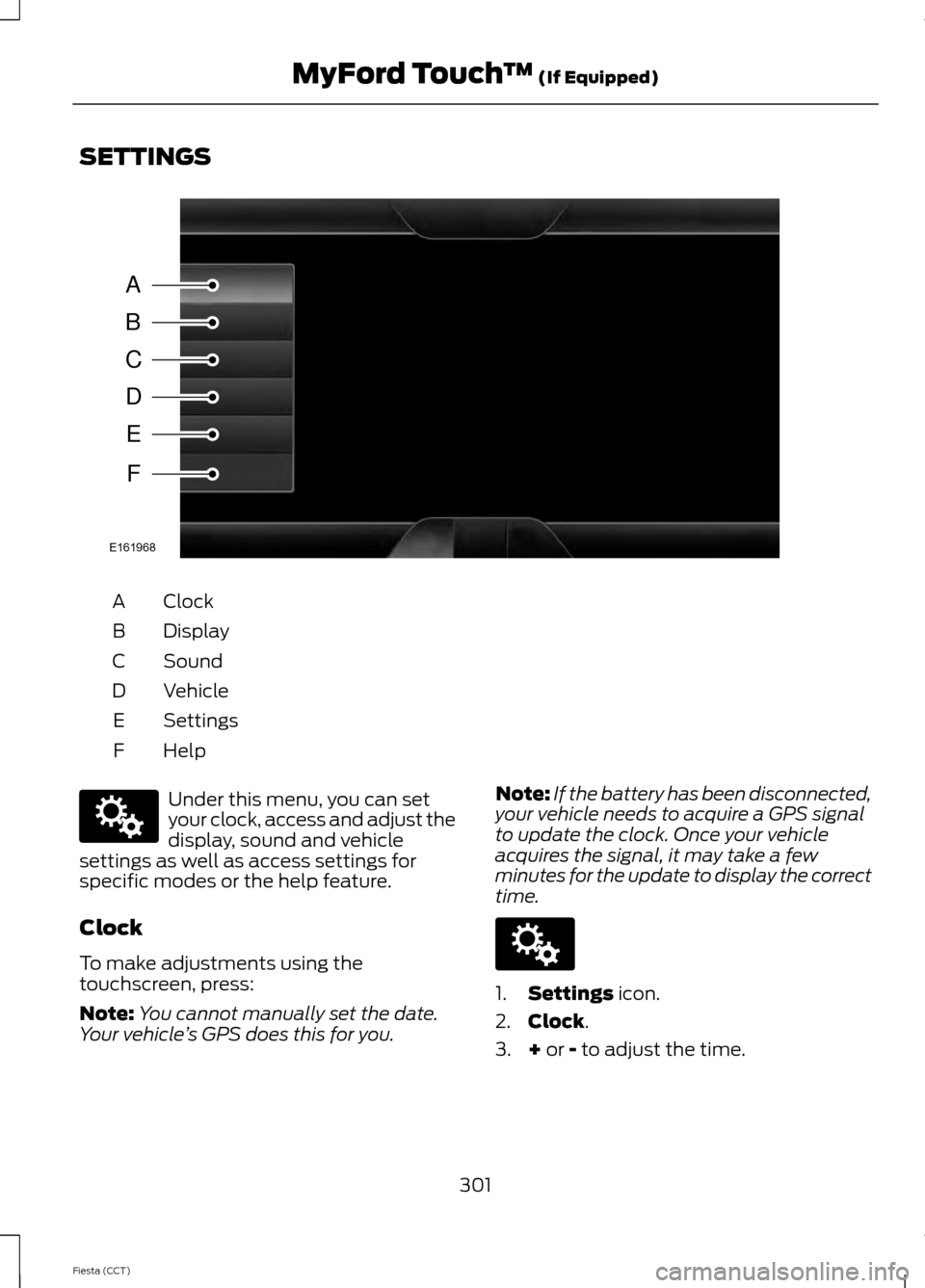

SETTINGS
Clock
A
Display
B
Sound
C
Vehicle
D
Settings
E
HelpF Under this menu, you can set
your clock, access and adjust the
display, sound and vehicle
settings as well as access settings for
specific modes or the help feature.
Clock
To make adjustments using the
touchscreen, press:
Note: You cannot manually set the date.
Your vehicle ’s GPS does this for you. Note:
If the battery has been disconnected,
your vehicle needs to acquire a GPS signal
to update the clock. Once your vehicle
acquires the signal, it may take a few
minutes for the update to display the correct
time. 1.
Settings icon.
2. Clock
.
3. +
or - to adjust the time.
301
Fiesta (CCT) MyFord Touch
™
(If Equipped)A
B
C
D
E
F
E161968 E142607 E142607

California Proposition 65.............................12
Capacities and Specifications................233
Cargo Nets
.......................................................153
Installing and Removing the Cargo
Net....................................................................... 153
Changing a Bulb - Vehicles With: 4-Door...........................................................190
Center High Mounted Stop Lamp................193
Front Fog Lamps................................................. 192
Headlamp............................................................. 190
Interior Lamp........................................................ 194
License Plate Lamp........................................... 194
Luggage Compartment Lamp, Footwell Lamp and Liftgate Lamp............................ 194
Reading Lamps................................................... 194
Rear Lamps........................................................... 192
Side Direction Indicator..................................... 191
Changing a Bulb - Vehicles With: 5-Door...........................................................195
Center High Mounted Stop Lamp................198
Front Fog Lamps................................................. 197
Headlamp............................................................. 195
Interior Lamp....................................................... 198
License Plate Lamp........................................... 198
Luggage Compartment Lamp, Footwell Lamp and Liftgate Lamp............................ 199
Reading Lamps................................................... 199
Rear Lamps........................................................... 197
Side Direction Indicator................................... 196
Changing a Fuse
............................................175
Fuses........................................................................\
175
Changing a Road Wheel...........................228 Dissimilar Spare Wheel and Tire Assembly
Information
..................................................... 228
Stowing the flat tire........................................... 231
Tire Change Procedure.................................... 229
Changing the 12V Battery..........................186
Changing the Engine Air Filter..................187
Changing the Wiper Blades
.....................186
Rear Window Wiper Blade.............................. 186
Windshield Wiper Blades................................ 186
Checking MyKey System Status..............50 MyKey Distance.................................................... 50
Number of Admin Keys...................................... 50
Number of MyKeys.............................................. 50
Checking the Wiper Blades......................186
Child Restraint and Safety Belt Maintenance.................................................32 Child Safety.......................................................14
General Information............................................. 14
Child Safety Locks
..........................................25
Left-Hand Side...................................................... 25
Right-Hand Side................................................... 25
Child Seat Positioning
...................................21
Cigar Lighter.....................................................112
Cleaning Leather Seats.............................207
Cleaning Products.......................................203
Cleaning the Alloy Wheels.......................207
Cleaning the Engine...................................204
Cleaning the Exterior..................................203 Cleaning Plastic Exterior Parts..................... 204
Exterior Chrome................................................. 203
Underbody........................................................... 204
Cleaning the Instrument Panel and Instrument Cluster Lens........................206
Cleaning the Interior
...................................205
Cleaning the Windows and Wiper Blades...........................................................205
Clearing All MyKeys.......................................50
Climate Control
..............................................98
Principle of Operation........................................ 98
Clock...................................................................89 Type 1........................................................................\
89
Type 2....................................................................... 89
Cold Weather Precautions.........................157
Crash Sensors and Airbag Indicator
.........41
Creating a MyKey...........................................49
Programming or Changing Optional
Settings............................................................... 49
Cruise Control..................................................65 Principle of Operation....................................... 142
Cup Holders.....................................................113
Customer Assistance
.................................160
D
Data Recording
................................................10
Event Data Recording.......................................... 10
Service Data Recording...................................... 10
Daytime Running Lamps.............................70
Direction Indicators
.......................................70
Driver and Passenger Airbags....................35 Children and Airbags.......................................... 36
Proper Driver and Front Passenger Seating Adjustment........................................................ 35
Driving Aids
.....................................................144
384
Fiesta (CCT) Index
