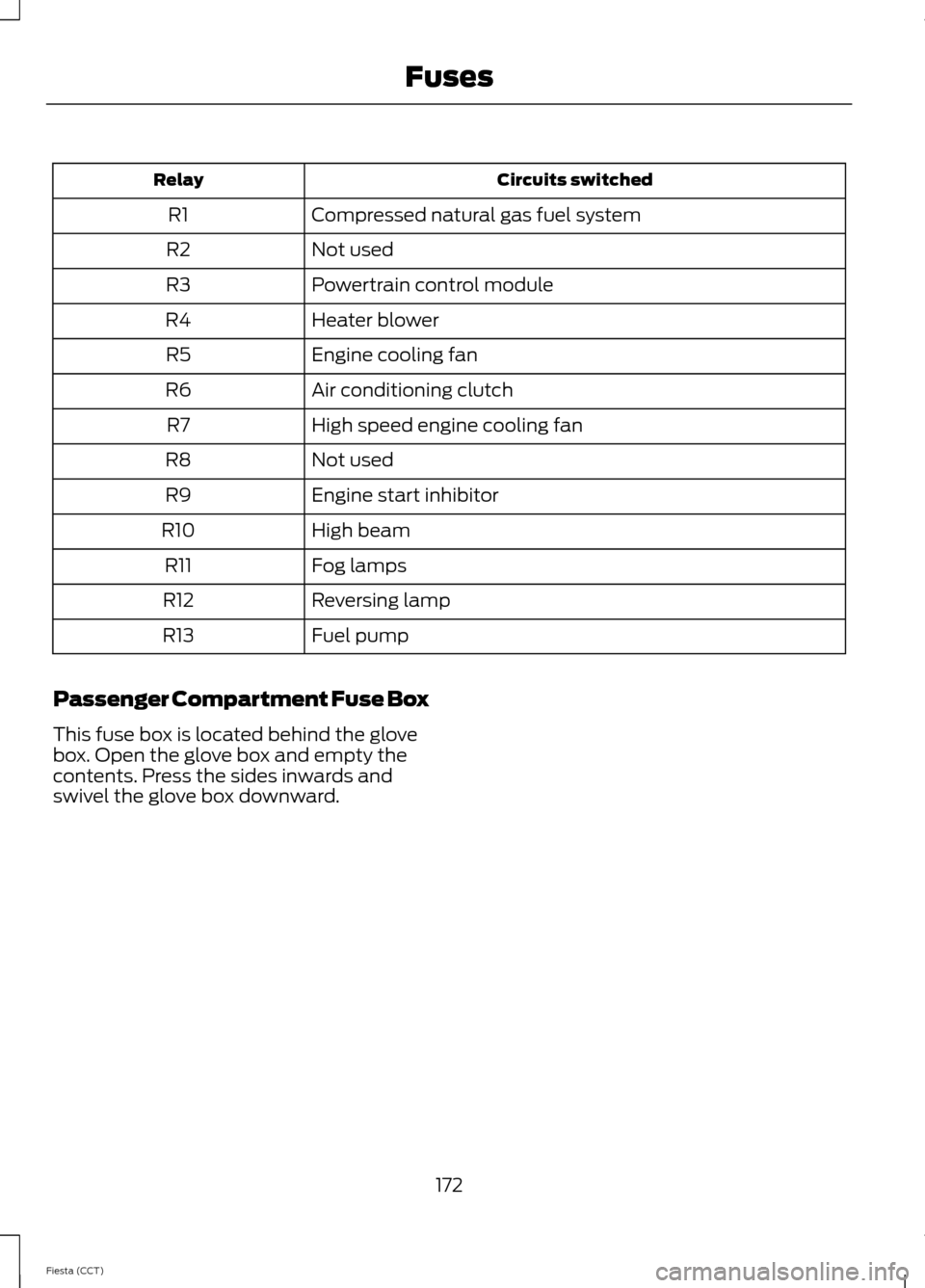

Page 175 of 396
Circuits switched
Relay
Compressed natural gas fuel system
R1
Not used
R2
Powertrain control module
R3
Heater blower
R4
Engine cooling fan
R5
Air conditioning clutch
R6
High speed engine cooling fan
R7
Not used
R8
Engine start inhibitor
R9
High beam
R10
Fog lamps
R11
Reversing lamp
R12
Fuel pump
R13
Passenger Compartment Fuse Box
This fuse box is located behind the glove
box. Open the glove box and empty the
contents. Press the sides inwards and
swivel the glove box downward.
172
Fiesta (CCT) Fuses

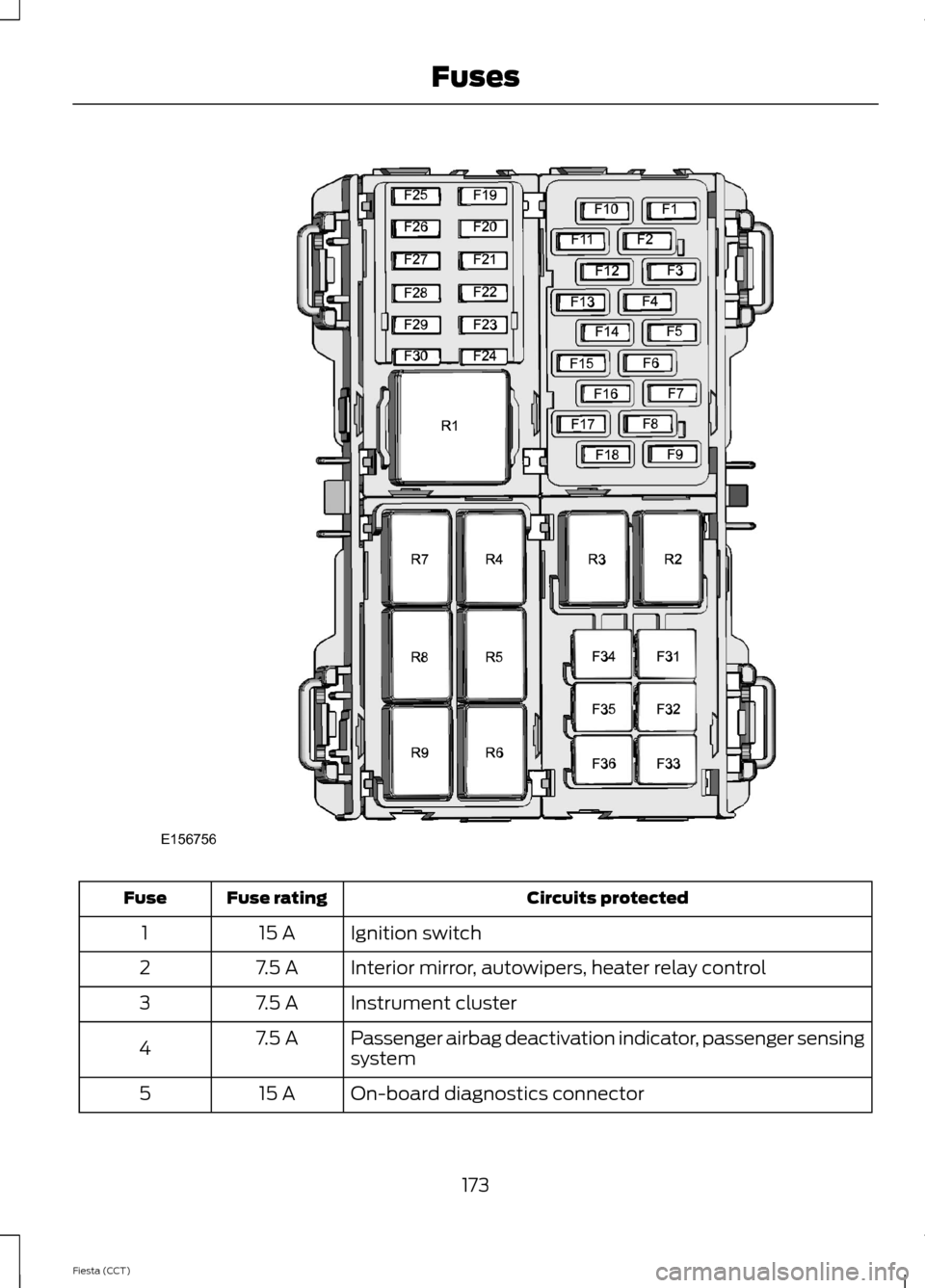

Page 176 of 396
Circuits protected
Fuse rating
Fuse
Ignition switch
15 A
1
Interior mirror, autowipers, heater relay control
7.5 A
2
Instrument cluster
7.5 A
3
Passenger airbag deactivation indicator, passenger sensing
system
7.5 A
4
On-board diagnostics connector
15 A
5
173
Fiesta (CCT) FusesE156756
Page 178 of 396
Circuits protected
Fuse rating
Fuse
Battery back-up sounder
20 A
32
Auxilliary power points
20 A
33
Power windows
30 A
34
Moonroof
20 A
35
Not used
-
36 Circuits switched
Relay
Ignition relay
R1
Not used
R2
Not used
R3
Driver heated seat
R4
Passenger heated seat
R5
Keyless starting
R6
Keyless starting
R7
Battery back-up sounder
R8
Accessory delay
R9
CHANGING A FUSE
Fuses WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
175
Fiesta (CCT) FusesE142430
