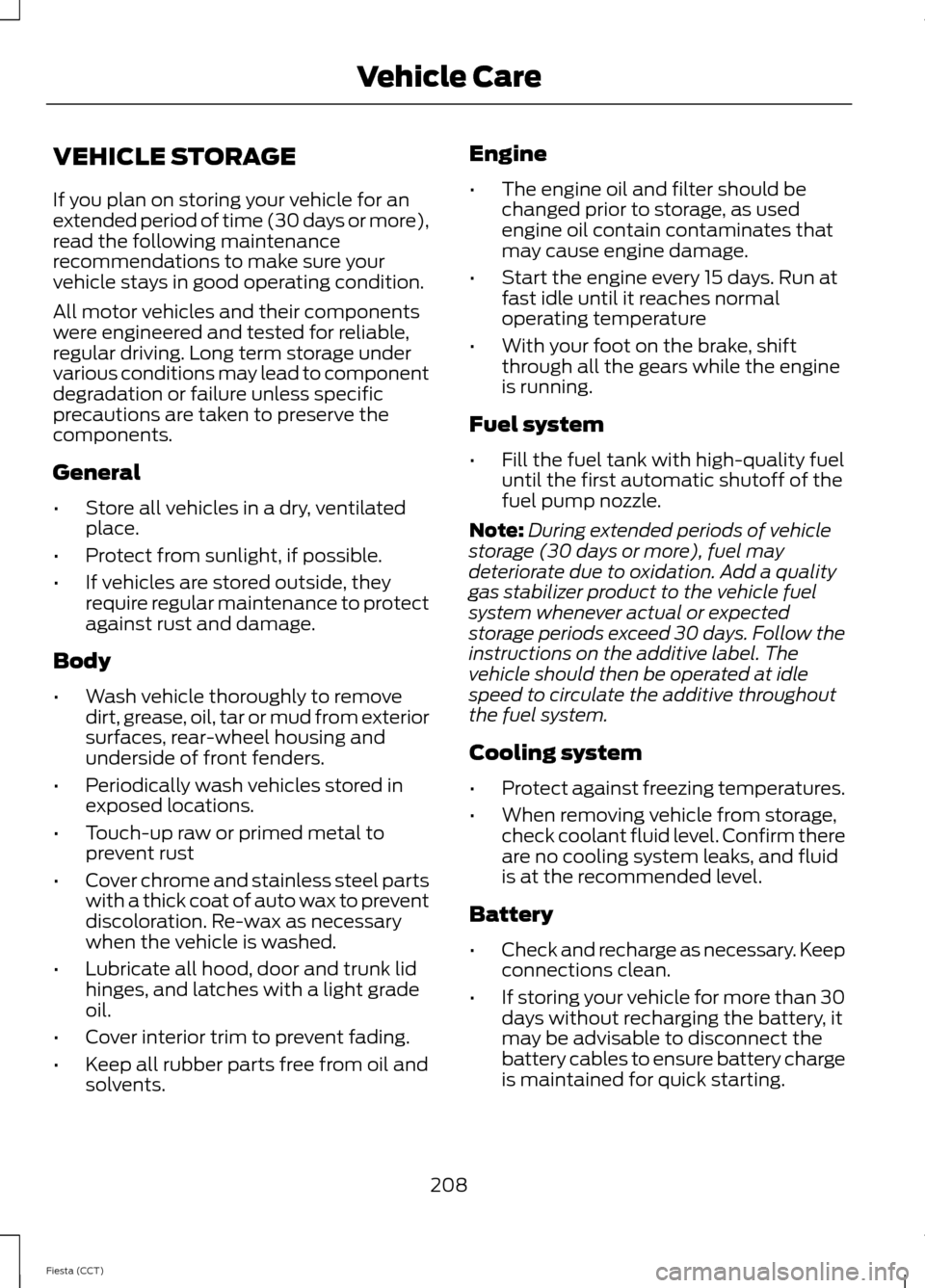

VEHICLE STORAGE
If you plan on storing your vehicle for an
extended period of time (30 days or more),
read the following maintenance
recommendations to make sure your
vehicle stays in good operating condition.
All motor vehicles and their components
were engineered and tested for reliable,
regular driving. Long term storage under
various conditions may lead to component
degradation or failure unless specific
precautions are taken to preserve the
components.
General
•
Store all vehicles in a dry, ventilated
place.
• Protect from sunlight, if possible.
• If vehicles are stored outside, they
require regular maintenance to protect
against rust and damage.
Body
• Wash vehicle thoroughly to remove
dirt, grease, oil, tar or mud from exterior
surfaces, rear-wheel housing and
underside of front fenders.
• Periodically wash vehicles stored in
exposed locations.
• Touch-up raw or primed metal to
prevent rust
• Cover chrome and stainless steel parts
with a thick coat of auto wax to prevent
discoloration. Re-wax as necessary
when the vehicle is washed.
• Lubricate all hood, door and trunk lid
hinges, and latches with a light grade
oil.
• Cover interior trim to prevent fading.
• Keep all rubber parts free from oil and
solvents. Engine
•
The engine oil and filter should be
changed prior to storage, as used
engine oil contain contaminates that
may cause engine damage.
• Start the engine every 15 days. Run at
fast idle until it reaches normal
operating temperature
• With your foot on the brake, shift
through all the gears while the engine
is running.
Fuel system
• Fill the fuel tank with high-quality fuel
until the first automatic shutoff of the
fuel pump nozzle.
Note: During extended periods of vehicle
storage (30 days or more), fuel may
deteriorate due to oxidation. Add a quality
gas stabilizer product to the vehicle fuel
system whenever actual or expected
storage periods exceed 30 days. Follow the
instructions on the additive label. The
vehicle should then be operated at idle
speed to circulate the additive throughout
the fuel system.
Cooling system
• Protect against freezing temperatures.
• When removing vehicle from storage,
check coolant fluid level. Confirm there
are no cooling system leaks, and fluid
is at the recommended level.
Battery
• Check and recharge as necessary. Keep
connections clean.
• If storing your vehicle for more than 30
days without recharging the battery, it
may be advisable to disconnect the
battery cables to ensure battery charge
is maintained for quick starting.
208
Fiesta (CCT) Vehicle Care

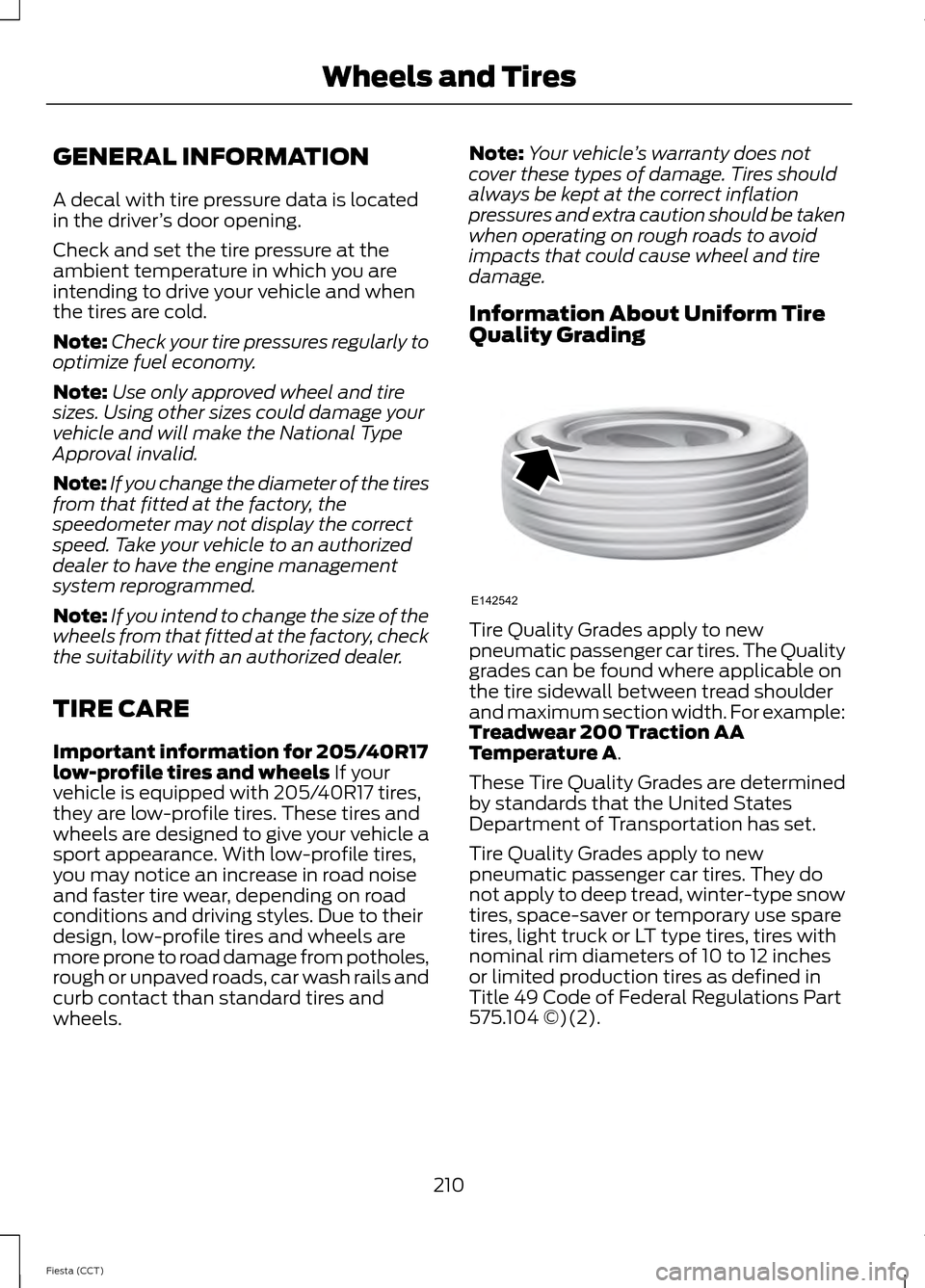

GENERAL INFORMATION
A decal with tire pressure data is located
in the driver
’s door opening.
Check and set the tire pressure at the
ambient temperature in which you are
intending to drive your vehicle and when
the tires are cold.
Note: Check your tire pressures regularly to
optimize fuel economy.
Note: Use only approved wheel and tire
sizes. Using other sizes could damage your
vehicle and will make the National Type
Approval invalid.
Note: If you change the diameter of the tires
from that fitted at the factory, the
speedometer may not display the correct
speed. Take your vehicle to an authorized
dealer to have the engine management
system reprogrammed.
Note: If you intend to change the size of the
wheels from that fitted at the factory, check
the suitability with an authorized dealer.
TIRE CARE
Important information for 205/40R17
low-profile tires and wheels If your
vehicle is equipped with 205/40R17 tires,
they are low-profile tires. These tires and
wheels are designed to give your vehicle a
sport appearance. With low-profile tires,
you may notice an increase in road noise
and faster tire wear, depending on road
conditions and driving styles. Due to their
design, low-profile tires and wheels are
more prone to road damage from potholes,
rough or unpaved roads, car wash rails and
curb contact than standard tires and
wheels. Note:
Your vehicle ’s warranty does not
cover these types of damage. Tires should
always be kept at the correct inflation
pressures and extra caution should be taken
when operating on rough roads to avoid
impacts that could cause wheel and tire
damage.
Information About Uniform Tire
Quality Grading Tire Quality Grades apply to new
pneumatic passenger car tires. The Quality
grades can be found where applicable on
the tire sidewall between tread shoulder
and maximum section width. For example:
Treadwear 200 Traction AA
Temperature A.
These Tire Quality Grades are determined
by standards that the United States
Department of Transportation has set.
Tire Quality Grades apply to new
pneumatic passenger car tires. They do
not apply to deep tread, winter-type snow
tires, space-saver or temporary use spare
tires, light truck or LT type tires, tires with
nominal rim diameters of 10 to 12 inches
or limited production tires as defined in
Title 49 Code of Federal Regulations Part
575.104 ©)(2).
210
Fiesta (CCT) Wheels and TiresE142542

When ENGINE OIL CHANGE DUE or OIL
CHANGE REQUIRED appears in the
information display, it is time for an oil
change. The oil change must be done
within two weeks or 500 miles (800
kilometers) of the message appearing. The
oil minder system must be reset after each
oil change. See
Engine Oil Check (page
182).
If your information display is prematurely
reset or becomes inoperative, you should
perform the oil change interval at six
months or 5000 miles (8000 kilometers)
from your last oil change. Never exceed
one year or 10000 miles (16000
kilometers) between oil change intervals.
Your vehicle is very sophisticated and built
with multiple, complex, performance
systems. Every manufacturer develops
these systems using different
specifications and performance features.
That is why it is important to rely upon your
dealership to properly diagnose and repair
your vehicle.
Ford Motor Company has recommended
maintenance intervals for various parts
and component systems based upon
engineering testing. Ford Motor Company
relies upon this testing to determine the
most appropriate mileage for replacement
of oils and fluids to protect your vehicle at
the lowest overall cost to you and
recommends against maintenance
schedules that deviate from the scheduled
maintenance information.
Ford strongly recommends the use of only
genuine Ford, Motorcraft® or
Ford-authorized re-manufactured
replacement parts because they are
engineered for your vehicle. Additives and Chemicals
Recommended additives and chemicals
are listed in this owner's manual and in the
Ford Workshop Manual. Additional
chemicals or additives not approved by
Ford Motor Company are not
recommended as part of normal
maintenance. Please consult your warranty
information.
Oils, Fluids and Flushing
In many cases, fluid discoloration is a
normal operating characteristic and, by
itself, does not necessarily indicate a
concern or that the fluid needs to be
changed. However, discolored fluids that
also show signs of overheating or foreign
material contamination should be
inspected immediately by a qualified
expert, such as the factory-trained
technicians at your dealership.
Your vehicle
’s oils and fluids should be
changed at the specified intervals or in
conjunction with a repair. Flushing is a
viable way to change fluid for many vehicle
sub-systems during scheduled
maintenance. It is critical that systems are
flushed only with new fluid that is the same
as that required to fill and operate the
system or using a Ford-approved flushing
chemical.
Owner Checks and Services
Certain basic maintenance checks and
inspections should be performed every
month or at six month intervals.
Check Every Month
• Engine oil level.
• Function of all interior and exterior
lights.
• Tires (including spare) for wear and
proper pressure.
• Windshield washer fluid level.
369
Fiesta (CCT) Scheduled Maintenance

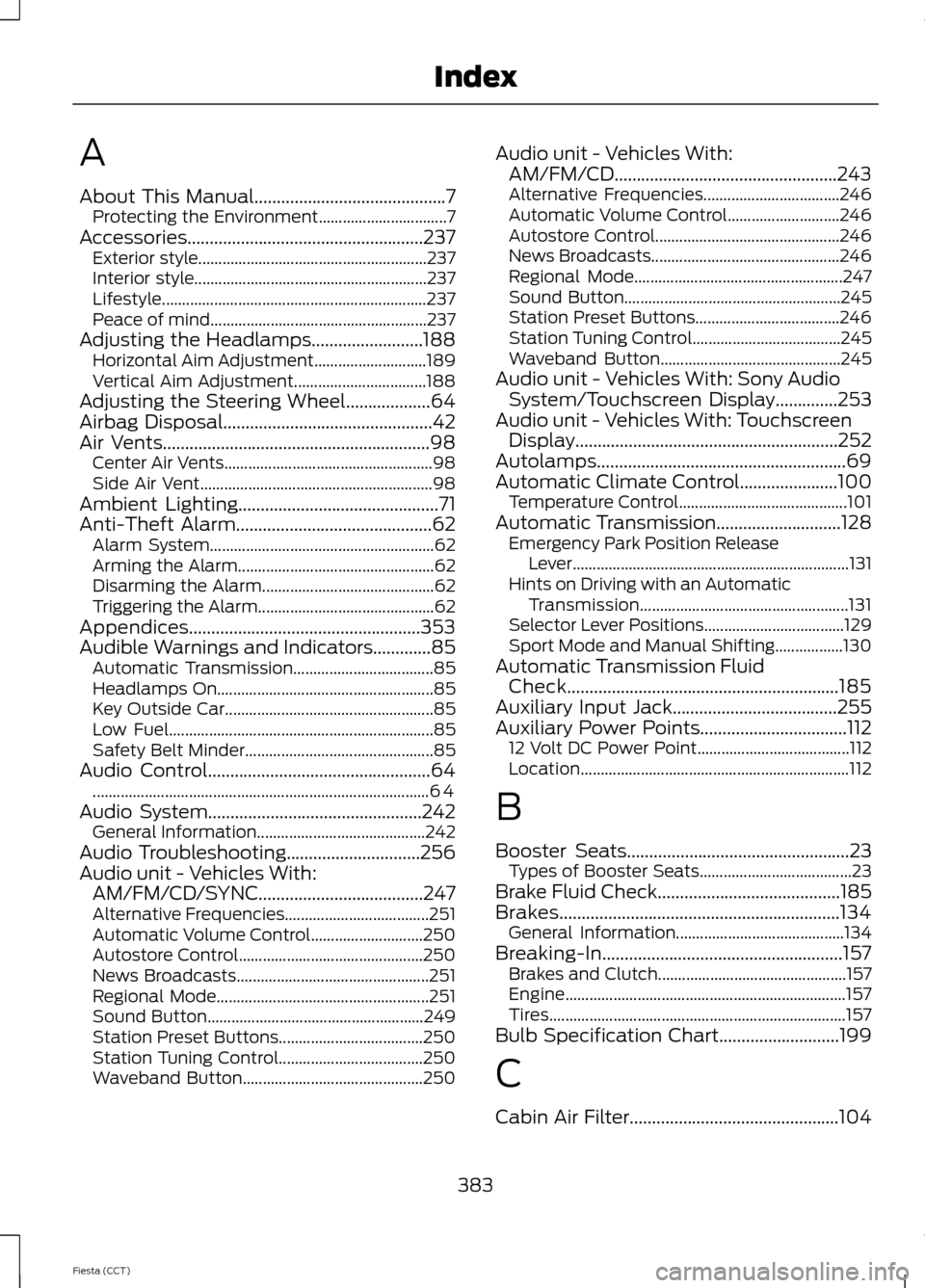

A
About This Manual...........................................7
Protecting the Environment................................ 7
Accessories.....................................................237 Exterior style......................................................... 237
Interior style.......................................................... 237
Lifestyle.................................................................. 237
Peace of mind...................................................... 237
Adjusting the Headlamps.........................188 Horizontal Aim Adjustment............................ 189
Vertical Aim Adjustment................................. 188
Adjusting the Steering Wheel...................64
Airbag Disposal
...............................................42
Air Vents............................................................98 Center Air Vents.................................................... 98
Side Air Vent.......................................................... 98
Ambient Lighting
.............................................71
Anti-Theft Alarm............................................62 Alarm System........................................................ 62
Arming the Alarm................................................. 62
Disarming the Alarm........................................... 62
Triggering the Alarm............................................ 62
Appendices....................................................353
Audible Warnings and Indicators.............85 Automatic Transmission................................... 85
Headlamps On...................................................... 85
Key Outside Car.................................................... 85
Low Fuel.................................................................. 85
Safety Belt Minder............................................... 85
Audio Control..................................................64 ........................................................................\
............ 64
Audio System
................................................242
General Information.......................................... 242
Audio Troubleshooting
..............................256
Audio unit - Vehicles With: AM/FM/CD/SYNC.....................................247
Alternative Frequencies.................................... 251
Automatic Volume Control............................ 250
Autostore Control.............................................. 250
News Broadcasts................................................ 251
Regional Mode..................................................... 251
Sound Button...................................................... 249
Station Preset Buttons.................................... 250
Station Tuning Control.................................... 250
Waveband Button............................................. 250Audio unit - Vehicles With:
AM/FM/CD
..................................................243
Alternative Frequencies.................................. 246
Automatic Volume Control............................ 246
Autostore Control.............................................. 246
News Broadcasts............................................... 246
Regional Mode.................................................... 247
Sound Button...................................................... 245
Station Preset Buttons.................................... 246
Station Tuning Control..................................... 245
Waveband Button............................................. 245
Audio unit - Vehicles With: Sony Audio System/Touchscreen Display
..............253
Audio unit - Vehicles With: Touchscreen Display...........................................................252
Autolamps........................................................69
Automatic Climate Control......................100 Temperature Control.......................................... 101
Automatic Transmission
............................128
Emergency Park Position Release
Lever..................................................................... 131
Hints on Driving with an Automatic Transmission.................................................... 131
Selector Lever Positions................................... 129
Sport Mode and Manual Shifting.................130
Automatic Transmission Fluid Check.............................................................185
Auxiliary Input Jack.....................................255
Auxiliary Power Points.................................112 12 Volt DC Power Point...................................... 112
Location................................................................... 112
B
Booster Seats
..................................................23
Types of Booster Seats...................................... 23
Brake Fluid Check
.........................................185
Brakes...............................................................134 General Information.......................................... 134
Breaking-In......................................................157 Brakes and Clutch............................................... 157
Engine...................................................................... 157
Tires........................................................................\
.. 157
Bulb Specification Chart...........................199
C
Cabin Air Filter...............................................104
383
Fiesta (CCT) Index

California Proposition 65.............................12
Capacities and Specifications................233
Cargo Nets
.......................................................153
Installing and Removing the Cargo
Net....................................................................... 153
Changing a Bulb - Vehicles With: 4-Door...........................................................190
Center High Mounted Stop Lamp................193
Front Fog Lamps................................................. 192
Headlamp............................................................. 190
Interior Lamp........................................................ 194
License Plate Lamp........................................... 194
Luggage Compartment Lamp, Footwell Lamp and Liftgate Lamp............................ 194
Reading Lamps................................................... 194
Rear Lamps........................................................... 192
Side Direction Indicator..................................... 191
Changing a Bulb - Vehicles With: 5-Door...........................................................195
Center High Mounted Stop Lamp................198
Front Fog Lamps................................................. 197
Headlamp............................................................. 195
Interior Lamp....................................................... 198
License Plate Lamp........................................... 198
Luggage Compartment Lamp, Footwell Lamp and Liftgate Lamp............................ 199
Reading Lamps................................................... 199
Rear Lamps........................................................... 197
Side Direction Indicator................................... 196
Changing a Fuse
............................................175
Fuses........................................................................\
175
Changing a Road Wheel...........................228 Dissimilar Spare Wheel and Tire Assembly
Information
..................................................... 228
Stowing the flat tire........................................... 231
Tire Change Procedure.................................... 229
Changing the 12V Battery..........................186
Changing the Engine Air Filter..................187
Changing the Wiper Blades
.....................186
Rear Window Wiper Blade.............................. 186
Windshield Wiper Blades................................ 186
Checking MyKey System Status..............50 MyKey Distance.................................................... 50
Number of Admin Keys...................................... 50
Number of MyKeys.............................................. 50
Checking the Wiper Blades......................186
Child Restraint and Safety Belt Maintenance.................................................32 Child Safety.......................................................14
General Information............................................. 14
Child Safety Locks
..........................................25
Left-Hand Side...................................................... 25
Right-Hand Side................................................... 25
Child Seat Positioning
...................................21
Cigar Lighter.....................................................112
Cleaning Leather Seats.............................207
Cleaning Products.......................................203
Cleaning the Alloy Wheels.......................207
Cleaning the Engine...................................204
Cleaning the Exterior..................................203 Cleaning Plastic Exterior Parts..................... 204
Exterior Chrome................................................. 203
Underbody........................................................... 204
Cleaning the Instrument Panel and Instrument Cluster Lens........................206
Cleaning the Interior
...................................205
Cleaning the Windows and Wiper Blades...........................................................205
Clearing All MyKeys.......................................50
Climate Control
..............................................98
Principle of Operation........................................ 98
Clock...................................................................89 Type 1........................................................................\
89
Type 2....................................................................... 89
Cold Weather Precautions.........................157
Crash Sensors and Airbag Indicator
.........41
Creating a MyKey...........................................49
Programming or Changing Optional
Settings............................................................... 49
Cruise Control..................................................65 Principle of Operation....................................... 142
Cup Holders.....................................................113
Customer Assistance
.................................160
D
Data Recording
................................................10
Event Data Recording.......................................... 10
Service Data Recording...................................... 10
Daytime Running Lamps.............................70
Direction Indicators
.......................................70
Driver and Passenger Airbags....................35 Children and Airbags.......................................... 36
Proper Driver and Front Passenger Seating Adjustment........................................................ 35
Driving Aids
.....................................................144
384
Fiesta (CCT) Index
