LIGHTING CONTROL
•
Rotate the headlamp control clockwise
to the first position to turn on the
parking lamps, instrument panel lamps,
license plate lamps and tail lamps.
• Rotate clockwise to the second
position to also turn on the headlamps.
High Beams Push the lever toward the instrument panel
to switch the high beams on.
Push the lever toward the instrument panel
again or pull the lever towards you to
switch the high beams off. Headlamp Flasher
Pull the lever toward you to flash the
headlamps and release the lever to switch
the headlamps off.
AUTOLAMPS (IF EQUIPPED)
The autolamp system provides light
sensitive automatic on-off control of the
exterior lights normally controlled by the
headlamp control.
•
To turn autolamps on, rotate the
control to the fourth position.
• To turn autolamps off, rotate the
control to the first, second, or third
position.
65
Super Duty (TFA) LightingE163267 E167827 E163268 E163269
A

The system switches the headlamps on
with a reduced output in daylight
conditions.
To switch the system on:
1. Switch the ignition on.
2. Switch the lighting control to the off,
or parking lamp position.
3. Disengage the parking brake.
4. Make sure the transmission selector lever is not in position P.
FRONT FOG LAMPS (IF EQUIPPED) The headlamp control also operates the
fog lamps. The fog lamps can be turned
on only when the headlamp control is in
the parking lamp (second) position,
headlamps on (third) position, or autolamp
(fourth) position, and the high beams are
not turned on.
Pull headlamp control towards you to turn
fog lamps on. The fog lamp indicator light
will illuminate. DIRECTION INDICATORS
The turn signal lever does not mechanically
lock in the upward or downward position
when activated. The turn signal control
activation and cancellation is electronic.
•
To operate the left turn signal, push the
lever down until it stops and release.
• To operate the right turn signal, push
the lever up until it stops and release.
• To manually cancel turn signal
operation, push the lever again in either
direction.
Lane Change
To indicate a left or right lane change:
• Push the lever up/down to the first
stop position and release. The turn
signals will flash three times and stop.
• Push the lever up/down to the first
stop position and hold. The turn signals
will flash for as long as the lever is held
in this position.
INTERIOR LAMPS
The lamps will switch on when one of the
following conditions have been met:
67
Super Duty (TFA) LightingE163271
A E163272

WARNING
Driving your vehicle with the warning
lamp on is dangerous. A significant
decrease in braking performance
may occur. It will take you longer to stop
your vehicle. Have your vehicle checked by
your authorized dealer immediately. Driving
extended distances with the parking brake
engaged can cause brake failure and the
risk of personal injury. Check Fuel Cap (If Equipped)
Illuminates when the fuel cap
may not be properly installed.
Continued driving with this light
on may cause the Service engine
soon warning indicator to come on.
Cruise Control
(If Equipped) Illuminates when you switch this
feature on. See
Using Cruise
Control (page 174).
Direction Indicator Illuminates when the left or right
turn signal or the hazard warning
flasher is turned on. If the
indicators stay on or flash faster, check for
a burned out bulb.
Door Ajar Displays when the ignition is on
and any door is not completely
closed.
Electronic Locking Differential Illuminates when using the
electronic locking differential. Engine Coolant Temperature Illuminates when the engine
coolant temperature is high.
Stop the vehicle as soon as
possible, switch off the engine and let cool.
Engine Oil If it illuminates with the engine
running or when you are driving,
this indicates a malfunction.
Stop your vehicle as soon as it is safe to
do so and switch the engine off. Check the
engine oil level. See
Engine Oil Check
(page 226).
Note: Do not resume your journey if it
illuminates despite the level being correct.
Have the system checked by your authorized
dealer immediately.
Fasten Safety Belt It will illuminate and a chime will
sound to remind you to fasten
your safety belt.
Front Airbag If it fails to illuminate when you
start your vehicle, continues to
flash or remains on, it indicates
a malfunction. Have the system checked
by your authorized dealer.
High Beam Illuminates when you switch the
high beam headlamps on. It will
flash when you use the
headlamp flasher.
Hill Descent
(If Equipped) Illuminates when hill descent is
switched on.
78
Super Duty (TFA) Instrument Cluster E71340 E163170 E163171

Protected components
Fuse amp rating
Fuse or relay number
Auxiliary switch relay #3
10A
9
Run/accessory relay, Customer access
feed
10A
10
Instrument cluster
10A
11
Interior lighting, Lighted running board
lamps
15A
12
Right turn signals and brake lamps, Right
trailer tow stop turn relay
15A
13
Left turn signals and brake lamps, Left
trailer tow stop turn relay
15A
14
High-mounted stop lamps, Backup lamps,
Trailer tow backup relay, Reverse signal
interior mirror
15A
15
Right low beam headlamp
10A
16
Left low beam headlamp
10A
17
Keypad illumination, Passive anti-theft
transceiver, Powertrain control module,
Brake shift interlock
10A
18
Subwoofer, Amplifier
20A
19
Power door locks
20A
20
Brake on/off switch
10A
21
Horn
20A
22
Not used (spare)
15A
23
Steering wheel control module, Diagnostic
connector, Power fold mirror relay, Remote
keyless entry, Electronic finish panel
15A
24
Not used (spare)
15A
25
Steering wheel control module
5A
26
Not used (spare)
20A
27
Ignition switch
15A
28
SYNC, GPS module, Radio faceplate
20A
29
221
Super Duty (TFA) Fuses

Protected components
Fuse amp rating
Fuse or relay number
Parking lamp relay, Trailer tow parking
lamp relay
15A
30
Trailer brake controller (brake signal),
Customer access
5A
31
Moonroof motor, Telescoping mirror
switch, Auto dimming mirrors, Power
inverter, Driver and passenger door lock
switch illumination, Rear heated seat
switch illumination, Driver and passenger
smart window motor, Passenger window
switch
15A
32
Restraint control module
10A
33
Heated steering wheel module, Rear
heated seats module
10A
34
Select shift switch, Reverse park aid
module, Trailer brake control module
5A
35
Fuel tank select switch
10A
36
Positive temperature coefficient heater
10A
37
AM/FM radio faceplate
10A
38
High beam headlamps
15A
39
Parking lamps (in mirrors), Roof marker
lamps
10A
40
Passenger airbag deactivation indicator
7.5A
41
Not used (spare)
5A
42
Wiper relay
10A
43
Auxiliary switches
10A
44
Not used (spare)
5A
45
Climate control
10A
46
Fog lamps, Fog lamp indicator (in switch)
15A
47
Power windows switch, Power rear sliding
window switch, Moonroof switch
30A Circuit breaker
48
Delayed accessory
Relay
49
222
Super Duty (TFA) Fuses

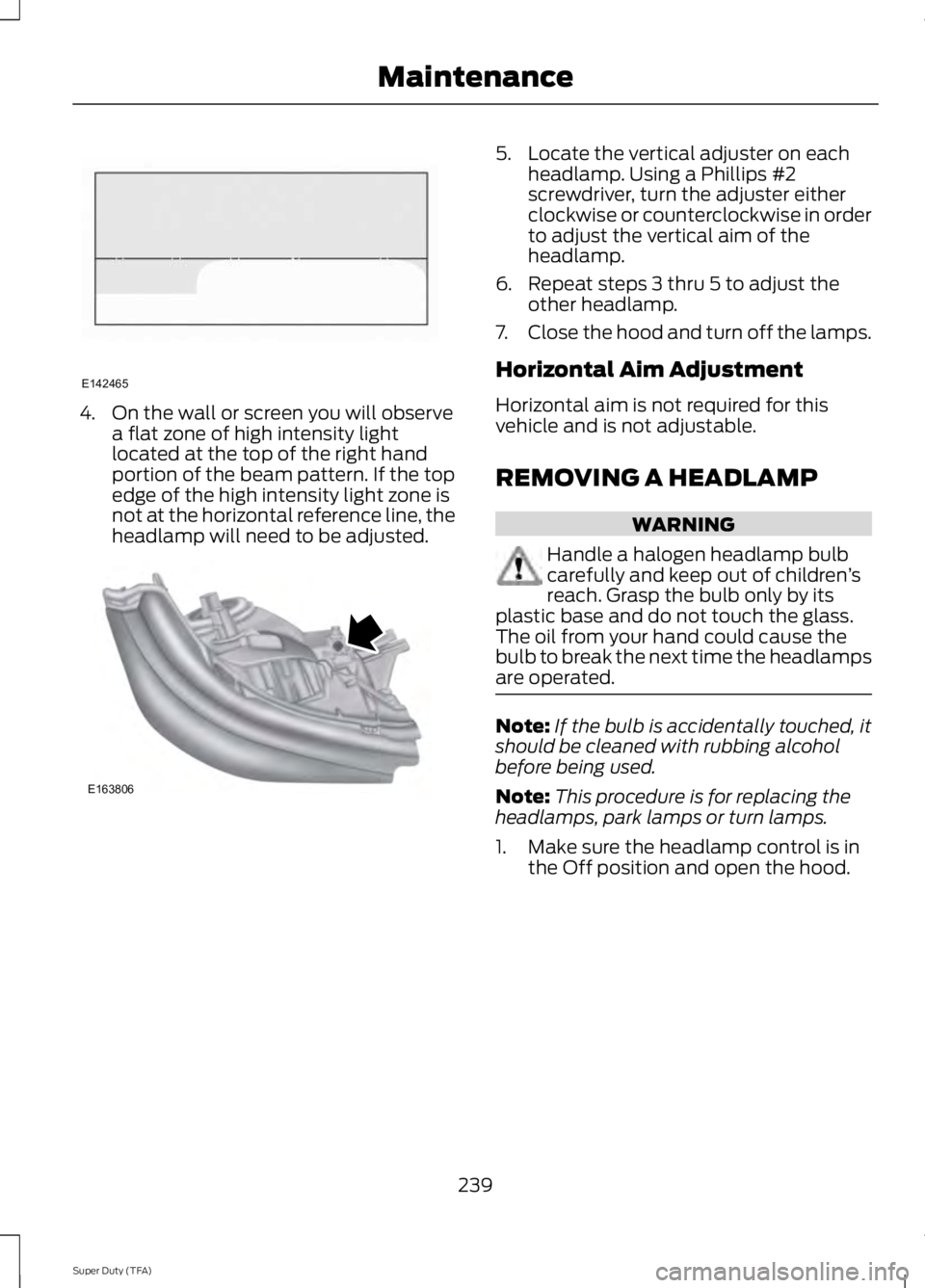

4. On the wall or screen you will observe
a flat zone of high intensity light
located at the top of the right hand
portion of the beam pattern. If the top
edge of the high intensity light zone is
not at the horizontal reference line, the
headlamp will need to be adjusted. 5. Locate the vertical adjuster on each
headlamp. Using a Phillips #2
screwdriver, turn the adjuster either
clockwise or counterclockwise in order
to adjust the vertical aim of the
headlamp.
6. Repeat steps 3 thru 5 to adjust the other headlamp.
7. Close the hood and turn off the lamps.
Horizontal Aim Adjustment
Horizontal aim is not required for this
vehicle and is not adjustable.
REMOVING A HEADLAMP WARNING
Handle a halogen headlamp bulb
carefully and keep out of children
’s
reach. Grasp the bulb only by its
plastic base and do not touch the glass.
The oil from your hand could cause the
bulb to break the next time the headlamps
are operated. Note:
If the bulb is accidentally touched, it
should be cleaned with rubbing alcohol
before being used.
Note: This procedure is for replacing the
headlamps, park lamps or turn lamps.
1. Make sure the headlamp control is in the Off position and open the hood.
239
Super Duty (TFA) MaintenanceE142465 E163806

Information Messages..................................92
4WD........................................................................\
. 101
AdvanceTrac ™...................................................... 92
Alarm........................................................................\
92
Diesel Messages................................................... 93
Doors and Locks................................................... 96
Drivetrain................................................................. 96
Engine....................................................................... 97
Fuel........................................................................\
.... 97
Key........................................................................\
..... 98
Maintenance.......................................................... 98
MyKey®................................................................... 98
Off Road................................................................ 100
Park Aid................................................................... 99
Park Brake............................................................... 99
Power Steering..................................................... 99
Tire Pressure Monitoring System.................100
Trailer....................................................................... 101
Installing Child Seats.....................................16 Child Seats............................................................... 16
Tether Strap Attachment.................................. 22
Tether Strap Attachment (Rear SuperCab Only)..................................................................... 23
Using Cinch Tongue Lap and Shoulder Belts (All Front Center, Super Cab and Crew
Cab Rear Center Positions).......................... 19
Using Lap and Shoulder Belts.......................... 17
Using Lower Anchors and Tethers for CHildren (LATCH)............................................. 21
Using Tether Straps.............................................. 21
Instrument Cluster.........................................75
Instrument Lighting Dimmer
.....................66
Interior Lamps..................................................67 Front Map Lamps (If equipped).................... 68
Rear Dome and Map Lamps............................ 68
Interior Mirror....................................................72 Auto-Dimming Mirror.......................................... 72
Introduction.........................................................7
J
Jump-Starting the Vehicle.......................205 Connecting the Jumper Cables.................... 206
Jump Starting..................................................... 206
Preparing Your Vehicle.................................... 205
Removing the Jumper Cables...................... 206K
Keyless Entry....................................................55
SECURICODE™ KEYLESS ENTRY
KEYPAD
............................................................... 55
Keys and Remote Controls........................46
L
Lighting Control..............................................65 Headlamp Flasher............................................... 65
High Beams............................................................ 65
Lighting..............................................................65
Limited Slip Differential
.............................158
Load Carrying.................................................176
Load Limit........................................................176 Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................. 183
Vehicle Loading - with and without a Trailer.................................................................. 176
Locking and Unlocking
.................................54
Autolock and Autounlock................................. 54
Battery Saver......................................................... 55
Illuminated Entry.................................................. 55
Power Door Locks................................................ 54
Remote Control.................................................... 54
Smart Unlocks...................................................... 54
Locks...................................................................54
Lug Nuts See: Changing a Road Wheel........................ 279
M
Maintenance..................................................223 General Information.......................................... 223
Manual Climate Control
............................103
Manual Seats..................................................110
Manual Lumbar .................................................... 111
Moving the Seat Backward and Forward.............................................................. 110
Recline Adjustment............................................ 110
Media Hub
.......................................................312
Memory Function............................................111
Easy Entry and Exit Feature............................. 112
Message Center See: Information Displays.................................. 81
451
Super Duty (TFA) Index

W
Warning Lamps and Indicators..................77
4X2........................................................................\
.... 80
4X4 HIGH................................................................ 80
4X4 LOW................................................................ 80
Anti-Lock Braking System................................. 77
Battery....................................................................... 77
Brake System.......................................................... 77
Check Fuel Cap..................................................... 78
Cruise Control........................................................ 78
Diesel Warning Lights........................................ 80
Direction Indicator................................................ 78
Door Ajar.................................................................. 78
Electronic Locking Differential........................ 78
Engine Coolant Temperature........................... 78
Engine Oil................................................................ 78
Fasten Safety Belt................................................ 78
Front Airbag............................................................ 78
High Beam............................................................... 78
Hill Descent............................................................ 78
Low Fuel Level....................................................... 79
Low Tire Pressure Warning............................... 79
Powertrain Malfunction/Reduced Power/Electronic Throttle Control............79
Service Engine Soon............................................ 79
Stability Control.................................................... 79
Stability Control Off............................................ 79
Transmission Tow/Haul.................................... 80
Washer Fluid Check....................................235
Washers See: Cleaning the Exterior............................... 247
See: Wipers and Washers................................. 64
Waxing.............................................................248
Wheel Nuts See: Changing a Road Wheel........................ 279
Wheels and Tires.........................................254 General Information......................................... 254
Technical Specifications................................ 290
Windows and Mirrors...................................69
Windshield Washers.....................................64
Windshield Wipers........................................64
Speed dependent wipers................................. 64
Wipers and Washers.....................................64
456
Super Duty (TFA) Index
