2014 FIAT STRADA display

EXTERIOR LIGHTS
FAULT (amber)
(for versions/markets,
where provided)
The warning light will switch on, on
some versions, when a fault with
one of the following lights is
detected:
– side lights
– brake lights
– rear fog lights
– direction indicators
– number plate lights.
The fault relating to these lights
could be: one or more blown bulbs,
a blown protection fuse or a break
in the electrical connection.
On some versions, the display shows
a dedicated message.The presence of water in
the fuel supply circuit
may cause severe
damage to the injection system
and irregular engine operation.
If the
cwarning light switches
on (on some versions together
with the message on the
display), contact a Fiat
Dealership as soon as possible
to have the system bled. If this
problem is indicated
immediately after refueling,
water may have entered the fuel
tank. In this case, stop the
engine immediately and contact
a Fiat Dealership.
W
WATER IN DIESEL
FILTER (amber)
When the key is turned to MAR, the
warning light switches on but should
switch off after a few seconds.
The cwarning light switches on
when there is water in the diesel
filter.
On some versions, the display shows
a dedicated message.
c
52
045-094 STRADA LUM GB 1ed 23-01-2012 9:10 Pagina 52

GENERIC FAILURE
INDICATION (amber)
The warning light switches on in the
following circumstances.
DPF (particulate filter) cleaning
in progress
(for versions/markets,
where provided)
The warning light switches on to
inform the driver that the DPF
system needs to eliminate the
trapped pollutants (particulate)
through the regeneration process.
The warning light will switch off if
the vehicle remains in motion until
the regeneration process has been
completed.
Together with the warning light, the
display shows the dedicated
message.
On some versions, together with the
message on the display, there is an
acoustic signal. If this warning light comes on, it
does not mean that the vehicle is
defective, so there is no need to
take it to a Fiat Dealership.Speed limit exceeded
(for versions/markets,
where provided)
This warning light switches on
(on some versions together with a
dedicated message on the display
and an acoustic signal) when the
vehicle exceeds the speed limit set
previously.
Fuel cut-off inertia switch
tripped
The warning light switches on when
the fuel cut-off inertia switch is
tripped.
The display will show the dedicated
message.
è
53
Always drive at a speed
appropriate to the
traffic conditions, the weather
and traffic regulations. You are
advised to stop the engine and
stop driving only after the
warning light has switched off,
following completed
regeneration.
WARNING
DRIVING LIGHTS
(amber)
(for versions/markets,
where provided)
The warning light comes on when
the driving lights are activated.
These operate only with main beam
headlights on.„
045-094 STRADA LUM GB 1ed 23-01-2012 9:10 Pagina 53

E-LOCKER SYSTEM
(Front differential
locking)
(for versions/markets,
where provided)
The warning light switches on (on
some versions together with a
dedicated message on the display) as
follows:
– flashing when the system is
activated;
– flashing more rapidly to indicate
that the speed of the vehicle is
approaching 20 km/h;
– constantly if there is a fault with
the system.RIGHT DIRECTION
INDICATOR
(green - intermittent)
The warning light switches on when
the direction indicator control stalk
is moved upwards or, together with
the left indicator, when the hazard
warning light button is pressed.
LEFT DIRECTION
INDICATOR
(green - intermittent)
The warning light switches on when
the direction indicator control stalk
is moved downwards or, together
with the right indicator, when the
hazard warning light button is
pressed.


ELD
SIDE LIGHTS (green) -
FOLLOW ME HOME
(green)
Side lights
The warning light switches on when
the side lights are activated.
Follow me home
(for versions/markets, where
provided)
This warning light switches on when
this device is activated (see Follow
Me Home in this section).
The display will show the dedicated
message.
FOG LIGHTS (green)
(for versions/markets,
where provided)
The warning light switches on when
the front fog lights are activated.REAR FOG LIGHTS
(amber)
(for versions/markets,
where provided)
The warning light switches on when
the rear fog lights are activated.
3
5
4
MAIN BEAM
HEADLIGHTS
The warning light switches on when
the main beams headlights are
activated.
1
54
045-094 STRADA LUM GB 1ed 23-01-2012 9:10 Pagina 54

fig. 61
F0X0036m
DIRECTION
INDICATORS fig. 61
Up = right indicator.
Down = left indicator.
The
¥or Îwarning light flashes on
the instrument panel.
The direction indicators are
switched off automatically when the
steering wheel is straightened.
If you want the indicator to flash
briefly to show that you are about
to change lane, turning the wheel
only slightly, move the stalk up or
down without clicking into position
(unstable position).
When released the stalk will return
to its initial position.“FOLLOW ME
HOME” DEVICE fig. 62
This device lights up the space in
front of the vehicle for a short time.
Activation
With ignition key at STOP or
removed, pull the stalk towards the
steering wheel and move it within
2 minutes after the engine stops.
Each time the stalk is moved, the
lights stay on for a further 30
seconds up to a maximum of 210
seconds; then the lights are switched
off automatically.
The display shows the time set.Deactivation
Pull the lever towards the steering
wheel for more than 2 seconds or
turn the key to MAR in the ignition
switch.
61
fig. 62
F0X0305m
045-094 STRADA LUM GB 1ed 23-01-2012 9:10 Pagina 61

REAR AND SIDE
FOOTBOARDS
(for versions/markets, where
provided)
To facilitate access to the load
compartment, the vehicle features
two rear footboards fig. 96.
To facilitate access to the passenger
compartment, the Adventure
version features side footboards.
HEADLIGHTS
LIGHT BEAM DIRECTION
The correct direction of the
headlights is essential for the
comfort and safety of the driver and
other road users. To ensure the
best visibility when travelling with
the headlights on, the vehicle’s
headlight alignment must be correct.
Contact a Fiat Dealership to have
the headlights checked and adjusted.
HEADLIGHT ALIGNMENT
CORRECTOR
This device operates with the
ignition key at MAR and the dipped
headlights on. The vehicle tilts
backwards when it is laden, raising
the beam. The beams must
therefore be realigned in this case.Headlight alignment
adjustment fig. 97
To adjust, depending on the version,
use the dedicated buttons on the
control panel to the left of the
steering wheel fig. 97.
The display on the instrument panel
provides a visual indication of the
adjustment position.
Position 0 - one or two people in
the front seats.
Position 1 (for versions/markets,
where provided) - four people.
Position 2 (for versions/markets,
where provided) - four people +
load in the rear compartment.
Position 3 (for versions/markets,
where provided) - driver +
maximum permitted load, all stowed
in the rear load compartment.
fig. 97
F0X0078m
fig. 96
F0X0077m
79
045-094 STRADA LUM GB 1ed 23-01-2012 9:10 Pagina 79

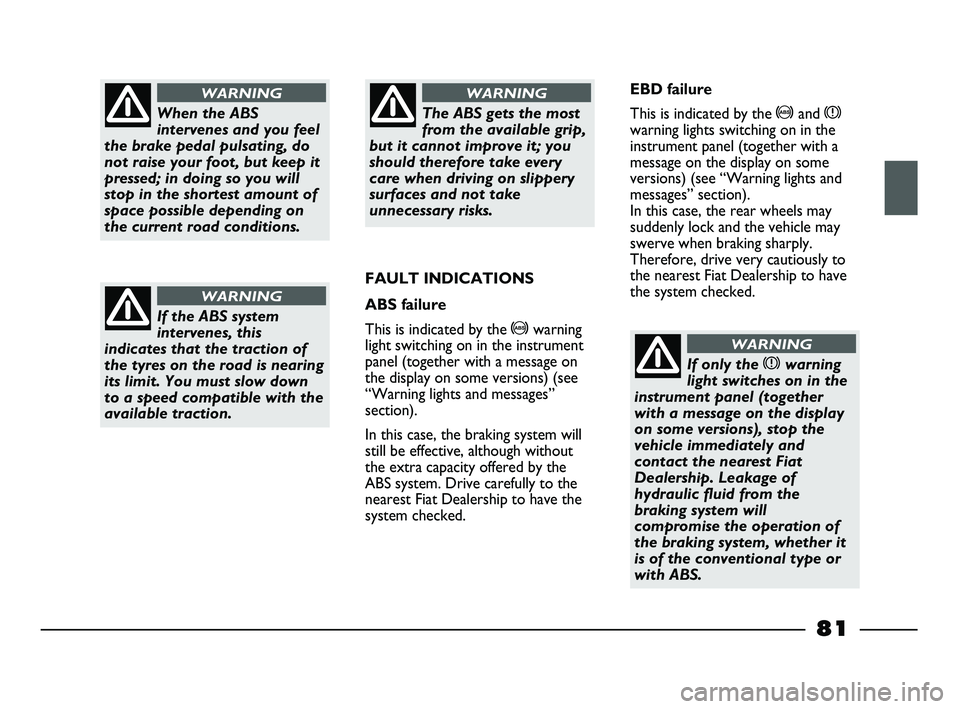

When the ABS
intervenes and you feel
the brake pedal pulsating, do
not raise your foot, but keep it
pressed; in doing so you will
stop in the shortest amount of
space possible depending on
the current road conditions.
WARNING
If the ABS system
intervenes, this
indicates that the traction of
the tyres on the road is nearing
its limit. You must slow down
to a speed compatible with the
available traction.
WARNING
The ABS gets the most
from the available grip,
but it cannot improve it; you
should therefore take every
care when driving on slippery
surfaces and not take
unnecessary risks.
WARNING
FAULT INDICATIONS
ABS failure
This is indicated by the >warning
light switching on in the instrument
panel (together with a message on
the display on some versions) (see
“Warning lights and messages”
section).
In this case, the braking system will
still be effective, although without
the extra capacity offered by the
ABS system. Drive carefully to the
nearest Fiat Dealership to have the
system checked. EBD failure
This is indicated by the >and x
warning lights switching on in the
instrument panel (together with a
message on the display on some
versions) (see “Warning lights and
messages” section).
In this case, the rear wheels may
suddenly lock and the vehicle may
swerve when braking sharply.
Therefore, drive very cautiously to
the nearest Fiat Dealership to have
the system checked.
If only the xwarning
light switches on in the
instrument panel (together
with a message on the display
on some versions), stop the
vehicle immediately and
contact the nearest Fiat
Dealership. Leakage of
hydraulic fluid from the
braking system will
compromise the operation of
the braking system, whether it
is of the conventional type or
with ABS.
WARNING
81
045-094 STRADA LUM GB 1ed 23-01-2012 9:10 Pagina 81

GENERAL WARNINGS
The front airbags may be deployed if
the vehicle is subject to heavy
knocks or accidents involving the
underbody area, such as for example
violent impacts against steps, kerbs
or low obstacles, vehicle falling into
big pot holes or depressions in the
road. A small amount of dust will be
released when the airbags are
deployed. This dust is not harmful
and does not indicate the beginning
of a fire. Furthermore, the surface of
the deployed bag and the interior of
the vehicle may be covered with a
dusty residue: this may irritate your
skin and eyes. Wash with mild soap
and water in the event of exposure.
Should an accident occur in which
any of the safety devices are
activated, contact a Fiat Dealership
to have the activated devices
replaced and to have the whole
system checked.
85
Every control, repair and
replacement operation concerning
the airbags must only be carried out
at a Fiat Dealership. If you are having
the vehicle scrapped, have the airbag
system deactivated at a Fiat
Dealership first. If the vehicle
changes ownership, the new owner
must be informed of the method of
using air bags and the above
warnings and also be given this
“Owner Handbook”. Pretensioners
and/or front airbags are deployed
differently on the basis of the type of
collision. Non-deployment of one or
more of the devices does not
therefore indicate a system
malfunction.
If the ûwarning light
stays on when driving
(together with a message on
the display on some versions),
there could be a failure in the
restraint systems. If this is the
case, the airbags or
pretensioners may not trigger
in the event of an accident or,
in a lesser number of cases,
they may be activated
incorrectly. Before proceeding,
contact a Fiat Dealership
immediately to have the
system checked.
WARNING
045-094 STRADA LUM GB 1ed 23-01-2012 9:10 Pagina 85

E-LOCKER SYSTEM
ELD - ELECTRONIC LOCKING
DIFFERENTIAL
(for versions/markets,
where provided)
Some versions may feature the
E-Locker system, used in conditions
where the vehicle may slip.
This system can lock the front
differential, supplying both front
wheels with the same rotational
speed; in doing so, the wheel with
the greatest grip will be the one
which can propel the vehicle.
The E-Locker System
must not be considered
as a kind of “four-wheel drive”:
the system must not be used on
normal surfaces (dry asphalt
etc.). In any case, the system
deactivates automatically as
soon as the vehicle speed
exceeds 20 km/h.
WARNING
You are advised to use
the E-Locker System
only when a wheel loses grip
resulting in conditions of low
friction (e.g. on roads with
mud, sand, stones, wet grass
etc.).
WARNING
To operate the E-Locker System:
– press the brake pedal (vehicle
stationary);
– press the ELD button-fig. 101
located on the dashboard to the
left of the steering wheel; the
system emits a long beep, the ELD
warning light on the instrument
panel starts to blink and the
display shows a dedicated message
(ELD ON for 5 seconds);
– release the clutch slowly,
accelerating gradually; having
overcome the difficulty, deactivate
the system.
The E-Locker system
must be activated with
vehicle stationary. The expert
driver must be capable of
assessing the conditions of the
terrain before activation.
WARNING
fig. 101
F0X0082m
88
045-094 STRADA LUM GB 1ed 23-01-2012 9:10 Pagina 88
