2014 FIAT SCUDO technical specifications

4SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLS
DASHBOARD ...................................................................... 5
SYMBOLS ............................................................................... 6
THE FIAT CODE SYSTEM ................................................. 6
THE KEYS .............................................................................. 7
ALARM ................................................................................... 10
IGNITION DEVICE ............................................................. 12
INSTRUMENT PANEL ........................................................ 13
INSTRUMENTS .................................................................... 14
DISPLAY.................................................................................. 16
GEAR SHITF INDICATOR................................................. 17
MAINTENANCE INDICATOR ........................................ 18
TRIP COMPUTER................................................................. 19
FRONT SEATS ..................................................................... 19
REAR SEATS .......................................................................... 22
SEAT ARRANGEMENTS .................................................... 24
HEAD RESTRAINTS ........................................................... 25
STEERING WHEEL .............................................................. 26
REARVIEW MIRRORS ........................................................ 27
HEATING AND VENTILATION ..................................... 29
MANUAL CLIMATE CONTROL SYSTEM .................... 33
AUTOMATIC TWO-ZONE CLIMATE
CONTROL SYSTEM ........................................................... 39
AUTOMATIC THREE-ZONE CLIMATE
CONTROL SYSTEM ........................................................... 47
EXTERNAL LIGHTS ............................................................ 49
WINDOW WASHING ...................................................... 52CRUISE CONTROL SPEED REGULATOR.................... 56
“LIMIT” SPEED RESTRICTOR .......................................... 59
CEILING LIGHTS ................................................................. 62
CONTROLS .......................................................................... 63
FUEL CUT-OFF SWITCH .................................................. 66
INTERIOR EQUIPMENT..................................................... 67
DOORS .................................................................................. 71
SLIDING LUGGAGE COVER............................................ 75
POWER WINDOWS/WINDOW WINDERS .............. 76
BONNET ............................................................................... 78
ROOF RACK/SKI RACK .................................................... 79
PNEUMATIC SUSPENSIONS............................................. 80
LOAD RECOMMENDATIONS......................................... 81
HEADLIGHTS ....................................................................... 83
ABS SYSTEM ......................................................................... 84
ESC SYSTEM ......................................................................... 86
GRIP CONTROL.................................................................. 88
EOBD SYSTEM ..................................................................... 89
iTPMS SYSTEM....................................................................... 90
PARKING SENSORS ........................................................... 92
SOUND SYSTEM ................................................................. 93
ACCESSORIES PURCHASED BY THE OWNER ......... 94
AT THE FILLING STATION ............................................. 95
PROTECTING THE ENVIRONMENT ........................... 96
D D
A A
S S
H H
B B
O O
A A
R R
D D

A A
N N
D D

C C
O O
N N
T T
R R
O O
L L
S S
001-019 SCUDO LUM GB 19/11/13 08.26 Pagina 4

DASHBOARDThe presence and the position of controls, instruments, gauges and warning lights may vary according to the vehicle version.
1.Side swivel air vents - 2.Side fixed air vents - 3.Left steering column stalk: external lights - 4.Instrument panel -
5.Right steering column stalk: windscreen, rear window and trip computer controls - 6.Dashboard controls - 7.Center swivel air
vents - 8.Front passenger air bag (for versions/markets, where provided) - 9.Glovebox - 10.Sound system (for versions/mar-
kets, where provided) - 11.Heating/ventilation/climate controls - 12.Sound system command lever (for versions/markets, where
provided) - 13.Front driver’s air bag - 14. Steering wheel adjustment lever
5SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS
F0P0600m
fig. 1
001-019 SCUDO LUM GB 19/11/13 08.26 Pagina 5

6SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLS

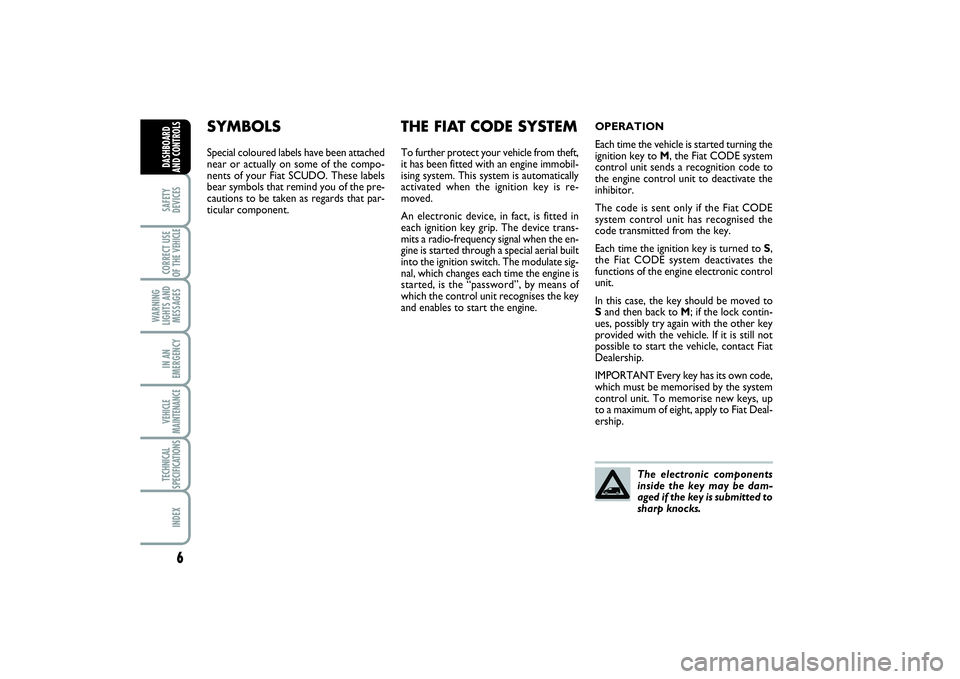

SYMBOLSSpecial coloured labels have been attached
near or actually on some of the compo-
nents of your Fiat SCUDO. These labels
bear symbols that remind you of the pre-
cautions to be taken as regards that par-
ticular component.
THE FIAT CODE SYSTEMTo further protect your vehicle from theft,
it has been fitted with an engine immobil-
ising system. This system is automatically
activated when the ignition key is re-
moved.
An electronic device, in fact, is fitted in
each ignition key grip. The device trans-
mits a radio-frequency signal when the en-
gine is started through a special aerial built
into the ignition switch. The modulate sig-
nal, which changes each time the engine is
started, is the “password”, by means of
which the control unit recognises the key
and enables to start the engine.
The electronic components
inside the key may be dam-
aged if the key is submitted to
sharp knocks.
OPERATION
Each time the vehicle is started turning the
ignition key to M, the Fiat CODE system
control unit sends a recognition code to
the engine control unit to deactivate the
inhibitor.
The code is sent only if the Fiat CODE
system control unit has recognised the
code transmitted from the key.
Each time the ignition key is turned to S,
the Fiat CODE system deactivates the
functions of the engine electronic control
unit.
In this case, the key should be moved to
Sand then back to M; if the lock contin-
ues, possibly try again with the other key
provided with the vehicle. If it is still not
possible to start the vehicle, contact Fiat
Dealership.
IMPORTANT Every key has its own code,
which must be memorised by the system
control unit. To memorise new keys, up
to a maximum of eight, apply to Fiat Deal-
ership.
001-019 SCUDO LUM GB 19/11/13 08.26 Pagina 6

7SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS
To refit it proceed as follows:❒
keep button Bpressed and move the
metal insert A;
❒
release button Band turn the metal in-
sert A until hearing the proper lock-
ing click.
THE KEYSCODE CARD
(for versions/markets, where provided)
Depending on the versions, the CODE
CARD information can be written on one
or two cards. They show:
- the electronic code;
- the mechanical key code to be given
to the Fiat Dealership when ordering
duplicate keys.
Make sure you have the electronic code
with you at all times.
IMPORTANT In order to ensure perfect
efficiency of the electronic devices con-
tained inside the keys, they should never
be exposed to direct sunlight.
All the keys and the CODE
card must be handed over to
the new owner when selling
the vehicle.
fig. 2
F0P0004m
fig. 3
F0P0321m
KEY WITH REMOTE CONTROL
fig. 3
The metal insert Ais retractable and it op-
erates:❒
ignition switch;
❒
door locks;
❒
fuel filler cap locking/unlocking.
To extract the metal insert, press button B.
Button B should only be
pressed when the key is
away from the body, in particular
from the eyes and from objects that
can be spoilt (e.g. clothes). Make sure
the key can never be touched by oth-
ers, especially children, who may in-
advertently press the button.
WARNING
001-019 SCUDO LUM GB 19/11/13 08.26 Pagina 7

8SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLS
If one of the front doors is open or not
properly closed, central locking cannot
take place.
Dead Lock
(for versions/markets, where provided)
Where provided, pressing twice the re-
mote control button
∫
five seconds af-
ter locking the doors will activate the dead
lock (super-locking of the doors).
Dead lock activation is indicated by di-
rection indicators coming on with fixed
light for about two seconds.
The dead lock disables the internal and ex-
ternal handles of the doors.
Dashboard led indications
When locking the doors, led A-fig. 4will
start flashing (deterrence function).
Once doors are locked if one or more
doors are not closed correctly, the in-
strument panel warning light
9
will turn
on.
fig. 4
F0P0006m
Passenger compartment
Unlocking
By first pressing on this button, it
allows you to unlock the vehicle
passenger compartment doors.
The direction indicator lamps flash twice.
By pressing a second time, it allows the
unlocking of one or more side doors as
well as the rear doors.
This selective opening function is
activated upon the delivery of the vehicle.
Upon request, it is possible to deactivate
the selective opening procedure between
the passenger compartment and the
loading compartment. Please seek advice
from the Fiat Dealership.
Unlocking of loading compartment
By pressing this button all rear
doors are unlocked.
This separation of the locks between
passenger compartment and loading
compartment is a safety device which
allows the closure of the vehicle accesses
of the area from which one is absent.
Centralised locking
By pressing on this command, it
allows the locking of the passenger
compartment and rear doors. The
direction indicator lamps flash once.∫`ª
Never leave passengers in-
side the vehicle when the
dead lock is active.
WARNING
IMPORTANT If the dead lock is activat-
ed from the inside of the vehicle, this will
turn to a simple locking upon starting the
engine.
001-019 SCUDO LUM GB 19/11/13 08.26 Pagina 8

9SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS
Used batteries are harmful to
the environment. They should
be disposed of as specified by
law in the special containers
provided, or take them to a Fiat Deal-
ership, which will deal with their dis-
posal.
fig. 5
F0P0007m
fig. 6
F0P0008m
Request for additional remote
controls
The system can recognise up to 8 remote
controls. Should a new remote control be
necessary, contact a Fiat Dealership tak-
ing with you the CODE card, a personal
identity document and the vehicle’s own-
ership documents.
Replacing the battery of the key
with remote control
Battery replacement:❒
separate the two casings A andB-
fig. 6, by levering in the point shown by
the arrow in fig. 5;
❒
take out the battery and replace it C-
fig. 6;
❒
refit both casings, make sure they lock
into place;Re-initialisation of the remote
control set
After the substitution of batteries or the
disconnection of the battery (vehicle), it is
necessary to re-initialise the remote con-
trol set:
❒
Wait at least a minute before using the
remote control set and put it in posi-
tion A.
❒
Insert the key with the remote control
set into the starting switch.
❒
Within ten seconds, press one of the
two buttons (
∫
or
ª) for at least 5
seconds.
❒
Take the key with the remote control
set from the starting switch.
❒
Wait at least a minute before using the
remote control. The remote control
set works once more.
001-019 SCUDO LUM GB 19/11/13 08.26 Pagina 9

10SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLS
KEY WITHOUT REMOTE
CONTROL fig. 7
The metal insert of the key Ais fixed.
The key operates:❒
ignition switch;
❒
door locks;
❒
fuel filler cap locking/unlocking.
fig. 7
F0P0601m
ALARM (for versions/markets, where provided)
If the vehicle is equipped with alarm, the
following two types of protection can be
activated: ❒
perimetrical (alarm active in case of a
front/back door or the engine bonnet
opening);
❒
volumetric protection (alarm on if the
volume inside the passenger compart-
ment changes).
Activation (complete volumetric
and perimetrical alarm)
❒
Take the key from the switch
❒
Get out of the vehicle
❒
Press the button
∫(dead lock - once
or twice)
❒
The deterrence led starts to flash.
Activation
(only perimetrical alarm)
❒
Take the key from the switch
❒
Within 10 seconds press the button
fig. 7akeeping it pressed down until
the deterrence led remains switched
on.
❒
Get out of the vehicle.
❒
Press the button
∫(dead lock - once
or twice).
❒
The deterrence led starts to flash.
fig. 7/a
F0P0062m
Alarm deactivation
In order to deactivate the alarm, press theª
button, the deterrence led will switch
off.
001-019 SCUDO LUM GB 19/11/13 08.26 Pagina 10

11
SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS
The main functions that can be activated with the keys (with or without remote control) are the following:IMPORTANT Window opening operation is a consequence of a door unlocking control; window closing operation
is a consequence of a door locking control.Type of keyKey without remote control Key with remote controlDirection indicators
flashing (only with key with remote control)Window
closing
(for versions/
markets, where
provided)
–
–
Long press(over 2
seconds)
on button
∫
1 flashing
Door
opening
Key turning
counterclockwise
(driver side and
side sliding door,
where provided)
Key turning
counterclockwise
(driver side and
side sliding door,
where provided)
Press briefly
button ª
2 flashings
Door closing
form the
outsideKey turning
clockwise
(driver side and
side sliding door,
where provided)
Key turning
clockwise
(driver side and
side sliding door,
where provided)
Press briefly
button
∫
1 flashing
Dead lock
activation
(for versions/
markets, where
provided)
–
–
Double pressing
on button
∫
3 flashings
Tailgate
opening
(for versions/
markets, where
provided)
–
–
–
2 flashings
Window
opening
(for versions/
markets, where
provided)
–
–
Long press(over 2
seconds)
on button
ª
2 flashings
001-019 SCUDO LUM GB 19/11/13 08.26 Pagina 11
