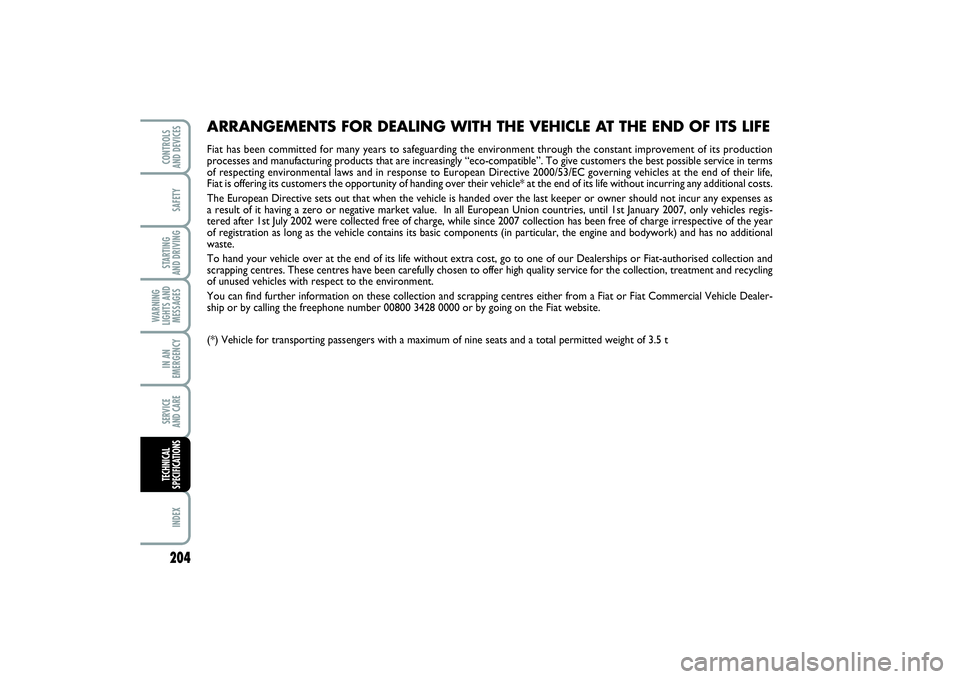

ARRANGEMENTS FOR DEALING WITH THE VEHICLE AT THE END OF ITS LIFEFiat has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly “eco-compatible”. To give customers the best possible service in terms
of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of their life,
Fiat is offering its customers the opportunity of handing over their vehicle* at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not incur any expenses as
a result of it having a zero or negative market value. In all European Union countries, until 1st January 2007, only vehicles regis-
tered after 1st July 2002 were collected free of charge, while since 2007 collection has been free of charge irrespective of the year
of registration as long as the vehicle contains its basic components (in particular, the engine and bodywork) and has no additional
waste.
To hand your vehicle over at the end of its life without extra cost, go to one of our Dealerships or Fiat-authorised collection and
scrapping centres. These centres have been carefully chosen to offer high quality service for the collection, treatment and recycling
of unused vehicles with respect to the environment.
You can find further information on these collection and scrapping centres either from a Fiat or Fiat Commercial Vehicle Dealer-
ship or by calling the freephone number 00800 3428 0000 or by going on the Fiat website.
(*) Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t
