2014 FIAT PANDA check engine

IMPORTANT If the warning light comes on when the
vehicle is in motion, check that the handbrake is
not engaged.
EBD FAILURE (red)
(amber)
The simultaneous switching on of the
(red),
(amber) and
(amber) warning lights with the
engine on, indicates either a failure of the EBD
system or that the system is not available. In this
case, the rear wheels may suddenly lock and the
vehicle may swerve when braking sharply. Drive very
carefully to the nearest Fiat Dealership to have the
system inspected immediately. On some versions the
display shows the dedicated message.
ABS FAILURE (amber)
Turning the key to MAR switches on the warning
light, but it should switch off after a few seconds.
The warning light switches on (on some versions,
with a message on the display and a symbol on
the display) when the system is not efficient. In this
case the braking system maintains its own efficiency
unaltered but without the advantage of the ABS
system. Drive carefully and contact a Fiat Dealership
as soon as possible.
AIRBAG FAILURE (red)
Turning the key to MAR switches on the warning
light, but it should switch off after a few seconds.
The warning light switches on constantly (on some
versions, with a message on the display and a symbol
on the display) to indicate an airbag system fault.
WARNING
If, when turning the key to MAR, the
warning light
does not switch on or
stays on whilst driving, a fault may be present in
the restraint systems. In this case the airbags
or pretensioners may not be deployed in an
impact or, in a lower number of cases, they may
be deployed accidentally. Before continuing,
contact a Fiat Dealership immediately to have
the system checked.
133GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

❒use of the car for short drives, in which the engine
does not have time to reach its regular operating
temperature;
❒repeated interruption of the regeneration process,
signalled by the DPF warning light switching on.
WARNING
If the warning light switches on, the
deteriorated engine oil must be changed
as soon as possible, and never more than 500
km from the first time that the warning light
switches on. Failure to observe the above may
result in severe damage to the engine and
invalidate the warranty. Remember that the
operation of this warning light is not related to
the amount of oil in the engine.Therefore,
never top up with oil when the light starts
flashing.EXCESSIVE ENGINE COOLANT
TEMPERATURE (red)
Turning the key to MAR switches on the warning
light, but it should switch off after a few seconds.
The warning light switches on (on some versions,
with a message on the display and a symbol on
the display) when the engine is overheated.If the warning light comes on when driving, proceed
as follows:
❒when driving normally:stop the car, stop the
engine and check that the water level in the
reservoir is not below the MIN mark. If it is, wait
for a few minutes for the engine to cool down
then slowly and carefully open the cap, top up with
coolant and check that the level is between the
MIN and MAX marks. Also check visually for any
fluid leaks. If, when restarting, the warning light
should switch on again, contact a Fiat Dealership;
❒if the car is used under demanding
conditions(e.g. towing trailers uphill or fully
loaded): slow down and, if the light stays on, stop
the car. Wait for 2 or 3 minutes with the engine
running and slightly accelerated to further favour
the coolant circulation. Then stop the engine.
Check the correct liquid level as described above.
IMPORTANT On demanding routes, it is advisable to
keep the engine on and slightly accelerated for a
few minutes before stopping it.
FUEL RESERVE - LIMITED RANGE
(amber)
This warning light comes on when about 5 to 7 litres
of fuel are left in the tank. When the remaining
range is lower than approx. 50 km (or equivalent
value in miles), on some versions, the display will
show a warning message.
136
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

IMPORTANT The warning light will flash to indicate
a system failure. If this is the case, go to a Fiat
Dealership to have the system checked.
EOBD/INJECTION SYSTEM
FAILURE (amber)
In normal conditions, the warning light switches on
when the key is turned to MAR (on some versions,
with a message on the display), but should switch off
as soon as the engine is started.
If the warning light remains on or switches on whilst
driving, the injection system is not working properly;
in particular, if the warning light switches on
constantly, this indicates a malfunction in the
supply/ignition system that could cause excessive
exhaust emissions, a possible loss of performance,
poor driveability and high fuel consumption.
In these conditions, you can continue driving without
demanding excessive effort or speed from the
engine. Prolonged use of the car with the warning
light on may cause damage: contact a Fiat Dealership
as soon as possible.
The warning light switches off after the malfunction
disappears, but the notification is stored in the
system.
NOTE (valid only for petrol engines)
If the warning light flashes, the catalytic converter
may be damaged.In this case, it is necessary to release the accelerator
pedal to lower the speed of the engine until the
warning light stops flashing; continue the journey at
moderate speed, trying to avoid driving conditions
that may cause further flashing and contact a Fiat
Dealership as soon as possible.
Contact a Fiat Dealership as soon as
possible if the
warning light either does
notswitchonwhenthekeyisturnedto
MAR or if while driving the warning light switches
on either constantly or flashing (along with a
message and a symbol on the display on some
versions). Operation of the
warning light may
be verified by traffic control officers using
appropriate equipment . Comply with the laws
and regulations of the country where you are
driving.
ESC SYSTEM FAILURE (amber)
(for versions/markets, where provided)
This warning light switches on when the ignition key
is turned to MAR, but it should switch off after a
few seconds. If the warning light does not switch off
or stays on (along with a message on the display
on some versions) whilst driving, contact a Fiat
Dealership. Flashing of the warning light while driving
indicates the intervention of the ESC system.
137GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

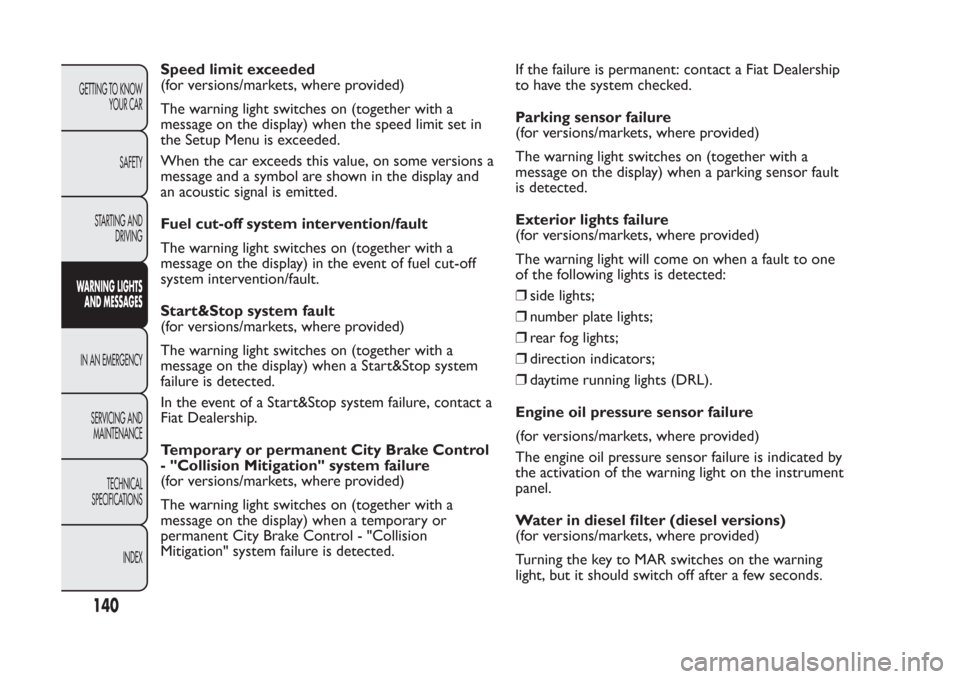

Speed limit exceeded
(for versions/markets, where provided)
The warning light switches on (together with a
message on the display) when the speed limit set in
the Setup Menu is exceeded.
When the car exceeds this value, on some versions a
message and a symbol are shown in the display and
an acoustic signal is emitted.
Fuel cut-off system intervention/fault
The warning light switches on (together with a
message on the display) in the event of fuel cut-off
system intervention/fault.
Start&Stop system fault
(for versions/markets, where provided)
The warning light switches on (together with a
message on the display) when a Start&Stop system
failure is detected.
In the event of a Start&Stop system failure, contact a
Fiat Dealership.
Temporary or permanent City Brake Control
- "Collision Mitigation" system failure
(for versions/markets, where provided)
The warning light switches on (together with a
message on the display) when a temporary or
permanent City Brake Control - "Collision
Mitigation" system failure is detected.If the failure is permanent: contact a Fiat Dealership
to have the system checked.
Parking sensor failure
(for versions/markets, where provided)
The warning light switches on (together with a
message on the display) when a parking sensor fault
is detected.
Exterior lights failure
(for versions/markets, where provided)
The warning light will come on when a fault to one
of the following lights is detected:
❒side lights;
❒number plate lights;
❒rear fog lights;
❒direction indicators;
❒daytime running lights (DRL).
Engine oil pressure sensor failure
(for versions/markets, where provided)
The engine oil pressure sensor failure is indicated by
the activation of the warning light on the instrument
panel.
Water in diesel filter (diesel versions)
(for versions/markets, where provided)
Turning the key to MAR switches on the warning
light, but it should switch off after a few seconds.
140
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Dispose of the bottle and the sealant
liquid properly. Have the sealing fluid and
the cylinder disposed of in compliance
with national and local regulations.
INFLATION PROCEDURE
WARNING
Put on the protective gloves provided
together with quick tyre repair kit .
Proceed as follows:
❒Pull up the handbrake.Unscrew the tyre valve
cap, take out the filler hose A fig. 120 and tighten
the ring nut B on the tyre valve;❒make sure that the compressor switch A fig. 121 is
in position 0 (off ), start the engine, plug into the
power socket in the central tunnel fig. 122 and
operate the compressor turning switch A to
position I (on). Inflate the tyre to the pressure
specified in the "Inflation pressure" paragraph in
the "Technical specifications" section. Check tyre
pressure on gauge B fig. 121 with compressor
off to obtain a more precise reading;
❒if after five minutes it is still impossible to reach at
least 1.8 bar, disengage the compressor from the
valve and power socket, then move the car
forwards by approx. ten metres in order
to distribute the sealing fluid inside the tyre evenly,
then repeat the inflation operation;
❒if after this operation you still cannot reach at least
1.8 bar after 5 minutes from switching on the
compressor, do not resume driving but contact a
Fiat Dealership;
fig. 120
F0W0176
fig. 121
F0W0181
151GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
Apply the adhesive label where it can be
easily seen by the driver as a reminder
that the tyre has been treated with the quick
repair kit . Drive carefully, particularly on bends.
Do not exceed 80 km/h. Do not accelerate or
brake suddenly.
❒after driving for about 10 minutes stop and check
the tyre pressure again;pull up the handbrake;
For the safety of the car when it is parked, follow
the indication in the paragraph "When parked"
in the chapter "Starting up and driving" .
WARNING
If the pressure has fallen below 1.8 bar,
do not drive any further: the quick
tyre repair kit cannot guarantee the correct
hold because the tyre is too damaged. Contact
a Fiat Dealership.
❒if a pressure value of at least 1.8 bar is detected,
restore the correct pressure (with the engine
running and the handbrake engaged), resume
driving and drive with great care to the nearest
Fiat Dealership.
WARNING
Always indicate that the tyre was
repaired using the quick tyre repair kit .
Give the instruction booklet to the personnel
charged with handling the treated tyre.
fig. 122
F0W0178
152
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SCHEDULED SERVICING PLANPETROL VERSIONS
Services must be performed every 30,000 km or 24 months.Thousands of miles 18 36 54 72 90 108
Thousands of km 30 60 90 120 150 180
Months 24 48 72 96 120 144
Check battery charge status and recharge if necessary●●●●●●
Check tyre condition/wear and adjust pressure, if necessary●●●●●●
Check operation of lighting system (headlamps, direction indicators, hazard
warning lights, luggage compartment, passenger compartment, glove
compartment, instrument panel warning lights, etc.)●●●●●●
Check operation of windscreen washer system and adjust jets if necessary.●●●●●●
Check windscreen/rear window wiper blade position/wear●●●●●●
Check cleanliness of bonnet and tailgate locks and cleanliness and lubrication of
linkages●●●●●●
Visually inspect condition of: exterior bodywork, underbody protection, pipes
and hoses (exhaust - fuel system - brakes), rubber elements (boots, sleeves,
bushes, etc.)●●●●●●
Check front disc brake pad condition and wear●●●●●●
Check rear drum brake lining condition and wear●●●
Check and, if necessary, top-up fluid levels (engine cooling, hydraulic clutch/
brakes, windscreen washer, battery, etc.)●●●●●●
Visually inspect conditions of the accessory drive belt(s)●●
Check/adjust clutch pedal travel●●●●●●
176
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Thousands of miles 18 36 54 72 90 108
Thousands of km 30 60 90 120 150 180
Months 24 48 72 96 120 144
Check tensioning of accessory drive belt (versions without automatic tensioner)
(or every 24 months)●●
Check condition of toothed timing drive belt (0.9 TwinAir 85 HP and 0.9
TwinAir Turbo 65 HP engine excluded)●●
Check handbrake lever travel and adjust, if required●●●●●●
Check exhaust gas emissions/smokiness●●●●●●
Check operation of engine management systems (using diagnosis socket)●●●●●●
Check manual gearbox oil level●●
Check tappet clearance and adjust as necessary (1.2 8V 69 HP version)●●●
Replace spark plugs (1.2 8V 69 HP and 0.9 TwinAir Turbo 85 HP versions)
(*)
●●●●●●
Replace spark plugs (0.9 TwinAir 65 HP version)
(*)
●●●
Replace accessory drive belt(s)●
(*) On the 0.9 TwinAir versions the following are vital in order to ensure correct operation and prevent serious damage to the engine:
- only use spark plugs specifically certified for these engines; all spark plugs should be of the same type and brand (see the "Engine"
paragraph in the "Technical Specifications" chapter);
- adhere strictly to the spark plug replacement intervals detailed in the Scheduled Servicing Plan;
- it is advisable to contact a Fiat Dealership for plug replacement.
177GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX
