2014 FIAT PANDA engine

ENGINEVersions0.9 TwinAir 65
HP0.9 TwinAir
Turbo 85 HP1.2 8V 69 HP 1.3 16V MultiJet
Type code 312A4000 312A2000 169A4000 199A9000
Cycle Otto Otto Otto Diesel
Number and arrangement of
cylinders2 in line 2 in line 4 in line 4 in line
Piston diameter and travel (mm) 83.5 x 88 80.5 x 86.0 70.8 x 78.86 69.6 x 82
Total displacement (cm3) 964 875 1242 1248
Compression ratio 11,1 10 11,1 16,8
Maximum power (EC) (kW) 48
62,5 / 57
(*)
51 55
Maximum power (EC) (HP) 65
85 / 77,5
(*)
69 75
corresponding engine speed (rpm) 6250 5500 5500 4000
Maximum torque (EC) (Nm) 88
145 / 100
(*)
102 190
Maximum torque (EC) (kgm) 8,9
14,8 / 10,2
(*)
10,4 19,4
corresponding engine speed (rpm) 3500
1900 / 2000
(*)
3000 1500
Spark plugs NGK LKR7DI-12 NGK LKR9EI-8NGK ZKR7A-10
or CHAMPION
RA8MCX4-
FuelUnleaded petrol
95 RON
(Specification EN
228)Unleaded petrol
95 RON
(Specification EN
228)Unleaded petrol
95 RON
(Specification EN
228)Diesel for motor
vehicles
(Specification EN
590)
(*) With ECO button pressed
204
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

REFUELLINGPetrol versions 0.9 TwinAir 65 HP0.9 TwinAir Turbo 85
HPPrescribed fuels and
original lubricants
Fuel tank (litres): 37
37/35
(*)
Unleaded petrol not less
than 95 RON (EN 228
specification) including a reserve of (litres): 5 ÷ 7 5 ÷ 7
Engine cooling system (litres): 4,8 5,2Mixture of 50% distilled
water and 50%
PARAFLU
UP
(**)
Engine sump (litres): - 2,8
SELENIA K P.E.
Engine sump and filter (litres): - 3,2
Engine sump (litres): 2,8 -
SELENIA DIGITEK P.E.
Engine sump and filter (litres): 3,2 -
Gearbox casing/differential (litres): 1,65 1,65TUTELA
TRANSMISSION
GEARFORCE
Hydraulic brake circuit (litres): 0,55 0,55 TUTELA TOP 4
Windscreen and rear window
washer fluid reservoir (litres):2,7 2,7Mixture of water and
TUTELA
PROFESSIONAL SC35(*) Trekking versions
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLU
UP
and 40%
demineralised water.
219GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

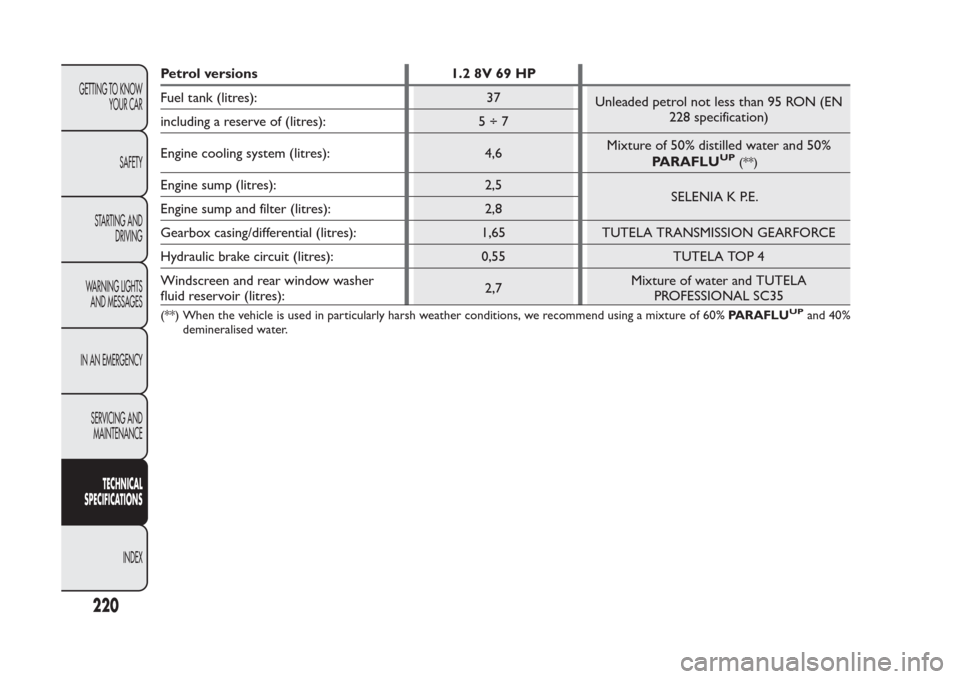

Petrol versions 1.2 8V 69 HP
Fuel tank (litres): 37
Unleaded petrol not less than 95 RON (EN
228 specification)
including a reserve of (litres): 5 ÷ 7
Engine cooling system (litres): 4,6Mixture of 50% distilled water and 50%
PARAFLU
UP
(**)
Engine sump (litres): 2,5
SELENIA K P.E.
Engine sump and filter (litres): 2,8
Gearbox casing/differential (litres): 1,65 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (litres): 0,55 TUTELA TOP 4
Windscreen and rear window washer
fluid reservoir (litres):2,7Mixture of water and TUTELA
PROFESSIONAL SC35(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLU
UP
and 40%
demineralised water.
220
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Diesel versions 1.3 16V MultiJetRecommended fuels and original lubri-
cants
Fuel tank capacity (litres):
37/35
(*)
Diesel for automotive engines (EN 590
Specification)
including a reserve of (litres): 5 ÷ 7
Engine cooling system (litres): 6,3Mixture of 50% distilled water and 50%
PARAFLU
UP
(**)
Engine sump (litres): 2,8
SELENIA WR P.E.
Engine sump and filter (litres): 3,0
Gearbox casing/differential (kg): 1,8 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (litres): 0,55 TUTELA TOP 4
Windscreen and rear window washer
fluid reservoir (litres):2,7Mixture of water and TUTELA
PROFESSIONAL SC35(*) Trekking versions
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLU
UP
and 40%
demineralised water.
221GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

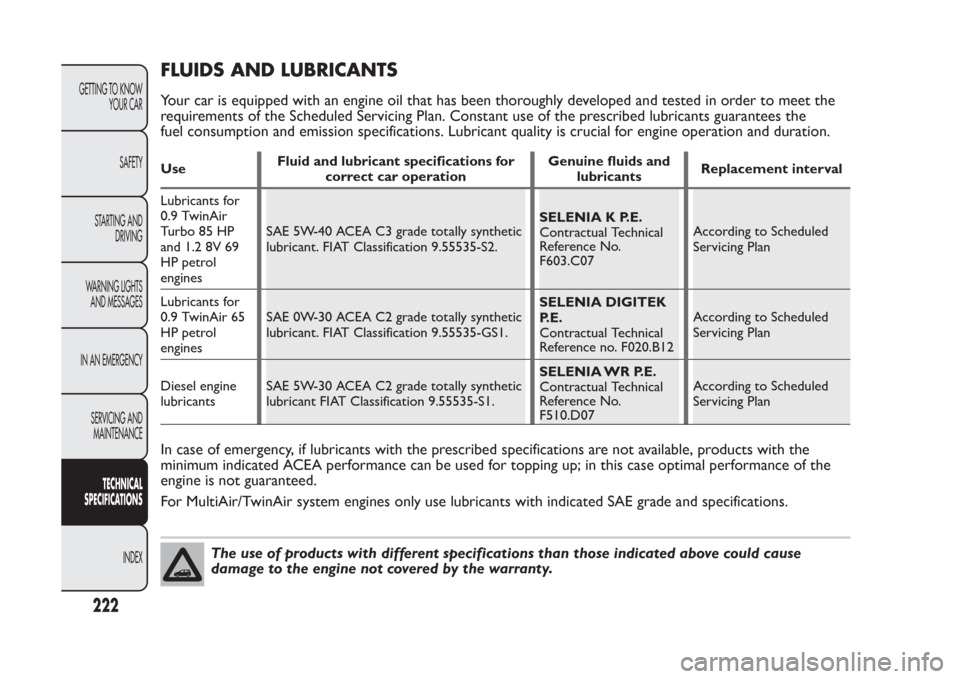

FLUIDS AND LUBRICANTSYour car is equipped with an engine oil that has been thoroughly developed and tested in order to meet the
requirements of the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the
fuel consumption and emission specifications. Lubricant quality is crucial for engine operation and duration.UseFluid and lubricant specifications for
correct car operationGenuine fluids and
lubricantsReplacement interval
Lubricants for
0.9 TwinAir
Turbo 85 HP
and 1.2 8V 69
HP petrol
enginesSAE 5W-40 ACEA C3 grade totally synthetic
lubricant. FIAT Classification 9.55535-S2.SELENIA K P.E.
Contractual Technical
Reference No.
F603.C07According to Scheduled
Servicing Plan
Lubricants for
0.9 TwinAir 65
HP petrol
enginesSAE 0W-30 ACEA C2 grade totally synthetic
lubricant. FIAT Classification 9.55535-GS1.SELENIA DIGITEK
P.E.
Contractual Technical
Reference no. F020.B12According to Scheduled
Servicing Plan
Diesel engine
lubricantsSAE 5W-30 ACEA C2 grade totally synthetic
lubricant FIAT Classification 9.55535-S1.SELENIA WR P.E.
Contractual Technical
Reference No.
F510.D07According to Scheduled
Servicing PlanIn case of emergency, if lubricants with the prescribed specifications are not available, products with the
minimum indicated ACEA performance can be used for topping up; in this case optimal performance of the
engine is not guaranteed.
For MultiAir/TwinAir system engines only use lubricants with indicated SAE grade and specifications.
The use of products with different specifications than those indicated above could cause
damage to the engine not covered by the warranty.
222
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

UseFluid and lubricant specifications for
correct car operationGenuine fluids and
lubricantsApplications
Protective
agent for
radiatorsRed protective agent with antifreeze action,
based on inhibited monoethyl glycol with
organic formula. Exceeds CUNA NC 956-16,
ASTM D 3306 specifications. FIAT
Classification 9.55523.PARAFLU
UP
(*)
Contractual Technical
Reference No.
F101.M01Cooling circuit usage
percentage: 50% water
50%PARAFLU
UP
(**)
Diesel fuel
additiveAdditive for diesel with antifreeze and
protective action for diesel engines.TUTELA DIESEL
ART
Contractual Technical
Reference No. F601.L06To be mixed with the fuel
oil (25 cc per 10 litres)
Windscreen/
rear window
washer fluidMixture of alcohols and surfactants. Exceeds
CUNA NC 956-11 specifications. FIAT
Classification 9.55522TUTELA
PROFESSIONAL SC
35
Contractual Technical
Reference No.
F201.D02To be used diluted or
undiluted in windscreen/
rear window washer/wiper
systems(*) IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(**) For particularly harsh climate conditions, a mixture of 60%PARAFLU
UP
and 40% demineralised water is recommended.
224
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS LIFEFiat has been committed for many years to safeguarding the environment through the constant improvement
of its production processes and manufacturing products that are increasingly compatible with the ecosystem.
To assure customers of the best possible service in terms of respecting environmental laws and in response to
European Directive 2000/53/EC governing vehicles at the end of their life, Fiat is offering their customers the
opportunity of handing over their vehicle (*) at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not
incur any expenses as a result of it having a zero or negative market value. In particular, in almost all European
Union countries, until 1st January 2007, vehicles registered after 1st July 2002 will be collected free of
charge, whilst from 2007 collection will be free of charge irrespective of the year of registration as long as the
vehicle contains its basic components (in particular, the engine and bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, go to one of our Dealerships or
Fiat-authorised collection and scrapping centres. These centres have been carefully chosen to offer high
quality service for the collection, treatment and recycling of vehicles at their end of life, respecting the
surrounding environment.
You can find further information on these collection and scrapping centres either from a Fiat and Fiat
Commercial Vehicle Dealership or by calling the toll-free number 00800 3428 0000 or on the Fiat website.
(*) Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t
227GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

2
RIGHT HAND DRIVE VERSIONS
Dashboard fuse box
To access the fuses,open the glove compartment
The fuses are located in the fuse box shown in fig. 6.
fig. 5
F0W0294
fig. 6
F0W0295
and remove theplastic cover fig. 5. FUSE LOCATION
PARKINGSwitch off the engine and engage the handbrake.
Engage a gear (1
st
gear if parked uphill or reverse if
facing downhill) and leave the wheels turned. If the
car is parked on a steep slope block the wheels with
a wedge or stone. Always remove the ignition key
when leaving the car.
HANDBRAKE
To engage the handbrake pull lever A fig. 7 upwards
until the car is secured. To release the handbrake,
raise lever A slightly, hold down button B and lower
the lever.
If the car is parked on a steep slope, it is also
advisable to block the wheels with a wedge or stone.
fig. 7
F0W0296
