2014 FIAT GRANDE PUNTO ACTUAL lock

6
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SYMBOLS

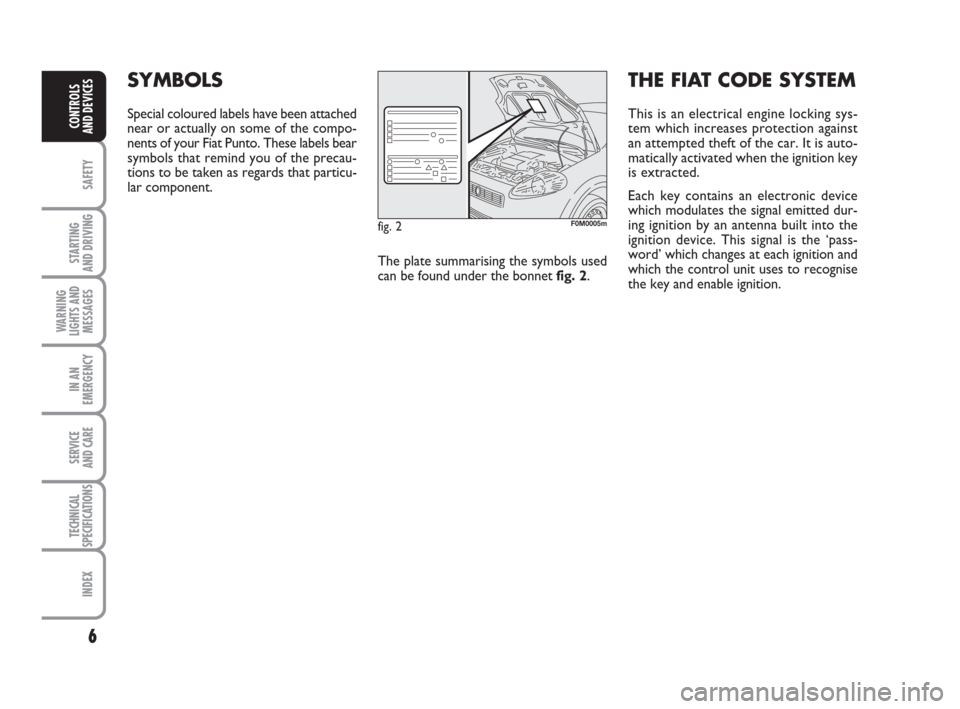

Special coloured labels have been attached
near or actually on some of the compo-
nents of your Fiat Punto. These labels bear
symbols that remind you of the precau-
tions to be taken as regards that particu-
lar component.
The plate summarising the symbols used
can be found under the bonnet fig. 2.
THE FIAT CODE SYSTEM
This is an electrical engine locking sys-
tem which increases protection against
an attempted theft of the car. It is auto-
matically activated when the ignition key
is extracted.
Each key contains an electronic device
which modulates the signal emitted dur-
ing ignition by an antenna built into the
ignition device. This signal is the ‘pass-
word’ which changes at each ignition and
which the control unit uses to recognise
the key and enable ignition.
fig. 2F0M0005m
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 6

8
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
KEY WITH REMOTE CONTROL
fig. 4
(for versions/markets, where provided)
The metal insert Aenables:
❒the ignition;
❒the door locks;
❒the fuel cap lock/release (for versions/
markets, where provided).
To open/close the metal insert, press
button B.
Button Ëis used for unlocking the doors
and the boot.
Button
Áis used for locking the doors and
the boot.
Button
Ris used to open the boot re-
motely.
When unlocking the doors, the passenger
compartment lights will come on for
a preset time.
THE KEYS
CODE CARD fig. 3
(for versions/markets, where provided)
The car is delivered with two copies of the
ignition key and with the CODE card
which bears the following:
Athe electronic code;
Bthe mechanical key code to be given to
the Fiat Dealership when ordering du-
plicate keys.
You should have the electronic code A-
fig. 3with you at all times.
IMPORTANT In order to ensure com-
plete efficiency of the electronic devices
inside the keys, they should never be ex-
posed to direct sunlight.
All the keys and the CODE
card must be handed over to
the new owner when selling
the car.
fig. 3F0M0351m
Press button B only with the
key away from your body,
specifically from your eyes and from
objects which could get damaged (e.g.
your clothes). Do not leave the key
unattended to avoid the button being
accidentally pressed while it is being
handled, e.g. by a child.
WARNING
fig. 4F0M0394mfig.
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 8

9
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Dashboard LED indications
When locking the doors, LED A-fig. 5
switches on for about 3 seconds and than
starts flashing (deterrence function).
Once doors are locked, if one or more
doors or the boot are not closed cor-
rectly, the LED and direction indicators
start flashing quickly.
fig. 5F0M0013m
fig. 7
fig. 6F0M0395m
F0M0396m
REPLACING THE BATTERY
OF THE KEY WITH REMOTE
CONTROL fig. 6
To replace the battery, proceed as fol-
lows:
❒press button Aand open the metal in-
sert B;
❒turn the screw Cto :using a fine
screwdriver;
❒take out the battery case Dand replace
the battery E, respecting its polarity;
❒refit the battery case Dinside the key
and lock it turning the screw Cto Á.REPLACEMENT OF REMOTE
CONTROL COVER fig. 7
To replace the remote control cover, fol-
low the procedure shown in the diagram.
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 9

10
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
KEY WITHOUT REMOTE
CONTROL fig. 8
The metal insert of the key Ais fixed.
The key operates:
❒the ignition;
❒the door locks;
❒the fuel tank cap lock (for versions/
markets, where provided).
fig. 8F0M0352m
ALARM
The car alarm system is available at Lin-
eaccessori Fiat.
Used batteries are harmful to
the environment. You can dis-
pose of them either in the
correct containers as speci-
fied by law or by taking them to a Fiat
Dealership, which will deal with their
disposal.
Requesting additional
remote controls
The system acknowledges up to 8 remote
controls. Should a new remote control be
necessary, contact a Fiat Dealership, tak-
ing with you the CODE card, a personal
identity document and the car’s owner-
ship documents.
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 10

11
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
The main functions that can be activated with the keys (with or without remote control) are the following:
Type of key
Key without remote control
Key with remote control
Visual indication
Direction indicators flashing
(only for key with
remote control)
Deterrence LED
Unlocking
the doors
Turn key
anticlockwise
(driver’s side)
Turn key
anticlockwise
(driver’s side)
Press briefly
b
utton Ë
blinks twice
OffDoor locking
from
the outside
Turn key
clockwise
(driver’s side)
Turn key
clockwise
(driver’s side)
Press briefly
button
Á
blinks once
Lit for about
3 seconds followed
by deterrence LED
flashingDead Lock
activation
(*)
–
–
Press twice
button
Á
blinks three times
Double flash,
followed by
deterrence
flashingUnlocking
the boot
–
–
Press briefly
button
R
blinks twice
Deterrence
LED
(*) For versions/markets, where provided.
IMPORTANT Window opening operation is a consequence of a door unlocking control; window closing operation is a consequence
of a door locking control.
Opening
windows
(*)
–
–
Hold downbutton Ëfor more
than two seconds)
blinks twice
OffClosing
windows
(*)
–
–Hold downbutton Áfor more
than two seconds)
blinks once
Deterrence
LED
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 11

12
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IGNITION
The key can be turned to 3 different po-
sitions fig. 9:
❒STOP: engine off, key can be extract-
ed, steering locked. Some electrical de-
vices (e.g. sound system, central door
locking system, etc.) can function.
❒MAR: driving position. All electrical
devices can function.
❒AVV: engine starting (temporary posi-
tion).
The ignition device is fitted with an elec-
tronic safety system that, in the event the
engine fails to start, turns back the ignition
key to STOPbefore repeating the start-
ing operation.STEERING LOCK
Engagement
When the key is in position STOP, re-
move it and turn the steering wheel until
it locks.
Disengagement
Rock the steering wheel slightly as you
turn the key to MAR.
If the ignition device has
been tampered with (e.g. an
attempted theft), have it checked
over by a Fiat Dealership as soon as
possible.
WARNING
Always remove the key when
you leave your car to pre-
vent someone from accidentally op-
erating the controls. Remember to
engage the handbrake. Engage first
gear if the car is parked uphill or re-
verse if the car is parked downhill.
Never leave children unattended in
the car.
WARNING
fig. 9F0M0015m
Never extract the key while
the vehicle is moving. The
steering wheel would lock automati-
cally as soon as it is turned. This also
applies to when the car is towed.
WARNING
It is absolutely forbidden to
carry out any after-market
operation involving steering system or
steering column modifications (e.g. in-
stallation of anti-theft device) that
could badly affect performance and
safety, invalidate the warranty and
also result in the car not complying
with regulations.
WARNING
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 12

17
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SETUP MENU
The menu comprises a series of functions
arranged in a circle which can be select-
ed through the +and –buttons to access
the different operations and settings de-
scribed in the following paragraphs.
The setup menu can be activated by briefly
pressing the MENU ESCbutton.
Single presses on the +and –buttons will
scroll the setup menu options.
Management modes differ from each oth-
er according to the option selected.Selecting a menu option
– briefly press the MENU ESCbutton to
select the menu option to set;
– press the +and –buttons (with single
presses) to select the new setting;
– press briefly the MENU ESCbutton to
store the new setting and go back to the
previous menu option.
Selecting “Set Clock”
– briefly press the MENU ESCbutton to
select the first value to change (hours);
– press the +and –buttons (with single
presses) to select the new setting;
– briefly press the MENU ESCbutton to
store the new setting and go to the next
setup menu option (minutes);
– after setting the values with the same
procedure, go back to the previous menu
item.Hold down the MENU ESC button:
– to quit the setup menu if you are in the
menu;
– to quit to the menu if you are setting
an option;
– to save only the settings already stored
(and confirmed by pressing the MENU
ESCbutton).
The setup menu page is timed. Only the
changes stored by the user by briefly
pressing the MENU ESCbutton are
saved when the menu is automatically
closed.
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 17

19
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Setting the speed limit (SPEEd)
With this function, it is possible to set the
car speed limit (km/h or mph). When this
limit is exceeded, the driver is immediately
alerted (see section “Warning lights and
messages”).
To set the desired speed limit, proceed as
follows:
– briefly press MENU ESC– the mes-
sage (SPEEd) and the previously set unit
(km/h) or (mph) will appear on the display;
– press+or –to activate (On) or deac-
tivate (Off) the speed limit;
– if the function is on, press +or –to se-
lect the required speed limit and then
press MENU ESCto confirm;
NBThe speed may be set in the range
from 30 to 200 km/h, or from 20 to
125 mph according to the previously cho-
sen unit (see “Setting the distance unit
(Unit)” below). The setting will in-
crease/decrease by five units each time
+/–is pressed. Hold down +/–to in-
crease/decrease the setting rapidly. When
you get close to the desired value, finish
the setting with single presses.– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving.
To cancel the setting, proceed as follows:
– briefly press MENU ESC: (On) will
flash on the display;
– press –: (Off) will flash on the display;
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving.
Setting the clock (Hour)
With this function, it is possible to set the
time.
To do so, proceed as follows:
– briefly press MENU ESC– the “hours”
will flash on the display;
– press +or –to set the value;
– briefly press MENU ESC– the “min-
utes” will flash on the display;
– press +or –to set the value;
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving.Adjusting the buzzer volume
(BUZZ)
This function is used to adjust the volume
of the buzzer that sounds in the event
of failure/warning indications and when
the MENU ESC,+and –buttons are
pressed.
To set the desired volume, proceed as
follows:
– briefly press MENU ESC– the display
will show the wording (bUZZ);
– press +or –to select the required vol-
ume (adjustable over 8 levels).
– briefly press MENU ESC
to return to
the menu screen or hold the button down
to return to the standard screen without
saving.
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 19
