2014 FIAT DUCATO emergency towing

IN AN EMERGENCY
A punctured tyre or a burnt-out bulb?
At times, a problem may interfere
with our journey.
The pages on emergencies can help
you to deal with critical situations
independently and with calm.
In an emergency we recommend that
you call the freephone number found in
the Warranty Booklet.
It is also possible to call the 00 800
3428 0000 freephone number to
search the nearest Fiat Dealership.STARTING THE ENGINE .................190
REPLACING A WHEEL ...................191
FIX & GO AUTOMATIC QUICK
TYRE REPAIR KIT ...........................196
CHANGING A BULB .......................201
REPLACING AN EXTERIOR BULB ..205
CHANGING AN INTERIOR BULB ....211
REPLACING FUSES........................212
BATTERY RECHARGING ................219
LIFTING THE VEHICLE....................220
TOWING THE VEHICLE ..................220
189

165) Do not attempt to charge a
frozen battery: it must be thawed
first, otherwise it may explode.
If freezing has occurred, the
battery should be checked by
skilled personnel to make sure
that the internal elements are not
damaged and that the body is
not cracked, with the risk of
leaking poisonous and corrosive
acid.
LIFTING THE
VEHICLEIf the vehicle needs to be lifted, go to a
Fiat Dealership which is equipped
with the arm hoist or workshop lift.
The vehicle must only be lifted laterally
by placing the ends of the arms or
workshop lift in the areas shown in fig.
231.
TOWING THE
VEHICLE
166) 167) 168) 169) 170) 171) 172) 173) 174)
The vehicle is equipped with two rings
for attaching the tow hook.
231
F1A0366
232
F1A0221
233
F1A0222
220
IN AN EMERGENCY

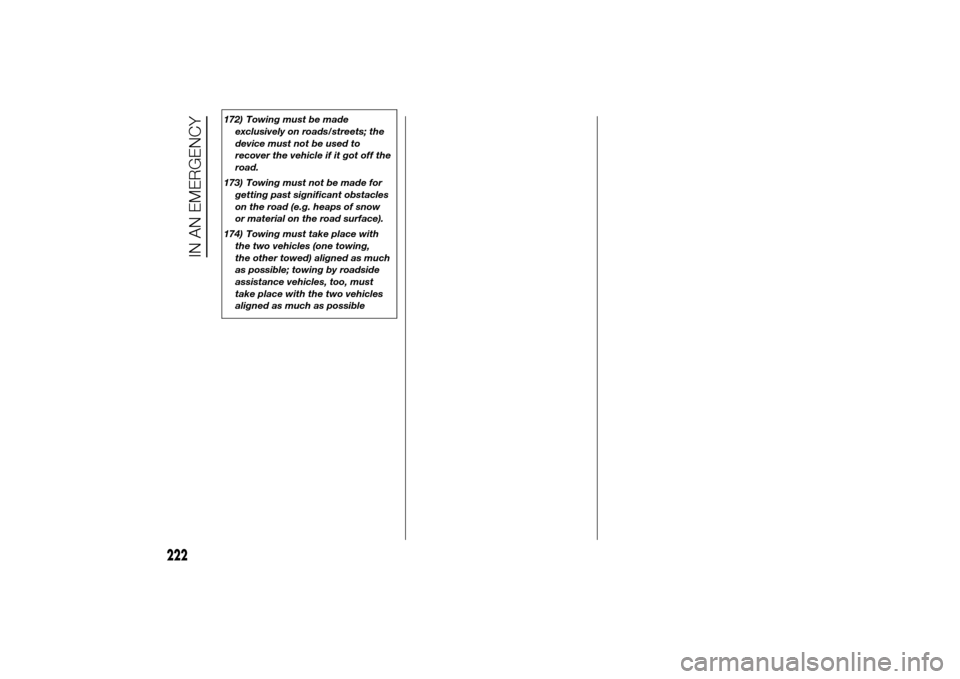

172) Towing must be made
exclusively on roads/streets; the
device must not be used to
recover the vehicle if it got off the
road.
173) Towing must not be made for
getting past significant obstacles
on the road (e.g. heaps of snow
or material on the road surface).
174) Towing must take place with
the two vehicles (one towing,
the other towed) aligned as much
as possible; towing by roadside
assistance vehicles, too, must
take place with the two vehicles
aligned as much as possible
222
IN AN EMERGENCY
