Thousands of miles 30 60 90 120 150
Thousands of kilometres 48 96 144 192 240
Months 24 48 72 96 120
Replace toothed timing drive belt (*) (110 (°)- 130 - 150 MultiJet versions)●
Replace toothed timing drive belt (*) (115 MultiJet versions)(°))●
Replace air cleaner cartridge (***)●●●●●
Change engine oil and replace oil filter (**) (#)
Change brake fluid (or every 24 months)●●
Replace pollen filter (or every 24 months)●●●●●(*) Irrespective of the mileage, the timing drive belt must be changed every 4 years for heavy-duty use (cold climates, town use, long periods of idling) or at least
every 5 years.
I
(°)Version for specific markets
(***) If the vehicle is equipped with a specific air cleaner for dusty areas: -every 20,000 km check and wash cleaner; every 40,000 km replace cleaner.
(**) The actual interval for changing the oil and replacing the engine oil filter depends on the car usage conditions and is signalled by the warning light or message (if
present) on the instrument panel (see “Warning lights and messages” paragraph) and must never exceed 24 months.
(#) If the vehicle is driven mainly in towns, change engine oil and oil filter every 12 months.
227

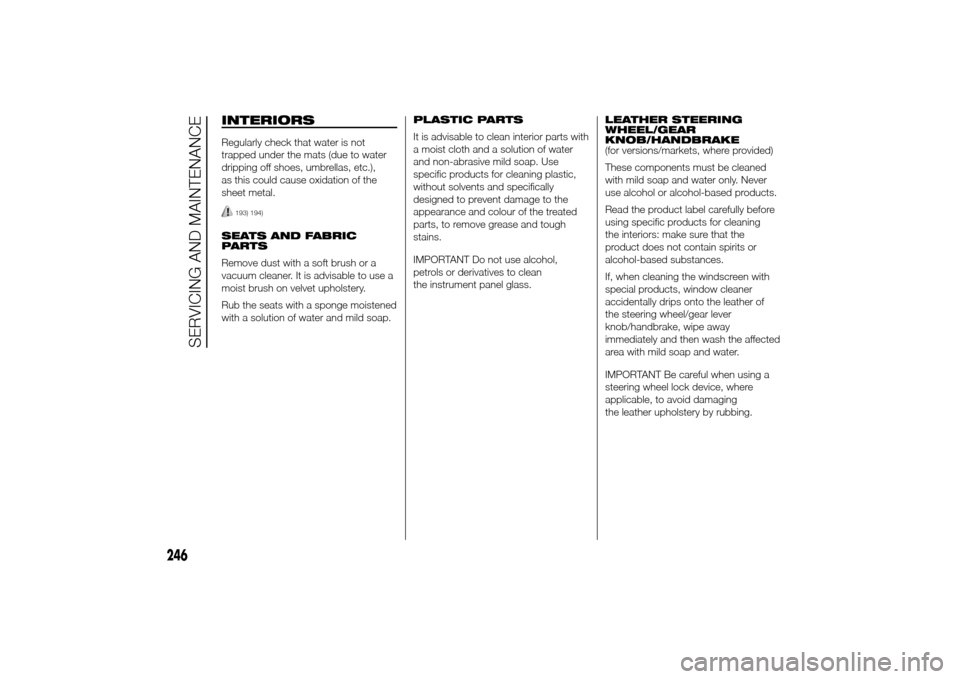

INTERIORSRegularly check that water is not
trapped under the mats (due to water
dripping off shoes, umbrellas, etc.),
as this could cause oxidation of the
sheet metal.
193) 194)
SEATS AND FABRIC
PARTS
Remove dust with a soft brush or a
vacuum cleaner. It is advisable to use a
moist brush on velvet upholstery.
Rub the seats with a sponge moistened
with a solution of water and mild soap.PLASTIC PARTS
It is advisable to clean interior parts with
a moist cloth and a solution of water
and non-abrasive mild soap. Use
specific products for cleaning plastic,
without solvents and specifically
designed to prevent damage to the
appearance and colour of the treated
parts, to remove grease and tough
stains.
IMPORTANT Do not use alcohol,
petrols or derivatives to clean
the instrument panel glass.LEATHER STEERING
WHEEL/GEAR
KNOB/HANDBRAKE
(for versions/markets, where provided)
These components must be cleaned
with mild soap and water only. Never
use alcohol or alcohol-based products.
Read the product label carefully before
using specific products for cleaning
the interiors: make sure that the
product does not contain spirits or
alcohol-based substances.
If, when cleaning the windscreen with
special products, window cleaner
accidentally drips onto the leather of
the steering wheel/gear lever
knob/handbrake, wipe away
immediately and then wash the affected
area with mild soap and water.
IMPORTANT Be careful when using a
steering wheel lock device, where
applicable, to avoid damaging
the leather upholstery by rubbing.
246
SERVICING AND MAINTENANCE
Engine oil level gauge ..................... 108
EOBD system ................................ 92
ESC (system) ................................. 75
External lights................................. 44Fiat CODE system......................... 10
Fix&Go Automatic quick tyre
repair kit ............................... 196-198
Flap on bench ............................ 18-62
Flashing ......................................... 45
Flex Floor rear seat......................... 20
Fluids and lubricants ...................... 318
Fog lights ................................. 55-208
Follow Me Home device ................. 46
Follow me home ............................ 46
Front airbags .................................. 160
– Driver's side front airbag............ 160
– Manually deactivating the
front airbag and side bag........... 161
– Passenger side front airbag ....... 160
Front roof light (changing a bulb) .... 211
Fuel consumption .......................... 321
Fuel cut-off switch ......................... 57
Fuel level gauge ............................. 108
Fuel tank cap ................................. 101
Fuses (replacement) ....................... 212Gearbox ....................................... 173
Gear lever ...................................... 173
Gear Shift Indicator ........................ 110
Glove compartment ....................... 58Glove compartment with lock......... 58
Hazard warning lights ................... 54
HBA (Hydraulic Brake Assist)
system ......................................... 77
HBA (system) ................................. 77
Headlight alignment corrector ........ 73
Headlights
– Headlight alignment corrector.... 73
– Light beam direction.................. 73
Headlight washers .................... 49-242
Head restraints
– Front ......................................... 23
Heated rear window ....................... 55
Heating and ventilation controls...... 28
Heating and ventilation ................... 27
Hill Descent Control System ........... 77
Hill Descent .................................... 77
Hill Holder system .......................... 76
Hill Holder (system) ........................ 76Identification data .......................... 250
Ignition switch ................................ 14
Independent additional heater ........ 39
Inflation pressure ............................ 263
Inflation procedure ......................... 196
Instrument panel ............................ 104
Interior fittings ................................ 58
Interiors .......................................... 246
Isofix child restraint systems
(setup)– Arrangement possibilities for
child restraint system on
seats of vehicle.......................... 156
Jump starting ................................ 190Lectern ......................................... 61
Lifting the vehicle ........................... 220
Light beam direction ...................... 73
Lights off ........................................ 44
Loading advice............................... 175M
ain beam headlights............. 45-206
Maintenance and care - regular
checks ......................................... 228
Maintenance and care -
Scheduled Servicing .................... 224
Maintenance and care -
scheduled servicing plan .............. 225
Manual climate control system ....... 30
Manually deactivating the front
airbag and side bag ..................... 161
Moving footboard ........................... 68
MSR system .................................. 74
MSR (system)................................. 74
Multifunction display
– Control buttons ......................... 110
– Setup menu .............................. 111
Number plate lights....................... 210O
n-board instruments................... 104
Parking ......................................... 172
Parking lights.............................. 46-55
INDEX
