PERIODIC CHECKSBefore long journeys, check and, if
necessary, restore:
❒engine coolant level;
❒brake fluid level;
❒windscreen washer fluid level;
❒tyre inflation pressure and condition;
❒operation of lighting system
(headlamps, direction indicators,
hazard warning lights, etc.);
❒operation of screen washer/wiper
system and positioning/wear of
windscreen/rear window wiper
blades.
To ensure that the vehicle is always
efficient and well maintained, it is
advisable to make sure that you carry
out the above operations regularly
(approximately every 1000 km and
every 3000 km for checking and
topping up engine oil is advisable).
DEMANDING
VEHICLE USEIf the vehicle is mostly used in one of
the following conditions:
❒towing a trailer or caravan;
❒dusty roads;
❒short, repeated journeys (less than
7-8 km) at sub-zero outside
temperatures;
❒engine often idling or driving long
distances at low speeds or long
periods of inactivity;
the following checks must be carried
out more often than indicated in the
Scheduled Servicing Plan:
❒check front disc brake pad
conditions and wear;
❒check cleanliness of bonnet and boot
locks, cleanliness and lubrication of
linkage;
❒visually inspect conditions of: engine,
gearbox, transmission, pipes and
hoses (exhaust - fuel system -
brakes) and rubber elements (boots -
sleeves - bushes - etc.);
❒check battery charge and battery
fluid level (electrolyte);
❒visually inspect condition of the
accessory drive belts;❒check and, if necessary, change
engine oil and replace oil filter.
❒check and, if necessary, replace
pollen filter.
228
SERVICING AND MAINTENANCE

PPanoramaR6/9 seater crew cab
253
There is an example of a bodywork
version code below by way of
explanation with a key which is valid for
all bodywork version codes.
Example:
250AMMFADX250
MODEL
AGVWM
ENGINE
M
ENGINE TRANSMISSION/AXLES
FBODYWORKAWHEELBASERH
VERSION
GVW
A3000 kgB3300 kgC3500 kg
D3500 kg HEAVYE3995/4005/4250 kg HEAVYF2800 kgG3650 kgH3510 kg HEAVYL3510 kgM
4400 kg HEAVY
ENGINE
M
130 MultiJet
N150 MultiJetP180 MultiJet PowerR115 MultiJetV110 MultiJet
TRANSMISSIONM
Manual gearbox
AAutomatic transmissionWHEELBASE
AShort wheelbaseBMedium wheelbaseCLong wheelbaseDMedium-long wheelbaseUAll wheelbases (incomplete vehicles)
BODYWORKACab chassisBChassis without cabCPlatform chassis cabDBox truckEPrimary school busFVa nGLong cab trailerHLong cab chassisM
Minibus

TRANSMISSIONVersions Gearbox Clutch Drive115 MultiJet(*)Five forward gears and
reverse with synchronizers
for forward gear
engagement
Self-adjusting pedal without
idle strokeFront 110 MultiJet(*)
Six forward gears plus
reverse with synchronisers
for forward gear
engagement 130 MultiJet
150 MultiJet
180 MultiJet Power(*)Version for specific markets
256
TECHNICAL SPECIFICATIONS

SUPPLIES
115 MultiJet
(°)110 (°)
/130
MultiJet
150 MultiJet180 MultiJet
PowerPrescribed fuels and
original lubricants
Fuel tank (litres): 90 (*) 90 (*) 90 (*) 90 (*)
Diesel for motor vehicles
(EN590 specification)
including a reserve of (litres): 10/12 10/12 10/12 10/12
Engine cooling system
(litres):8 (**) 9,6 (**) 9,6 (**) 10 (**)Mixture of demineralised
water and 50% PARAFLU
UP
(***)
Engine sump (litres): 4.9 5.3 5.3 8
SELENIA WR P.E.
Engine sump and filter (litres): 5.7 5.9 5.9 9
Gearbox/differential casing
(litres):-2.7 (MLGU
gearbox)2.7 -TUTELA TRANSMISSION
EXPERYA
(°)Version for specific markets
(*) A 120 litre tank is available on request for all versions (with reserve of 12 litres). With the "Recreational" option a 60 litre tank is available on request (with reserve
of 10 litres).
(**) With Webasto: + 1/4 litre - Underseat heater 600 cc: + 1 litre - Rear heater 900 cc: + 1.5 litres
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UPand demineralised water.
316

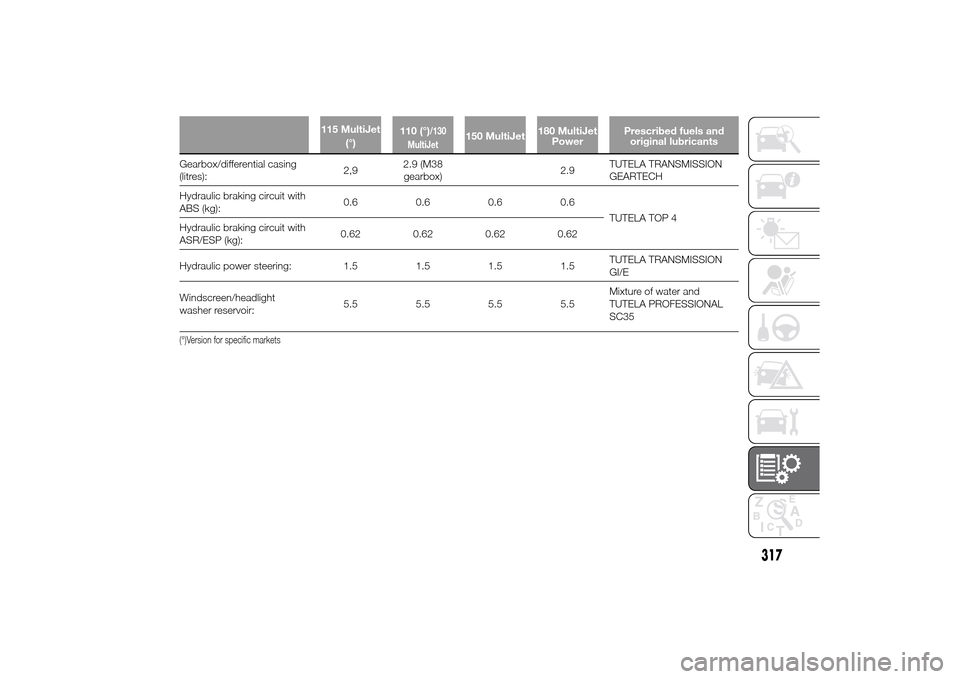

TECHNICAL SPECIFICATIONS

115 MultiJet
(°)110 (°)
/130
MultiJet
150 MultiJet180 MultiJet
PowerPrescribed fuels and
original lubricants
Gearbox/differential casing
(litres):2,92.9 (M38
gearbox)2.9TUTELA TRANSMISSION
GEARTECH
Hydraulic braking circuit with
ABS (kg):0.6 0.6 0.6 0.6
TUTELA TOP 4
Hydraulic braking circuit with
ASR/ESP (kg):0.62 0.62 0.62 0.62
Hydraulic power steering: 1.5 1.5 1.5 1.5TUTELA TRANSMISSION
GI/E
Windscreen/headlight
washer reservoir:5.5 5.5 5.5 5.5Mixture of water and
TUTELA PROFESSIONAL
SC35(°)Version for specific markets
317

UseFluid and lubricant features for a correct use
of the carGenuine fluids and
lubricantsApplicationsLubricants and
greases for drive
transmissionSAE 75W- 80 grade synthetic lubricant.
Classification FIAT 9.55550-MZ2..TUTELA
TRANSMISSION
EXPERYA
Contractual Technical
Reference No. F178.B06Manual gearbox and
differential
Synthetic base lubricant SAE 75W-85 grade
Classification FIAT 9.55550-MZ3TUTELA
TRANSMISSION
GEARTECH
Contractual Technical
Reference No. F704.C08Manual gearbox and
differential
Molybdenum disulphide grease, for use at high
temperatures.
FIAT 9.55580 classification. Consistency NLGI
1-2TUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
Grease for constant velocity joints with low friction
coefficient.
FIAT 9.55580 classification. Consistency NLGI
0-1TUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential-side
constant velocity joints
Lubricant for power steering
Exceeds "ATF DEXRON III" specifications
Classification FIAT 9.55550-AG2.TUTELA
TRANSMISSION GI/E
Contractual Technical
Reference No. F001.C94Hydraulic power
steering
Brake fluidSynthetic fluid for brake and clutch systems
Exceeds specifications: FMVSS no. 116 DOT 4,
ISO 4925, SAE J 1704
Classification FIAT 9.55597.TUTELA TOP 4
Contractual Technical
Reference No. F001.A93Hydraulic brakes and
clutch controls
319

Engine oil level gauge ..................... 108
EOBD system ................................ 92
ESC (system) ................................. 75
External lights................................. 44Fiat CODE system......................... 10
Fix&Go Automatic quick tyre
repair kit ............................... 196-198
Flap on bench ............................ 18-62
Flashing ......................................... 45
Flex Floor rear seat......................... 20
Fluids and lubricants ...................... 318
Fog lights ................................. 55-208
Follow Me Home device ................. 46
Follow me home ............................ 46
Front airbags .................................. 160
– Driver's side front airbag............ 160
– Manually deactivating the
front airbag and side bag........... 161
– Passenger side front airbag ....... 160
Front roof light (changing a bulb) .... 211
Fuel consumption .......................... 321
Fuel cut-off switch ......................... 57
Fuel level gauge ............................. 108
Fuel tank cap ................................. 101
Fuses (replacement) ....................... 212Gearbox ....................................... 173
Gear lever ...................................... 173
Gear Shift Indicator ........................ 110
Glove compartment ....................... 58Glove compartment with lock......... 58
Hazard warning lights ................... 54
HBA (Hydraulic Brake Assist)
system ......................................... 77
HBA (system) ................................. 77
Headlight alignment corrector ........ 73
Headlights
– Headlight alignment corrector.... 73
– Light beam direction.................. 73
Headlight washers .................... 49-242
Head restraints
– Front ......................................... 23
Heated rear window ....................... 55
Heating and ventilation controls...... 28
Heating and ventilation ................... 27
Hill Descent Control System ........... 77
Hill Descent .................................... 77
Hill Holder system .......................... 76
Hill Holder (system) ........................ 76Identification data .......................... 250
Ignition switch ................................ 14
Independent additional heater ........ 39
Inflation pressure ............................ 263
Inflation procedure ......................... 196
Instrument panel ............................ 104
Interior fittings ................................ 58
Interiors .......................................... 246
Isofix child restraint systems
(setup)– Arrangement possibilities for
child restraint system on
seats of vehicle.......................... 156
Jump starting ................................ 190Lectern ......................................... 61
Lifting the vehicle ........................... 220
Light beam direction ...................... 73
Lights off ........................................ 44
Loading advice............................... 175M
ain beam headlights............. 45-206
Maintenance and care - regular
checks ......................................... 228
Maintenance and care -
Scheduled Servicing .................... 224
Maintenance and care -
scheduled servicing plan .............. 225
Manual climate control system ....... 30
Manually deactivating the front
airbag and side bag ..................... 161
Moving footboard ........................... 68
MSR system .................................. 74
MSR (system)................................. 74
Multifunction display
– Control buttons ......................... 110
– Setup menu .............................. 111
Number plate lights....................... 210O
n-board instruments................... 104
Parking ......................................... 172
Parking lights.............................. 46-55
