2014 FIAT DUCATO BASE CAMPER technical specifications

MINIBUS WEIGHTS
3995 kg - 4005 kg - 4250 kg GVW versions
110 (*)
/130/150 MultiJet
Unladen weight (with all fluids, fuel tank filled to 90% and
without optional equipment)2520 ÷ 2710
Payload (**)
including the driver:
Maximum permitted loads (***)
– front axle:2100
– rear axle:2400 ÷ 2500
– total:4005 ÷ 4250(*) Version for specific markets
(**) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
294
TECHNICAL SPECIFICATIONS

WEIGHTS OF CHASSIS WITHOUT CAB3000 kg GVW versions
115 MultiJet (*)110 (*)
/130/150
MultiJet
180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1245 ÷ 1360 1305 ÷ 1375 1385 ÷ 1455
Payload (**)
including the driver:
Maximum permitted loads (***)
– front axle: 1630 1630 1630
– rear axle: 1650 1650 1650
– total: 3000 3000 3000
Towable loads
– braked trailer: 2000 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100(*) Version for specific markets
(**) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
296
TECHNICAL SPECIFICATIONS

WEIGHTS OF CHASSIS WITHOUT CAB3500 kg GVW versions
115 MultiJet (*)110 (*)
/130/150
MultiJet
180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1245 ÷ 1360 1260 ÷ 1375 1340 ÷ 1455
Payload (**)
including the driver:
Maximum permitted loads (***)
– front axle: 1850 1850 1850
– rear axle: 2000 2000 2000
– total: 3500 3500 3500
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100(*) Version for specific markets
(**) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
298
TECHNICAL SPECIFICATIONS

WEIGHTS OF CHASSIS WITHOUT CAB (MAXI versions)
3500 kg GVW versions3995 kg - 4005 kg - 4250
kg GVW versions4400 kg
GVW
versions
110 (*)
/130/
150 MultiJet
180
MultiJet
Power110 (*)
/130/
150 MultiJet
180
MultiJet
Power180
MultiJet
Power
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1300 ÷ 1415 1380 ÷ 1495 1300 ÷ 1415 1380 ÷ 1495 1380 ÷ 1495
Payload (**)
including the driver:
Maximum permitted loads (***)
– front axle: 2100 2100 2100 2100 2100
– rear axle: 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500 2500
– total: 3500 3500 4005 ÷ 4250 4005 ÷ 4250 4400
Towable loads
– braked trailer: 2500 ÷ 3000 2500 ÷ 3000 2000 ÷ 2500 2000 ÷ 2500 2000
– non-braked trailer: 750 750 750 750 750
Maximum load on ball joint (braked trailer): 100 ÷ 120 100 ÷ 120 100 100 100(*) Version for specific markets
(**) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
300
TECHNICAL SPECIFICATIONS

CAB CHASSIS WEIGHTS3300 kg GVW versions
115 MultiJet (*)110 (*)
/130/150
MultiJet
180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1545 ÷ 1660 1605 ÷ 1675 1640 ÷ 1755
Maximum permitted loads (**)
– front axle: 1750 1750 1750
– rear axle: 1900 1900 1900
– total: 3300 3300 3300
Towable loads
– braked trailer: 2000 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100(*) Version for specific markets
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
302
TECHNICAL SPECIFICATIONS

CAB CHASSIS WEIGHTS
3510 kg GVW
versions3650 kg GVW versions
110 (*)
/130/150
MultiJet
115 MultiJet (*)110 (*)
/130/150
MultiJet
180 MultiJet
Power
Unladen weight (with all fluids, fuel tank
filled to 90% and without optional
equipment)1605 ÷ 1675 1545 ÷ 1660 1560 ÷ 1675 1640 ÷ 1755
Maximum permitted loads (**)
– front axle: 1850 1850 1850 1850
– rear axle: 2000 2000 2000 2000
– total: 3510 3650 3650 3650
Towable loads
– braked trailer: 2500 2000 2500 2500
– non-braked trailer: 750 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100 100(*) Version for specific markets
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
304
TECHNICAL SPECIFICATIONS

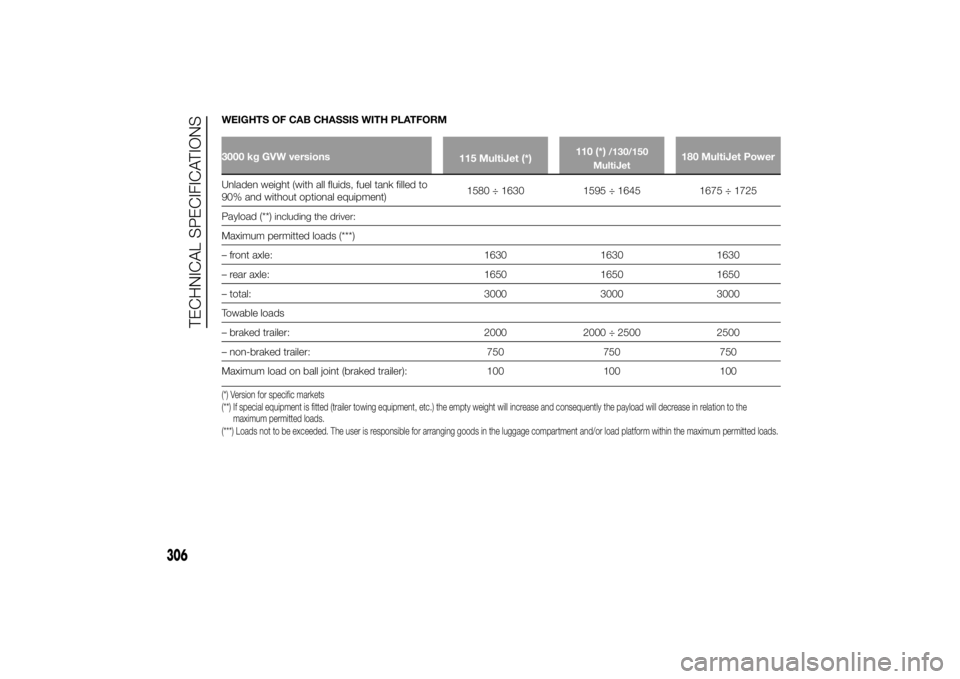

WEIGHTS OF CAB CHASSIS WITH PLATFORM3000 kg GVW versions
115 MultiJet (*)110 (*)
/130/150
MultiJet
180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1580 ÷ 1630 1595 ÷ 1645 1675 ÷ 1725
Payload (**)
including the driver:
Maximum permitted loads (***)
– front axle: 1630 1630 1630
– rear axle: 1650 1650 1650
– total: 3000 3000 3000
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100(*) Version for specific markets
(**) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
306
TECHNICAL SPECIFICATIONS

WEIGHTS OF CAB CHASSIS WITH PLATFORM3500 kg GVW versions
115 MultiJet (*)110 (*)
/130/150
MultiJet
180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1580 ÷ 1630 1595 ÷ 1645 1675 ÷ 1725
Payload (**)
including the driver:
Maximum permitted loads (***)
– front axle: 1850 1850 1850
– rear axle: 2000 2000 2000
– total: 3500 3500 3500
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100(*) Version for specific markets
(**) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
308
TECHNICAL SPECIFICATIONS
