2014 FIAT 500 ABARTH washer fluid

MAINTAINING YOUR VEHICLE
CONTENTS
!ENGINE COMPARTMENT — 1.4L TURBO . . . .311
!ONBOARD DIAGNOSTIC SYSTEM — OBD II . .312
!EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS..........................312
!REPLACEMENT PARTS..................314
!DEALER SERVICE......................314
!MAINTENANCE PROCEDURES...........315
▫Engine Oil..........................316
▫Engine Oil Filter......................318
▫Engine Air Cleaner Filter................318
▫Maintenance-Free Battery...............319
▫Air Conditioner Maintenance.............320
▫Body Lubrication.....................324
▫Windshield Wiper Blades...............324
▫Adding Washer Fluid..................326
▫Exhaust System......................327
▫Cooling System......................329
▫Brake System........................335
▫Manual Transmission..................338
7

ENGINE COMPARTMENT — 1.4L TURBO
1 — Engine Coolant Reservoir5 — Battery2—EngineOilDipstick6—EngineOilFill3 — Brake Fluid Reservoir7 — Washer Fluid Reservoir4—FrontDistributionUnit(Fuses)
7
MAINTAINING YOUR VEHICLE 311

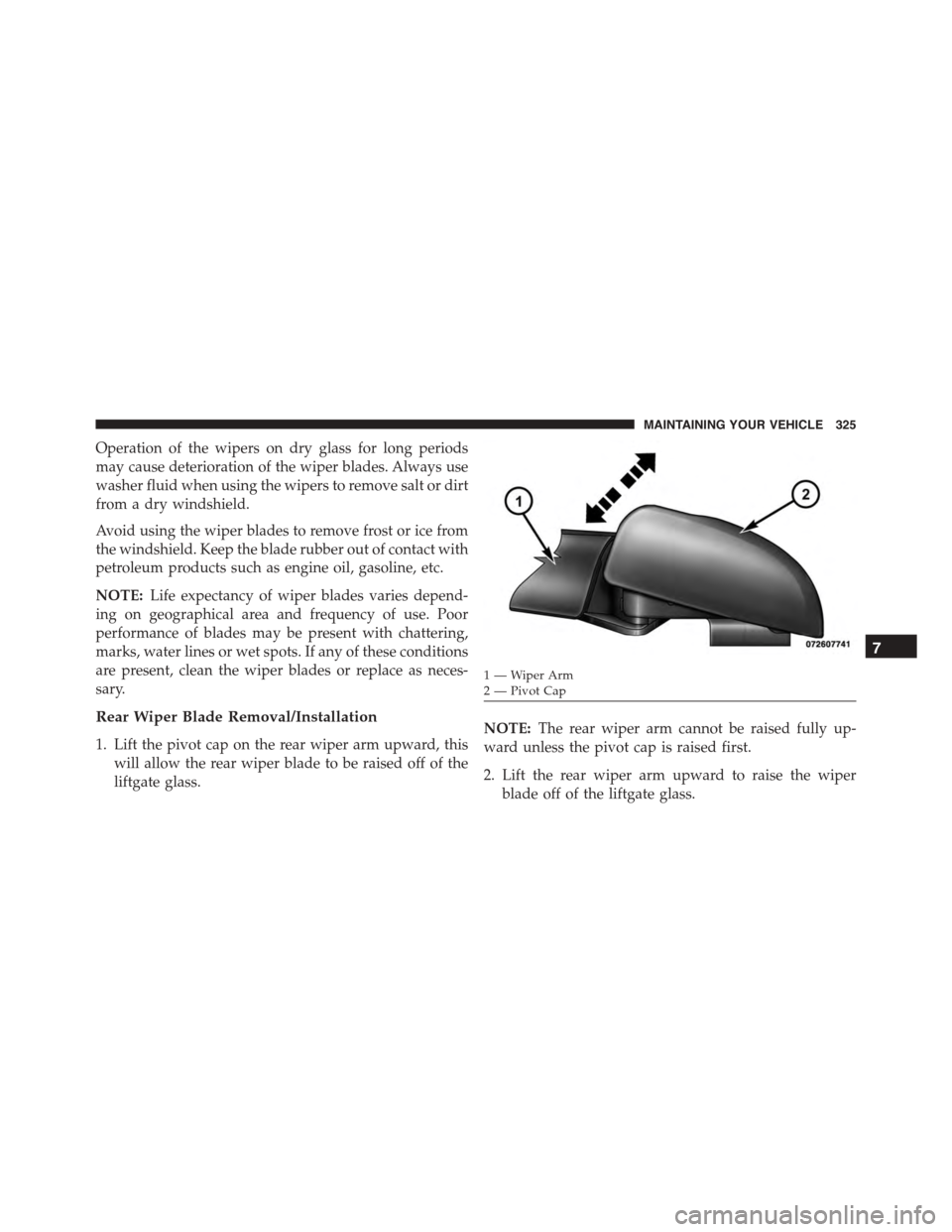

Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any of these conditions
are present, clean the wiper blades or replace as neces-
sary.
Rear Wiper Blade Removal/Installation
1. Lift the pivot cap on the rear wiper arm upward, this
will allow the rear wiper blade to be raised off of the
liftgate glass.
NOTE:The rear wiper arm cannot be raised fully up-
ward unless the pivot cap is raised first.
2. Lift the rear wiper arm upward to raise the wiper
blade off of the liftgate glass.
1—WiperArm2 — Pivot Cap
7
MAINTAINING YOUR VEHICLE 325

3. Grab the bottom of the wiper blade and rotate it
forward to unsnap the blade pivot pin from the wiper
blade holder.
4. Install the wiper blade pivot pin into the wiper blade
holder at the end of the wiper arm, and firmly press
the wiper blade until it snaps into place.
5. Lower the wiper blade and snap the pivot cap into
place.
Adding Washer Fluid
The windshield washer fluid reservoir is located in the
engine compartment, and the fluid level should be
checked at regular intervals. Fill the reservoir with wind-
shield washer solvent (not engine coolant/ antifreeze).
Refer to “Engine Compartment” in “Maintaining Your
Vehicle” for further information.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
(Continued)
1—WiperBlade2—BladePivotPin3—WiperArm4—WiperBladeHolder
326 MAINTAINING YOUR VEHICLE

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Change Oil” message is displayed.
Severe Operating Conditions can cause the change oil
message to illuminate as early as 3,500 miles (5,600 km)
since last reset. Have your vehicle serviced as soon as
possible, within the next 500 miles (805 km).
NOTE:Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km) or twelve months,
whichever comes first.
Severe Duty All Models
Change Engine Oil at 4000 miles (6,500 km) if the vehicle
is operated in a dusty and off road environment. This
type of vehicle use is considered Severe Duty
Once A Month Or Before A Long Trip:
•Check engine oil level
•Check windshield washer fluid level
•Check the tire inflation pressures and look for unusual
wear or damage
•Check the fluid levels of the coolant reservoir, brake
master cylinder, and transmission as needed
•Check function of all interior and exterior lights
360 MAINTENANCE SCHEDULES

Adding Engine Coolant (Antifreeze)............331
Adding Fuel.............................275
Adding Washer Fluid......................326
Additives, Fuel...........................272
Airbag..................................39
Airbag Deployment........................53
Airbag Light.............................47
Airbag Maintenance........................54
Airbag, Side..............................43
Airbag, Window (Side Curtain)................43
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . .318
Air Conditioner Maintenance.................320
Air Conditioning..........................203
Air Conditioning Controls...................203
Air Conditioning Filter.....................321
Air Conditioning Refrigerant.................320
Air Conditioning System....................203
Air Pressure, Tires.........................255
Alterations/Modifications, Vehicle...............8
Antifreeze (Engine Coolant)..................330
Capacities............................356
Disposal..............................334
Anti-Lock Brake System (ABS)................235
Anti-Lock Warning Light....................152
Appearance Care.........................338
Automatic Dimming Mirror...................92
Automatic Door Locks......................23
Automatic Temperature Control (ATC)..........208
Automatic Transaxle........................11
Battery.................................319
Jump Starting..........................300
Keyless Transmitter Replacement (RKE)........18
Belts, Seat...............................81
Body Mechanism Lubrication.................324
B-Pillar Location..........................250
Brake Assist System.......................237
Brake Fluid.............................357
376 INDEX

Unleaded Gasoline........................270
Untwisting Procedure, Seat Belt................34
Vehicle Identification Number (VIN).............7
Vehicle Loading..........................251
Vehicle Modifications/Alterations...............8
Vehicle Storage...........................217
Wait to Start Light.........................144
Warning Lights (Instrument Cluster Description) . . .144
Warnings and Cautions.......................7
Warranty Information........................4
Washer
Adding Fluid..........................326
Washers, Windshield.......................116
Washing Vehicle..........................339
Water
Driving Through........................228
Wheel and Wheel Trim.....................341
Wheel and Wheel Trim Care.................341
Wind Buffeting............................25
Window Fogging.........................216
Windows................................23
Power................................23
Windshield Defroster.......................81
Windshield Washers.......................116
Windshield Wiper Blades....................324
Windshield Wipers........................116
Wiper Blade Replacement...................324
388 INDEX
