THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

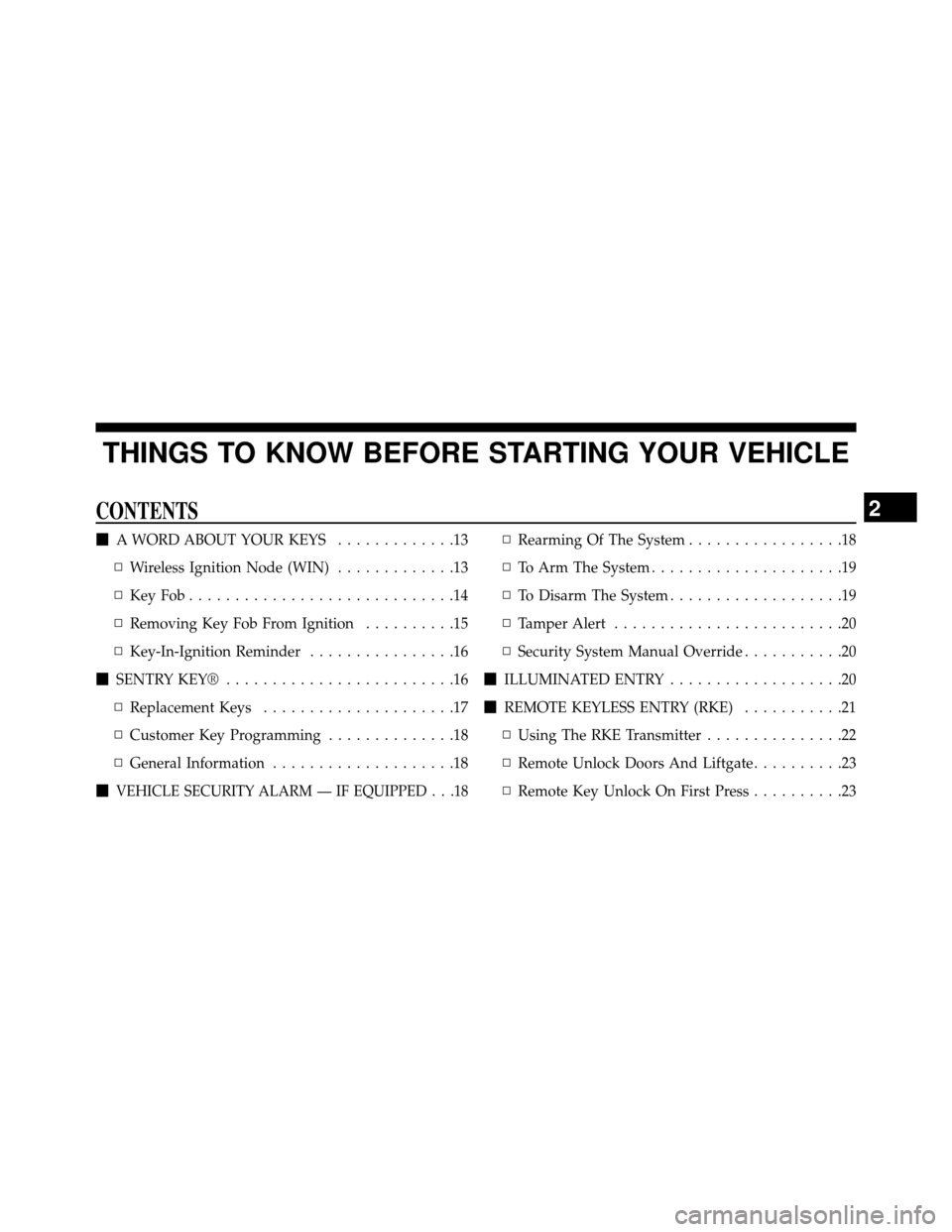

CONTENTS
A WORD ABOUT YOUR KEYS .............13
▫ Wireless Ignition Node (WIN) .............13
▫ KeyFob.............................14
▫ Removing Key Fob From Ignition ..........15
▫ Key-In-Ignition Reminder ................16
 SENTRY KEY® .........................16
▫ Replacement Keys .....................17
▫ Customer Key Programming ..............18
▫ General Information ....................18

VEHICLE SECURITY ALARM — IF EQUIPPED . . .18
▫ Rearming Of The System .................18
▫ To Arm The System .....................19
▫ To Disarm The System ...................19
▫ Tamper Alert .........................20
▫ Security System Manual Override ...........20
 ILLUMINATED ENTRY ...................20
 REMOTE KEYLESS ENTRY (RKE) ...........21
▫ Using The RKE Transmitter ...............22
▫ Remote Unlock Doors And Liftgate ..........23
▫ Remote Key Unlock On First Press ..........23
2

▫Remote Lock Doors And Liftgate ...........24
▫ Sound Horn With Remote Lock ............24
▫ Using The Panic Alarm ..................25
▫ Power Open/Close Power Liftgate — If
Equipped ............................26
▫ Power Open/Close Left Power Sliding Door — If
Equipped ............................26
▫ Power Open/Close Right Power Sliding Door —
If Equipped ..........................27
▫ Turn Off Flash Lights With RKE Lock — If
Equipped ............................27
▫ Programming Additional Transmitters ........28
▫ Transmitter Battery Replacement ...........28
▫ General Information ....................30 REMOTE STARTING SYSTEM — IF EQUIPPED . .31
▫
How To Use Remote Start ................31
▫ Remote Start Abort Message On Electronic Vehicle
Information Center (EVIC) — If Equipped .....32
▫ To Enter Remote Start Mode ...............33
▫ To Enter The Vehicle After Remote Start ......33
▫ To Exit Remote Start Mode And Drive The
Vehicle..............................34
▫ Cancel Remote Start ....................34
▫ To Turn Off The Engine While In Remote Start
Mode...............................35
▫ When To Reset Remote Start ..............35
 DOOR LOCKS .........................35
▫ Manual Door Locks .....................35
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Key Fob with Remote Keyless Entry (RKE)
transmitter and a Wireless Ignition Node (WIN) with
integral ignition switch. You can insert the Key Fob into
the ignition switch with either side up.
Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similarly to
an ignition switch. It has four operating positions, three
with detents and one that is spring-loaded. The detent
positions are OFF, ACC, and ON/RUN. The START
position is a spring-loaded momentary contact position.
When released from the START position, the switch
automatically returns to the ON/RUN position.
Wireless Ignition Node (WIN)
1 — OFF
2 — ACCESSORY
3 — ON/RUN
4 — START
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

Key Fob
The Key Fob operates the ignition switch. Insert the
square end of the Key Fob into the ignition switch located
on the instrument panel and rotate to the desired posi-
tion. It also contains the Remote Keyless Entry (RKE)
transmitter and an emergency key, which stores in the
rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the RKE transmitter
go dead. The emergency key is also for locking the lower
glove compartment. You can keep the emergency key
with you when valet parking.
To remove the emergency key, slide the mechanical latch
at the top of the Key Fob sideways with your thumb and
then pull the key out with your other hand.NOTE:
You can insert the double-sided emergency key
into the lock cylinder with either side up.
Emergency Key Removal
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Key-In-Ignition Reminder
Opening the driver’s door when the Key Fob is in the
ignition and the ignition switch position is OFF or ACC,
a chime will sound to remind you to remove the key.
NOTE:The Key-In-Ignition reminder only sounds when
the Key Fob is placed in the OFF or ACC ignition
position.
SENTRY KEY®
The Sentry Key® Immobilizer system prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses Key Fob with factory-mated Remote
Keyless Entry (RKE) transmitter and Wireless Ignition
Node (WIN) to prevent unauthorized vehicle operation.
Therefore, only Key Fobs that are programmed to the vehicle can be used to start and operate the vehicle. The
system will shut the engine off in two seconds if an
invalid Key Fob is used to start the engine.
After turning the ignition switch to the ON/RUN posi-
tion, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the light begins to flash after
the bulb check, it indicates that someone used an invalid
Key Fob to start the engine. Either of these conditions will
result in the engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10
seconds), it indicates that there is a fault in the electron-
ics. Should this occur, have the vehicle serviced as soon
as possible by an authorized dealer.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

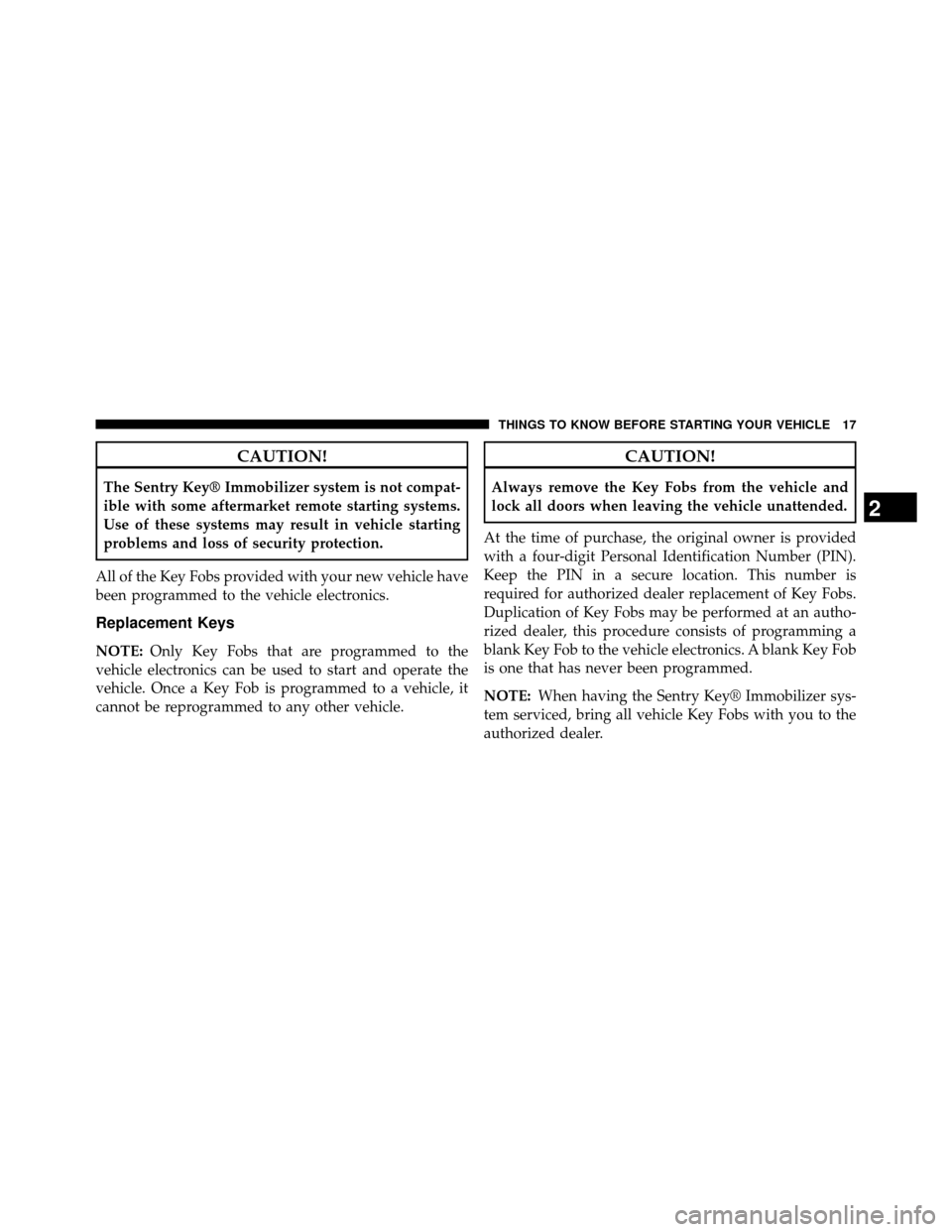

CAUTION!
The Sentry Key® Immobilizer system is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be reprogrammed to any other vehicle.
CAUTION!
Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of Key Fobs.
Duplication of Key Fobs may be performed at an autho-
rized dealer, this procedure consists of programming a
blank Key Fob to the vehicle electronics. A blank Key Fob
is one that has never been programmed.
NOTE: When having the Sentry Key® Immobilizer sys-
tem serviced, bring all vehicle Key Fobs with you to the
authorized dealer.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

present, the Vehicle Security Alarm will ignore that
condition and monitor the remaining doors and ignition.
To Arm The System
Follow these steps to arm the Vehicle Security Alarm:
1. Remove the key from the ignition system (refer toStarting Procedures inStarting And Operating for
further information).
• Make sure the vehicle ignition system is OFFand the
key is physically removed from the ignition.
2. Perform one of the following methods to lock the vehicle:
• Press LOCK on the interior power door lock switch
with the driver and/or passenger door open.
• Press the LOCK button on the Remote Keyless Entry
(RKE) transmitter.
3. If any doors are open, close them.
To Disarm The System
The Vehicle Security Alarm can be disarmed using any of
the following methods:
• Press the UNLOCK button on the Remote Keyless
Entry (RKE) transmitter.
• Cycle the vehicle ignition system out of the OFF
position. Insert a valid key into the ignition switch and
turn the key to the ON position.
NOTE:
• The driver’s door key cylinder and the liftgate button
on the RKE transmitter cannot arm or disarm the
Vehicle Security Alarm.
• The Vehicle Security Alarm remains armed during
power liftgate entry. Pressing the liftgate button will
not disarm the Vehicle Security Alarm. If someone
enters the vehicle through the liftgate and opens any
door the alarm will sound.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

•When the Vehicle Security Alarm is armed, the interior
power door lock switches will not unlock the doors.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
system will give you a false alarm. If one of the previ-
ously described arming sequences has occurred, the
Vehicle Security Alarm will arm regardless of whether
you are in the vehicle or not. If you remain in the vehicle
and open a door, the alarm will sound. If this occurs,
disarm the Vehicle Security Alarm.
If the Vehicle Security Alarm is armed and the battery
becomes disconnected, the Vehicle Security Alarm will
remain armed when the battery is reconnected; the
exterior lights will flash, the horn will sound. If this
occurs, disarm the Vehicle Security Alarm.Tamper Alert
If something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times and the
exterior lights blink three times when you unlock the
doors. Check the vehicle for tampering.
Security System Manual Override
The Vehicle Security Alarm will not arm if you lock the
doors using the manual door lock plunger.
ILLUMINATED ENTRY
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter to unlock the
doors or open any door.
This feature also turns on the approach lighting in the
outside mirrors (if equipped). Refer to “Mirrors” in
“Understanding The Features Of Your Vehicle” for fur-
ther information.
