2014 DODGE GRAND CARAVAN jacking

WHAT TO DO IN EMERGENCIES
CONTENTS
HAZARD WARNING FLASHERS ...........559
 IF YOUR ENGINE OVERHEATS ............559
 TIREFIT KIT — IF EQUIPPED .............560
▫ TIREFIT Storage ......................561
▫ TIREFIT Kit Components And Operation .....562
▫ TIREFIT Usage Precautions ...............563
▫ Sealing A Tire With TIREFIT ..............565
 WHEEL AND TIRE TORQUE
SPECIFICATIONS ......................571
▫ Torque Specifications ...................571
JACKING AND TIRE CHANGING — IF
EQUIPPED ...........................573
▫ Jack Location ........................574
▫ Spare Tire Removal ....................574
▫ To Access Spare Tire Winch Drive Nut .......575
▫ Spare Tire Tools .......................577
▫ Spare Tire Removal Instructions ...........579
▫ Preparations For Jacking ................581
▫ Jacking Instructions ...................582
▫ Securing The Compact Spare Tire ..........589
6

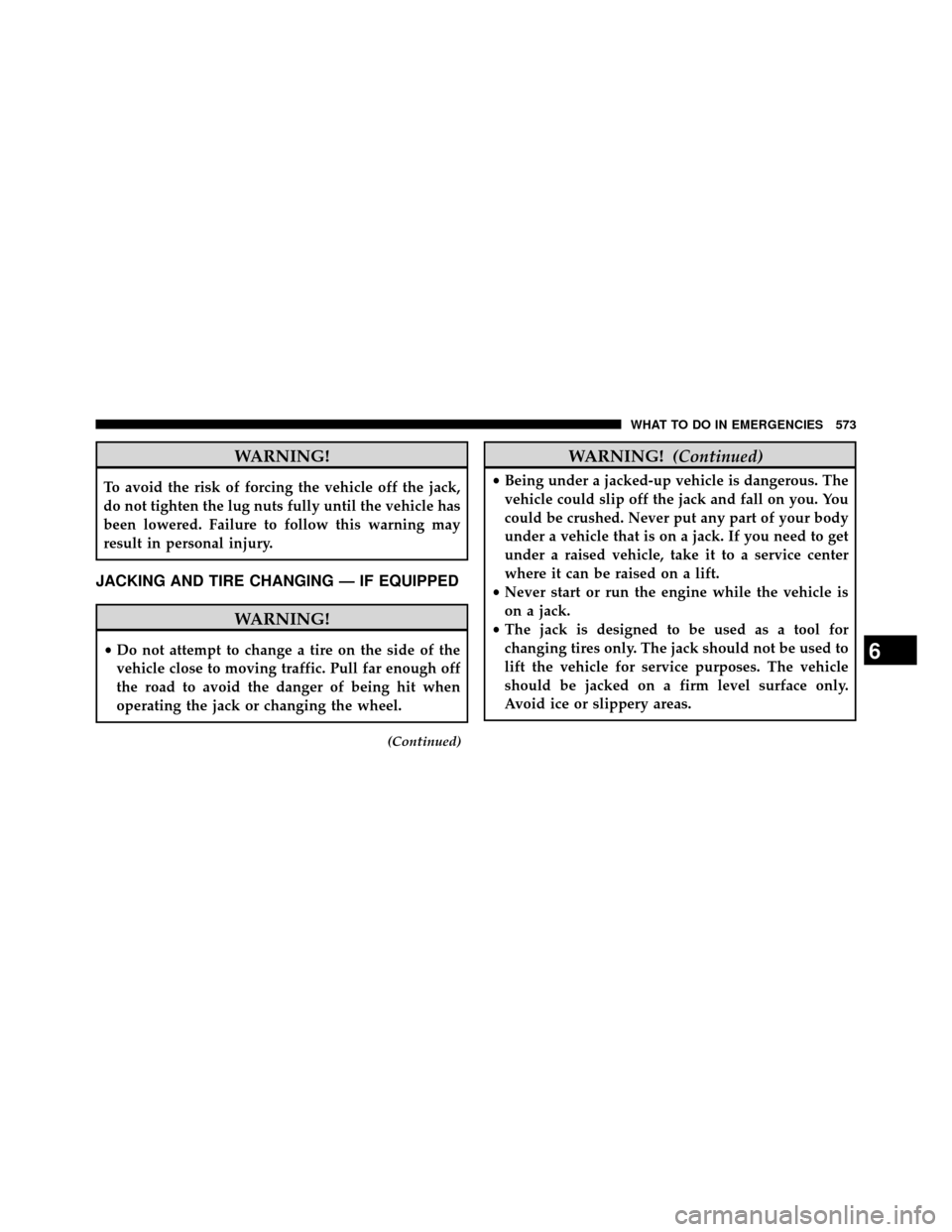

WARNING!
To avoid the risk of forcing the vehicle off the jack,
do not tighten the lug nuts fully until the vehicle has
been lowered. Failure to follow this warning may
result in personal injury.
JACKING AND TIRE CHANGING — IF EQUIPPED
WARNING!
•Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
(Continued)
WARNING! (Continued)
•Being under a jacked-up vehicle is dangerous. The
vehicle could slip off the jack and fall on you. You
could be crushed. Never put any part of your body
under a vehicle that is on a jack. If you need to get
under a raised vehicle, take it to a service center
where it can be raised on a lift.
• Never start or run the engine while the vehicle is
on a jack.
• The jack is designed to be used as a tool for
changing tires only. The jack should not be used to
lift the vehicle for service purposes. The vehicle
should be jacked on a firm level surface only.
Avoid ice or slippery areas.
6
WHAT TO DO IN EMERGENCIES 573

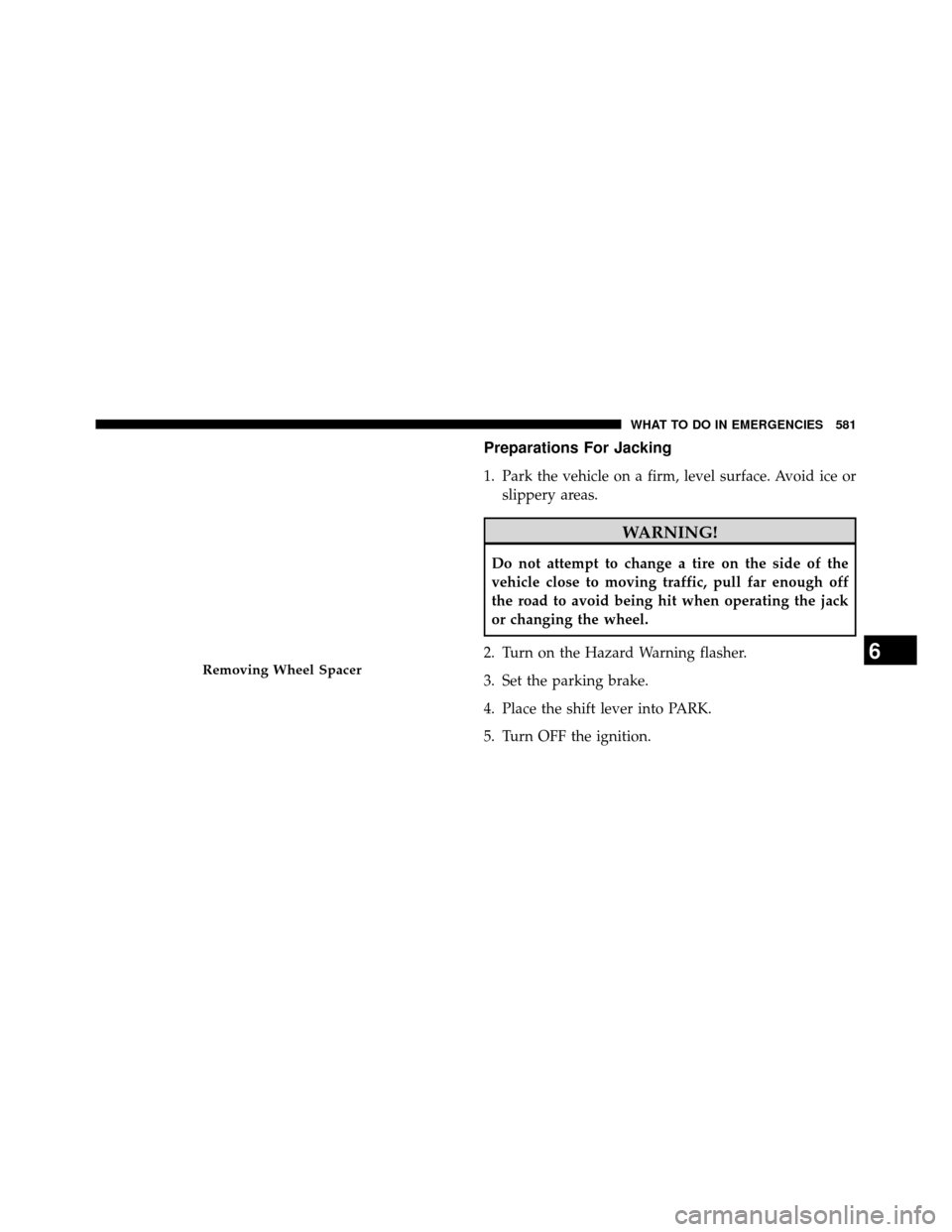

Preparations For Jacking
1. Park the vehicle on a firm, level surface. Avoid ice orslippery areas.
WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic, pull far enough off
the road to avoid being hit when operating the jack
or changing the wheel.
2. Turn on the Hazard Warning flasher.
3. Set the parking brake.
4. Place the shift lever into PARK.
5. Turn OFF the ignition.
Removing Wheel Spacer6
WHAT TO DO IN EMERGENCIES 581

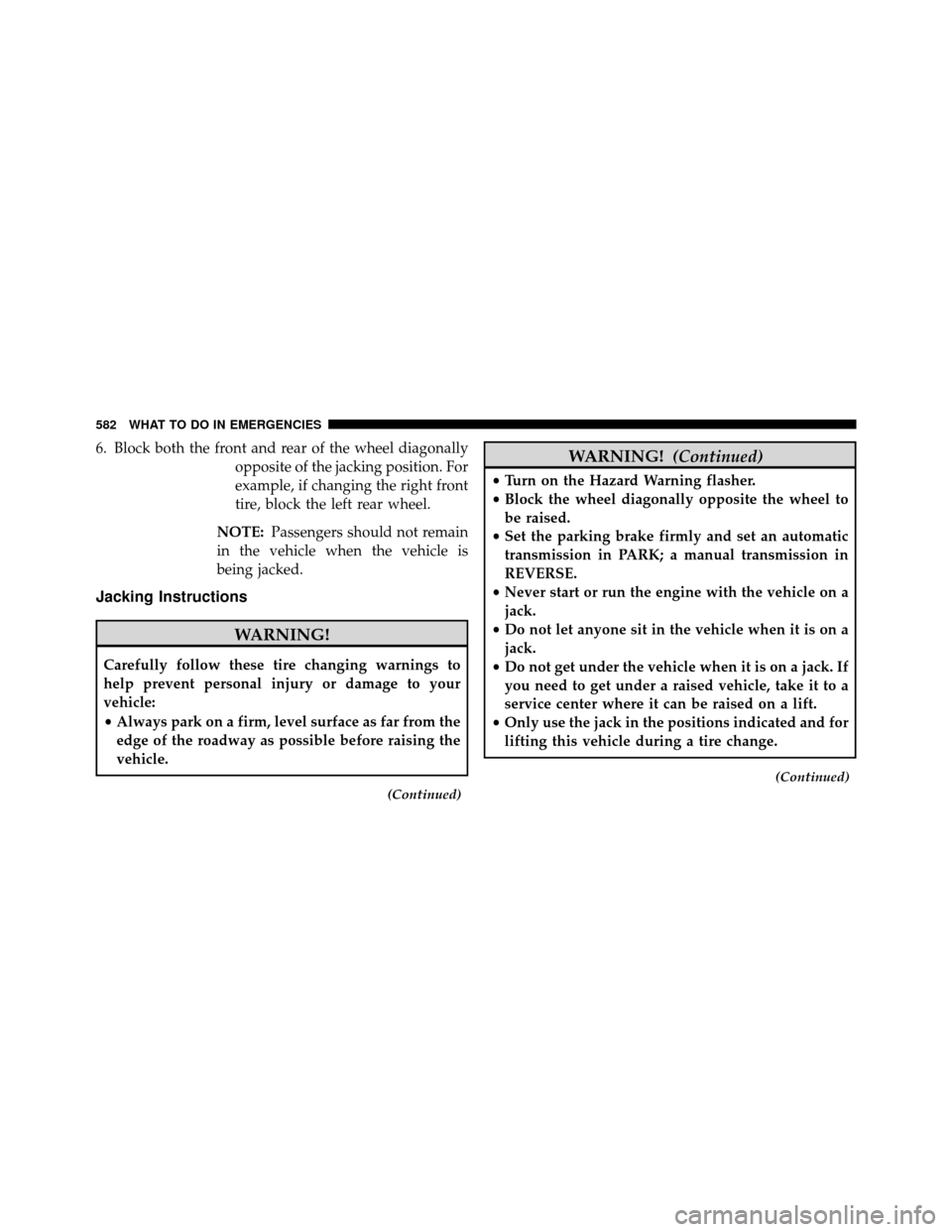

6. Block both the front and rear of the wheel diagonallyopposite of the jacking position. For
example, if changing the right front
tire, block the left rear wheel.
NOTE: Passengers should not remain
in the vehicle when the vehicle is
being jacked.
Jacking Instructions
WARNING!
Carefully follow these tire changing warnings to
help prevent personal injury or damage to your
vehicle:
• Always park on a firm, level surface as far from the
edge of the roadway as possible before raising the
vehicle.
(Continued)
WARNING! (Continued)
•Turn on the Hazard Warning flasher.
• Block the wheel diagonally opposite the wheel to
be raised.
• Set the parking brake firmly and set an automatic
transmission in PARK; a manual transmission in
REVERSE.
• Never start or run the engine with the vehicle on a
jack.
• Do not let anyone sit in the vehicle when it is on a
jack.
• Do not get under the vehicle when it is on a jack. If
you need to get under a raised vehicle, take it to a
service center where it can be raised on a lift.
• Only use the jack in the positions indicated and for
lifting this vehicle during a tire change.
(Continued)
582 WHAT TO DO IN EMERGENCIES

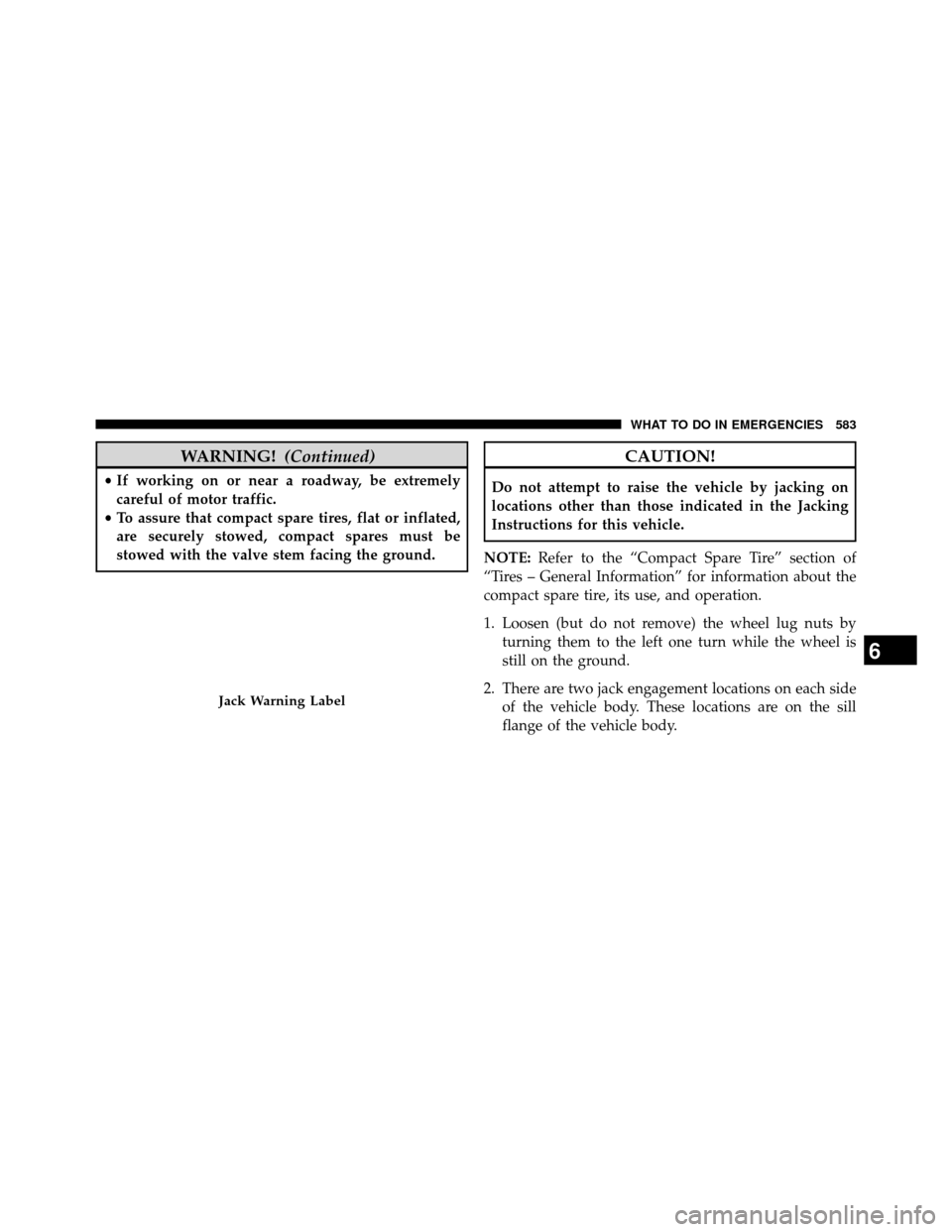

WARNING!(Continued)
•If working on or near a roadway, be extremely
careful of motor traffic.
• To assure that compact spare tires, flat or inflated,
are securely stowed, compact spares must be
stowed with the valve stem facing the ground.
CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated in the Jacking
Instructions for this vehicle.
NOTE: Refer to the “Compact Spare Tire” section of
“Tires – General Information” for information about the
compact spare tire, its use, and operation.
1. Loosen (but do not remove) the wheel lug nuts by turning them to the left one turn while the wheel is
still on the ground.
2. There are two jack engagement locations on each side of the vehicle body. These locations are on the sill
flange of the vehicle body.
Jack Warning Label
6
WHAT TO DO IN EMERGENCIES 583

CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated.Rear jack locations are between a pair of down-facing
tabs on the sill flange of the vehicle side body.
Jack Locations
Rear Jacking Locations
584 WHAT TO DO IN EMERGENCIES

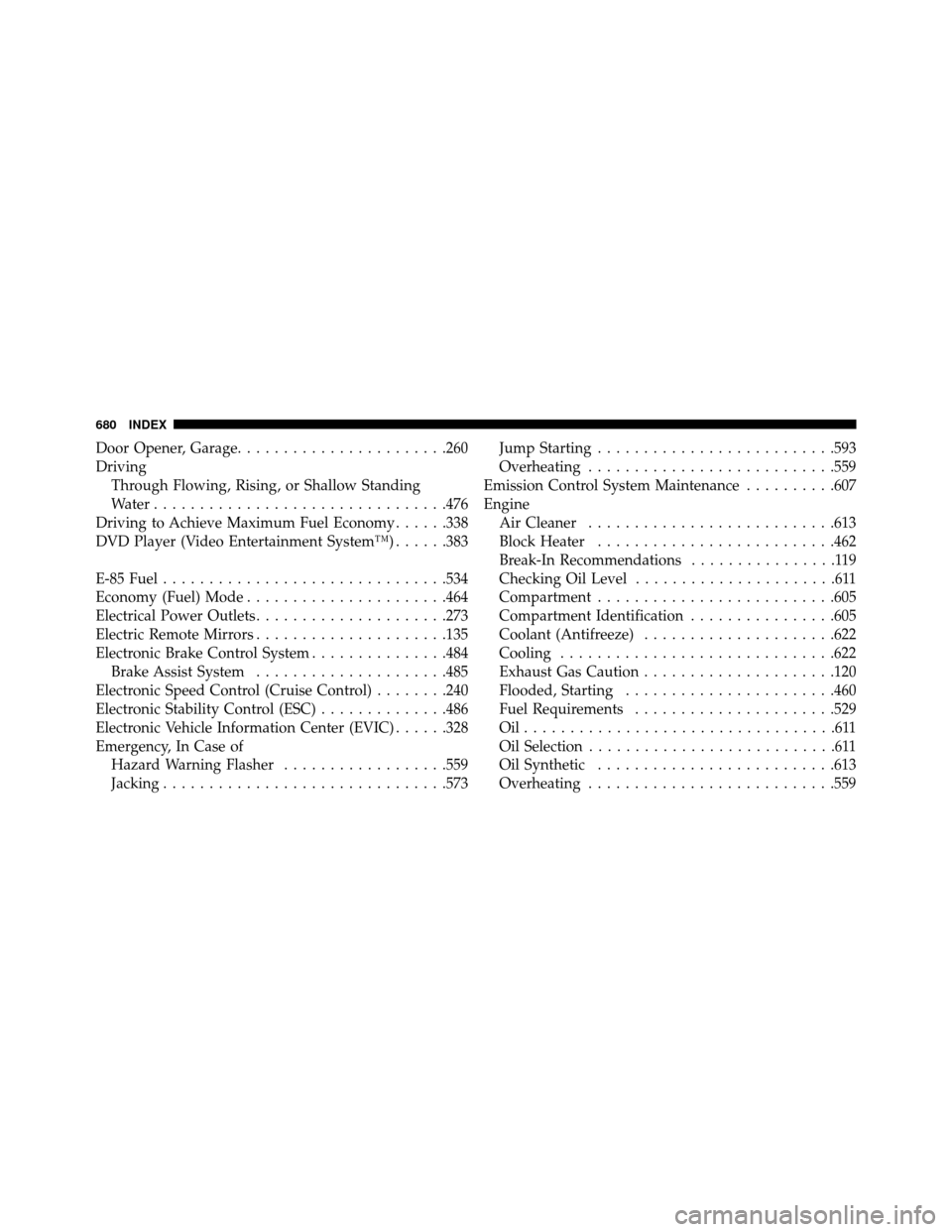

Door Opener, Garage.......................260
Driving Through Flowing, Rising, or Shallow Standing
Water ................................476
Driving to Achieve Maximum Fuel Economy ......338
DVD Player (Video Entertainment System™) ......383
E-85 Fuel ...............................534
Economy (Fuel) Mode ......................464
Electrical Power Outlets .....................273
Electric Remote Mirrors .....................135
Electronic Brake Control System ...............484
Brake Assist System .....................485
Electronic Speed Control (Cruise Control) ........240
Electronic Stability Control (ESC) ..............486
Electronic Vehicle Information Center (EVIC) ......328
Emergency, In Case of Hazard Warning Flasher ..................559
Jacking ...............................573 Jump Starting
..........................593
Overheating ...........................559
Emission Control System Maintenance ..........607
Engine Air Cleaner ...........................613
Block Heater ..........................462
Break-In Recommendations ................119
Checking Oil Level ......................611
Compartment ..........................605
Compartment Identification ................605
Coolant (Antifreeze) .....................622
Cooling ..............................622
Exhaust Gas Caution .....................120
Flooded, Starting .......................460
Fuel Requirements ......................529
Oil..................................611
OilSelection...........................611
Oil Synthetic ..........................613
Overheating ...........................559
680 INDEX

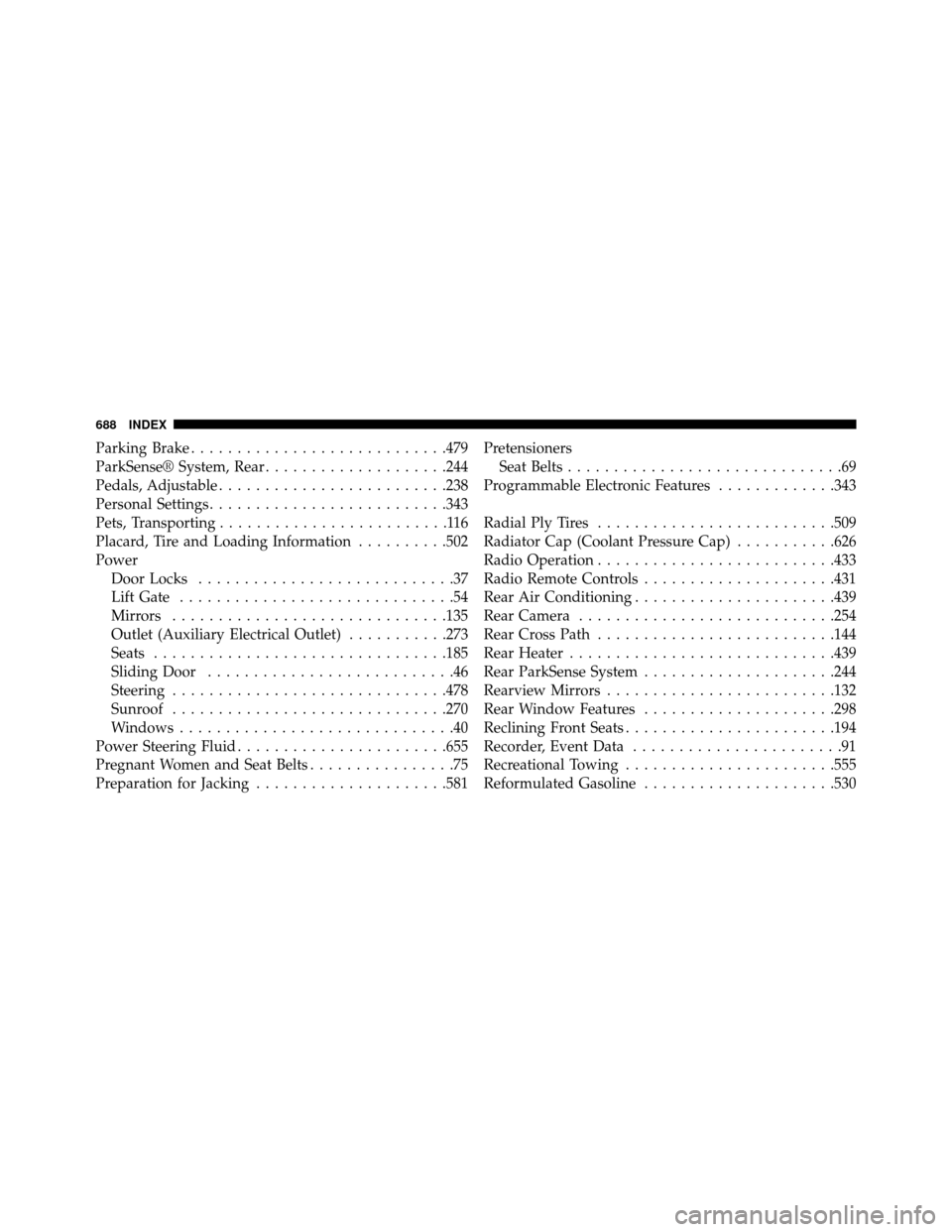

Parking Brake............................479
ParkSense® System, Rear ....................244
Pedals, Adjustable .........................238
Personal Settings ..........................343
Pets, Transporting .........................116
Placard, Tire and Loading Information ..........502
Power Door Locks ............................37
Lift Gate ..............................54
Mirrors ..............................135
Outlet (Auxiliary Electrical Outlet) ...........273
Seats ................................185
Sliding Door ...........................46
Steering ..............................478
Sunroof ..............................270
Windows ..............................40
Power Steering Fluid .......................655
Pregnant Women and Seat Belts ................75
Preparation for Jacking .....................581 Pretensioners
Seat Belts ..............................69
Programmable Electronic Features .............343
Radial Ply Tires ..........................509
Radiator Cap (Coolant Pressure Cap) ...........626
Radio Operation ..........................433
Radio Remote Controls .....................431
Rear Air Conditioning ......................439
Rear Camera ............................254
Rear Cross Path ..........................144
Rear Heater .............................439
Rear ParkSense System .....................244
Rearview Mirrors .........................132
Rear Window Features .....................298
Reclining Front Seats .......................194
Recorder, Event Data .......................91
Recreational Towing .......................555
Reformulated Gasoline .....................530
688 INDEX
