2014 DODGE CHARGER SRT cruise control

to the change of state from Adaptive Cruise Control to
normal Cruise Control. “Cruise Ready” will be displayed
if the system was in ACC READY or ACC SET position.
“Cruise Off” will be displayed if the system was in the
ACC OFF position. To switch back to Adaptive Cruise
Control mode, press the MODE button a second time.
WARNING!
In the normal Cruise Control mode, the system will
not react to vehicles ahead. In addition, the proximity
warning does not activate and no alarm will sound
even if you are too close to the vehicle ahead since
neither the presence of the vehicle ahead nor the
vehicle-to vehicle distance is detected. Be sure to
maintain a safe distance between your vehicle and
the vehicle ahead. Always be aware which mode is
selected.
To Set A Desired Speed
When the vehicle reaches the speed desired, press the
SET-button and release. The EVIC will display the set
speed.
NOTE: You must observe the display when setting or
changing speed, not the speedometer.
To Vary The Speed Setting
To Increase Speed
When the Normal (Fixed Speed) Cruise Control is set,
you can increase speed by pushing the RES +button.
The speed increment shown is dependant on the speed of
U.S. (mph) or Metric (km/h) units:
U.S. Speed (mph)
• Pressing the RES +button once will result ina1mph
increase in set speed. Each subsequent tap of the
button results in an increase of 1 mph.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 267

•If the button is continually pressed, the set speed will
continue to increase until the button is released, then
the new set speed will be established.
Metric Speed (km/h)
• Pressing the RES +button once will result in a 2 km/h
increase in set speed. Each subsequent tap of the
button results in an increase of 2 km/h.
• If the button is continually pressed, the set speed will
continue to increase until the button is released, then
the new set speed will be established.
To Decrease Speed
When the Normal (Fixed Speed) Cruise Control is set,
you can decrease speed by pushing the SET -button. The speed decrement shown is dependant on the speed
of U.S. (mph) or Metric (km/h) units:
U.S. Speed (mph)
•
Pressing the SET -button once will result ina1mph
decrease in set speed. Each subsequent tap of the
button results in a decrease of 1 mph.
• If the button is continually pressed, the set speed will
continue to decrease until the button is released, then
the new set speed will be established.
Metric Speed (km/h)
• Pressing the SET -button once will result in a 2 km/h
decrease in set speed. Each subsequent tap of the
button results in a decrease of 2 km/h.
• If the button is continually pressed, the set speed will
continue to decrease until the button is released, then
the new set speed will be established.
268 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To Cancel
The system will disable normal Cruise Control without
erasing the memory if:
•You softly tap or depress the brake pedal.
• You press the CANCEL button.
• The Electronic Stability Control/Traction Control Sys-
tem (ESC/TCS) activates.
To Resume
Press the RES +button and then remove your foot from
the accelerator pedal. The EVIC will display the last set
speed.
To Turn Off
The system will turn off and erase the set speed in
memory if:
• You push and release the ON/OFF button. •
You turn off the ignition.
• You switch off ESC.
If the Cruise Control system is turned off and reactivated,
the system will return to the last driver setting (ACC or
Normal Cruise Control).
Forward Collision Warning — If Equipped
The Forward Collision Warning (FCW) system provides
the driver with audible and visual warnings (within the
EVIC) when it detects a potential frontal collision. The
warnings are intended to provide the driver with enough
time to react and avoid the potential collision.
FCW monitors the information from the forward looking
sensor as well as the Electronic Brake Controller (EBC),
wheel speed sensors, i.e., to calculate a probable rear-end
collision. When the system determines that a rear-end
collision is probable a warning message (both audible
and visual) will be displayed on the EVIC. When the
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 269

•Electronic Speed Control ON
This light will turn on when the electronic
speed control is ON. For further information,
refer to “Electronic Speed Control” in “Under-
standing The Features Of Your Vehicle.”
• Electronic Speed Control SET
This light will turn on when the electronic
speed control is SET. For further information,
refer to “Electronic Speed Control” in “Under-
standing The Features Of Your Vehicle.”
• Adaptive Cruise Control (ACC) ON
This light will turn on when the ACC is ON.
For further information, refer to “Adaptive
Cruise Control (ACC)” in “Understanding The
Features Of Your Vehicle.” •
Adaptive Cruise Control (ACC) SET
This light will turn on when the ACC is SET.
For further information, refer to “Adaptive
Cruise Control (ACC)” in “Understanding The
Features Of Your Vehicle.”
EVIC Amber Telltale Lights
This area will show reconfigurable amber caution tell-
tales. These telltales include:
•Forward Collision Warning (FCW) OFF
This light warns the driver of a potential colli-
sion with the vehicle in front and prompts the
driver to take action in order to avoid the
collision. For further information, refer to
“Adaptive Cruise Control (ACC)” in “Understanding
The Features Of Your Vehicle.”
4
UNDERSTANDING YOUR INSTRUMENT PANEL 329

•Low Fuel Light
When the fuel level reaches approximately 3.0 gal
(11.0 L) this light will turn on, and remain on until
fuel is added.
• Windshield Washer Fluid Low Indicator
This light will turn on to indicate the wind-
shield washer fluid is low.
• Adaptive Cruise Control (ACC) Malfunction
This light will turn on when a ACC is not
operating and needs service. For further infor-
mation, refer to “Adaptive Cruise Control
(ACC)” in “Understanding The Features Of
Your Vehicle.”EVIC Red Telltale Lights
This area will show reconfigurable red telltales. These
telltales include:
• Door Ajar
This light will turn on to indicate that one or
more doors may be ajar.
• Trunk Ajar
This light will turn on to indicate that the trunk
may be ajar.
• Oil Pressure Warning Light
This light indicates low engine oil pressure. If the
light turns on while driving, stop the vehicle and shut off
the engine as soon as possible. A chime will sound for
four minutes when this light turns on.
330 UNDERSTANDING YOUR INSTRUMENT PANEL

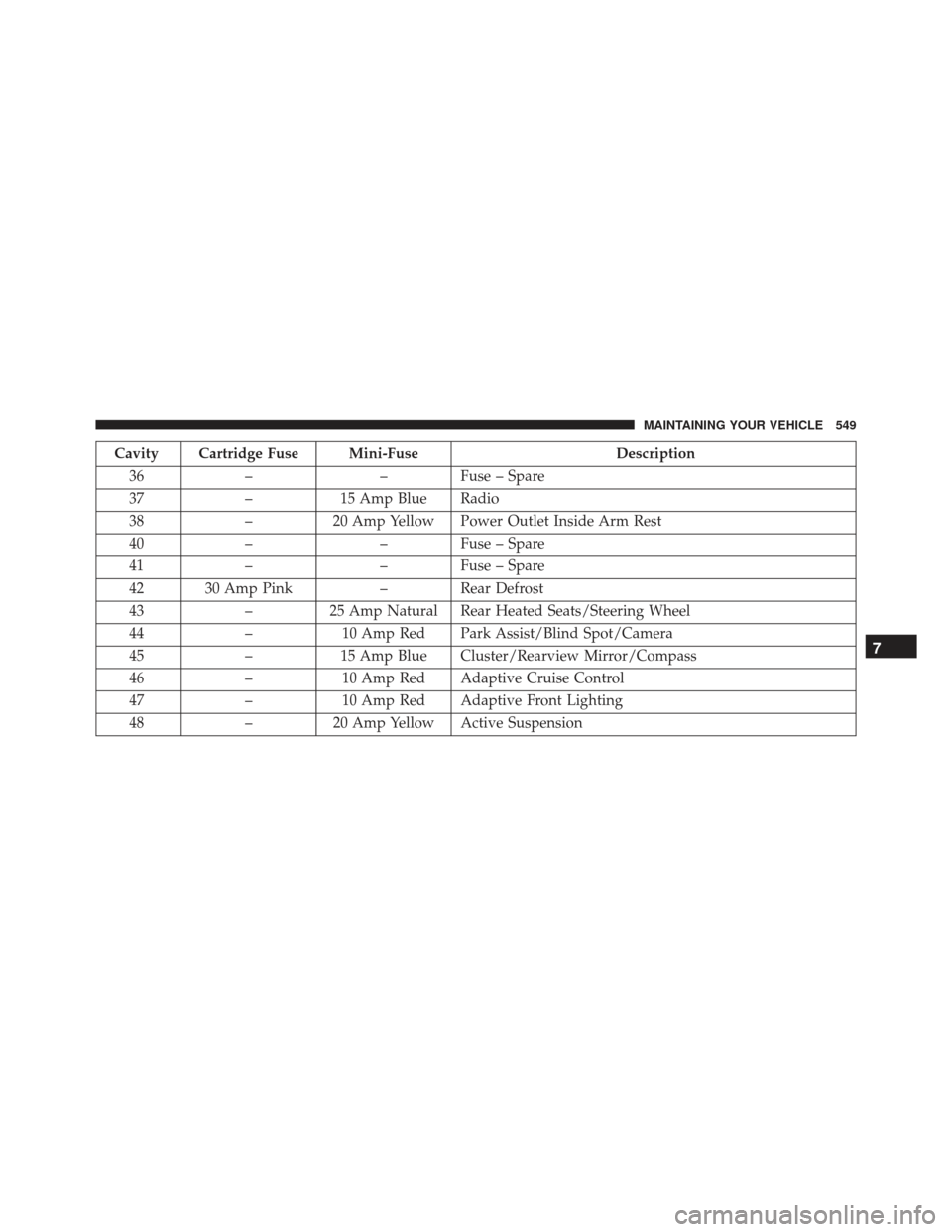

Cavity Cartridge Fuse Mini-FuseDescription
36 – – Fuse – Spare
37 –15 Amp Blue Radio
38 –20 Amp Yellow Power Outlet Inside Arm Rest
40 – – Fuse – Spare
41 – – Fuse – Spare
42 30 Amp Pink – Rear Defrost
43 –25 Amp Natural Rear Heated Seats/Steering Wheel
44 –10 Amp Red Park Assist/Blind Spot/Camera
45 –15 Amp Blue Cluster/Rearview Mirror/Compass
46 –10 Amp Red Adaptive Cruise Control
47 –10 Amp Red Adaptive Front Lighting
48 –20 Amp Yellow Active Suspension
7
MAINTAINING YOUR VEHICLE 549

About Your Brakes....................... .422
ABS (Anti-Lock Brake System) ................425
Adaptive Cruise Control (ACC) (Cruise Control) . . .244
Adding Engine Coolant (Antifreeze) ............525
Adding Fuel ............................ .473
Adding Washer Fluid ..................... .520
Additives, Fuel .......................... .471
Adjustable Pedals ........................ .238
Airbag .............................. .60, 70
Airbag Deployment ........................72
Airbag Light ....................68, 74, 100, 319
Airbag Maintenance ........................73
Airbag, Side ........................ .64, 67, 70
Airbag, Window (Side Curtain) ...........64, 67, 70
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . .514
Air Conditioner Maintenance .................516
Air Conditioning Filter ..................391, 517
Air Conditioning, Operating Tips ..............392
Air Conditioning Refrigerant ..............516, 517Air Conditioning System
.................388, 516
Air Pressure, Tires ........................ .448
Alarm Arm The System ........................19
Alarm Light ............................ .321
Alarm, Panic .............................24
Alarm (Security Alarm) ......................18
Alarm System (Security Alarm) ................18
Alterations/Modifications, Vehicle ...............7
Antifreeze (Engine Coolant) ...............525, 557
Disposal ............................. .527
Anti-Lock Brake System (ABS) .............425, 427
Anti-Lock Warning Light ....................320
Appearance Care ........................ .534
Arming System (Security Alarm) ...............18
Assist, Hill Start ......................... .432
Auto Down Power Windows ..................41
Automatic Dimming Mirror ..................110
Automatic Door Locks ......................33
590 INDEX

Cold Weather Operation....................400
Compact Disc (CD) Maintenance ..............379
Compact Spare Tire ....................... .453
Computer, Trip/Travel ..................... .337
Connector UCI................................ .376
Universal Consumer Interface (UCI) ..........376
Conserving Fuel ......................... .335
Console, Floor .......................... .306
Contract, Service ......................... .583
Coolant Pressure Cap (Radiator Cap) ...........527
Cooling System .......................... .523
Adding Coolant (Antifreeze) ...............525
Coolant Capacity ...................... .557
Coolant Level ..................... .523, 528
Disposal of Used Coolant .................527
Drain, Flush, and Refill ...................524
Inspection ........................... .528
Points to Remember .....................528 Pressure Cap
......................... .527
Radiator Cap ......................... .527
Selection of Coolant (Antifreeze) ......525, 557, 558
Corrosion Protection ...................... .534
Cruise Control (Speed Control) ................244
Cupholders ......................... .302, 540
Customer Assistance ...................... .581
Customer Programmable Features ..........342, 357
Data Recorder, Event .......................74
Daytime Brightness, Interior Lights .............229
Daytime Running Lights ....................222
Dealer Service ........................... .510
Deck Lid, Emergency Release .................46
Deck Lid, Power Release .....................44
Defroster, Rear Window .....................309
Defroster, Windshield ...................100, 386
Delay (Intermittent) Wipers ..................230
Diagnostic

System, Onboard .................508
10
INDEX 593
