2014 DODGE CHALLENGER SRT rear view mirror

Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
NOTE:The passenger side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side convex mirror could cause you to
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger side convex mirror.
Outside Mirrors Folding Feature
The mirrors are equipped with a rotational hinge. The
mirrors have one detent (clockwise) towards the rear of
the vehicle and three detent’s (counterclockwise) towards
the front of the vehicle.
Folding Mirrors
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109

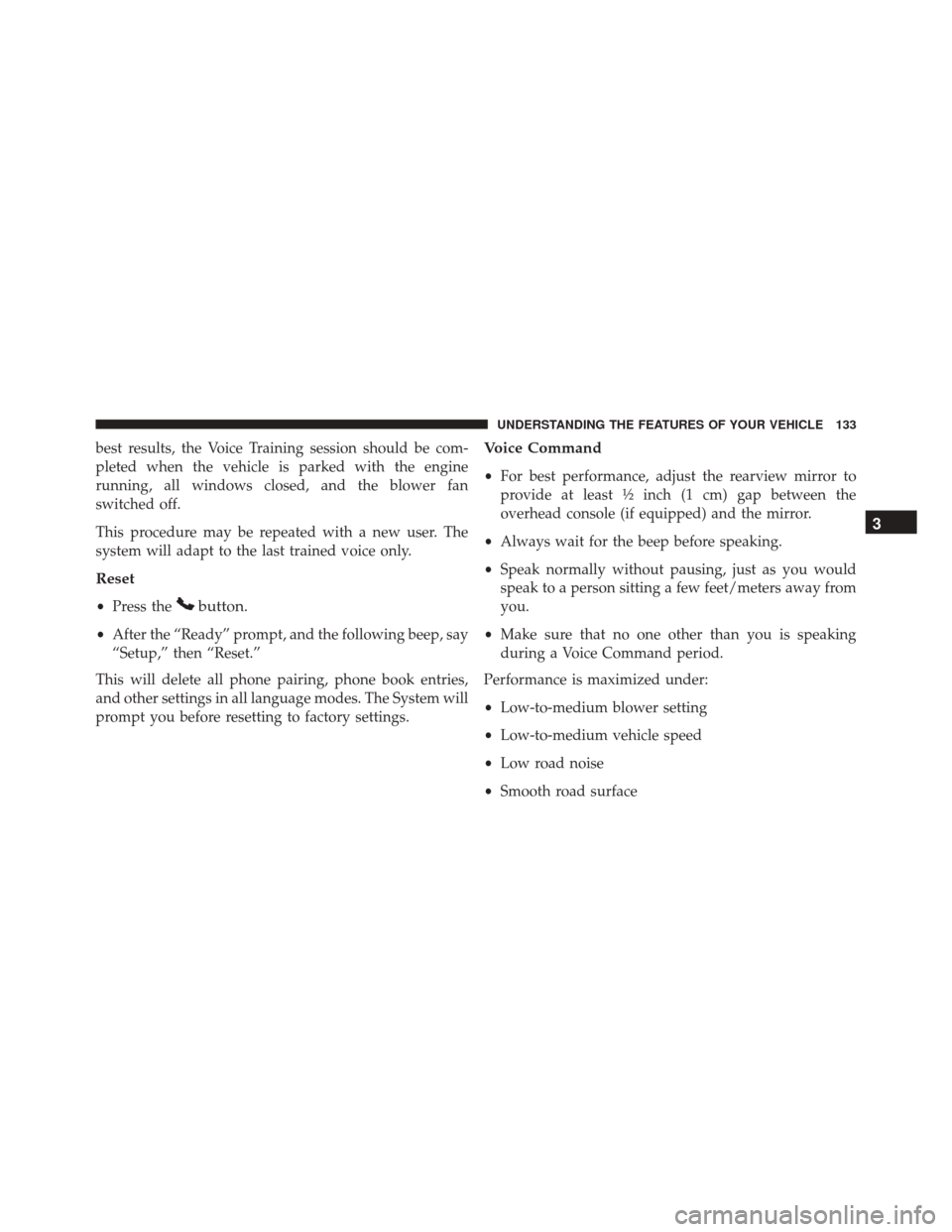

best results, the Voice Training session should be com-
pleted when the vehicle is parked with the engine
running, all windows closed, and the blower fan
switched off.
This procedure may be repeated with a new user. The
system will adapt to the last trained voice only.
Reset
•Press thebutton.
•After the “Ready” prompt, and the following beep, say
“Setup,” then “Reset.”
This will delete all phone pairing, phone book entries,
and other settings in all language modes. The System will
prompt you before resetting to factory settings.
Voice Command
• For best performance, adjust the rearview mirror to
provide at least ½ inch (1 cm) gap between the
overhead console (if equipped) and the mirror.
• Always wait for the beep before speaking.
• Speak normally without pausing, just as you would
speak to a person sitting a few feet/meters away from
you.
• Make sure that no one other than you is speaking
during a Voice Command period.
Performance is maximized under:
• Low-to-medium blower setting
• Low-to-medium vehicle speed
• Low road noise
• Smooth road surface
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133

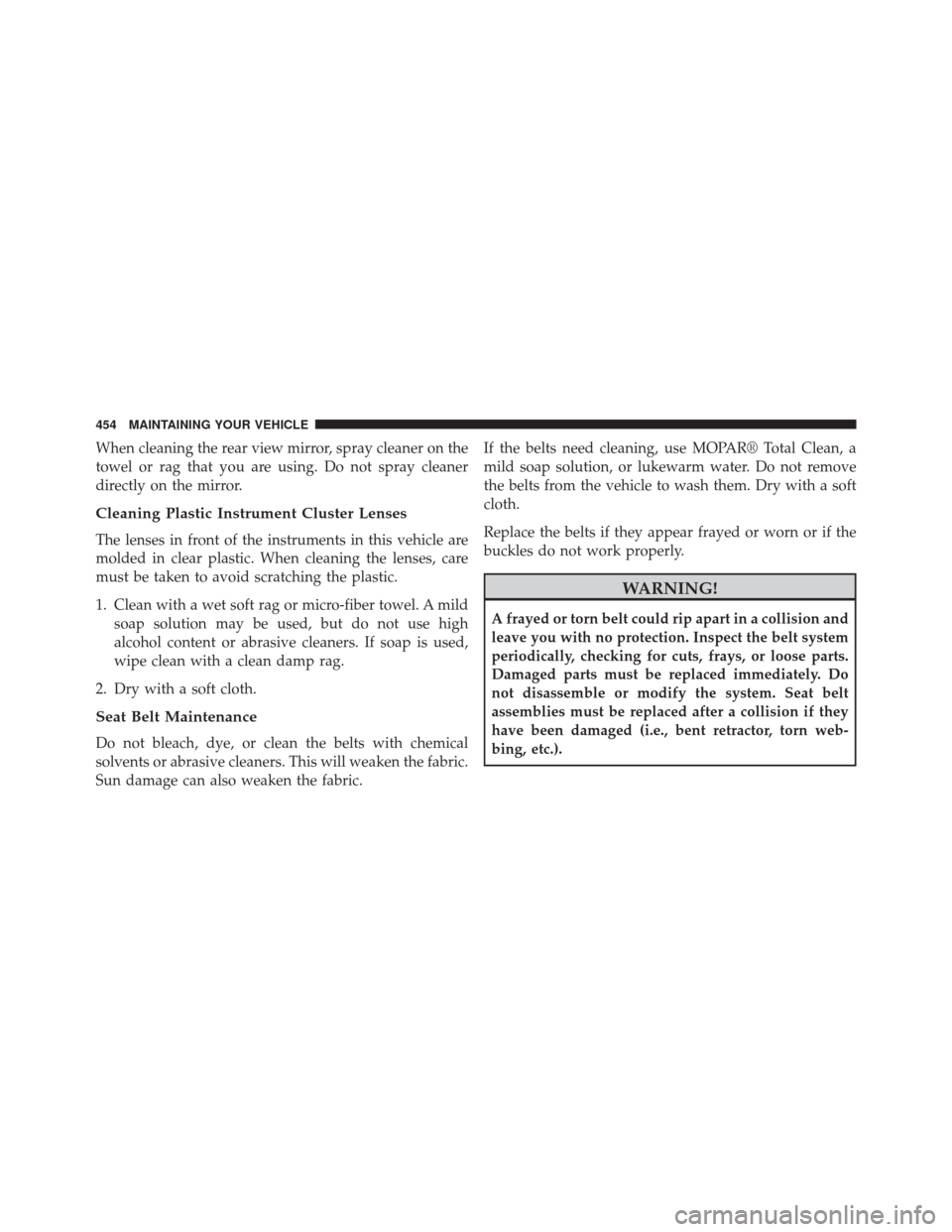

When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag or micro-fiber towel. A mildsoap solution may be used, but do not use high
alcohol content or abrasive cleaners. If soap is used,
wipe clean with a clean damp rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric. If the belts need cleaning, use MOPAR® Total Clean, a
mild soap solution, or lukewarm water. Do not remove
the belts from the vehicle to wash them. Dry with a soft
cloth.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
WARNING!
A frayed or torn belt could rip apart in a collision and
leave you with no protection. Inspect the belt system
periodically, checking for cuts, frays, or loose parts.
Damaged parts must be replaced immediately. Do
not disassemble or modify the system. Seat belt
assemblies must be replaced after a collision if they
have been damaged (i.e., bent retractor, torn web-
bing, etc.).
454 MAINTAINING YOUR VEHICLE

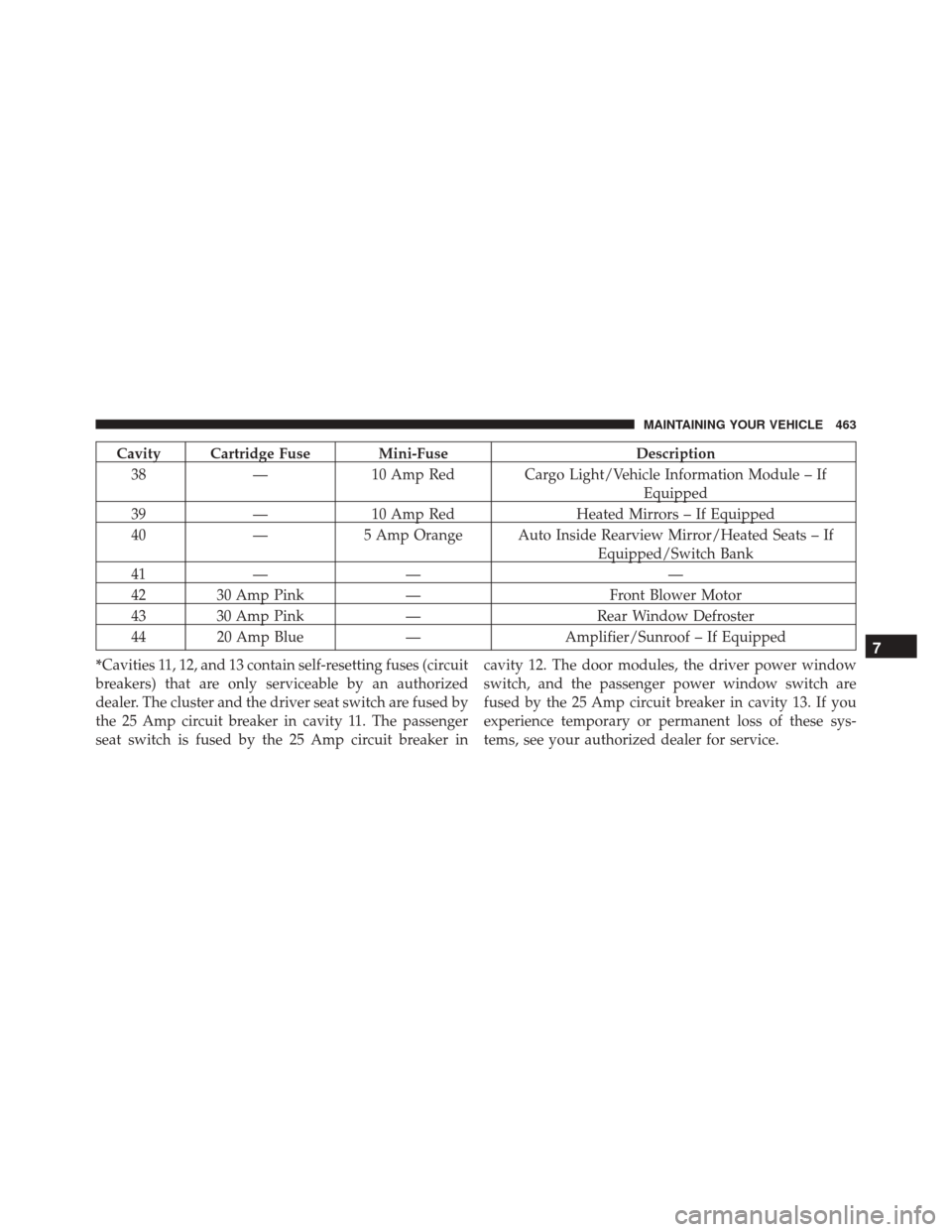

Cavity Cartridge Fuse Mini-FuseDescription
38 —10 Amp Red Cargo Light/Vehicle Information Module – If
Equipped
39 —10 Amp Red Heated Mirrors – If Equipped
40 —5 Amp Orange Auto Inside Rearview Mirror/Heated Seats – If
Equipped/Switch Bank
41 — — —
42 30 Amp Pink —Front Blower Motor
43 30 Amp Pink —Rear Window Defroster
44 20 Amp Blue —Amplifier/Sunroof – If Equipped
*Cavities 11, 12, and 13 contain self-resetting fuses (circuit
breakers) that are only serviceable by an authorized
dealer. The cluster and the driver seat switch are fused by
the 25 Amp circuit breaker in cavity 11. The passenger
seat switch is fused by the 25 Amp circuit breaker in cavity 12. The door modules, the driver power window
switch, and the passenger power window switch are
fused by the 25 Amp circuit breaker in cavity 13. If you
experience temporary or permanent loss of these sys-
tems, see your authorized dealer for service.
7
MAINTAINING YOUR VEHICLE 463

Electric Remote.........................110
Exterior Folding ....................... .109
Heated ...............................111
Outside ............................. .109
Vanity ...............................111
Modifications/Alterations, Vehicle ...............7
Monitor, Tire Pressure System ................372
Mopar Parts ............................ .422
MTBE/ETBE ........................... .380
Multi-Function Control Lever .................165
New Vehicle Break-In Period ..................96
Occupant Restraints ........................46
Occupant Restraints (Sedan) ..................63
Octane Rating, Gasoline (Fuel) ................379
Odometer .............................. .212
Trip ................................ .212
Oil Change Indicator ...................... .229Oil Change Indicator, Reset
..................229
Oil, Engine ............................. .424
Capacity ............................ .471
Change Interval ....................... .425
Checking ............................ .424
Dipstick ............................. .424
Disposal ............................. .426
Filter ............................... .426
Filter Disposal ........................ .426
Materials Added to ..................... .426
Recommendation ...................... .425
Synthetic ............................ .426
Viscosity ............................ .425
Oil Filter, Selection ....................... .426
Onboard Diagnostic System ..................420
Operating Precautions ..................... .420
Operator Manual (Owner’s Manual) .............4
Outside Rearview Mirrors ...................109
Overdrive .............................. .318
10
INDEX 517
