2014 DODGE CHALLENGER SRT radio controls

WARNING!
Any voice commanded system should be used only
in safe driving conditions following all applicable
laws, including laws regarding phone use. Your at-
tention should be focused on safely operating the
vehicle. Failure to do so may result in a collision
causing serious injury or death.
Uconnect® Phone Button The radio or steering wheel controls (if
equipped) will contain the two control buttons
(Uconnect® Phone
button and Voice Com-
mand
button) that will enable you to
access the system. When you press the button you will
hear the word Uconnect® followed by a BEEP. The
beep is your signal to give a command.
Voice Command Button
Actual button location may vary with the ra-
dio. The individual buttons are described in the
“Operation” section.
The Uconnect® Phone can be used with any Hands-Free
Profile certified Bluetooth® mobile phone. See the
Uconnect® website for supported phones. Refer to your
mobile service provider or the phone manufacturer for
details.
The Uconnect® Phone is fully integrated with the vehi-
cle’s audio system. The volume of the Uconnect® Phone
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
The radio display will be used for visual prompts from
the Uconnect® Phone such as “CELL” or caller ID on
certain radios.
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫List Or Browse Mode ...................274
▫ Bluetooth® Streaming Audio (BTSA) .......276
 HARMAN KARDON® Logic7® HIGH
PERFORMANCE MULTICHANNEL SURROUND
SOUND SYSTEM WITH DRIVER-SELECTABLE
SURROUND (DSS) — IF EQUIPPED .........277
 STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED .......................... .278
▫ Radio Operation ..................... .279
▫ CD Player .......................... .280
CD/DVD DISC MAINTENANCE ...........280
 RADIO OPERATION AND MOBILE PHONES . .281
 CLIMATE CONTROLS ...................281
▫ Automatic Temperature Control (ATC) ......281
▫ Automatic Operation ...................282
▫ Blower Control ...................... .283
▫ Manual Operation .....................283
▫ Operating Tips ...................... .287
4
UNDERSTANDING YOUR INSTRUMENT PANEL 209

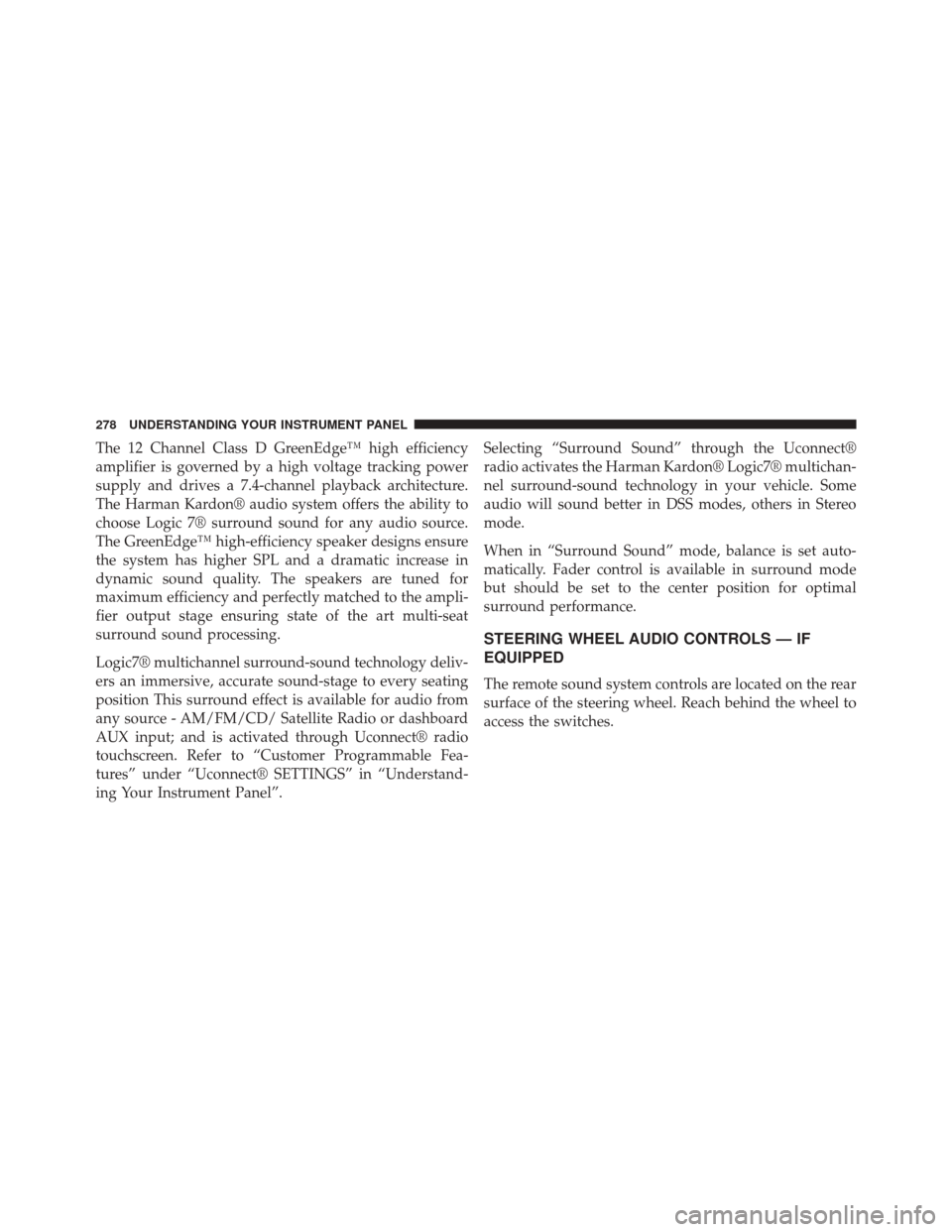

The 12 Channel Class D GreenEdge™ high efficiency
amplifier is governed by a high voltage tracking power
supply and drives a 7.4-channel playback architecture.
The Harman Kardon® audio system offers the ability to
choose Logic 7® surround sound for any audio source.
The GreenEdge™ high-efficiency speaker designs ensure
the system has higher SPL and a dramatic increase in
dynamic sound quality. The speakers are tuned for
maximum efficiency and perfectly matched to the ampli-
fier output stage ensuring state of the art multi-seat
surround sound processing.
Logic7® multichannel surround-sound technology deliv-
ers an immersive, accurate sound-stage to every seating
position This surround effect is available for audio from
any source - AM/FM/CD/ Satellite Radio or dashboard
AUX input; and is activated through Uconnect® radio
touchscreen. Refer to “Customer Programmable Fea-
tures” under “Uconnect® SETTINGS” in “Understand-
ing Your Instrument Panel”.Selecting “Surround Sound” through the Uconnect®
radio activates the Harman Kardon® Logic7® multichan-
nel surround-sound technology in your vehicle. Some
audio will sound better in DSS modes, others in Stereo
mode.
When in “Surround Sound” mode, balance is set auto-
matically. Fader control is available in surround mode
but should be set to the center position for optimal
surround performance.
STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED
The remote sound system controls are located on the rear
surface of the steering wheel. Reach behind the wheel to
access the switches.
278 UNDERSTANDING YOUR INSTRUMENT PANEL

The right-hand control is a rocker-type switch with a
push-button in the center and controls the volume and
mode of the sound system. Pressing the top of the rocker
switch will increase the volume, and pressing the bottom
of the rocker switch will decrease the volume.Pressing the center button will make the radio switch
between the various modes available (AM/FM/SAT/
CD/HDD/AUX etc.).
The left-hand control is a rocker-type switch with a
push-button in the center. The function of the left-hand
control is different depending on which mode you are in.
The following describes the left-hand control operation in
each mode.
Radio Operation
Pressing the top of the switch will “Seek” up for the next
listenable station and pressing the bottom of the switch
will “Seek” down for the next listenable station.
The button located in the center of the left-hand control
will tune to the next preset station that you have pro-
grammed in the radio preset pushbutton.
Remote Sound System Controls (Back View Of Steering
Wheel)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 279

NOTE:If you experience difficulty in playing a particular
disc, it may be damaged (e.g., scratched, reflective coat-
ing removed, a hair, moisture or dew on the disc)
oversized, or have protection encoding. Try a known
good disc before considering disc player service.
RADIO OPERATION AND MOBILE PHONES
Under certain conditions, the mobile phone being on in
your vehicle can cause erratic or noisy performance from
your radio. This condition may be lessened or eliminated
by relocating the mobile phone antenna. This condition is
not harmful to the radio. If your radio performance does
not satisfactorily “clear” by the repositioning of the
antenna, it is recommended that the radio volume be
turned down or off during mobile phone operation when
not using Uconnect® (if equipped).
CLIMATE CONTROLS
Automatic Temperature Control (ATC)
The Automatic Temperature Control system automati-
cally maintains the climate in the cabin of the vehicle at
the comfort levels desired by the driver and passenger.
Automatic Temperature Control
4
UNDERSTANDING YOUR INSTRUMENT PANEL 281

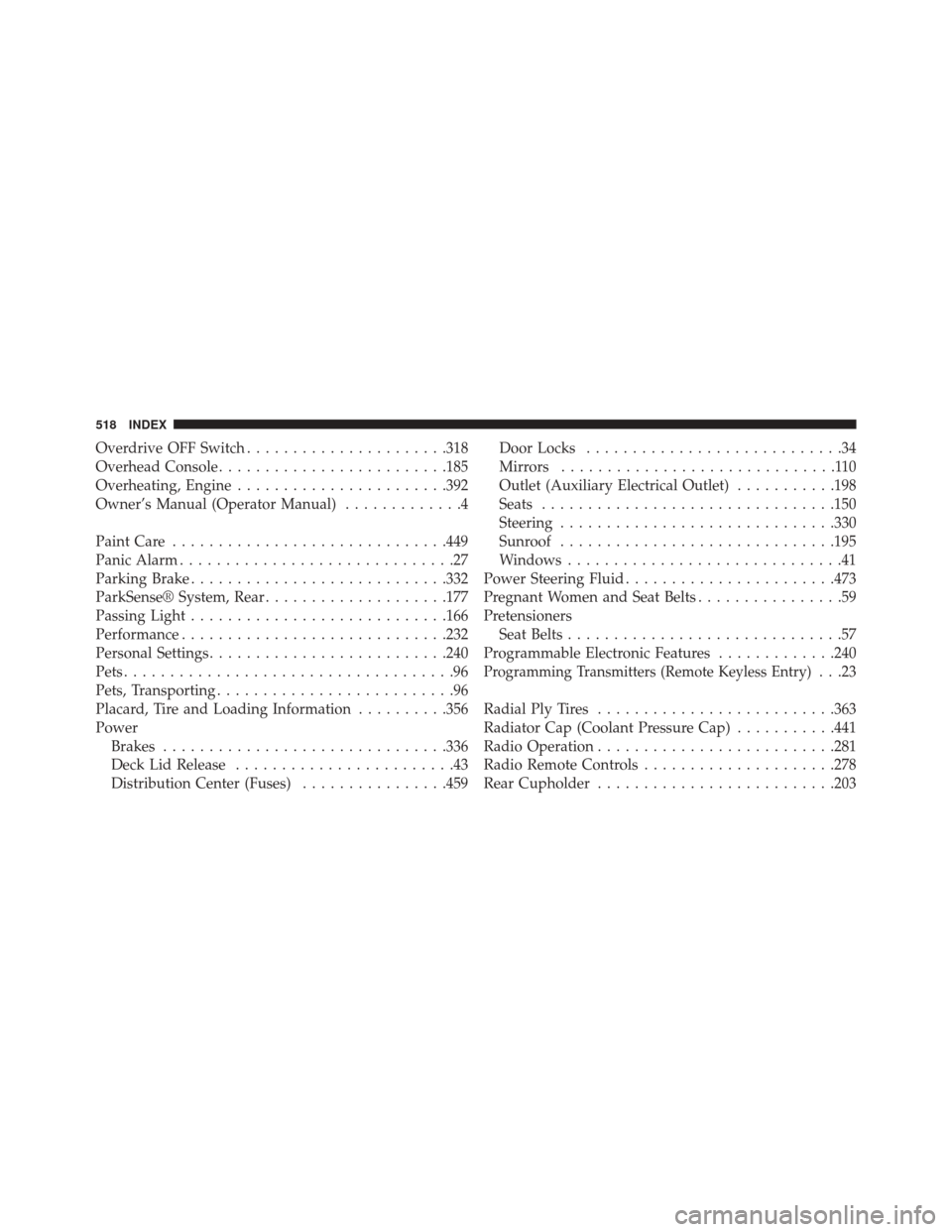

Overdrive OFF Switch..................... .318
Overhead Console ........................ .185
Overheating, Engine ...................... .392
Owner’s Manual (Operator Manual) .............4
Paint Care ............................. .449
Panic Alarm ..............................27
Parking Brake ........................... .332
ParkSense® System, Rear ....................177
Passing Light ........................... .166
Performance ............................ .232
Personal Settings ......................... .240
Pets ....................................96
Pets, Transporting ..........................96
Placard, Tire and Loading Information ..........356
Power Brakes .............................. .336
Deck Lid Release ........................43
Distribution Center (Fuses) ................459 Door Locks
............................34
Mirrors ..............................110
Outlet (Auxiliary Electrical Outlet) ...........198
Seats ............................... .150
Steering ............................. .330
Sunroof ............................. .195
Windows ..............................41
Power Steering Fluid ...................... .473
Pregnant Women and Seat Belts ................59
Pretensioners Seat Belts ..............................57
Programmable Electronic Features .............240
Programming Transmitters (Remote Keyless Entry). . .23
Radial Ply Tires ......................... .363
Radiator Cap (Coolant Pressure Cap) ...........441
Radio Operation ......................... .281
Radio Remote Controls .....................278
Rear Cupholder ......................... .203
518 INDEX

Rear ParkSense System.....................177
Rear Seat, Folding ........................ .158
Rear Window Defroster .....................205
Rear Window Features .....................205
Recorder, Event Data .......................73
Recreational Towing ...................... .388
Reformulated Gasoline .....................379
Refrigerant ............................. .430
Release, Hood ........................... .159
Reminder, Lights On ...................... .164
Reminder, Seat Belt .........................58
Remote Control Starting System .........................29
Remote Keyless Entry (RKE) ..................23
Arm The Alarm .........................20
Programming Additional Key Fobs ...........19
Programming Additional Transmitters .........19
Remote Sound System (Radio) Controls .........278
Remote Starting System ......................29 Remote Trunk Release
.......................43
Replacement Bulbs ....................... .464
Replacement Keys .........................18
Replacement Parts ........................ .422
Replacement Tires ........................ .367
Reporting Safety Defects ....................500
Restraint, Head .......................... .156
Restraints, Child ...........................74
Restraints, Occupant ........................46
Rocking Vehicle When Stuck .................409
Rotation, Tires .......................... .370
Safety Checks Inside Vehicle ..................99
Safety Checks Outside Vehicle ................101
Safety Defects, Reporting ....................500
Safety, Exhaust Gas .........................98
Safety Information, Tire .....................348
Safety Tips ...............................97
Satellite Radio Antenna .....................267
10
INDEX 519
