2014 DODGE CHALLENGER SRT battery replacement

▫Programming Additional Transmitters .......28
▫ Transmitter Battery Replacement ...........28
▫ General Information ....................29

REMOTE STARTING SYSTEM — IF EQUIPPED . .29
▫ How To Use Remote Start ................30
 DOOR LOCKS .........................33
▫ Manual Door Locks .....................33
▫ Power Door Locks .....................34
 KEYLESS ENTER-N-GO™ .................36
 WINDOWS ...........................41
▫ Power Windows .......................41
▫ Wind Buffeting .......................43
 TRUNK LOCK AND RELEASE .............43
TRUNK SAFETY WARNING ................45
▫ Trunk Emergency Release ................45
 OCCUPANT RESTRAINTS ................46
▫ Lap/Shoulder Belts ....................49
▫ Lap/Shoulder Belt Untwisting Procedure .....54
▫ Seat Belts In Passenger Seating Positions ......55
▫ Automatic Locking Retractor Mode (ALR) — If
Equipped ............................56
▫ Energy Management Feature ..............57
▫ Seat Belt Pretensioners ..................57
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert®) ..........................58
▫ Seat Belts And Pregnant Women ...........59
▫ Seat Belt Extender .....................59
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:
•The interior lights will turn off if you turn the ignition
switch to the ACC or ON/RUN position while the
Panic Alarm is activated. However, the exterior lights
and horn will remain on.
• You may need to be less than 35 ft (11 m) from the
vehicle when using the RKE transmitter to turn off the
Panic Alarm due to the radio frequency noises emitted
by the system.
Programming Additional Transmitters
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
Transmitter Battery Replacement
The recommended replacement battery is CR2032.
NOTE:
Perchlorate Material – special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
1. If the RKE transmitter is equipped with a screw, remove the screw. With the RKE ransmitter buttons
facing down, use a flat blade to pry the two halves of
the RKE transmitter apart. Make sure not to damage
the elastomer seal during removal.
2. Remove and replace the battery. When replacing the battery, match the + sign on the battery to the + sign on
the inside of the battery clip, located on the back cover.
Avoid touching the new battery with your fingers.
Skin oils may cause battery deterioration. If you touch
a battery, clean it with rubbing alcohol.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

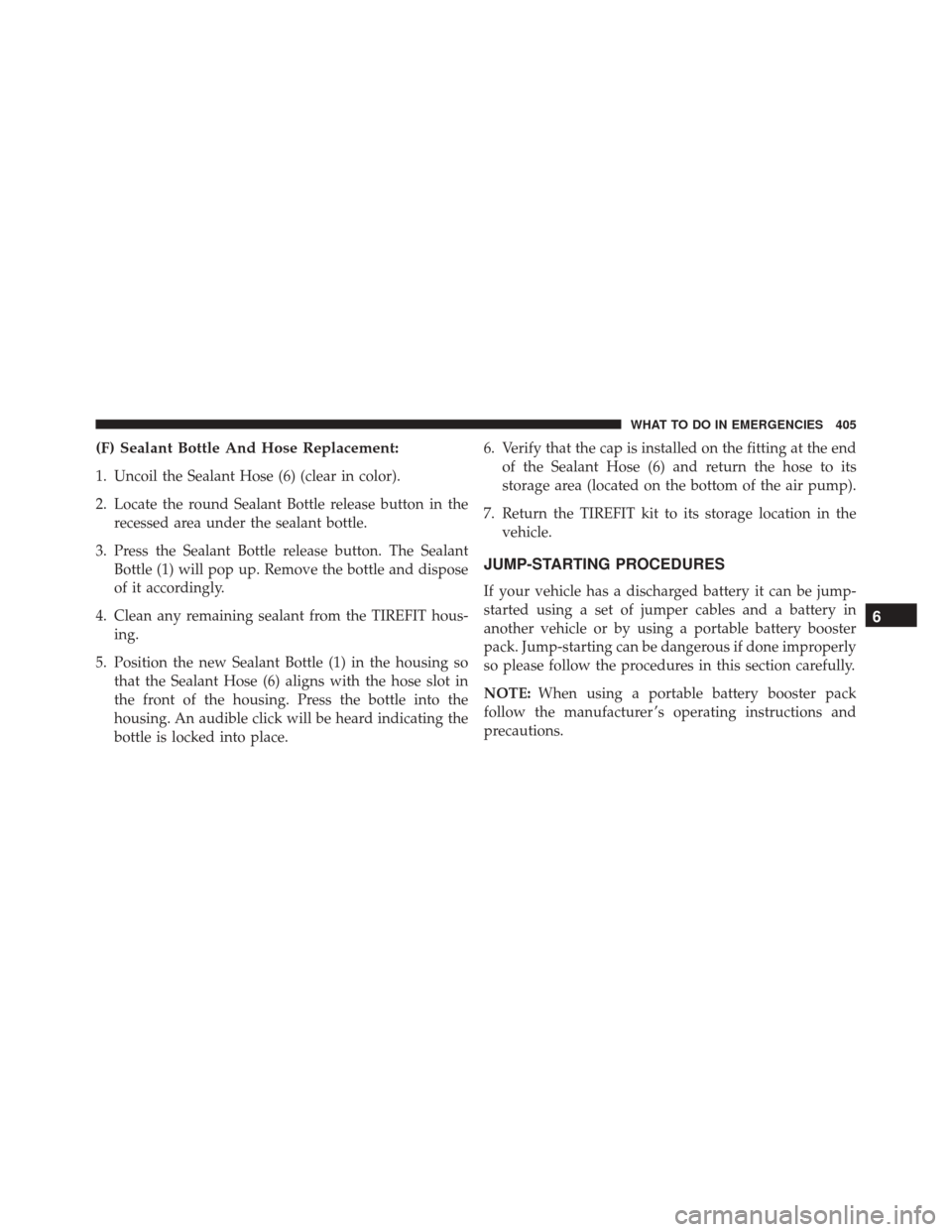

(F) Sealant Bottle And Hose Replacement:
1. Uncoil the Sealant Hose (6) (clear in color).
2. Locate the round Sealant Bottle release button in therecessed area under the sealant bottle.
3. Press the Sealant Bottle release button. The Sealant Bottle (1) will pop up. Remove the bottle and dispose
of it accordingly.
4. Clean any remaining sealant from the TIREFIT hous- ing.
5. Position the new Sealant Bottle (1) in the housing so that the Sealant Hose (6) aligns with the hose slot in
the front of the housing. Press the bottle into the
housing. An audible click will be heard indicating the
bottle is locked into place. 6. Verify that the cap is installed on the fitting at the end
of the Sealant Hose (6) and return the hose to its
storage area (located on the bottom of the air pump).
7. Return the TIREFIT kit to its storage location in the vehicle.
JUMP-STARTING PROCEDURES
If your vehicle has a discharged battery it can be jump-
started using a set of jumper cables and a battery in
another vehicle or by using a portable battery booster
pack. Jump-starting can be dangerous if done improperly
so please follow the procedures in this section carefully.
NOTE: When using a portable battery booster pack
follow the manufacturer ’s operating instructions and
precautions.
6
WHAT TO DO IN EMERGENCIES 405

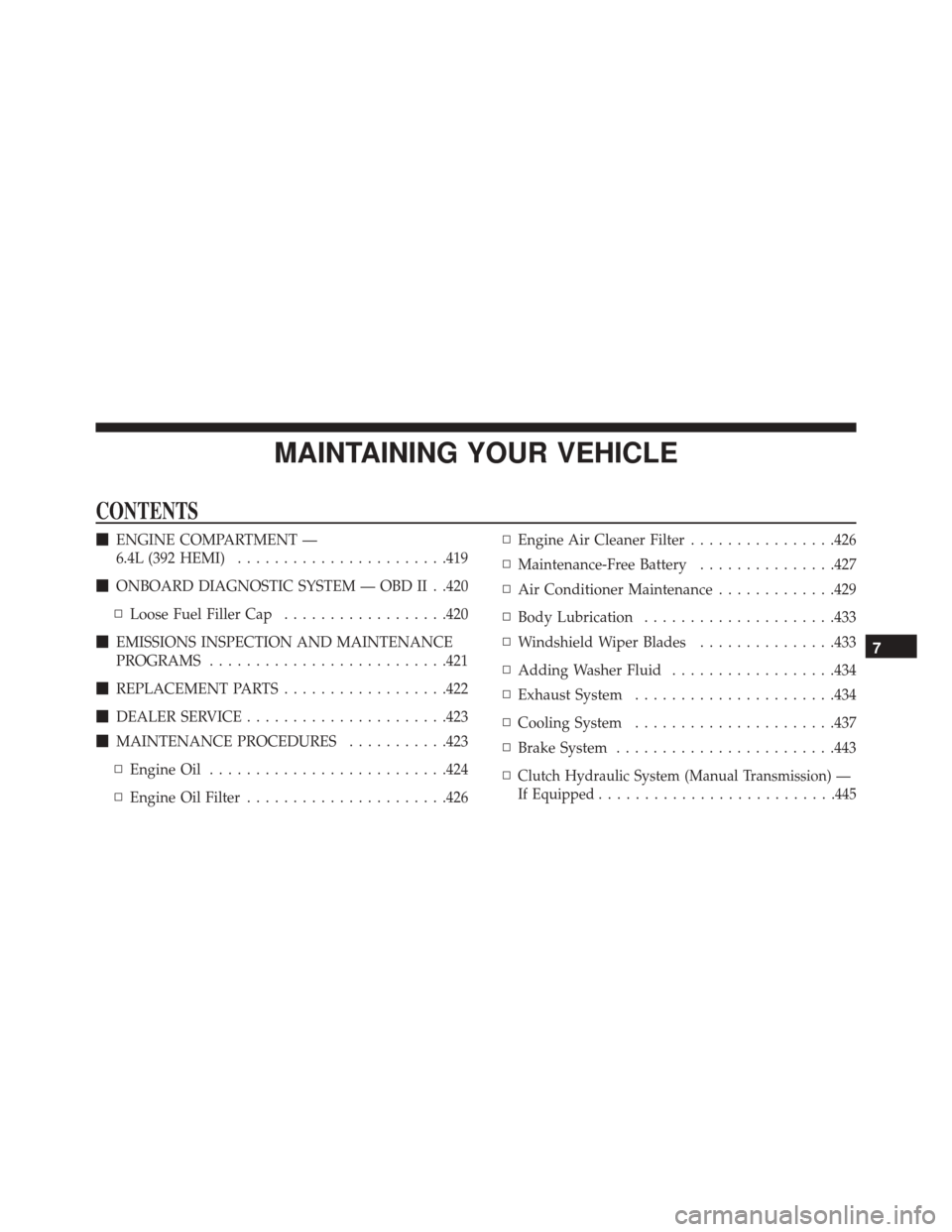

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT —
6.4L (392 HEMI) ...................... .419
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . .420
▫ Loose Fuel Filler Cap ..................420
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS ......................... .421
 REPLACEMENT PARTS ..................422
 DEALER SERVICE ..................... .423
 MAINTENANCE PROCEDURES ...........423
▫ Engine Oil ......................... .424
▫ Engine Oil Filter ..................... .426▫
Engine Air Cleaner Filter ................426
▫ Maintenance-Free Battery ...............427
▫ Air Conditioner Maintenance .............429
▫ Body Lubrication .....................433
▫ Windshield Wiper Blades ...............433
▫ Adding Washer Fluid ..................434
▫ Exhaust System ..................... .434
▫ Cooling System ..................... .437
▫ Brake System ....................... .443
▫
Clutch Hydraulic System (Manual Transmission) —
If Equipped ......................... .445
7

3. Approximately 15 seconds later, one of two things willhappen:
• The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
the ignition or start the engine. This means that your
vehicle’s OBD II system is not readyand you should
not proceed to the I/M station.
• The MIL will not flash at all and will remain fully
illuminated until you turn OFF the ignition or start the
engine. This means that your vehicle’s OBD II system
is ready and you can proceed to the I/M station.
If your OBD II system is not ready,you should see your
authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive your
vehicle as you normally would in order for your OBD II
system to update. A recheck with the above test routine
may then indicate that the system is now ready. Regardless of whether your vehicle’s OBD II system is
ready or not, if the MIL is illuminated during normal
vehicle operation you should have your vehicle serviced
before going to the I/M station. The I/M station can fail
your vehicle because the MIL is on with the engine
running.
REPLACEMENT PARTS
Use of genuine MOPAR® parts for normal/scheduled
maintenance and repairs is highly recommended to en-
sure the designed performance. Damage or failures
caused by the use of non-MOPAR® parts for mainte-
nance and repairs will not be covered by the New Vehicle
Limited Warranty.
422 MAINTAINING YOUR VEHICLE

WARNING!
The air induction system (air cleaner, hoses, etc.) can
provide a measure of protection in the case of engine
backfire. Do not remove the air induction system (air
cleaner, hoses, etc.) unless such removal is necessary
for repair or maintenance. Make sure that no one is
near the engine compartment before starting the
vehicle with the air induction system (air cleaner,
hoses, etc.) removed. Failure to do so can result in
serious personal injury.
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters
varies considerably. Only high quality filters should be
used to assure most efficient service. MOPAR® engine air
cleaner filters are a high quality filter and are recom-
mended.
Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic main-
tenance required.
NOTE:The battery is stored under an access cover in the
trunk. Remote battery terminals are located in the engine
compartment for jump-starting. Refer to “Jump-Starting
Procedures” in “What To Do In Emergencies” for further
information.
7
MAINTAINING YOUR VEHICLE 427

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (e.g., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
Interior Bulbs
Bulb Number
Rear Courtesy/Reading
Lamps W5W
Rear Compartment
(Trunk) Lamp 562
Overhead Console Read-
ing Lamps 578
Visor Vanity Lamps A6220
Glove Box Lamp – If
Equipped 194
Door Courtesy 562
Shift Indicator Lamp JKLE14140
Optional Door Map
Pocket/Cupholder LED (Serviced at
Authorized Dealer)
For lighted switches, see your authorized dealer for
replacement instructions.
464 MAINTAINING YOUR VEHICLE

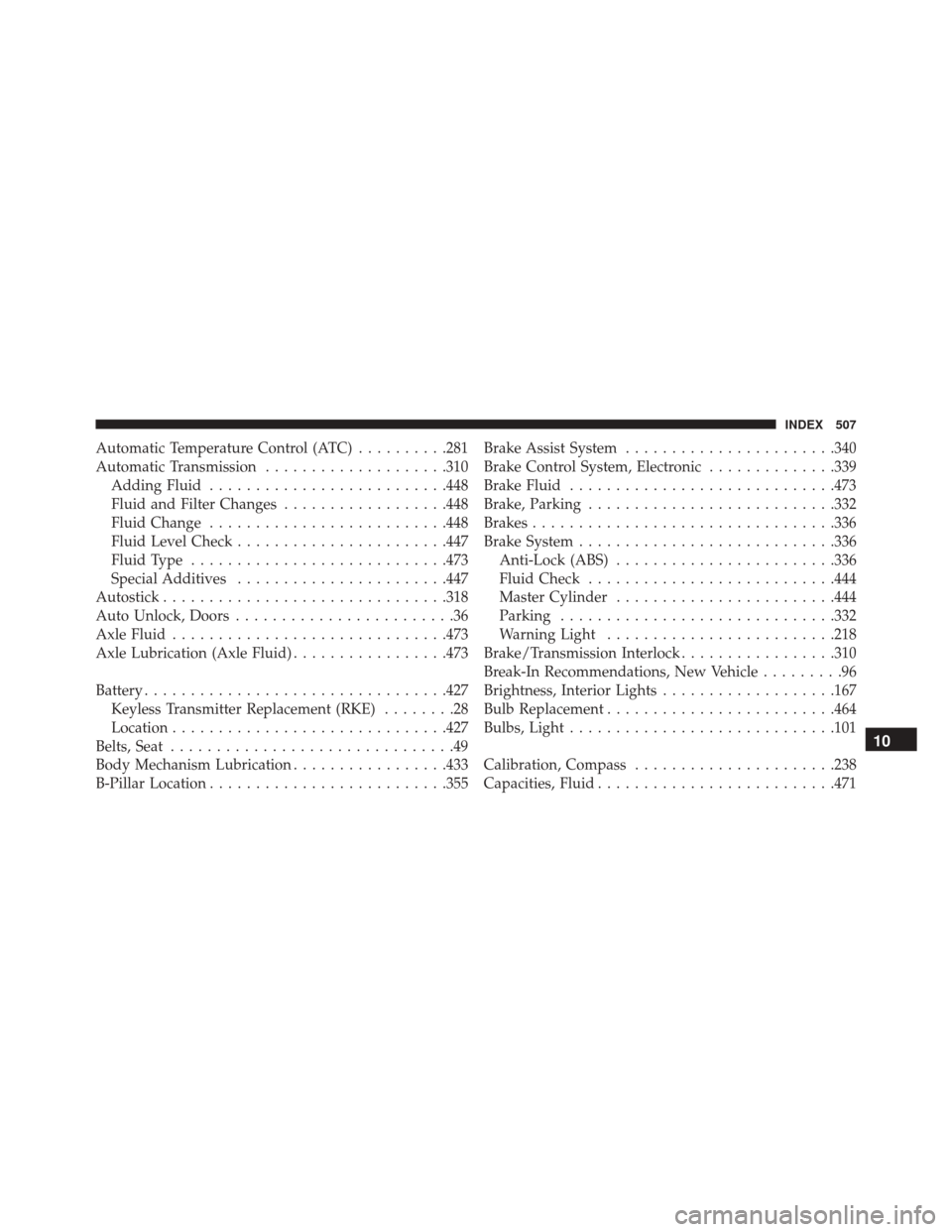

Automatic Temperature Control (ATC)..........281
Automatic Transmission ....................310
Adding Fluid ......................... .448
Fluid and Filter Changes ..................448
Fluid Change ......................... .448
Fluid Level Check ...................... .447
Fluid Type ........................... .473
Special Additives ...................... .447
Autostick .............................. .318
Auto Unlock, Doors ........................36
Axle Fluid ............................. .473
Axle Lubrication (Axle Fluid) .................473
Battery ................................ .427
Keyless Transmitter Replacement (RKE) ........28
Location ............................. .427
Belts, Seat ...............................49
Body Mechanism Lubrication .................433
B-Pillar Location ......................... .355Brake Assist System
...................... .340
Brake Control System, Electronic ..............339
Brake Fluid ............................ .473
Brake, Parking .......................... .332
Brakes ................................ .336
Brake System ........................... .336
Anti-Lock (ABS) ....................... .336
Fluid Check .......................... .444
Master Cylinder ....................... .444
Parking ............................. .332
Warning Light ........................ .218
Brake/Transmission Interlock .................310
Break-In Recommendations, New Vehicle .........96
Brightness, Interior Lights ...................167
Bulb Replacement ........................ .464
Bulbs, Light ............................ .101
Calibration, Compass ..................... .238
Capacities, Fluid ......................... .471
10
INDEX 507
