CAUTION!
Do not use a portable battery booster pack or any
other booster source with a system voltage greater
than 12 Volts or damage to the battery, starter motor,
alternator or electrical system may occur.
WARNING!
Do not attempt jump-starting if the battery is frozen.
It could rupture or explode and cause personal injury.
Preparations For Jump-Start
The battery is stored under an access cover in the trunk.
Remote battery posts are located on the right side of the
engine compartment for jump-starting.
Remote Battery Posts Locations
1 — Remote Positive(+)Post
2 — Remote Negative (-)Post
406 WHAT TO DO IN EMERGENCIES

CAUTION!
Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.
Connecting The Jumper Cables
1. Connect the positive (+)end of the jumper cable to the
remote positive (+)post of the vehicle with the dis-
charged battery.
2. Connect the opposite end of the positive (+)jumper
cable to the positive (+)post of the booster battery.
3. Connect the negative (-)end of the jumper cable to the
negative (-)post of the booster battery. 4. Connect the opposite end of the negative
(-)jumper
cable to the remote negative (-)post of the vehicle with
the discharged battery.
WARNING!
Do not connect the jumper cable to the negative (-)
post of the discharged battery. The resulting electri-
cal spark could cause the battery to explode and
could result in personal injury. Only use the specific
ground point, do not use any other exposed metal
parts.
5. Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes, and then
start the engine in the vehicle with the discharged
battery.
408 WHAT TO DO IN EMERGENCIES

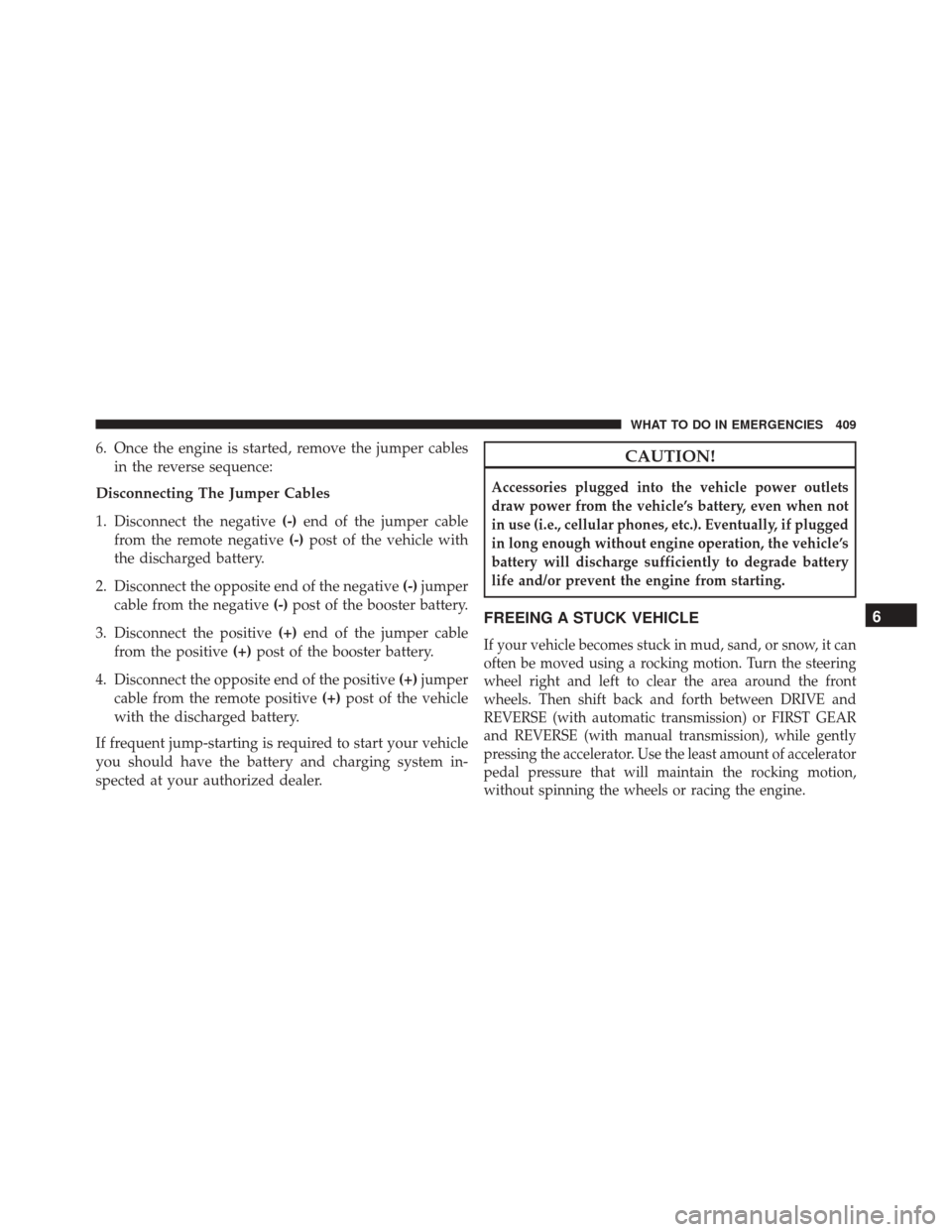

6. Once the engine is started, remove the jumper cablesin the reverse sequence:
Disconnecting The Jumper Cables
1. Disconnect the negative (-)end of the jumper cable
from the remote negative (-)post of the vehicle with
the discharged battery.
2. Disconnect the opposite end of the negative (-)jumper
cable from the negative (-)post of the booster battery.
3. Disconnect the positive (+)end of the jumper cable
from the positive (+)post of the booster battery.
4. Disconnect the opposite end of the positive (+)jumper
cable from the remote positive (+)post of the vehicle
with the discharged battery.
If frequent jump-starting is required to start your vehicle
you should have the battery and charging system in-
spected at your authorized dealer.CAUTION!
Accessories plugged into the vehicle power outlets
draw power from the vehicle’s battery, even when not
in use (i.e., cellular phones, etc.). Eventually, if plugged
in long enough without engine operation, the vehicle’s
battery will discharge sufficiently to degrade battery
life and/or prevent the engine from starting.
FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand, or snow, it can
often be moved using a rocking motion. Turn the steering
wheel right and left to clear the area around the front
wheels. Then shift back and forth between DRIVE and
REVERSE (with automatic transmission) or FIRST GEAR
and REVERSE (with manual transmission), while gently
pressing the accelerator. Use the least amount of accelerator
pedal pressure that will maintain the rocking motion,
without spinning the wheels or racing the engine.
6
WHAT TO DO IN EMERGENCIES 409

ENGINE COMPARTMENT — 6.4L (392 HEMI)
1 — Remote Jump Start (Positive Battery Post)6 — Air Cleaner Filter
2 — Engine Oil Dipstick 7 — Power Steering Fluid Reservoir
3 — Engine Oil Fill 8 — Power Distribution Center (Fuses)
4 — Brake Fluid Reservoir 9 — Washer Fluid Reservoir
5 — Engine Coolant Reservoir
7
MAINTAINING YOUR VEHICLE 419

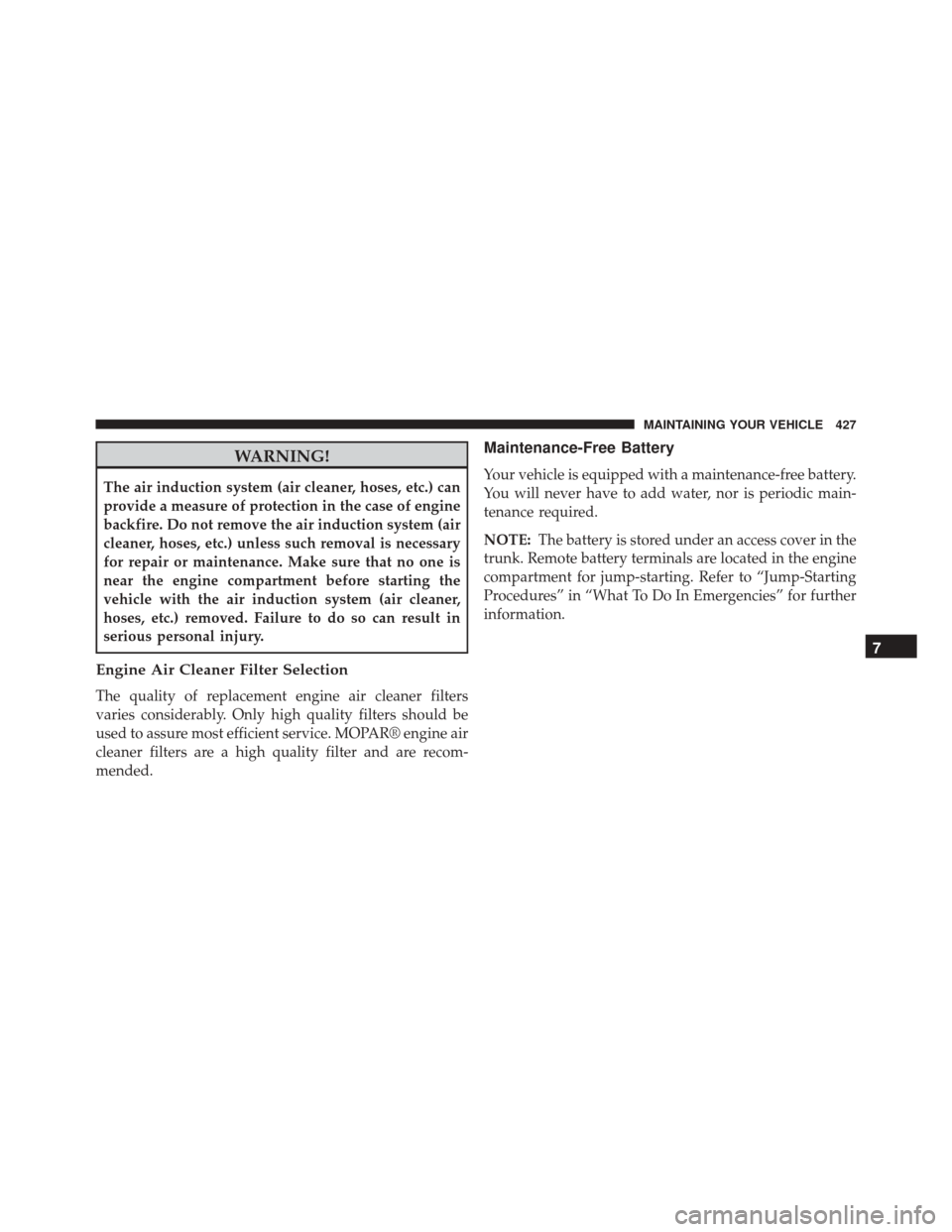

WARNING!
The air induction system (air cleaner, hoses, etc.) can
provide a measure of protection in the case of engine
backfire. Do not remove the air induction system (air
cleaner, hoses, etc.) unless such removal is necessary
for repair or maintenance. Make sure that no one is
near the engine compartment before starting the
vehicle with the air induction system (air cleaner,
hoses, etc.) removed. Failure to do so can result in
serious personal injury.
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters
varies considerably. Only high quality filters should be
used to assure most efficient service. MOPAR® engine air
cleaner filters are a high quality filter and are recom-
mended.
Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic main-
tenance required.
NOTE:The battery is stored under an access cover in the
trunk. Remote battery terminals are located in the engine
compartment for jump-starting. Refer to “Jump-Starting
Procedures” in “What To Do In Emergencies” for further
information.
7
MAINTAINING YOUR VEHICLE 427

KeyFob...............................33
Remote...............................33
Remote Keyless Entry (RKE) ................33
Door Locks, Automatic ......................35
Door Opener, Garage ...................... .186
Driving Through Flowing, Rising, or Shallow Standing
Water ............................... .328
Electrical Power Outlets .....................198
Electric Remote Mirrors .....................110
Electronic Brake Control System ...............339
Anti-Lock Brake System ..................339
Electronic Power Distribution Center (Fuses) ......459
Electronic Speed Control (Cruise Control) ........173
Electronic Stability Control (ESC) ..............343
Electronic Throttle Control Warning Light ........213
Electronic Vehicle Information Center (EVIC) ......223
Emergency Deck Lid Release ..................45Emergency, In Case of
Freeing Vehicle When Stuck ................409
Hazard Warning Flasher ..................392
Jump Starting ......................... .405
Overheating .......................... .392
Towing ............................. .413
Emergency Trunk Release ....................45
Emission Control System Maintenance ..........421
Engine ................................ .419
Air Cleaner .......................... .426
Block Heater ......................... .304
Break-In Recommendations .................96
Checking Oil Level ..................... .424
Compartment ......................... .419
Coolant (Antifreeze) .....................437
Cooling ............................. .437
Exhaust Gas Caution .....................98
Fails to Start .......................... .301
Flooded, Starting ...................... .301
510 INDEX

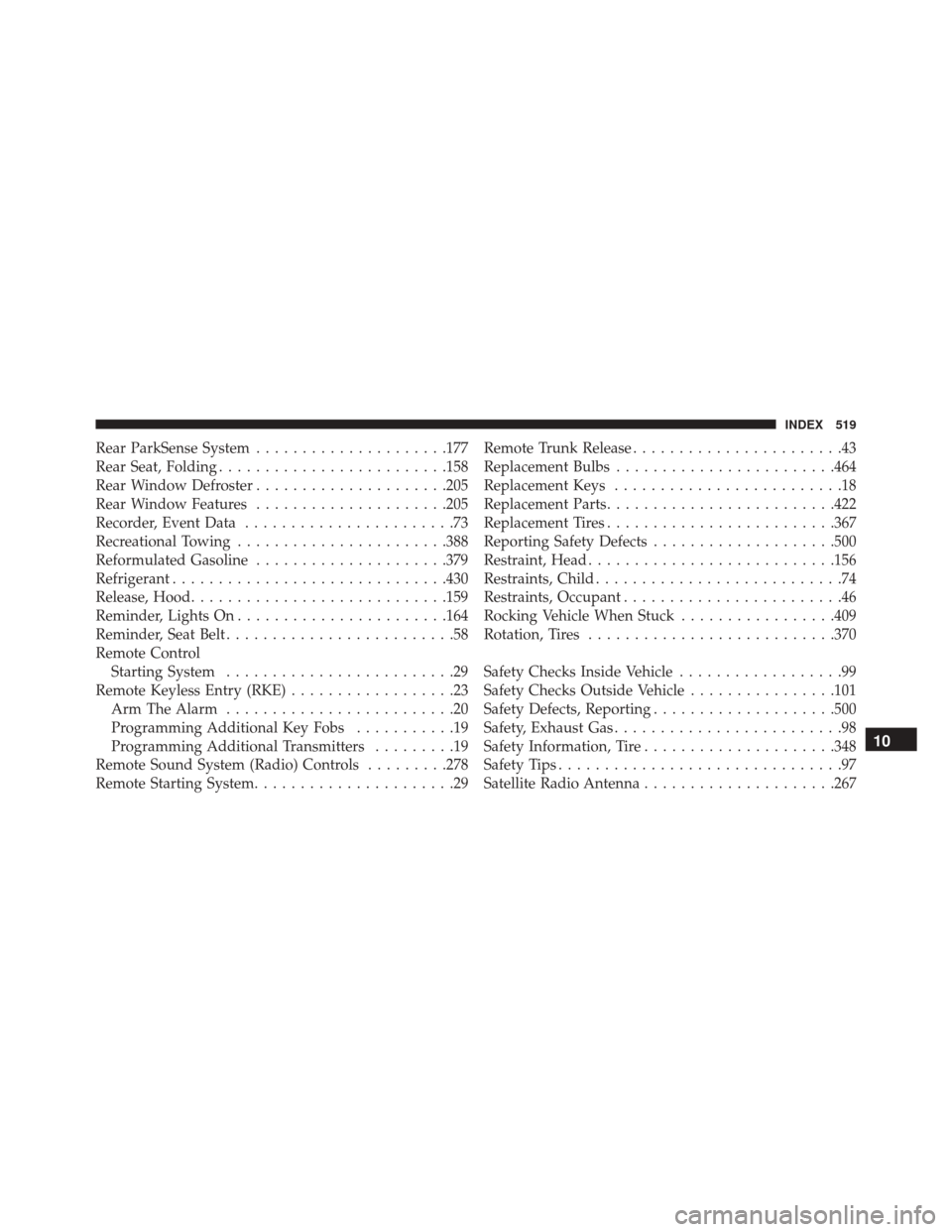

Rear ParkSense System.....................177
Rear Seat, Folding ........................ .158
Rear Window Defroster .....................205
Rear Window Features .....................205
Recorder, Event Data .......................73
Recreational Towing ...................... .388
Reformulated Gasoline .....................379
Refrigerant ............................. .430
Release, Hood ........................... .159
Reminder, Lights On ...................... .164
Reminder, Seat Belt .........................58
Remote Control Starting System .........................29
Remote Keyless Entry (RKE) ..................23
Arm The Alarm .........................20
Programming Additional Key Fobs ...........19
Programming Additional Transmitters .........19
Remote Sound System (Radio) Controls .........278
Remote Starting System ......................29 Remote Trunk Release
.......................43
Replacement Bulbs ....................... .464
Replacement Keys .........................18
Replacement Parts ........................ .422
Replacement Tires ........................ .367
Reporting Safety Defects ....................500
Restraint, Head .......................... .156
Restraints, Child ...........................74
Restraints, Occupant ........................46
Rocking Vehicle When Stuck .................409
Rotation, Tires .......................... .370
Safety Checks Inside Vehicle ..................99
Safety Checks Outside Vehicle ................101
Safety Defects, Reporting ....................500
Safety, Exhaust Gas .........................98
Safety Information, Tire .....................348
Safety Tips ...............................97
Satellite Radio Antenna .....................267
10
INDEX 519

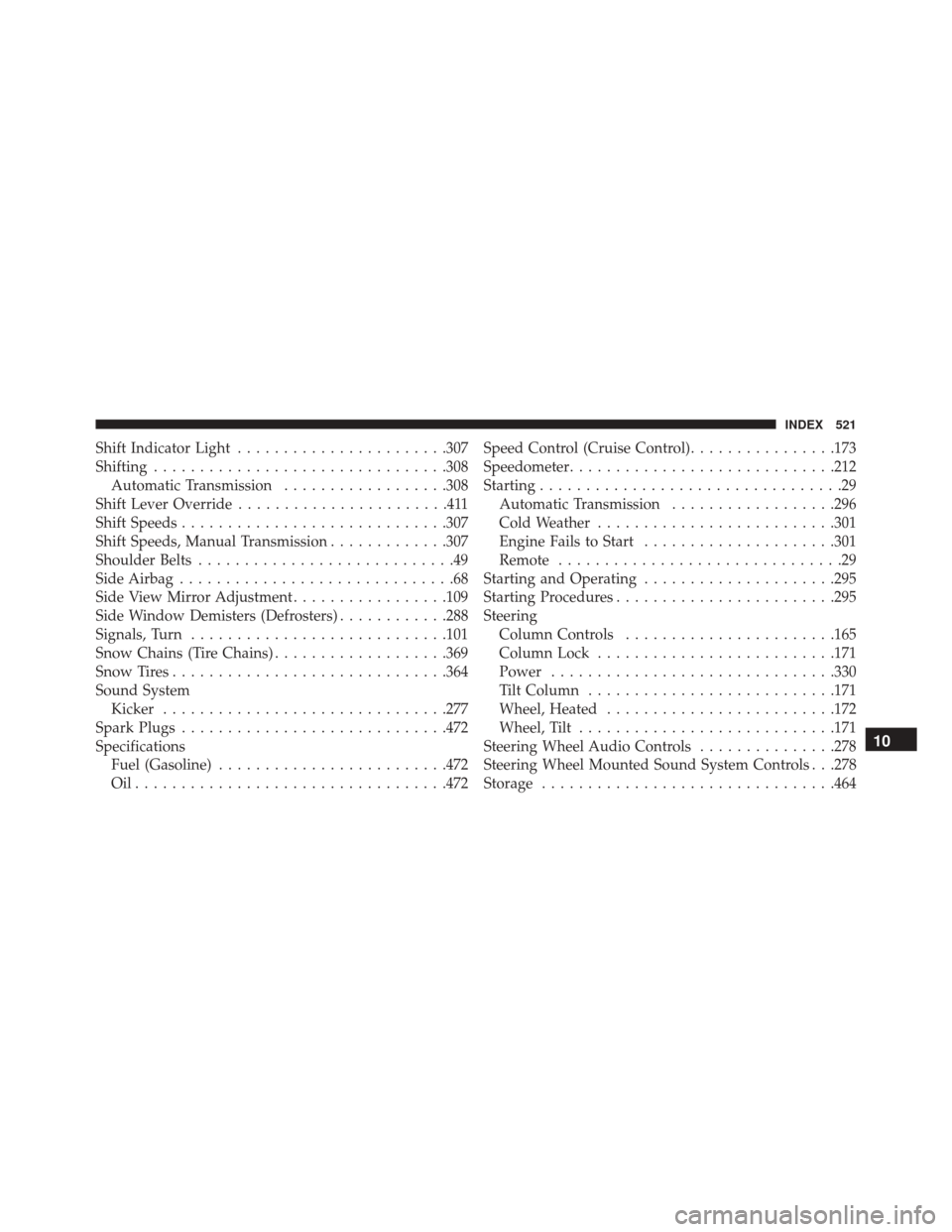

Shift Indicator Light...................... .307
Shifting ............................... .308
Automatic Transmission ..................308
Shift Lever Override .......................411
Shift Speeds ............................ .307
Shift Speeds, Manual Transmission .............307
Shoulder Belts ............................49
Side Airbag ..............................68
Side View Mirror Adjustment .................109
Side Window Demisters (Defrosters) ............288
Signals, Turn ........................... .101
Snow Chains (Tire Chains) ...................369
Snow Tires ............................. .364
Sound System Kicker .............................. .277
Spark Plugs ............................ .472
Specifications Fuel (Gasoline) ........................ .472
Oil................................. .472Speed Control (Cruise Control)
................173
Speedometer ............................ .212
Starting .................................29
Automatic Transmission ..................296
Cold Weather ......................... .301
Engine Fails to Start .....................301
Remote ...............................29
Starting and Operating .....................295
Starting Procedures ....................... .295
Steering Column Controls ...................... .165
Column Lock ......................... .171
Power .............................. .330
Tilt Column .......................... .171
Wheel, Heated ........................ .172
Wheel, Tilt ........................... .171
Steering Wheel Audio Controls ...............278
Steering Wheel Mounted Sound System Controls . . .278
Storage ............................... .464
10
INDEX 521
