REAR HEADRESTS (1/2)
Position for using headrest A
Lift the headrest to maximum height,
then lower it until it locks.
To raise the headrest A
Raise the headrest as far as it will go,
then press tab(s) 1 and remove the
headrest.
The headrest is a safety
component. Ensure that it is
fitted and in the correct po-
sition: the top of your head
should be in line with the top of the
headrest.
11
To put the headrest back in
place A
Insert the rods into the holes, press the
tab(s) 1 and lower the headrest.
Headrest A storage
position B
Press tab 1 and lower the headrest fully.
When the headrest is set at the
lowest position , Bthis is for storage
only: it should not be in this position
when a seat is occupied.
AAA
BBB
AA

JauneNoir Noir texte
3.18
ENG_UD28017_3
Appuis-tête arrière (X92 - Renault)
ENG_NU_975-6_X92_Dacia_3

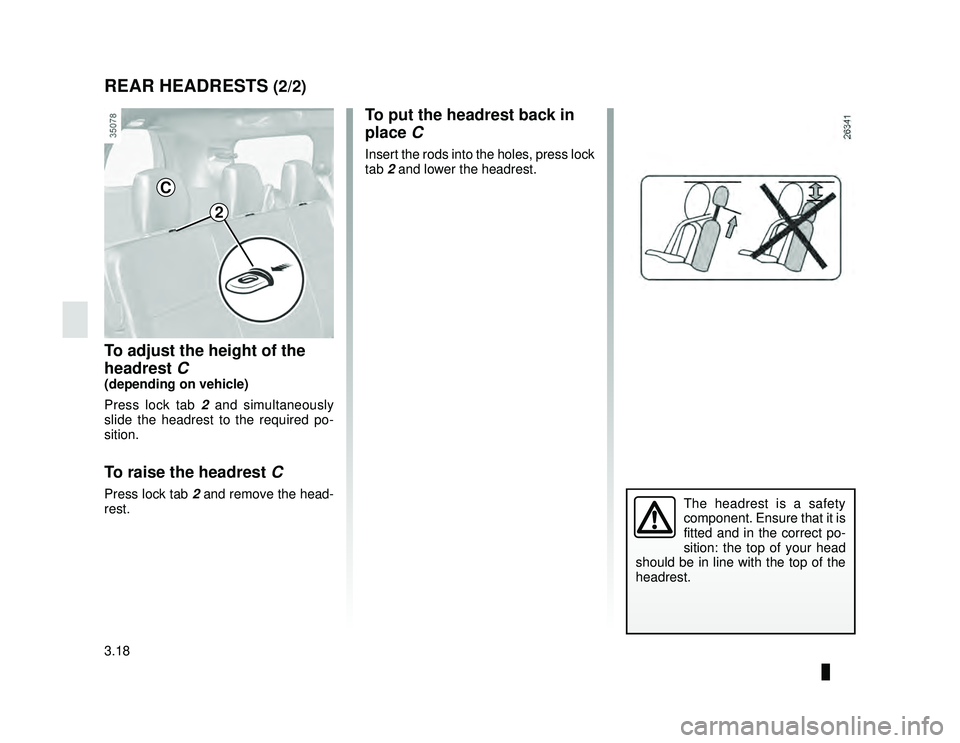

To adjust the height of the
headrest C
(depending on vehicle)
Press lock tab 2 and simultaneously
slide the headrest to the required po-
sition.
To raise the headrest C
Press lock tab 2 and remove the head-
rest.
To put the headrest back in
place C
Insert the rods into the holes, press lock
tab 2 and lower the headrest.
The headrest is a safety
component. Ensure that it is
fitted and in the correct po-
sition: the top of your head
should be in line with the top of the
headrest.
REAR HEADRESTS (2/2)
C
2

JauneNoir Noir texte
3.20
ENG_UD26885_2
Sièges arrière de deuxième rangée: fonctionnalité (X92 -\
Renault)
ENG_NU_975-6_X92_Dacia_3
Rear bench seat with folding
seat back and seat cushion
To fold down the seat A or bench
seat B
– Bring the front seats forward;
– insert the rear seatbelt buckle in housing 1;
– lower the headrests (refer to the in- formation on the “Rear headrests” in
Section 3);
– lower handle 2;
– lower the seatback onto the seat base;
– raise the seat until vertical;
– adjust the front seats, making sure they are properly locked in place. To reposition the seat
A or bench
seat B
– Lower the bench seat until it locks in position;
– Fold the seatbacks up again;
– make sure that the seat bases and seatbacks lock into position cor-
rectly.When moving the rear
seats, check that the an-
choring points are clean
(they must be free from grit,
cloths, toys, etc.)
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
2
A
B
REAR SEAT FUNCTIONS: second row (2/3)
A
B
1

JauneNoir Noir texte
3.21
ENG_UD26885_2
Sièges arrière de deuxième rangée: fonctionnalité (X92 -\
Renault)
ENG_NU_975-6_X92_Dacia_3
REAR SEAT FUNCTIONS: second row (3/3)
Accessing the third row rear
seats
– Lower handle 2;
– lower the seatback onto the seat base;
– raise the seat until vertical.
To put the seat back into its initial po-
sition, perform the same procedure in
reverse.Restriction of use
If a passenger is occupying one of
the second row seats, do not drive
with the other second row seat
folded down.
Make sure that the seat-
back is correctly locked. If
necessary, remove any ob-
stacles behind the seats.
Repeat the above until the seat is
locked correctly.To avoid all risk of injury,
ensure that nobody is close
to the moving parts.
2
When refitting the seat-
back, make sure it is cor-
rectly locked in place.
If seat covers are fitted ,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.

JauneNoir Noir texte
3.22
ENG_UD34862_4
Sièges arrière de troisième rangée: fonctionnalité (X92 \
- Renault)
ENG_NU_975-6_X92_Dacia_3
REAR SEAT FUNCTIONS: third row (1/3)
The third row rear seats can be folded
down or removed for transporting bulky
objects.To fold down the seats
– Ensure that the rear seat belts are
correctly positioned on the hooks 1;
– lower the headrests (refer to the in- formation on the “Rear headrests” in
Section 3);
– unlock controls 2, press on the
middle of the seat backs and lower
the seatbacks onto the base;
– pull the strap 3 to release the bench
seat and lift the seat base until it is
vertical.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
1
Ensure that the strap 3 is securely
fixed in its meal ring 4 . Risk of
damage.
3
2
3
4

JauneNoir Noir texte
3.24
ENG_UD34862_4
Sièges arrière de troisième rangée: fonctionnalité (X92 \
- Renault)
ENG_NU_975-6_X92_Dacia_3
To remove the seats
– Ensure that the rear seat belts are
correctly positioned on the hooks 1;
– lower the headrests (refer to the in- formation on the “Rear headrests” in
Section 3);
– unlock controls 2, press on the
middle of the seat backs and lower
the seatbacks onto the base;
– pull strap 3 to release and lift the
seat base until it is vertical;
– unlock controls 6;
– lift the seats to either remove them or to group them together with the
second row.
To install seats
– Ensure that the rear seat belts are correctly positioned on the hooks 1;
– reposition the seats with the roof hooks 7;
– Lower the seat base until it locks in position;
– unlock controls 2 and raise the seat backs using strap 5;
– Make sure that the seat base and seatbacks lock into position cor-
rectly.
3
3
Ensure that the strap 3 is securely
fixed in its meal ring 4 . Risk of
damage.
4
7
6
When moving the rear
seats, check that the an-
choring points are clean
(they must be free from grit,
cloths, toys, etc.)
2
11
REAR SEAT FUNCTIONS: third row (3/3)
5

JauneNoir Noir texte
3.26
ENG_UD26647_2
Mise en cinéma des sièges arrière (X92 - Renault)
ENG_NU_975-6_X92_Dacia_3
REAR SEAT FUNCTIONS: grouping of seats (2/3)
To group together the two
rows of rear seats
Fold down the second row rear seats.
Refer to the information on the “Second
row rear seats” in Section 3.
Remove the third row rear seats Refer
to the information on the “Third row rear
seats” in Section 3.
Return the third row rear seats (seat
forwards and headrest upwards).
Position them against the second row
rear seats, with the hook 1 on the bar 2.
Fold down the third row rear seats
against the second row rear seats.Take the adjustable attachment straps
3
out of the storage pockets 5 and pass
them around the front headrest rods 4.
Pull on the attachment straps 3 to
ensure everything is attached.
For safety reasons, carry
out any adjustments when
the vehicle is stationary.
The third row bench seat
is quite heavy. For your own safety,
please handle carefully.
1
2
3
5
4

JauneNoir Noir texte
3.27
ENG_UD26647_2
Mise en cinéma des sièges arrière (X92 - Renault)
ENG_NU_975-6_X92_Dacia_3
REAR SEAT FUNCTIONS: grouping of seats (3/3)
To reposition the seats
Loosen and remove the attachment
straps 3 from the front headrest and
store them in the storage pockets 5.
Lift and release the third row rear seats.
Return the third row rear seats (seat
downwards, headrest upwards) and
bring them back towards the rear. Replace the third row rear seats in po-
sition. Refer to the information on the
“Third row rear seats” in Section 3.
Reposition the second row rear seats.
Refer to the information on the “Second
row rear seats” in Section 3.
For safety reasons, carry
out any adjustments when
the vehicle is stationary.
The third row bench seat
is quite heavy. For your own safety,
please handle carefully.
3
5
