Dispositifs complémentaires aux ceintures avant (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_1
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (2/3)
Driver’s and passenger air
bags
These may be fitted to the front seats
on the driver and passenger side (loca-
tion A).
Each air bag system consists of:
– an air bag and gas generator fitted on the steering wheel for the driver
and in the dashboard for the front
passenger;
– an electronic unit for system monitor- ing which controls the gas generator
electrical trigger system;
– a special warning light
å;
– remote sensors.
The air bag system uses
pyrotechnic principles. This
explains why, when the air
bag inflates, it will gener-
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a noise upon detonation.
An air bag may inflate immediately,
causing some minor, superficial
grazing to the skin or other discom-
fort.
Operation
This system is only operational when
the ignition is switched on.
If a severe frontal impact occurs, the
air bag(s) inflate(s) rapidly, cushion-
ing the impact of the driver’s head and
chest against the steering wheel and
the front passenger’s head against the
dashboard. The air bag then deflates
immediately so that the passengers are
not impeded in any way when they get
out of the vehicle.
A

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.22
ENG_UD32115_1
Dispositifs complémentaires aux ceintures avant (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_1
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (3/3)
Warnings concerning the driver’s air bag
– Do not modify the steering wheel or the steering wheel boss.
– Do not cover the steering wheel boss under any circumstances.
– Do not attach any objects (badge, logo, clock, telephone holder, etc.) to the steering wheel boss.
– You must not remove the steering wheel (such work must only be performed\
by trained personnel from our Network).
– When driving, do not sit too close to the steering wheel. Sit with your \
arms slightly bent (see the information on “Adjusting
your driving position” in Section 1). This will allow sufficient space for the air bag to inflate properly and be fully effective.
Warnings concerning the passenger air bag
– Do not attach or glue any objects (badge, logo, clock, telephone holder, etc.) to the dashboard in the proximity of the air b ag
housing.
– Do not place anything between the dashboard and the passenger (pet, umb\
rella, walking stick, parcels, etc.).
– The passenger must not put his or her feet on the dashboard or seat as t\
here is a risk that serious injuries may occur. In general, all parts of the body should be kept away from the dashboard (\
knees, hands, head etc.).
– You should reactivate the passenger air bag as soon as you remove the chi\
ld seat to ensure the protection of the front pas- senger in the event of an impact.
A REAR-FACING CHILD SEAT MUST NOT BE FITTED TO THE FRONT PASSENGER SEAT UNLESS THE RESTRAINT SYSTEMS IN ADDITION TO THE SEAT BELT, I.E. AIR BAG, ARE DEACTIVATED.
(refer to the information on “Child safety: deactivating/activating \
the front passenger air bag” in Section 1)
All of the warnings below are given so that the air bag is not obstructe\
d in any way when it is deployed and also to pre-
vent the risk of serious injuries caused by items which may be dislodged\
when the air bag deploys.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.37
ENG_UD35621_2
Sécurité enfants : désactivation/activation airbag passager ava\
nt (H79 Ph2 - H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_1
DANGER
Since front passenger
airbag triggering and the po-
sition of a rear-facing child
seat are incompatible, NEVER use a
restraining device for rear-facing chil-
dren on a seat with an ACTIVATED
AIRBAG in front of it. This provides a
risk of DEATH or SERIOUS INJURY to the CHILD.
CHILD SAFETY: deactivating/activating the front passenger air bag (2/3)
The markings on the dashboard and
labels A on each side of passenger sun
blind 3 (example: labels shown above)
remind you of these instructions.
A
3
A
A

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.6
ENG_UD32151_1
Chauffage - Ventilation - Air conditionné (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_3
HEATING, VENTILATION, AIR CONDITIONING (3/3)
2
Distribution of air in the
passenger compartment
Turn control 1 to choose the distribution
option.
JAll the air flow is directed to the
dashboard vents.
GThe air flow is directed towards
the dashboard vents and the
footwells.
FThe air flow is mainly distrib-
uted between the front and
rear footwells and the dashboard vents.
Close the dashboard vents to direct all
the air to the foot wells.
iThe air flow is distributed be-
tween all the air vents, the
front side window demisting air vents,
the windscreen demisting vents and the
footwells.
WAll the air is then directed to
the windscreen and front side
window demisting vents.
Switching air conditioning on
or off
The air conditioning is switched on (in-
dicator light illuminated) or off (indicator
light extinguished) using button 2.
Activation is not possible if control 3 is
set to 0.
The air conditioning system is used
for:
– lower the temperature inside the passenger compartment;
– eliminate condensation more quickly.
The air conditioning does not operate
when the exterior temperature is low.
Fuel consumption increases when
the air conditioning is being used
(switch it off when it is not required).
13

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.17
ENG_UD34147_2
Rangements / aménagements habitacle (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_3

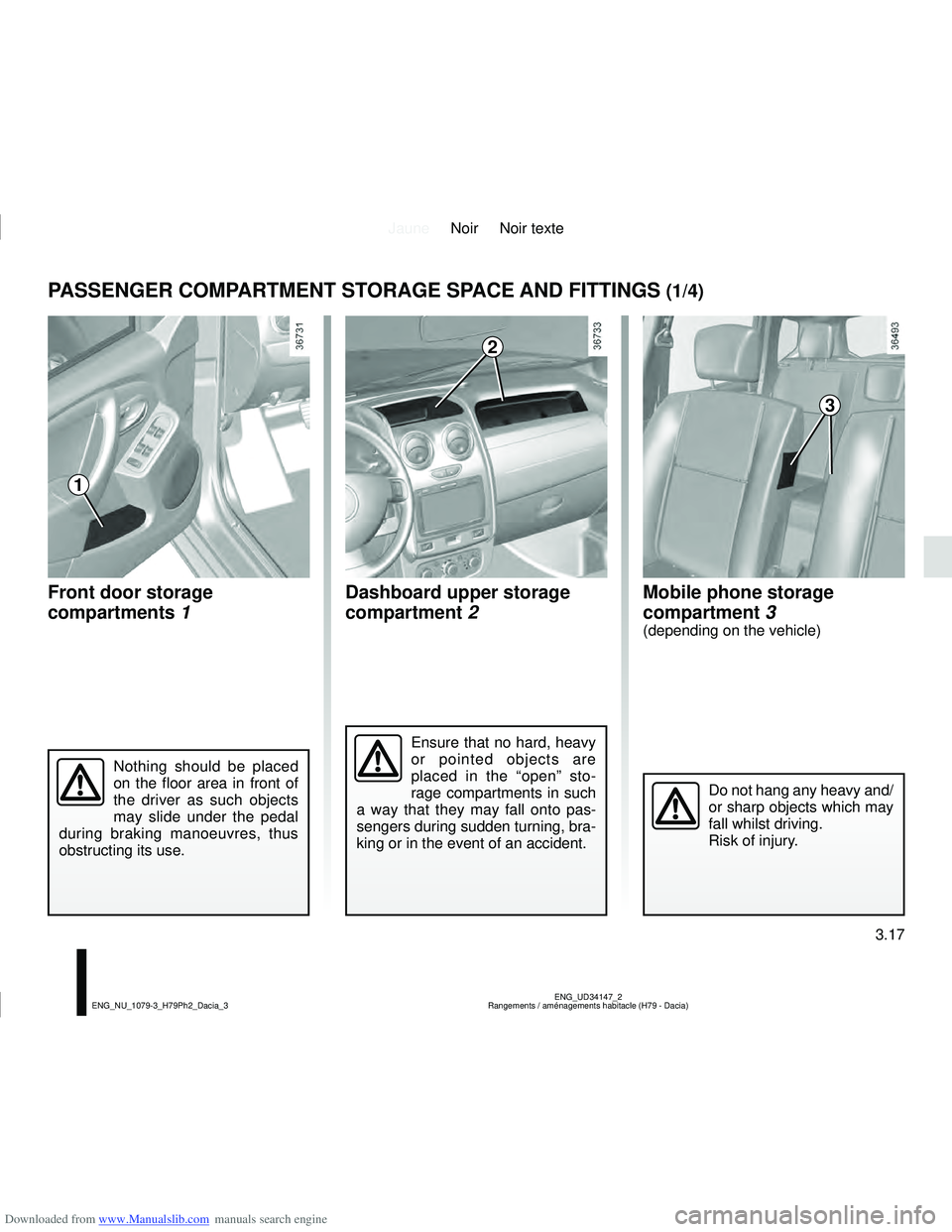

Dashboard upper storage
compartment 2
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (1/4)
Front door storage
compartments 1
Ensure that no hard, heavy
or pointed objects are
placed in the “open” sto-
rage compartments in such
a way that they may fall onto pas-
sengers during sudden turning, bra-
king or in the event of an accident.
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
1
2
Mobile phone storage
compartment 3
(depending on the vehicle)
Do not hang any heavy and/
or sharp objects which may
fall whilst driving.
Risk of injury.
3

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
4.16
ENG_UD22866_8
Entretien des garnitures intérieures (X35 - X45 - X65 - J77 - X81 - \
J81 - X85 - X91 - B91 - K91 - D91 - X83 - X61 - X77 ph2 - X95 - B95 - D95 - E95 - K95 - J95 - R95 -
ENG_NU_1079-3_H79Ph2_Dacia_4
You are strongly recom-
mended not to use high-
pressure or spray cleaning
equipment inside the pas-
senger compartment: use of such
equipment could impair the correct
functioning of the electrical or elec-
tronic components in the vehicle, or
have other detrimental effects.
INTERIOR TRIM MAINTENANCE (2/2)
You should not:
You are strongly advised not to po-
sition objects such as deodorants,
scents, etc. near air vents, as this could
damage your dashboard trim.
Removal/replacing removable
equipment originally fitted in
the vehicle
If you need to remove equipment in
order to clean the passenger com-
partment (for example, mats), always
ensure that they are correctly refitted
and are the right way around (the driv-
er’s mat should be fitted on the driver’s
side, etc.) and fit them with the compo-
nents supplied with the equipment (for
example, the driver mat should always
be fixed using the pre-fitted mounting
components).
With the vehicle stationary, ensure that
nothing will impede driving (anything
obstructing the pedals, heel wedged by
the mat, etc.).

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.8
ENG_UD32703_1
Kit de gonflage des pneumatiques (H79 Ph2 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_5
TYRE INFLATION KIT (4/4)
Once the tyre is correctly inflated,
remove the kit: slowly unscrew the in-
flation adapter 1 to prevent any repair
product from escaping and store the
container in plastic packaging to pre-
vent the product from escaping.
– Affix the driving recommendation label to the dashboard where it can
easily be seen by the driver;
– Put the kit away.
– At the end of this initial inflation ope- ration, air will still escape from the
tyre. You must drive a short distance
in order to seal the hole.
– Start immediately and drive at between 12 and 40 mph (20 and
60 km/h) in order to distribute the
product evenly in the tyre and, after
driving for 2 miles (3 km), stop and
check the pressure.
– If the pressure is greater than 1.3 bar but less than the recommended
pressure (refer to the label affixed to
the edge of the driver’s door), read-
just it. Otherwise, please contact an
authorised dealer: the tyre cannot be
repaired.
Precautions when using the
kit
The kit should not be operated for more
than 15 consecutive minutes.
1
Following repair with the kit,
do not travel further than
120 miles (200 km). In addi-
tion, reduce your speed and
under no circumstances exceed
48 mph (80 km/h). The sticker,
which you must affix in a prominent
position on the dashboard, reminds
you of this.
Depending on the country or local
legislation, a tyre repaired with the
inflation kit may need to be replaced.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
7.1
FRA_UD35449_5
Index (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_7
ALPHABETICAL INDEX (1/5)
A
ABS ....................................................................\
...2.24 → 2.27
accessories.............................................................\
........... 5.43
accessories socket ............................................................ 3.15
adjusting your driving position ...............................1.15 → 1.19
advice on antipollution ....................................................... 2.14
air bag.................................................................\
...1.20 → 1.24
deactivating the front passenger air bags .................... 1.36
air conditioning ..........................................................3.2 → 3.8
air vents ...................................................................... 3.2 – 3.3
anti-corrosion check ..............................................6.15 → 6.19
anti-corrosion protection .................................................... 4.13
anti-lock braking system: ABS ...............................2.24 → 2.27
antipollution advice .................................................................\
......... 2.14
armrest ................................................................\
.............. 3.20
ashtrays ........................................................................\
..... 3.15
automatic gearbox (use) ...............................2.35 → 2.37, 5.41
automatic gearbox selector lever...........................2.35 → 2.37
B
battery.................................................................\
............... 4.12 troubleshooting ................................................. 5.35 – 5.36
battery (remote control) ..................................................... 5.37
bonnet..................................................................\
................ 4.2
brake fluid ........................................................................\
.... 4.7
bulbs changing ..........................................................5.15 \
→ 5.28
C
capacity of mechanical components........................... 4.3, 4.12
catalytic converter.....................................................\
........... 2.4
central door locking ...................................................1.5 → 1.7
changing a bulb .....................................................5.15 → 5.28
changing a wheel.................................................... 5.10 – 5.11
changing fuel while driving ........................................2.6 → 2.8changing gear ...............................................2.19, 2.35
→ 2.37
child booster seat ..................................................1.25 → 1.27
child restraint/seat .................................................1.25 → 1.35
child safety................ 1.2, 1.9 – 1.10, 1.25 → 1.35, 3.9 → 3.11
child seats.............................................................\
.1.25 → 1.35
children ....................................................1.5 → 1.7, 1.9 – 1.10
children (safety) ....................................................... 3.9 → 3.11
cigar lighter ................................................................\
........ 3.15
cleaning: inside the vehicle .............................................. 4.15 – 4.16
clock ........................................................................\
.......... 1.61
closing the doors ...................................................... 1.9 – 1.10
control instruments ...... 1.44 → 1.53, 1.52 → 1.59, 1.64 – 1.65
controls ..................................................................1.40 → 1.43
courtesy light .......................................................... 3.12 – 3.13
cruise control .........................................................2.31 → 2.34
cruise control-speed limiter....................................2.28 → 2.34
D
dashboard..............................................................1\
.40 → 1.43
dimensions .............................................................\
............. 6.5
dipstick................................................................\
................. 4.3
doors...................................................................\
.....1.5 → 1.10
driver’s position .....................................................1.40 → 1.43
driving .............................. 2.2 → 2.5, 2.9 → 2.13, 2.19 → 2.39
E
ECO driving ....................................... 1.44 → 1.50, 2.9 → 2.13
electric beam height adjustment ............................. 1.66 – 1.67
electric door locking ...................................................1.5 → 1.7
electric windows ...................................................... 3.9 → 3.11
electronic stability control: ESC .............................2.24 → 2.27
emergency brake assist.........................................2.24 → 2.27
emergency braking ................................................2.24 → 2.27
emergency spare wheel ........................5.3 – 5.4, 5.12 → 5.14
