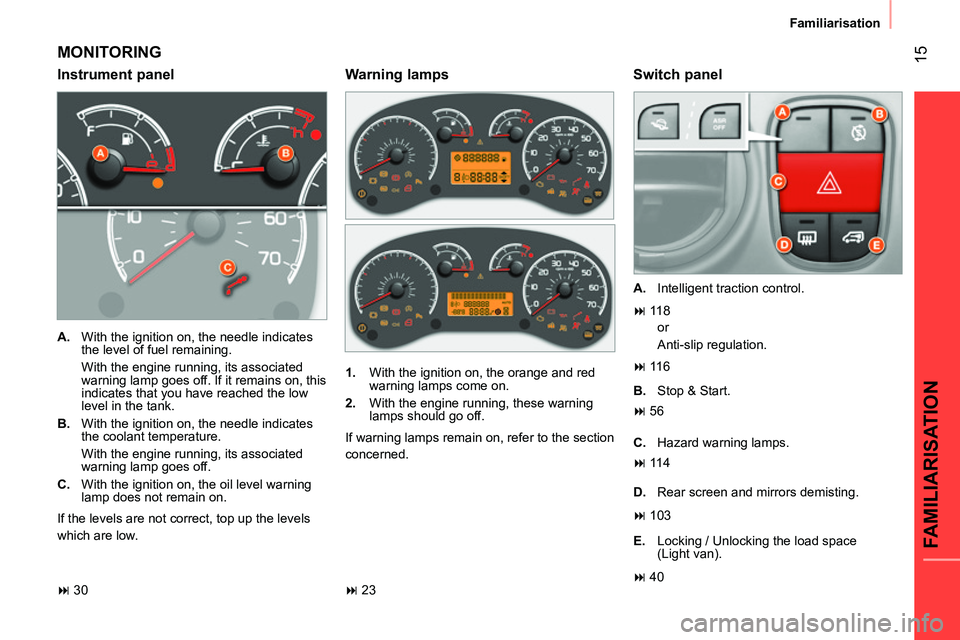

Instrument panel
Switch panel



A.
With the ignition on, the needle indicates
the level of fuel remaining.
With the engine running, its associated
warning lamp goes off. If it remains on, this
indicates that you have reached the low
level in the tank.

B.
With the ignition on, the needle indicates
the coolant temperature.
With the engine running, its associated
warning lamp goes off.

C.
With the ignition on, the oil level warning
lamp does not remain on.
If the levels are not correct, top up the levels
which are low.

A.
Intelligent traction control.


1.
With the ignition on, the orange and red
warning lamps come on.

2.
With the engine running, these warning
lamps should go off.
If warning lamps remain on, refer to the section
concerned.


Warning lamps
or
Anti-slip regulation.

B.
Stop & Start.

C.
Hazard warning lamps.

D.
Rear screen and mirrors demisting.

E.
Locking / Unlocking the load space
(Light van).

 30 23 11 8
 11 6
 56
 11 4
 103
 40

23
1
READY TO GO



Instruments and controls


WARNING LAMPS

Each time the engine is started: a series of warning lamps comes on applying a self-checking test. They go off almost immediately. When
the engine is running: the warning lamp becomes a warning sign if it remains on continuously or flashes. This initial warning may be
accompanied by an audible signal and a message in the screen. "Do not ignore these warnings."

Warning lamp


is
indicates
Solution - action
Service on temporarily. minor faults. Contact a CITROËN dealer or a qualified
workshop.
continuously on,
accompanied by a
message in the screen. major faults. Make a note of the warning message and contact
a CITROËN dealer or qualifi ed workshop.
Parking brake
Brake fluid level on.

that the parking brake is applied or
has not been released correctly. Releasing the parking brake switches off the
warning lamp.
on. that the fluid level is too
low. Top up using a fluid recommended by CITROËN
dealers.
continuously on, even
though the level is
correct.
Stop as soon as it is safe to do so, park,
switch off the ignition and contact a
CITROËN dealer or qualified workshop.
Low engine oil level on. that the level of oil in the
engine is too low. Check the engine oil level and contact a
CITROËN dealer or a qualified workshop.
continuously on, even
though the level is correct.
Stop as soon as it is safe to do so, park,
switch off the ignition and contact a
CITROËN dealer or a qualified workshop.
Coolant temperature on with the needle in
the red zone. an abnormal increase. Park and switch off the ignition, allow the system
to cool. Visually check the level.
on H in the red zone. an abnormal increase in
the coolant temperature. Refer to the "Levels" section of chapter 7.
Contact a CITROËN dealer or a qualified
workshop.

30
Instruments and controls

FUEL GAUGE

The fuel level is tested each time the key is
turned to the "ignition on" position.
The gauge is positioned on:


- f
(full):
the capacity of the fuel tank is
approximately 45 litres
.

- e
(empty):
the reserve is now being
used, the warning lamp comes on
continuously.
The reserve when the warning first comes
on is approximately 6 litres.

COOLANT TEMPERATURE


The needle is positioned between
c
(cold)
and
h
(hot):
normal operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations.
- wait approximately 15 minutes to allow
the engine to cool down in order to check
the level and top it up if necessary. The
cooling system is pressurised. In order to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure to
drop.
When the pressure has dropped, check the
level and remove the cap to top up.
If the needle remains in the red zone,
contact a CITROËN or a qualified workshop. EMISSION CONTROL

EOBD (European On Board Diagnosis) is a
diagnostics system which meets the exhaust
emissions standards for:


- CO (carbon monoxide),

- HC (unburnt hydrocarbons),

- NOx (nitrous oxides) or particles detected
by oxygen sensors placed upstream and
downstream of the catalytic converters.
Refer to the "Levels" section of
chapter 7. Refer to the "Levels" section of
chapter 7.
The driver is warned of any
fault with this emission control
system by flashing of this specific
warning lamp in the instrument
panel.
What you should do if the needle
enters the red zone, or if the warning
lamp comes on:


- stop immediately, switch off the ignition.
The cooling fan may continue to operate
for a certain time up to approximately
10 minutes.

137
6
ACCESSORIES



Towing a trailer


TOWING A TRAILER, CARAVAN, ETC...


Driving advice

As the fan is electrically controlled, its
cooling capacity is not dependent on the
engine speed.
On the contrary, use a high gear to lower the
engine speed and reduce your speed. In all cases, pay attention to the coolant
temperature. A towed vehicle must free wheel: gearbox in
neutral.

Cooling:
towing a trailer on a slope
increases the coolant temperature.

138
Towing a trailer

In certain cases of particularly arduous
use (towing the maximum load up a steep
slope in high temperatures), the engine
automatically limits its power. In this case,
automatic cutting off of the air conditioning
allows the engine power to be saved.
If the coolant temperature
warning lamp comes on, stop the
vehicle and switch off the engine
as soon as possible.
See the "Levels" section of chapter 7.

Tyres:
check the tyre pressures of the
towing vehicle (see the "Identification
markings" section of chapter 7) and of
the trailer, observing the recommended
pressures.

Brakes:
towing increases the braking
distance. Drive at a moderate speed,
change down early and brake gradually.
Side wind:
sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.

ABS:
the system only controls the vehicle,
not the trailer.

Rear parking sensors:
the sensors
will be deactivated automatically
when an genuine CITROËN towbar is used
(see the "Rear parking sensors" section of
chapter 3).

Towbar

We recommend the use of genuine
CITROËN towbars and their harnesses,
which have been tested and approved from
the design stage of your vehicle, and that
the fitting of this equipment is entrusted to a
CITROËN dealer or a qualified workshop.
If this equipment is not fitted by a CITROËN
dealer, it is essential that it is fitted using
the electrical pre-equipment located at
the rear of the vehicle and following the
manufacturer's instructions.
The operation of the rear parking sensors is
deactivated automatically when the trailer
cable connector is inserted in the towbar
socket.
When the trailer cable is removed, the rear
parking sensors are re-activated.
Distribution of loads
Distribute the load in the trailer so that the
heaviest objects are as close as possible
to the axle and the nose weight is close to
the maximum authorised without, however,
exceeding it. The air density decreases with
altitude, so reducing the performance of
the engine. The maximum towed load must
be reduced by 10 % for each 1 000 metres
of altitude. Refer to the "Technical data"
chapter for details of the weights and
towed loads applicable to your vehicle
and also to the administrative documents
(V5 registration document, ...).

167
7
QUICK HELP



Under the bonnet



Diesel engine
UNDER THE BONNET




1. Screenwash reservoir.

2. Fusebox.

3. Engine coolant header tank.

4. Brake and clutch fluid reservoir.

5. Air filter.

6. Dipstick.

7. Engine oil filler cap.

8. Power steering fluid reservoir.

168
Under the bonnet


Petrol engine

UNDER THE BONNET




1. Screenwash reservoir.

2. Fusebox.

3. Engine coolant header tank.

4. Brake and clutch fluid reservoir.

5. Air filter.

6. Dipstick.

7. Engine oil filler cap.

8. Power steering fluid reservoir.
