4

Familiarisation

EXTERIOR


Roof rack and roof bars
Fixing points are provided on each side of the
roof for securing the roof rack or the transverse
roof bars.

Opening the hinged rear doors to 180°
Once the vehicle has been unlocked, the
hinged rear doors can be opened to 180° to
make unloading / loading operations easier.
Rear parking sensors
This system warns you, by means of an
audible signal, if an obstacle is detected
behind the vehicle when reverse gear is
engaged.


Stop & Start
This system puts the engine temporarily into standby during stops
in the traffi c (red lights, traffi c jams, etc...). The engine restarts
automatically as soon as you want to move off. Stop & Start
reduces fuel consumption and exhaust emissions, and gives the
comfort of total silence when stationary.  139
 56 73
 38

15
FAMILIARISATION
Familiarisation

MONITORING


Instrument panel
Switch panel



A.
With the ignition on, the needle indicates
the level of fuel remaining.
With the engine running, its associated
warning lamp goes off. If it remains on, this
indicates that you have reached the low
level in the tank.

B.
With the ignition on, the needle indicates
the coolant temperature.
With the engine running, its associated
warning lamp goes off.

C.
With the ignition on, the oil level warning
lamp does not remain on.
If the levels are not correct, top up the levels
which are low.

A.
Intelligent traction control.


1.
With the ignition on, the orange and red
warning lamps come on.

2.
With the engine running, these warning
lamps should go off.
If warning lamps remain on, refer to the section
concerned.


Warning lamps
or
Anti-slip regulation.

B.
Stop & Start.

C.
Hazard warning lamps.

D.
Rear screen and mirrors demisting.

E.
Locking / Unlocking the load space
(Light van).

 30 23 11 8
 11 6
 56
 11 4
 103
 40

17
FAMILIARISATION
Familiarisation

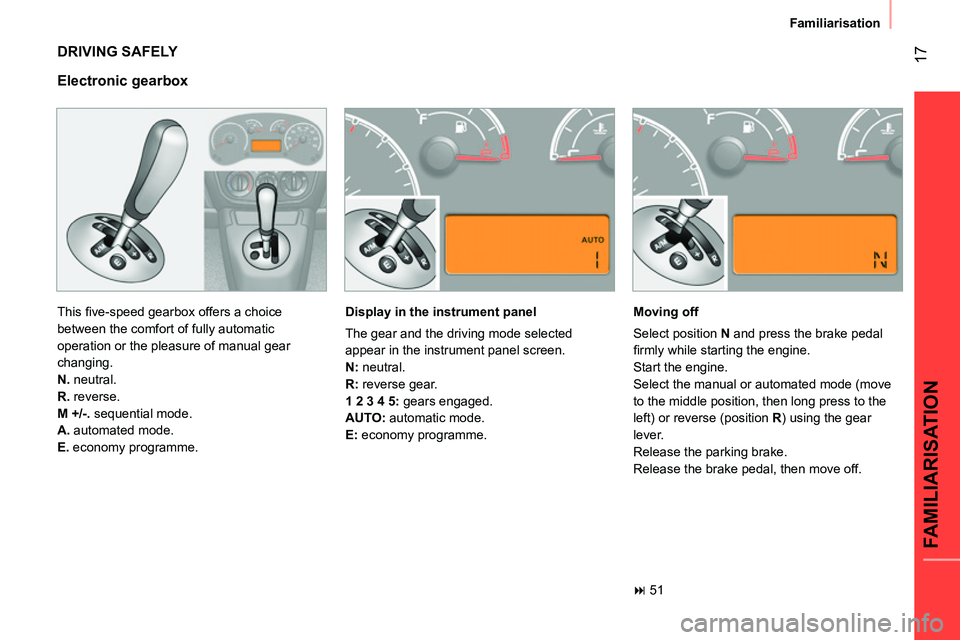

DRIVING SAFELY

This fi ve-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual gear
changing.

N.
neutral.

R.
reverse.

M +/-.
sequential mode.

A.
automated mode.

E.
economy programme.


Electronic gearbox


Display in the instrument panel
The gear and the driving mode selected
appear in the instrument panel screen.

N:
neutral.

R:
reverse gear.

1 2 3 4 5:
gears engaged.

AUTO:
automatic mode.

E:
economy programme.
Moving off
Select position N
and press the brake pedal
fi rmly while starting the engine.
Start the engine.
Select the manual or automated mode (move
to the middle position, then long press to the
left) or reverse (position R
) using the gear
lever.
Release the parking brake.
Release the brake pedal, then move off.

 51

18

Familiarisation

DRIVING SAFELY


Stop & Start



- with a manual gearbox;
with the vehicle
stationary, put the gear lever into neutral,
then release the clutch pedal,

- with an electronic gearbox;
with the
vehicle stationary, maintain pressure on
the brake pedal or put the gear lever in
position N
.
Going into engine STOP mode

The "S"
warning lamp comes on in the instrument
panel and the engine goes into standby:
In certain circumstances, STOP mode may
not be available; a message appears in the
instrument panel screen, accompanied by the
"S"
warning lamp, which fl ashes for a few
seconds then goes off.
Automatic stopping of the engine is only
possible after a speed of about 6 mph
(10 km/h) has been exceeded, to avoid
repeated stopping of the engine when
driving slowly.
Going into engine START mode
The "S"
warning lamp goes off and
the engine restarts:


- with a manual gearbox ;
depress the
clutch pedal,

- with an electronic gearbox;



●
gear lever in position A
or M
, release
the brake pedal,

●
or gear lever in position N
and the brake
pedal released, move the gear lever to
position A
or M
,

●
or engage reverse.

In certain circumstances, START mode may be
invoked automatically; a message appears in
the instrument panel screen, accompanied by
the "S"
warning lamp, which fl ashes for a few
seconds then goes off. You can deactivate the system at any time by
pressing the "S - OFF"
button; the warning
lamp in the button comes on, accompanied by
a message in the instrument panel screen.
The system is automatically reactivated every
time the engine is started with the key.
Deactivation / Reactivation
Before refuelling, before doing anything
under the bonnet or before leaving the
vehicle, you must switch off the ignition
with the key.

 56 57 58

20















































ECO-DRIVING

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.


Optimise the use of your gearbox


With a manual gearbox, move off gently and change up without
waiting. During acceleration change up early.

With an automatic or electronic gearbox, give preference to automatic
mode and avoid pressing the accelerator pedal heavily or suddenly.

The gear effi ciency indicator invites you to change up: as soon as the
indication to change up is displayed in the instrument panel, follow it
straight away.
With an electronic or automatic gearbox, this indicator appears only in
manual mode.



Drive smoothly


Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and CO
2
emissions and also helps reduce the background traffi c noise.

If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffi c is fl owing well.



Control the use of your electrical equipment


Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents open.

Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.

Switch off the headlamps and front foglamps when the level of light
does not require their use.

Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.

As a passenger, if you avoid connecting your multimedia devices
(fi lm, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.

21


Limit the causes of excess consumption


Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and refi t your summer tyres.



Observe the recommendations on maintenance


Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.

Have your vehicle serviced regularly (engine oil, oil fi lter, air fi lter...)
and observe the schedule of operations recommended by the
manufacturer.



When refuelling, do not continue after the third cut-off of the nozzle to
avoid any overfl ow.

At the wheel of your new vehicle, it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle down to
a consistent average.

23
1
READY TO GO



Instruments and controls


WARNING LAMPS

Each time the engine is started: a series of warning lamps comes on applying a self-checking test. They go off almost immediately. When
the engine is running: the warning lamp becomes a warning sign if it remains on continuously or flashes. This initial warning may be
accompanied by an audible signal and a message in the screen. "Do not ignore these warnings."

Warning lamp


is
indicates
Solution - action
Service on temporarily. minor faults. Contact a CITROËN dealer or a qualified
workshop.
continuously on,
accompanied by a
message in the screen. major faults. Make a note of the warning message and contact
a CITROËN dealer or qualifi ed workshop.
Parking brake
Brake fluid level on.

that the parking brake is applied or
has not been released correctly. Releasing the parking brake switches off the
warning lamp.
on. that the fluid level is too
low. Top up using a fluid recommended by CITROËN
dealers.
continuously on, even
though the level is
correct.
Stop as soon as it is safe to do so, park,
switch off the ignition and contact a
CITROËN dealer or qualified workshop.
Low engine oil level on. that the level of oil in the
engine is too low. Check the engine oil level and contact a
CITROËN dealer or a qualified workshop.
continuously on, even
though the level is correct.
Stop as soon as it is safe to do so, park,
switch off the ignition and contact a
CITROËN dealer or a qualified workshop.
Coolant temperature on with the needle in
the red zone. an abnormal increase. Park and switch off the ignition, allow the system
to cool. Visually check the level.
on H in the red zone. an abnormal increase in
the coolant temperature. Refer to the "Levels" section of chapter 7.
Contact a CITROËN dealer or a qualified
workshop.
