CONTENTS
Contents
3
JUMPY-ATLANTE-VP_EN_CHAP00A_SOMMAIRE_ED01-2014
The "Technology on board"
section presents the new audio/
navigation systems.
Towing a trailer 119Other accessories 121
Opening the bonnet 122Diesel engines 123Petrol engine 124Levels 125Checks 127Fuel 130Fuel cut-off 131Diesel priming pump 131
Battery 133Puncture repair kit 135Changing a wheel 137Removable snow screen 141Snow chains 142Changing a bulb 143 a fuse 148 a wiper blade 152Towing the vehicle 153
Dimensions 156Weights 160Identification markings 162
Exterior 163Instruments and controls 164Interior 166Technical data - Maintenance 167
9. TECHNOLOGY on BOARD 5. ACCESSORIES 119-121
6. CHECKS 122-132
7. QUICK HELP 133-154
8. TECHNICAL DATA 155-162
10. VISUAL SEARCH 163-169
The "Visual search" section
assists you in finding the
controls and functions and their
associated page numbers on
the schematic outlines of the
vehicle (visual index).
Emergency or assistance 9.1eMyWay 9.3Audio system 9.63

7
4
7
8
3
2b
2
2a
7
Exterior
FAMILIARISATION
1
JUMPY-ATLANTE-VP_EN_CHAP01_PRISE EN MAIN_ED01-2014
Key
: section identification
: page identification 135
95
Rear suspension
Repairing a wheel Parking sensors
137
Changing a wheel
88
26
24 20
Side-hinged rear doors
Key - Remote control
Sliding side door
156
Usable dimensions

156
Dimensions
JUMPY-ATLANTE-VP_EN_CHAP08_CARACTERISTIQUES TECHNIQUES_ED01-2014

157
Dimensions
TECHNICAL DATA
8
JUMPY-ATLANTE-VP_EN_CHAP08_CARACTERISTIQUES TECHNIQUES_ED01-2014

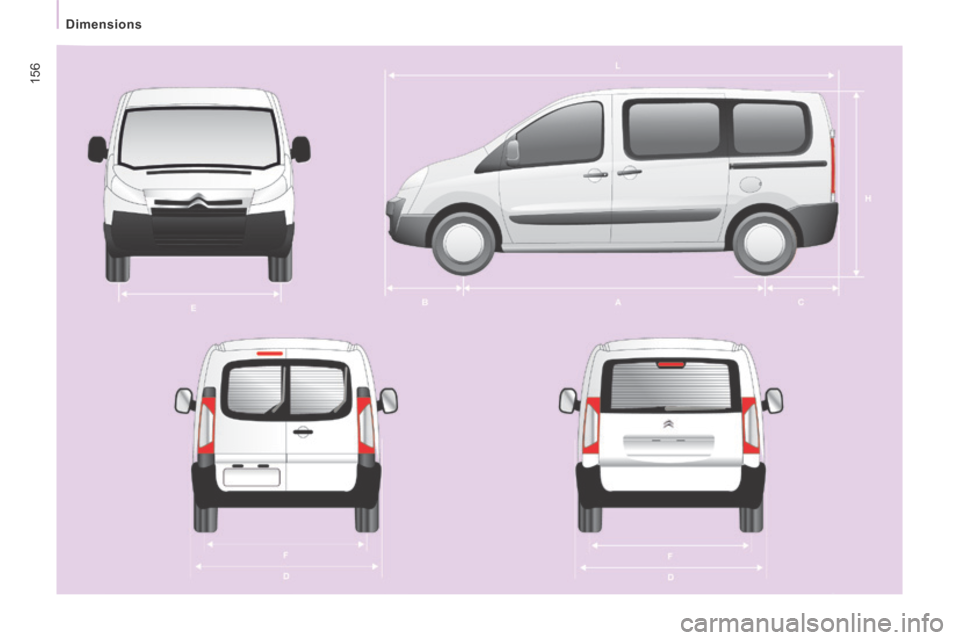

H1
L Overall length 4 805 5 135
H Overall height pneumatic / metal suspension 1 895/1 942
A Wheelbase 3 000 3 122
B Front overhang 975
C Rear overhang 830 1 038
Overall width:
on panel 1 870
D with mouldings 1 895
with mirrors folded 1 986
with mirrors unfolded 2 194
E Width of front tracks 1 574
F Width of rear tracks 1 574
Turning circle between kerbs (m) 12.18 12.59
Maximum loads (kg)
Payload 1 000
On roof 170
DIMENSIONS (MM)
The vehicle is available in 2 lengths (L1, L2) and 1 height (H1),
refer to the tables:

158
Dimensions
JUMPY-ATLANTE-VP_EN_CHAP08_CARACTERISTIQUES TECHNIQUES_ED01-2014
REAR DOORS (mm)
L1 L2

H1
N Usable height 1 272
O Usable width 1 237

159
Dimensions
TECHNICAL DATA
8
JUMPY-ATLANTE-VP_EN_CHAP08_CARACTERISTIQUES TECHNIQUES_ED01-2014
SLIDING SIDE DOOR (mm)
L1 L2

H1
P Height 1 203
Q Width 924

163
Exterior
VISUAL SEARCH
10
JUMPY-ATLANTE-VP_EN_CHAP10_LOCALISATION_ED01-2014
EXTERIOR
Filler cap, fuel tank 130-131
Fuel cut-off, Diesel priming 131-132
Wiper blade
152
Door mirrors 91
Side repeater 145
Front lamps, foglamps, direction
indicators 46-48 Headlamp beam height adjustment 48
Changing front bulbs 143-145
Headlamp wash 49, 126
Snow shield 141
Front doors 23-24
Sliding side door 24-25
Key 21
Opening the bonnet 122
Electric child lock 25
Brakes, pads 94, 125
Emergency braking 96
ABS, EBFD 96
ASR, DSC 97
Tyres, pressures 36-37, 162
Snow chains 142
Rear suspension 88-90
Doors, tailgate
23-26
Emergency control 26
Accessories
121
Number plate lamp 147 Dimensions
156-159
Temporary puncture repair kit 135-136
Spare wheel, jack, changing a wheel, tools 137-141
Inflation, pressures 36-37, 162 Remote control
20-21
Changing the battery,
reinitialisation 21 Key 21
Starting 45
Central locking / unlocking 20, 23-24
Alarm 22-23
Towing, lifting 153-154
Towbar 119-120
Parking sensors 95
Rear lamps,
direction indicators 46-47, 146
3rd brake lamp 147
Changing rear bulbs 143, 146

167
Technical data - Maintenance
VISUAL SEARCH
10
JUMPY-ATLANTE-VP_EN_CHAP10_LOCALISATION_ED01-2014
TECHNICAL DATA - MAINTENANCE
Identification markings, serial number, paint code, tyres 162
Snow chains 142
Engine fuses 148, 151
Windscreen / headlamp wash, levels 1 2 6
Bulbs, lighting, changing bulbs 143-147 Checks
127-128
- battery,
- gearbox,
-
carbon fi lter, passenger compartment fi lter, - oil filter,
- particle emission filter,
- parking brake,
- brake pads,
- brake drums, discs.
Emissions controls (EOBD) 36
Water bleeding, Diesel filter 128
Under the bonnet
- Diesel 123
- petrol 124
Fuel cut-off, Diesel priming 131-132
Dimensions 156-159
Weights 160
Opening the bonnet, stay
122 Levels
125-126
- Diesel additive,
- dipstick,
- power steering fluid,
- brake fluid,
- coolant,
- screen and headlamp wash fluid.
Towing, lifting 153-154
Towed loads 160
Warning lamps
29-34
Changing a wiper blade 152
