2014 Citroen JUMPER headlamp

Failed fuse
135
QUICK HELP
8
JUMPER-PAPIER_EN_CHAP08_AIDE RAPIDE_ED01-2014
Fuses A (amps) Allocation
12 7.5 Right-hand dipped headlamp
13 7.5 Left-hand dipped headlamp
31 7.5 Relay supply
32 10 Cabin lighting
33 15 Rear 12 V socket
34 - Not used
35 7.5 Reversing lamp - Water in Diesel fuel sensor
36 15 Central locking control - Battery
37 7.5 Brake lamp - Third brake lamp - Instrument panel
38 10 Relay supply
39 10 Radio - Diagnostic socket - Alarm siren - Programmable additional heating - Air conditioning controls -
Tachograph - Battery
40 15 Demisting: rear screen (left), driver's side door mirror
41 15 Demisting: rear screen (right), passenger's side door mirror
42 7.5 ABS control unit and sensor - ASR sensor - DSC sensor - Brake lamp switch
43 30 Windscreen wiper motor
44 20 Cigarette lighter - Front 12 V socket
45 7.5 Door controls
46 - Not used
47 20 Driver's electric window motor
48 20 Passenger's electric window motor
49 7.5 Audio equipment - Instrument panel controls - Driver's side electric win\
dow
50 7.5 Airbags and pre-tensioners unit
51 7.5 Tachograph - Cruise control - Air conditioning controls
52 7.5 Optional relay supply
53 7.5 Instrument panel - Rear foglamp

Failed fuse
137
QUICK HELP
8
JUMPER-PAPIER_EN_CHAP08_AIDE RAPIDE_ED01-2014
Fuses in the engine compartment
Remove the nuts and tilt the box to access
the fuses. Fuses
A (amps) Allocation
1 40 ABS pump supply
2 50 Diesel pre-heat unit
3 30 Ignition switch
4 20 Additional programmable heating
5 20 Cabin ventilation with additional programmable heating
6 40/60 Cabin fan maximum speed
7 40/50 Cabin fan minimum speed
8 40 Cabin fan assembly
9 20 Screenwash pump
10 15 Horn
14 7.5 RH main beam
15 7.5 LH main beam
18 7.5 Engine management
19 7.5 Air conditioning compressor
20 30 Headlamp wash pump
21 15 Fuel pump supply
23 30 ABS electrovalves
30 15 Front foglamps

Failed bulb or lamp
138
JUMPER-PAPIER_EN_CHAP08_AIDE RAPIDE_ED01-2014
When using a high pressure washer
on stubborn dirt, do not persist on
the headlamps, the lamps and their edges
to avoid damaging their lacquer finish and
seals.
CHANGING A BULB
Types of bulb and lamp
Various types of bulb and lamp are used on
your vehicle.
To remove them:
Type A Entirely glass bulb: pull gently as it is fitted by pressure.
Type B Bayonet bulb: press on the bulb then turn it anticlockwise.
Type C Cylindrical bulb: move aside the contacts. For removing and refitting the screws,
use the screwdriver stowed in the tool
box under the front passenger's seat.
Carry out the operations in reverse order to
refit each bulb.
Type D - E Halogen bulb: release the retaining spring from its
housing.
Always replace a failed bulb or lamp
with a new bulb or lamp of the same
type and specification.

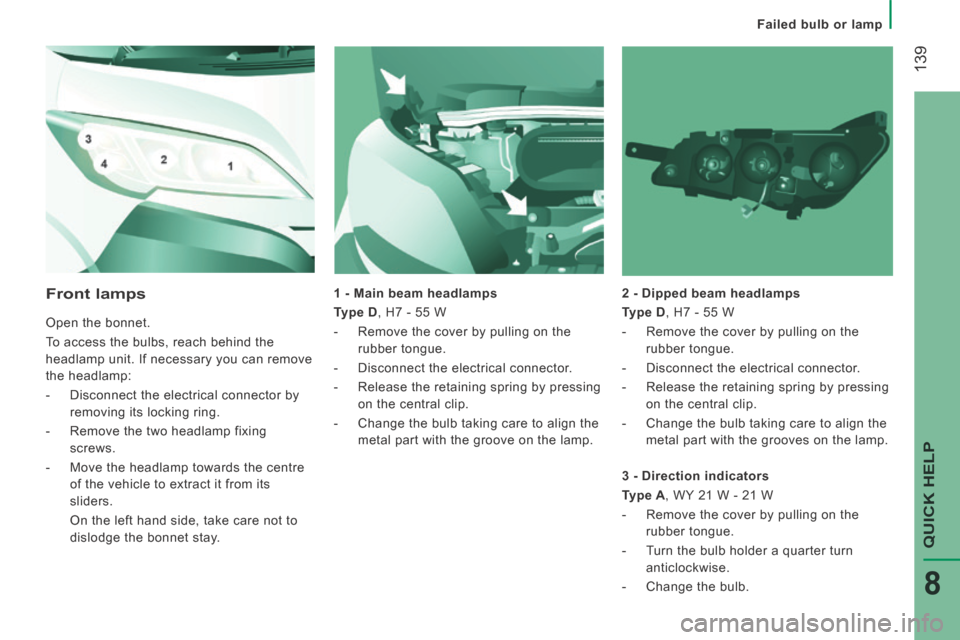

Failed bulb or lamp
139
QUICK HELP
8
JUMPER-PAPIER_EN_CHAP08_AIDE RAPIDE_ED01-2014
1 - Main beam headlamps
Type D , H7 - 55 W
- Remove the cover by pulling on the rubber tongue.
- Disconnect the electrical connector.
- Release the retaining spring by pressing on the central clip.
- Change the bulb taking care to align the metal part with the groove on the lamp. 2 - Dipped beam headlamps
Type D , H7 - 55 W
- Remove the cover by pulling on the
rubber tongue.
- Disconnect the electrical connector.
- Release the retaining spring by pressing on the central clip.
- Change the bulb taking care to align the metal part with the grooves on the lamp. Front lamps
Open the bonnet.
To access the bulbs, reach behind the
headlamp unit. If necessary you can remove
the headlamp:
- Disconnect the electrical connector by removing its locking ring.
- Remove the two headlamp fixing screws.
- Move the headlamp towards the centre of the vehicle to extract it from its
sliders.
On the left hand side, take care not to dislodge the bonnet stay. 3 - Direction indicators
Type A , WY 21 W - 21 W
- Remove the cover by pulling on the
rubber tongue.
- Turn the bulb holder a quarter turn anticlockwise.
- Change the bulb.

Failed bulb or lamp
140
JUMPER-PAPIER_EN_CHAP08_AIDE RAPIDE_ED01-2014
Halogen bulbs must be changed after
the headlamp has been off for several
minutes (risk of serious burns). Do not touch
the bulb directly with your fingers, use lint-
free cloths.
When each operation has been completed,
check the operation of the lamps.
5 - Foglamps
Type E , H1 - 55 W
- Turn the steering fully to the left.
- Remove the screw located in the wheel arch then open the flap.
- Remove the cover.
- Disconnect the electrical connector.
- Release the retaining spring by pressing on the two clips.
- Change the bulb taking care to align the metal part with the grooves on the lamp.
LED daytime running lamps
These light-emitting diode (LED) lamps
serve as both daytime running lamps and
sidelamps.
If your vehicle is fitted with LED daytime
running lamps, contact a CITROËN dealer. 4 - Sidelamps / daytime running lamps
Type A , W21/5W - 21W and 5W
- Remove the cover by pulling on the rubber tongue.
- Turn the bulb holder a quarter of a turn anti-clockwise.
- Change the bulb.

Worn wiper blade
144
JUMPER-PAPIER_EN_CHAP08_AIDE RAPIDE_ED01-2014
CHANGING A WIPER BLADE
The steps, located in the front bumper,
enable you to access the blades and the
screenwash nozzles. Changing a front wiper blade
Lift the wiper arm.
Unclip the blade by pressing the button and
remove it by pulling it outwards.
Fit the new blade and ensure that it is
secured correctly.
Push back the wiper arm.
Changing the rear wiper blade
Lift the wiper arm, then unclip the blade and
remove it.
Fit the new blade and push back the wiper arm.
To return the windscreen wipers to their
normal position, switch on the ignition
and operate the wiper control stalk. Check that the screenwash or headlamp
wash nozzles are not blocked.

10.37
JUMPER-PAPIER_EN_CHAP10A_AUTORADIO_FIAT-TACTILE-1_ED01-2014
Level 1Level 2Level 3Comment
Settings
Safety /Help
Reversing camera
On
Display the reversing camera in reverse.
Off
Settings
Lamps
Daytime lighting
On
Set the automatic illumination of headlamps when starting.
Off
Settings
Doors and locking
Autoclose
On
Set the automatic locking of doors when the vehicle is moving.
Off
