2014 Citroen JUMPER technical data

153
9
TECHNICAL DATA
Dimensions
JUMPER-PAPIER_EN_CHAP09_CARACTERISTIQUES TECHNIQUES_ED01-2014
DIMENSIONS
Your vehicle is available in 4 lengths (L1...) and 3 heights (H1...),\
refer to the corresponding tables: VA N
L1 L2 L3 L4
H1 H2 H1 H2 H2 H3 H2 H3
L Overall length 4 963 5 413 5 998 6 363
H Overall height 2 254 2 524 2 254 2 524 2 524 2 764 2 524 2 764
A Wheelbase 3 000 3 450 4 035
B Front overhang 948
C Rear overhang 1 015 1 380
D Overall width (incl./excl. mirrors) 2 508 / 2 050
E Width of front track 1 810
F Width of rear track 1 790
G Height of load floor 535 to 565
I Length of interior floor 2 670 3 120 3 705 4 070
J Maximum interior load height 1 662 1 932 1 662 1 932 1 932 2 172 1 932 2 172
K Maximum interior width 1 870
M Interior width between wheel arches 1 422
Volume (m
3 ) 8 9.5 10 11.5 13 15 15 17

155
9
TECHNICAL DATA
Dimensions
JUMPER-PAPIER_EN_CHAP09_CARACTERISTIQUES TECHNIQUES_ED01-2014
SIDE DOOR
L1 L2 L3 L4
H1 H2 H1 H2 H2 H3 H2 H3
P Height of the sliding side door 1 485 1 755 1 485 1 755
Q Width of the sliding side door 1 075 1 250

157
9
TECHNICAL DATA
Dimensions
JUMPER-PAPIER_EN_CHAP09_CARACTERISTIQUES TECHNIQUES_ED01-2014
CHASSIS CAB
L1 L2 L2S L3 L4
L Overall length 4 908 5 358 5 708 5 943 6 208
A Wheelbase 3 000 3 450 3 800 4 035 4 035
B Front overhang 948
C Rear overhang 960 1 225
D Overall width (incl./excl. mirrors) 2 508 / 2 050
- Passable width 2 207
- Max permitted body width 2 350
E Width of front track 1 810
- Width of rear track 1 790
- Width of increased rear track 1 980
F Overall height 2 153
- Max permitted body height 3 500

Diesel engines
159
9
TECHNICAL DATA
JUMPER-PAPIER_EN_CHAP09_CARACTERISTIQUES TECHNIQUES_ED01-2014
Quality of the fuel used for Diesel engines
The Diesel engines are perfectly compatible with biofuels which conform \
to current and future European standards (Diesel fuel which
complies with standard EN 590 mixed with a biofuel which complies with s\
tandard EN 14214) available at the pumps (containing up to 5%
Fatty Acid Methyl Ester).
The B30 biofuel can be used in certain Diesel engines; however, this use is subject to strict application of the special servicing con\
ditions
given in the maintenance and warranty guide. Contact a CITROËN dealer\
or a qualified workshop.
The use of any other type of (bio)fuel (vegetable or animal oils, pur\
e or diluted, domestic fuel...) is strictly prohibited (risk of damage to the
engine and fuel system). ENGINES AND GEARBOXES

Diesel engine 2.2 litre HDi
11 0 2 .2 litre HDi 13 0
2.2 litre e-HDi 130
2 .2 litre HDi 150

2.2 litre e-HDi 150 3 litre HDi
155 3 litre HDi
180
Gearbox Manual
Gears 6 6 6 6 6
Maximum power (hp) 11 0 120 130 150 156 180
EU standard maximum power (kW) 81 88 96 11 0 11 5 130
Cubic capacity (cc) 2 198 2 198 2198 2 999 2 999
Bore x stroke (mm) 86 x 94.6 86 x 94.6 86 x 94.6 95.8 x 104 95.8 x 104
Max power engine speed (rpm) 3 500 3 500 3 500 3 500 3 600
EU standard max torque (daNm) 250 320 320 400 400
Max torque engine speed (rpm) 1 500 2 000 2 000 1 400 1 400
Fuel Diesel Diesel Diesel Diesel Diesel
Catalytic converter Ye s Ye s Ye s Ye s Ye s
Particle emissions filter Ye s No Ye s Ye s Ye s Ye s

Engine oil capacity (in litres)
after draining and oil filter replacement 6.2
6.4 6.2 6.2 9 9

Weights
161
9
TECHNICAL DATA
JUMPER-PAPIER_EN_CHAP09_CARACTERISTIQUES TECHNIQUES_ED01-2014

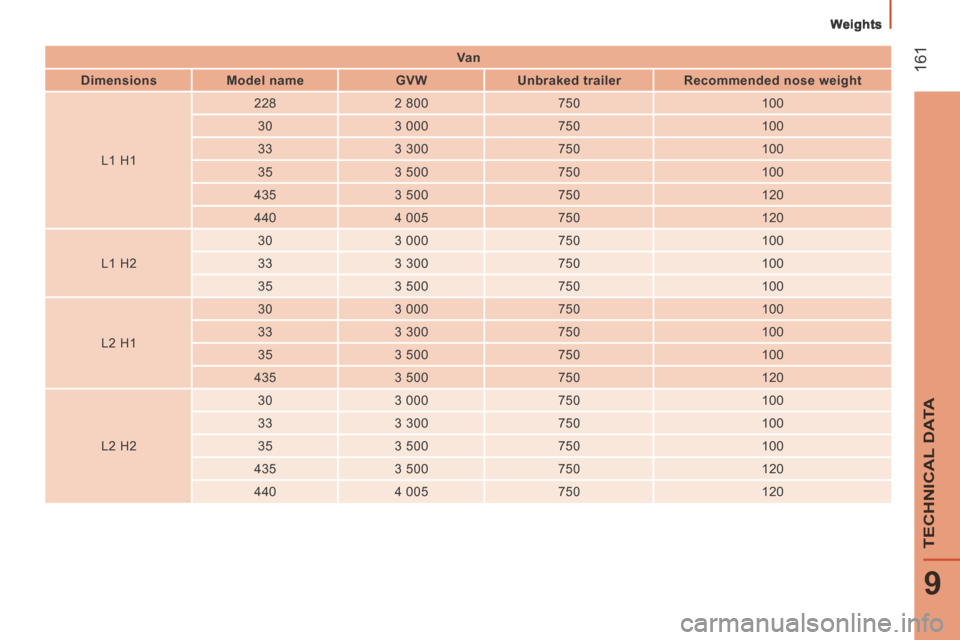

Va n
Dimensions Model name GVW Unbraked trailer Recommended nose weight
L1 H1 228
2 800 750 100
30 3 000 750 100
33 3 300 750 100
35 3 500 750 100
435 3 500 750 120
440 4 005 750 120
L1 H2 30
3 000 750 100
33 3 300 750 100
35 3 500 750 100
L2 H1 30
3 000 750 100
33 3 300 750 100
35 3 500 750 100
435 3 500 750 120
L2 H2 30
3 000 750 100
33 3 300 750 100
35 3 500 750 100
435 3 500 750 120
440 4 005 750 120

Vehicle identification
163
9
TECHNICAL DATA
JUMPER-PAPIER_EN_CHAP09_CARACTERISTIQUES TECHNIQUES_ED01-2014
IDENTIFICATION MARKINGS
A. Manufacturer's plate
1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle.
B. Serial number on the bodywork
D. Paint code C. Tyres
The label C (image given as an indication
only) affixed to the vehicle's door pillar, on
the driver's side, indicates:
- the tyre sizes,
- the unladen and laden tyre pressures
- the spare tyre pressure.
E. Serial number on the bodywork
This number is located under the plastic
cover, at the sill on the right-hand side.
The tyre pressures must be checked cold,
at least monthly.
