2014 Citroen DS5 HYBRID4 boot

111Comfort
DS5-HYBRID_EN_CHAP03_CONFORT_ED02-2013
Rear seats Bench seat with split cushion and backrest (left hand 2/3, right hand 1/3) which can be folded individually to adapt the load space in the boot.
 Move the corresponding front seat for ward if necessary.  Place the head restraints in the low
position or remove them.  Remove the seat belt from its guide.
Folding the cushion
and backrest
 Lift the cushion 1 by hand, lifting from the r e a r.
 Tip the seat cushion 1 fully against the front seat.  Keep the seat belt guide 2 held against the vehicle.
 Pull control 3 for wards to release the seat back 4.  Fold the seat backrest 4 .

11 3Comfort
DS5-HYBRID_EN_CHAP03_CONFORT_ED02-2013

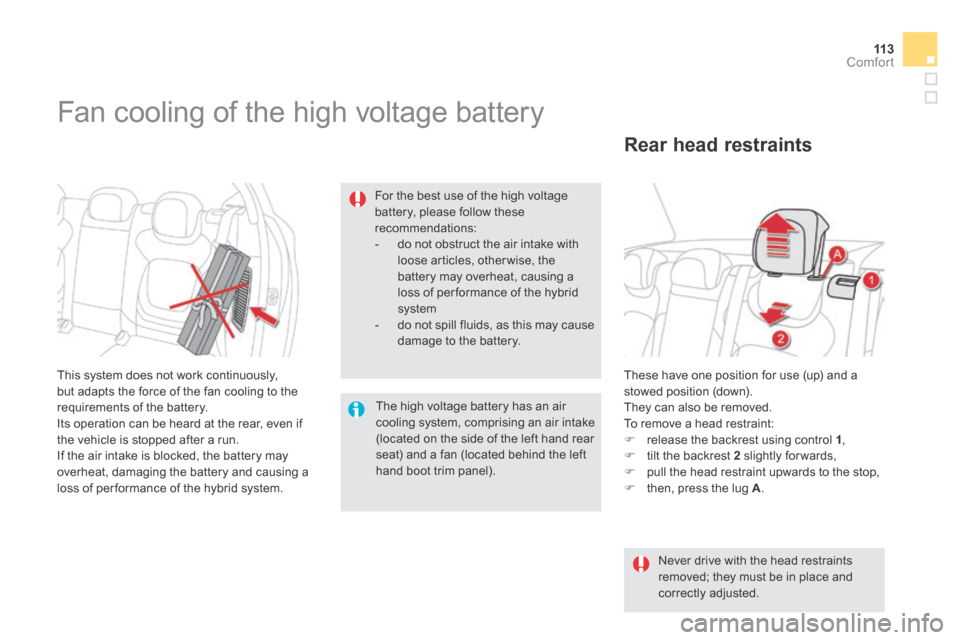

These have one position for use (up) and a stowed position (down). They can also be removed. To remove a head restraint:  release the backrest using control 1 ,  tilt the backrest 2 slightly for wards,  pull the head restraint upwards to the stop,  then, press the lug A .
Rear head restraints
Never drive with the head restraints removed; they must be in place and correctly adjusted.
Fan cooling of the high voltage battery
This system does not work continuously, but adapts the force of the fan cooling to the requirements of the battery. Its operation can be heard at the rear, even if the vehicle is stopped after a run. If the air intake is blocked, the battery may overheat, damaging the battery and causing a loss of per formance of the hybrid system.
For the best use of the high voltage battery, please follow these recommendations: - do not obstruct the air intake with loose articles, otherwise, the battery may overheat, causing a loss of per formance of the hybrid system - do not spill fluids, as this may cause damage to the battery.
The high voltage battery has an air cooling system, comprising an air intake (located on the side of the left hand rear seat) and a fan (located behind the left hand boot trim panel).

11 9Comfort
DS5-HYBRID_EN_CHAP03_CONFORT_ED02-2013
Ski fl ap
Facility for storing and transporting long objects.  Lower the rear armrest for a more comfortable position. It may be fitted with cup holders and also gives access to the ski flap.

Rear armrest
Opening
 Lower the armrest.  Press the flap opening control.  Lower the flap.  Load the objects from inside the boot.
Do not leave the flap open when not transporting long objects.

DS5-HYBRID_EN_CHAP03_CONFORT_ED02-2013
Boot fi ttings
1. Rear parcel shelf Rear parcel shelf Rear parcel shelf It can be removed for carrying large objects. 2. Bag hooks
3. Warning triangle retaining straps4. Removable boot floor Removable boot floor Removable boot floor Lift the floor using the grip and follow the guides.

121Comfort
DS5-HYBRID_EN_CHAP03_CONFORT_ED02-2013
Warning triangle (stowing)
Use the straps on the interior boot trim to stow the folded triangle or its storage box.
Before getting out of your vehicle to assemble the triangle and place it on the road, put on your high visibility vest. The triangle is available as an accessory, contact a CITROËN dealer or a qualified workshop. Refer to the manufacturer's instructions for use of the triangle.
Placing the triangle in
the road
 Place the triangle at a distance behind the vehicle, as shown in the table below, according to the type of road and the level of ambient light.
Distance from your vehicle (in metres)
RoadMotor wayDayNight
50 m 80 m 150 m
These are the internationally recognised values. Use the triangle in line with local driving regulations.
Placing the triangle on the road
Place the triangle behind the vehicle, as required by the legislation in force in your c o unt r y.

123Comfort
DS5-HYBRID_EN_CHAP03_CONFORT_ED02-2013
In order for these systems to be fully effective, follow the operation and maintenance guidelines below:  To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as well as the air extractor located in the boot.  Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the digital air conditioning system.  Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month to keep it in per fect working order.  Ensure that the passenger compartment filter is in good condition and have the filter elements replaced regularly (refer to the "Checks" section). We recommend the use of a combined passenger compartment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by the occupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).  To ensure correct operation of the air conditioning system, you are also advised to have it checked regularly as recommended in the maintenance and warranty guide.  If the system does not produce cold air, switch it off and contact a CITROËN dealer or a qualified workshop. You can switch off the air conditioning (AC button) and stay in Automatic mode in order to limit fuel consumption. If misting appears while in this mode, you can switch the air conditioning back on temporarily to improve the situation. When towing the maximum load on a steep gradient in high temperatures, switching off the air conditioning increases the available engine power and so improves the towing ability.
Recommendations for ventilation and air conditioning
If after an extended stop in sunshine, the interior temperature is very high, first ventilate the passenger compartment for a few moments. Put the air flow control at a setting high enough to quickly change the air in the passenger compartment. The air conditioning system does not contain chlorine and does not present any danger to the ozone layer.
The condensation created by the air conditioning results in a discharge of water under the vehicle which is per fectly normal.

DS5-HYBRID_EN_CHAP05_VISIBILITE_ED02-2013
Manual adjustment
of halogen
headlamps Automatic adjustment of xenon headlamps
To avoid causing a nuisance to other road users, the height of the halogen headlamps should be adjusted according to the load in the vehicle. 0. 1 or 2 people in the front seats. -. Intermediate setting. 1. 5 people + maximum authorised load. -. Intermediate setting. 2. Driver + maximum authorised load. -. Intermediate setting. 3. 5 people + maximum load in the boot.
The initial setting is position "0" .
If a fault occurs, this warning lamp is displayed in the instrument panel, accompanied by an audible signal and a message in the instrument panel screen. The system then places your headlamps in the lowest position.
In order to avoid causing a nuisance to other road users, this system corrects the height of the xenon headlamps beam automatically and when stationary, in relation to the load in the vehicle.
If a fault occurs, do not touch the xenon bulbs. Contact a CITROËN dealer or a qualified workshop.

DS5-HYBRID_EN_CHAP05_VISIBILITE_ED02-2013
Rear wiper
If a significant accumulation of snow or ice is present, or when using a bicycle carrier on the boot, deactivate the automatic rear wiper via the configuration menu.
park,
intermittent wipe,
wash-wipe (set duration).
Reverse gear
When reverse gear is engaged, the rear wiper will come into operation if the windscreen wipers are operating.
The function is activated or deactivated via the configuration menu. This function is activated by default.
Programming
 Pull the windscreen wiper stalk towards you. The windscreen wash then the windscreen wipers operate for a fixed period.
The headlamp washers only operate when the dipped or main beam headlamps are on, with the vehicle moving .
Windscreen and headlamp
wash
Rear wiper selection ring:
To reduce the consumption of the fluid by the headlamp washers, they operate only with every seventh use of the screenwash or every 25 miles (40 km) during a given journey.
