2014 CITROEN DS3 CABRIO fuse box

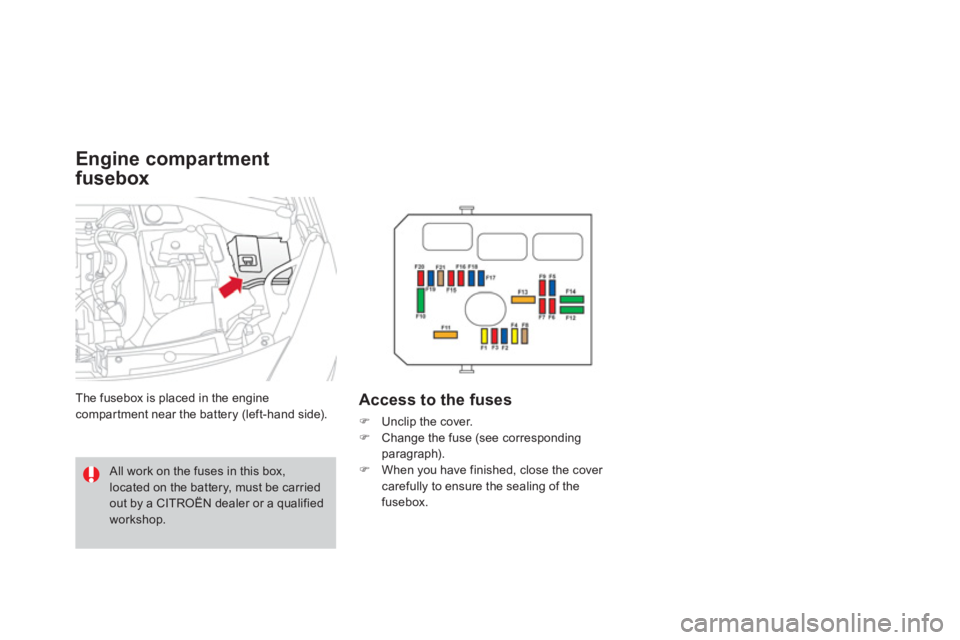

Engine compartment
fusebox
The fusebox is placed in the engine compartment near the battery (left-hand side).
Access to the fuses
)
Unclip the cover.)
Change the fuse (see correspondingparagraph).)
When you have finished, close the cover carefully to ensure the sealing of thefusebox.
All work on the fuses in this box,located on the battery, must be carried out by a CITROËN dealer or a qualified workshop.

229Practical information

Fuse table
Fuse N°RatingFunctions
F120 A
Engine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump(Diesel).
F
215 A Horn.
F
310 A Front / rear wash-wipe.
F420 A LED lamps.
F5
15 A Diesel heater (Diesel), particle filter additive pump (Diesel), air flow sensor (Diesel), EGR electrovalve (Diesel),
blow-by heater and electrovalves (VTi).
F
610 A ABS/ESP control unit, secondary stop switch.
F
710 A Electric power steering, automatic gearbox.
F8
25 A Starter control.
F
910 A Switching and protection unit (Diesel).
F10 30 A
Fuel heater
(Diesel), blow-by heater (Diesel), fuel pump (VTi), injectors and ignition coils (petrol).
F1140 A Heater blower.

231Practical information

Table of maxi-fuses
Fuse N°RatingFunctions
MF1*60 A Fan assembly.
MF2* 30 A
ABS / ESP pump.
MF3 * 30 A
ABS / ESP electrovalves.
MF4 * 60 A
Built-in Systems Interface (BSI) supply.
MF5 *60 A
Built-in Systems Interface (BSI) supply.
MF6 * 30 A
Additional cooling fan unit (THP).
MF7 * 80
A
Dashboard fusebox.
MF8 *-
Not used.

*

The maxi-fuses provide additional protection for the electrical s
ystems. All work on the maxi-fuses must be carried out by a CITROËN dealer or a qualified workshop.

243Practical information

"Multimedia":

hands-free system, audio systems, semi-
integral satellite navigation system, portablenavigation systems, mapping update CD,
driving assistant system, DVD player, reversing camera, USB Box, speakers, Hi-Fi module,
230V socket, WiFi on Board, telephone/
smartphone carrier, rear multimedia carrier... B
y visiting a CITROËN dealer, you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecologicalproducts from the "TECHNATURE" range,products for topping up (screenwash fluid...),
touch-up pens and paint aerosols for the exact
colour of your vehicle, refills (cartridge for the
temporary puncture repair kit...), ...



Installation of radio communication transmitters

Before installing any after-market radio communication transmitter, you can contact a CITROËN dealer for the specification of transmitters which canbe fitted (frequency, maximum power, aerial position, specific installationrequirements), in line with the VehicleElectromagnetic Compatibility Directive(2004/10 4/EC).



The fitting of electrical equipment or accessories which are not recommended by CITROËN may resultin a failure of your vehicle's electronicsystem and excessive electrical consumption.
Please note this precaution. Youare advised to contact a CITROËNrepresentative to be shown the rangeof recommended equipment and accessories.
Depending on the legislation in force in the country, it may be compulsoryto have a high visibility safety vest, warning triangle, breathalyzers and spare bulbs and fuses available in the vehicle.
