Page 118 of 328
6
FITTINGS
116
REAR ARMREST
Comfort system for the rear passen-
gers.
Lower the rear armrest for a more
comfortable position.
This also gives access to the ski fl ap.
SKI FLAP
Arrangement for storing and transporting
long objects.
Opening
Lower the rear armrest.
Pull the fl ap handle downwards.
Lower the fl ap.
Load the objects from inside the
boot.
Page 119 of 328
6
FITTINGS
117
BOOT FITTINGS
1.
Rear parcel shelf
(see details on a following page)
2.
Hooks
(see details on a following page)
3.
12 V accessory socket
(see details on a following page)
4.
Torch
(see details on following pages)
5.
Lashing rings
6.
Storage box
(see details on following pages)
7.
Retaining straps
8.
Storage net
Page 120 of 328
6
FITTINGS
118
To remove the shelf:
unhook the two cords,
raise the shelf slightly, then remove it.
There are several options for storing
the shelf:
- either upright behind the front seats,
- or fl at at the base of the boot.
Rear parcel shelf
The hooks can be used to secure shop-
ping bags.
Hooks
An additional hook under the
shelf is used to hold up the boot
fl oor using its cord, to facilitate
access to the tools and spare
wheel or the temporary puncture
repair kit...
Access to the storage box
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.
Turn the key to the ignition on posi-
tion.
12 V accessory socket
Page 121 of 328
6
FITTINGS
119
This is a removable lamp, fi tted in the
boot wall, which can be used to light the
boot or as a torch.
For the boot lamp function, refer to the
"Visibility - § Boot lamp" section.
Torch
Operation
This torch operates with NiMH type re-
chargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving.
Use
Extract the torch from its location
pulling it upwards.
Press the switch, located on the
back, to switch the torch on or off.
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing
Put the torch back in place in its lo-
cation starting with the lower part.
If you have forgotten to switch off
the torch, this switches it off auto-
matically.
Raise the boot carpet for access to
the storage box.
This has areas for the storage of a box
of spare bulbs, a fi rst aid kit, two warn-
ing triangles...
It also contains the vehicle tools, the
temporary puncture repair kit...
Storage box
Observe the polarities when fi t-
ting the rechargeable batteries.
Never replace the rechargeable
batteries with normal disposable
batteries. It the torch is not engaged cor-
rectly, it may not charge and may
not come on when the boot is
opened.
Page 150 of 328
9
DRIVING
148
Emergency braking
In the event of failure of the
electronic stability control sys-
tem, signalled by the illumina-
tion of this warning lamp, brak-
ing stability is then not guaranteed.
In this event, stability must be assured
by the driver by repeating alternate
"pull-release" actions on the control
lever A
.
In the event of a failure of the main ser-
vice brake or in an exceptional situation
(e.g. driver taken ill, under instruction,
etc) a continuous pull on the control
lever A
will stop the vehicle.
The electronic stability control provides
stability during emergency braking.
If the emergency braking malfunctions,
the message "Parking brake faulty" will
be displayed.
The emergency braking must
only be used in exceptional cir-
cumstances.
Emergency release
In the event of the electric parking brake
malfunctioning or the battery running
fl at, an emergency device can be used
to release the parking brake manually.
Access to tools
The tools are stowed in the storage box
under the boot carpet.
* Available according to equipment: if
these tools are not present, contact a
CITROËN dealer or a qualifi ed work-
shop to obtain them.
B
Chocks*.
C
Release crank*.
Page 151 of 328
9
DRIVING
149
Immobilise the vehicle (or keep
it stationary, if the brake pedal is
pressed), with the engine running,
by engaging fi rst gear (manual
gearbox) or position M
or R
(elec-
tronic gearbox).
Switch off the engine but leave the
ignition on. If it is not possible to im-
mobilise the vehicle, do not operate
the control and contact a CITROËN
dealer or a qualifi ed workshop with-
out delay.
Immobilise the vehicle by placing
the blocks in front or behind the two
front wheels, opposite to the direc-
tion of the slope.
For safety reasons, after this op-
eration it is essential to contact
a CITROËN dealer or a qualifi ed
workshop without delay to re-
place the protective cover.
Following an emergency unlock-
ing, immobilisation of the vehicle
is no longer assured once the
manual emergency release has
been deployed and the manual
control does not allow the re-ap-
plication of your parking brake.
Take no action, either on the
control lever A
, or stopping start-
ing the engine while the release
crank is engaged.
Take care not to allow moisture
or dust in the proximity of the
protective cover.
Remove the storage box under the
boot carpet for access to the emer-
gency release device.
Pierce the protective cover D
on the
tube E
with the release crank.
Introduce the release crank into the
tube.
Turn the release device clockwise .
For safety reasons
, it is essential
to continue turning the device until it
reaches its stop. The parking brake
is released.
Remove the release crank and stow
it with the chocks in the storage box
under the boot carpet.
- Switch the ignition off and then on
to reinitialise the parking brake. If
the reinitialisation of the parking
brake proves impossible, contact
a CITROËN dealer or a qualifi ed
workshop.
- The subsequent time required for
application may be longer than dur-
ing normal operation.
Page 189 of 328
11
PRACTICAL INFORMATION
187

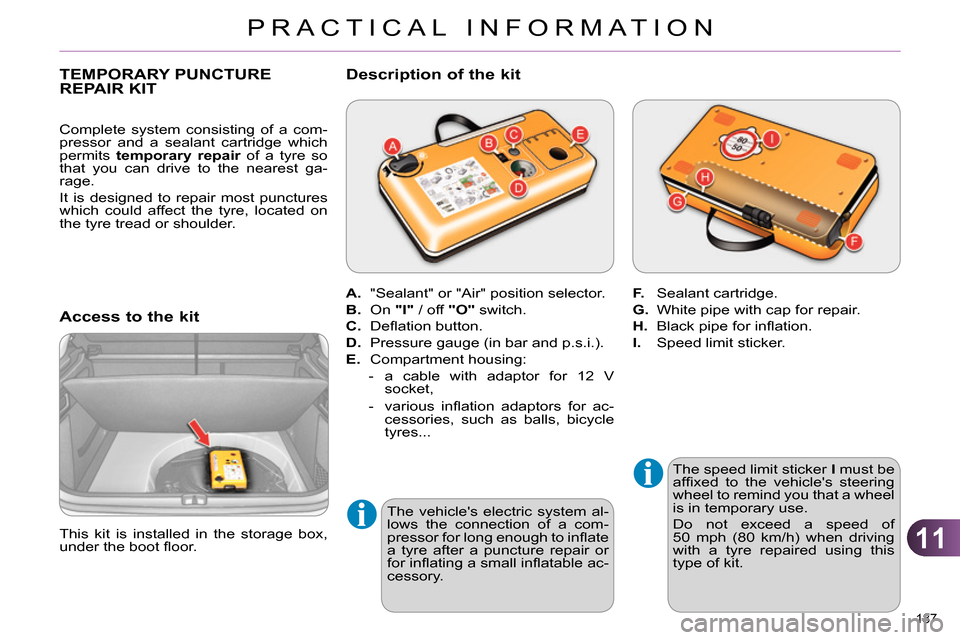

TEMPORARY PUNCTURE
REPAIR KIT
Access to the kit
The speed limit sticker I
must be
affi xed to the vehicle's steering
wheel to remind you that a wheel
is in temporary use.
Do not exceed a speed of
50 mph (80 km/h) when driving
with a tyre repaired using this
type of kit.
This kit is installed in the storage box,
under the boot fl oor.
A.
"Sealant" or "Air" position selector.
B.
On "I"
/ off "O"
switch.
C.
Defl ation button.
D.
Pressure gauge (in bar and p.s.i.).
E.
Compartment housing:
- a cable with adaptor for 12 V
socket,
- various infl ation adaptors for ac-
cessories, such as balls, bicycle
tyres...
Description of the kit
F.
Sealant cartridge.
G.
White pipe with cap for repair.
H.
Black pipe for infl ation.
I.
Speed limit sticker.
Complete system consisting of a com-
pressor and a sealant cartridge which
permits temporary repair
of a tyre so
that you can drive to the nearest ga-
rage.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.
The vehicle's electric system al-
lows the connection of a com-
pressor for long enough to infl ate
a tyre after a puncture repair or
for infl ating a small infl atable ac-
cessory.
Page 194 of 328
11
PRACTICAL INFORMATION
192
CHANGING A WHEEL
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
Access to the tools
The tools are installed in the boot under
the fl oor.
To gain access to them:
open the boot,
raise the fl oor,
secure it by hooking its cord on the
hook on the rear shelf support,
with a standard size spare wheel,
unclip and remove the box in the
middle of the wheel containing the
tools,
or
with a "space-saver" spare wheel;
lift the wheel at the rear towards you
for access to the storage box con-
taining the tools.
List of tools
All of these tools are specifi c to your
vehicle. Do not use them for other pur-
poses.
1.
Wheelbrace.
For removing the wheel trim and
the wheel fi xing bolts.
2.
Jack with integral handle.
For raising the vehicle.
3.
"Bolt cover" tool.
For removing the bolt protectors
(covers) on alloy wheels.
4.
Socket for the security bolts (lo-
cated in the glove box).
For adapting the wheelbrace to the
special "security" bolts.
Wheel with trim
When removing the wheel
, detach the trim fi rst using the wheelbrace 1
pulling at the valve passage hole.
When refi tting the wheel
, refi t the trim starting by placing its notch facing
the valve and press around its edge with the palm of your hand.
