Page 93 of 340
4
ACCESS
91
BOOT
Opening
After unlocking the boot or the ve-
hicle using the remote control or the
key, press the opening control, then
raise the tailgate.
Closing
Lower the tailgate using the interior
grab handle.
If necessary, press down on the tail-
gate to fully close it.
Tailgate release
System allowing the mechanical unlock-
ing of the boot in the event of a battery or
central locking system malfunction.
Unlocking
Fold back the rear seats to gain
access to the lock from inside the
boot.
Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Move the latch to the left.
If the tailgate is not closed correctly:
- when the engine is running
,
this warning lamp comes on,
accompanied by the display
of an alert message for a few
seconds,
- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied by
an audible signal and the display of
an alert message for a few seconds.
Locking after closing
If the fault persists after closing again,
the boot will remain locked.
Page 111 of 340
5
VISIBILITY
109
B.
Rear wiper selection ring: turn the
ring to place the desired symbol
against the marking.
Rear wiper
If a signifi cant accumulation of
snow or ice is present, or when
using a tailgate bicycle carrier,
deactivate the automatic rear
wiper via the vehicle confi gura-
tion menu. Park.
Intermittent wipe.
Wash-wipe.
Turn the ring to its stop/the rear
screen wash, then the rear wiper
operates for a set duration.
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.
The function is activated or de-
activated via the vehicle confi gu-
ration menu.
This function is activated by de-
fault.
Programming
Special position of the
windscreen wipers
To maintain the effectiveness
of the "fl at-blade" type of wiper
blades, it is advisable to:
- handle them with care,
- clean them regularly using
soapy water,
- avoid using them to retain
cardboard on the wind-
screen,
- replace them at the fi rst signs
of wear.
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
Any action on the wiper stalk in the
minute after switching off the igni-
tion places the blades vertically on
the screen.
To park the blades again, switch on
the ignition and operate the wiper
stalk.
Page 209 of 340
11
PRACTICAL INFORMATION
207
Rear lamps
1.
Brake/
sidelamp
(P21/5W).
2.
Direction
indicator
(PY21W amber)
.
3.
Reversing lamp (P21W).
4.
Rear
foglamp
(P21W).
Amber bulbs, such as those for
the direction indicators, must be
replaced by bulbs of the same
rating and colour.
The lamps on the tailgate are
dummy units. They are there for
aesthetic purposes only.
Changing bulbs
These four bulbs are changed from in-
side the boot:
open the boot,
remove the access fl ap from the
corresponding side trim panel,
unclip the lamp unit connector,
As a precaution, place a cloth in the
bottom of the housing to catch the
nut if it is dropped on removal,
slacken the hexagonal nut using a
10 mm tube spanner then remove
the nut by hand,
remove the two bulb holder fi xing
screws,
extract the lamp unit carefully pull-
ing in its middle towards the outside,
spread the four tabs and remove
the bulb holder,
turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in
reverse order.
Take care to engage the lamp unit in its
guides, while keeping it in line with the
vehicle.
Tighten suffi ciently to ensure sealing,
but without damaging the lamp.

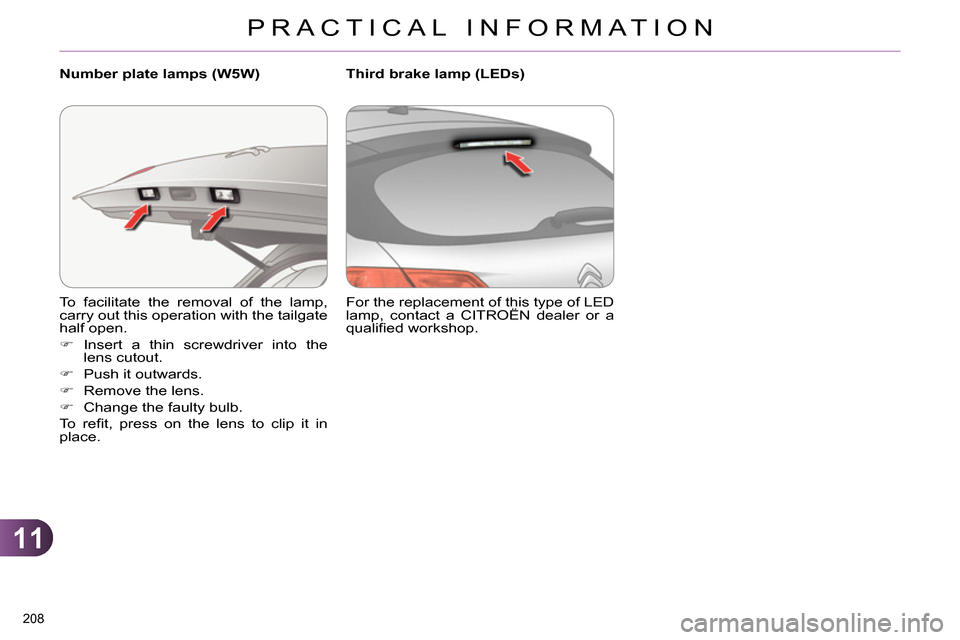

Page 210 of 340
11
PRACTICAL INFORMATION
208
To facilitate the removal of the lamp,
carry out this operation with the tailgate
half open.
Insert a thin screwdriver into the
lens cutout.
Push it outwards.
Remove the lens.
Change the faulty bulb.
To r efi t, press on the lens to clip it in
place.
Number plate lamps (W5W)
For the replacement of this type of LED
lamp, contact a CITROËN dealer or a
qualifi ed workshop.
Third brake lamp (LEDs)
